THIS PRODUCT IS DISCONTINUED

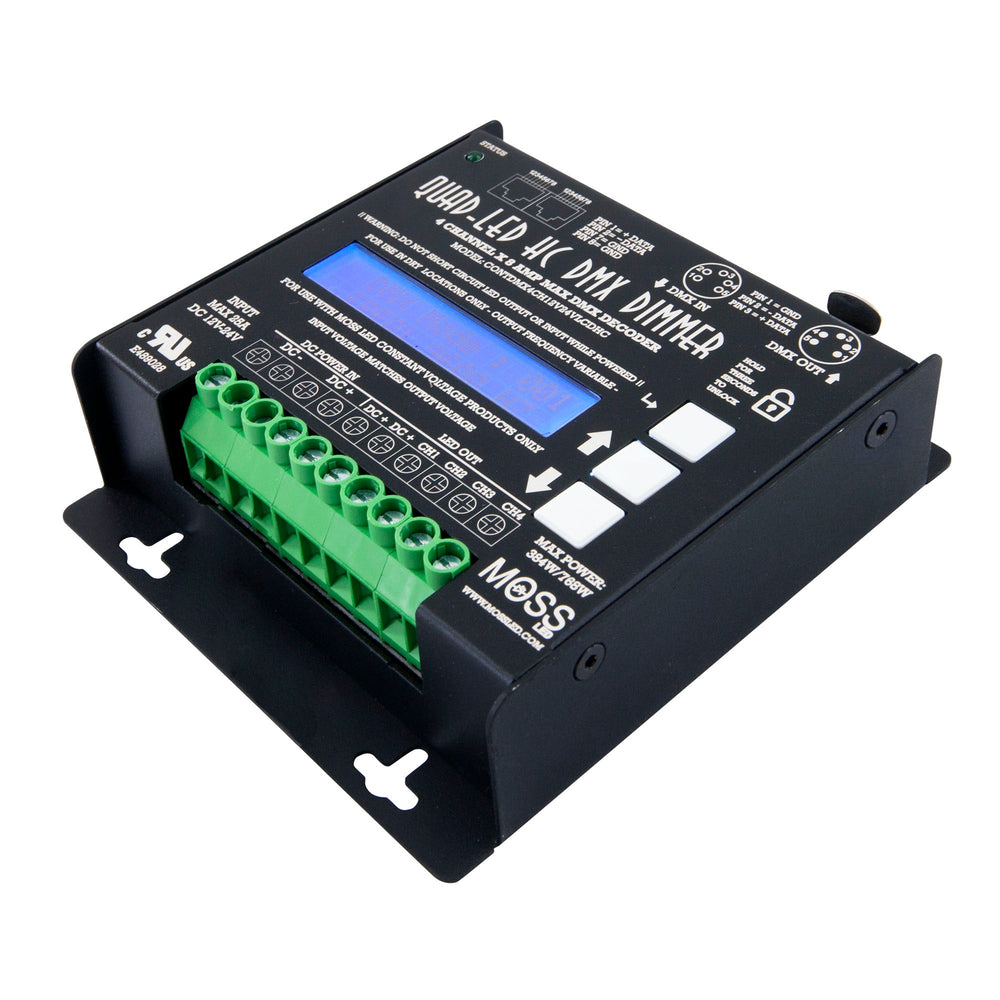

The Quad-LED High Current DMX Dimmer delivers powerful, high-precision lighting control for FlexLED Tape and Modules, supporting 1, 2, 3, and 4-channel configurations. With industry-standard DMX connectivity via RJ45 connectors, an isolated DMX input, and an intuitive LCD interface, it ensures smooth, reliable dimming for film, television, and architectural lighting applications.
Key Features:

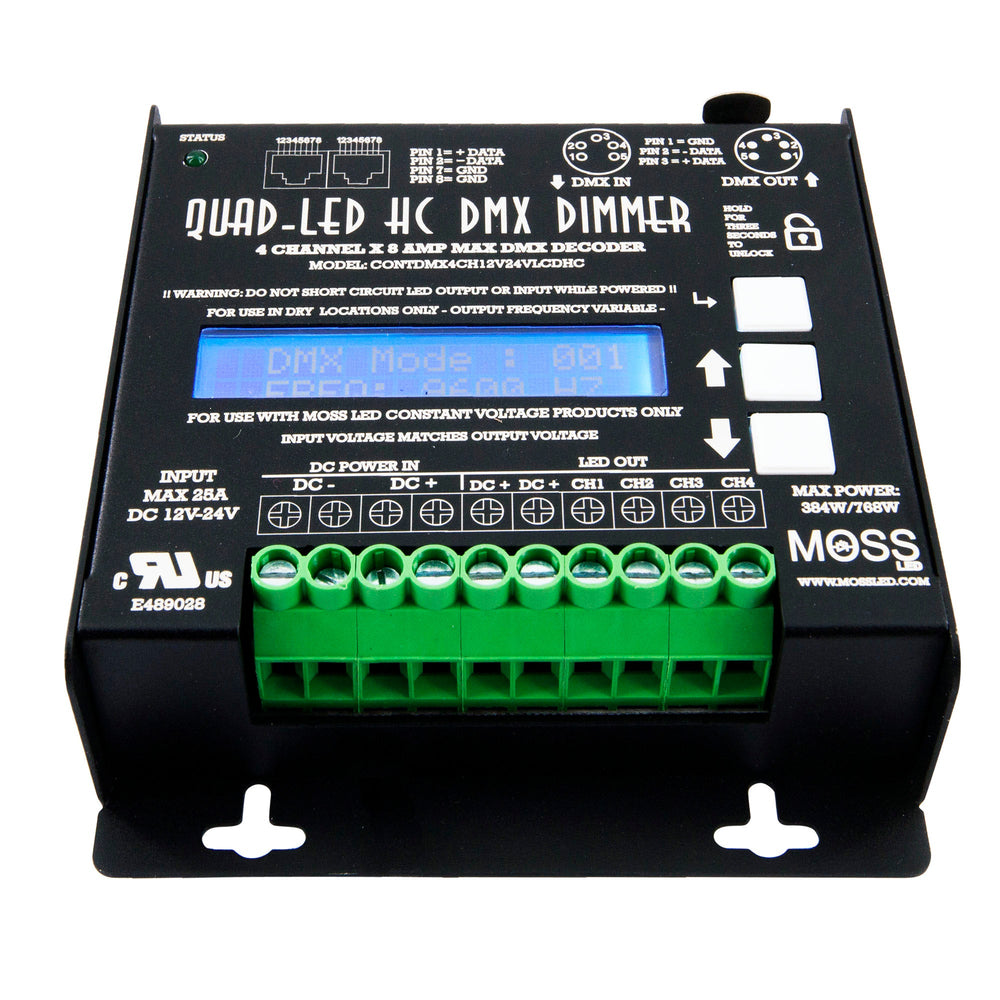

- 4-Channel DMX Dimming – Converts DMX-512/1990 signals into four independent dimmable outputs. Gamma fixed at 1.0.
- Versatile Compatibility – Supports RGBA, RGBW, RGB, Bi-Colour, and White FlexLED Tape.

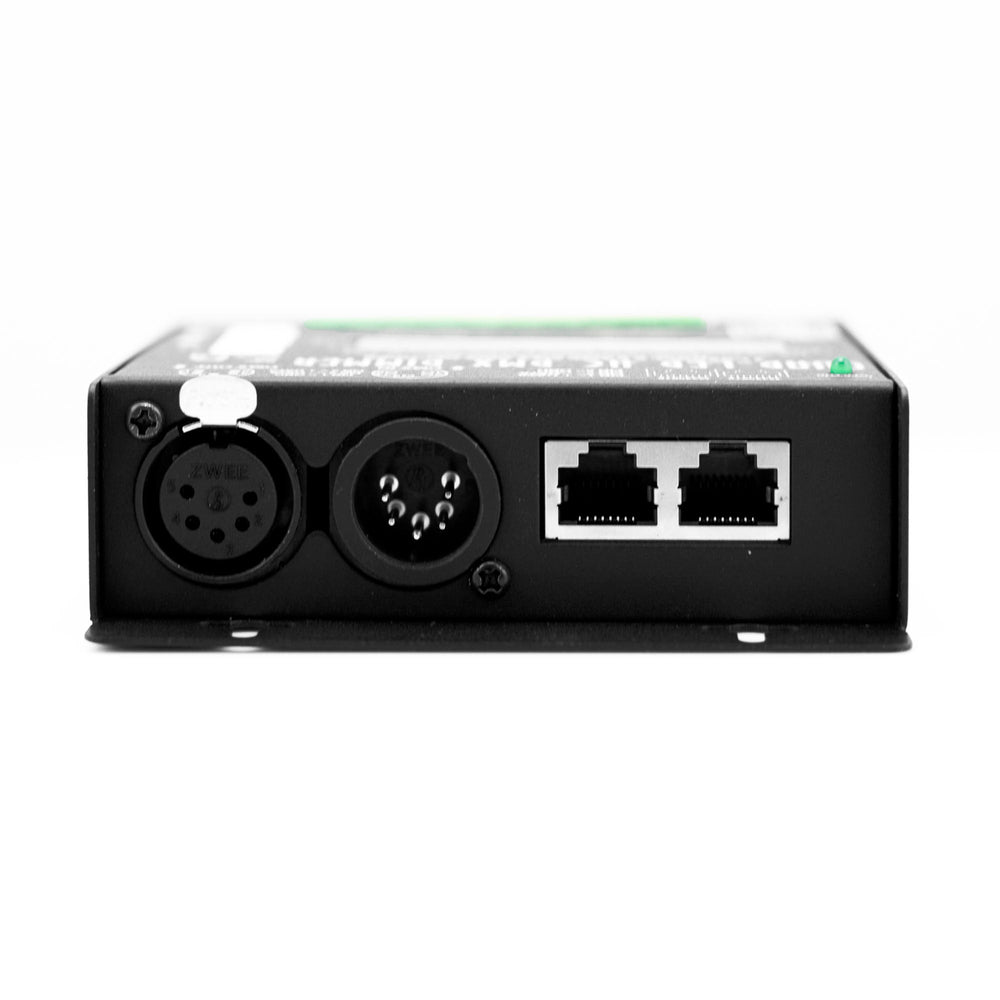

- Industry-Standard DMX Connectivity – RJ45 Ethernet and 5-pin XLR in/out for seamless control integration.

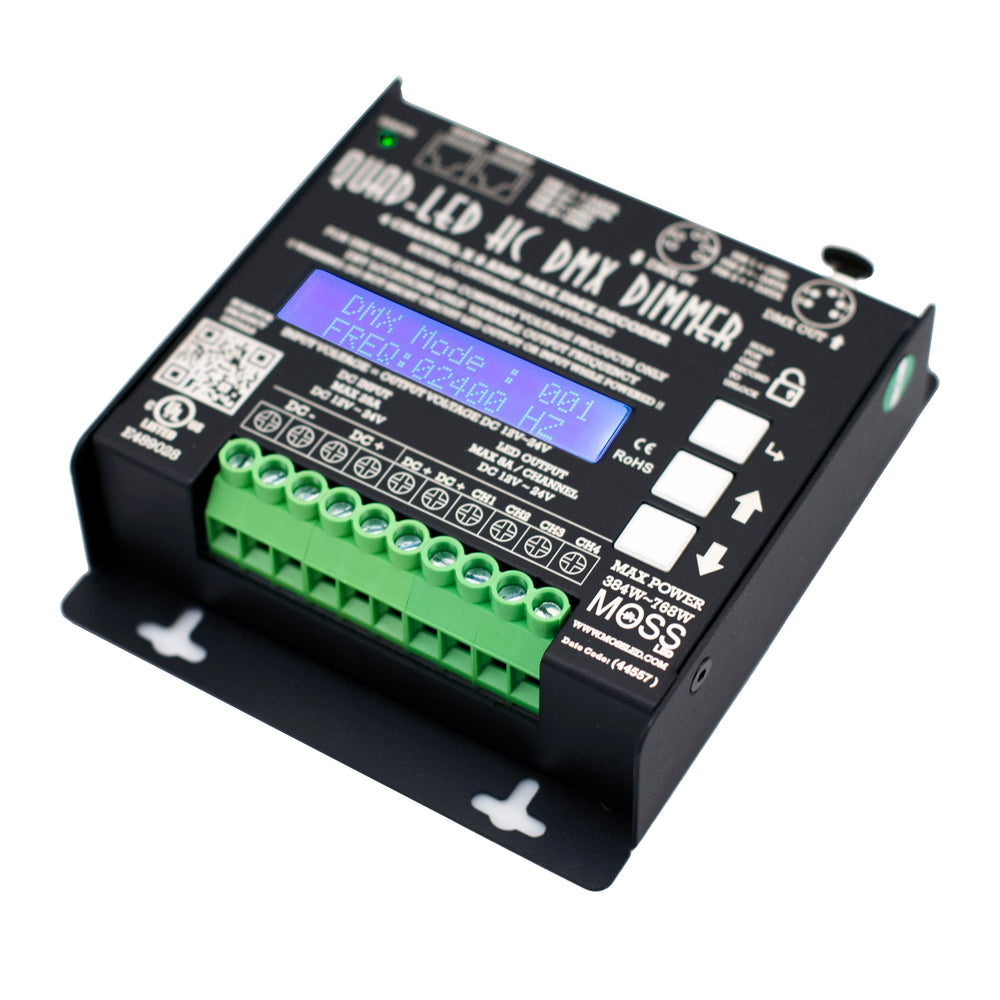

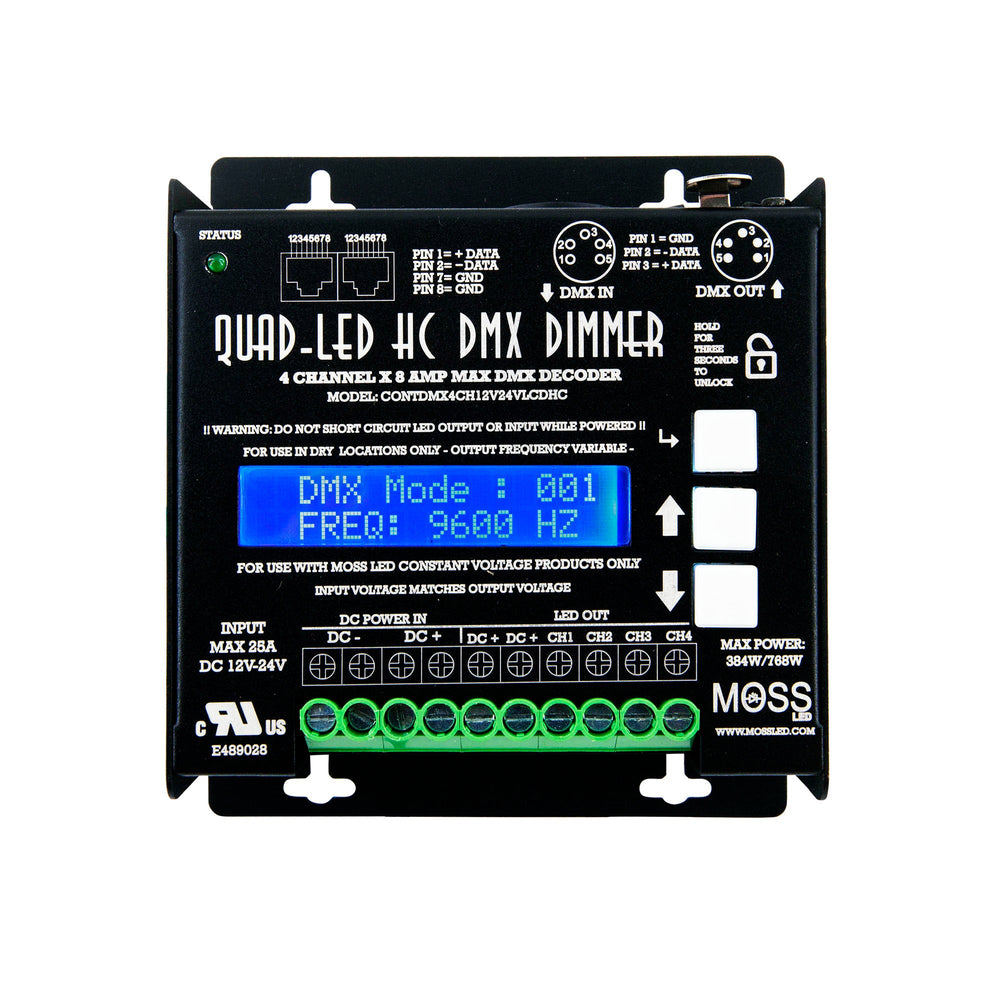

- LCD Interface & Manual Mode – Easy DMX addressing, test control, and standalone operation.
- Isolated DMX Input – Enhanced signal protection for interference-free performance.

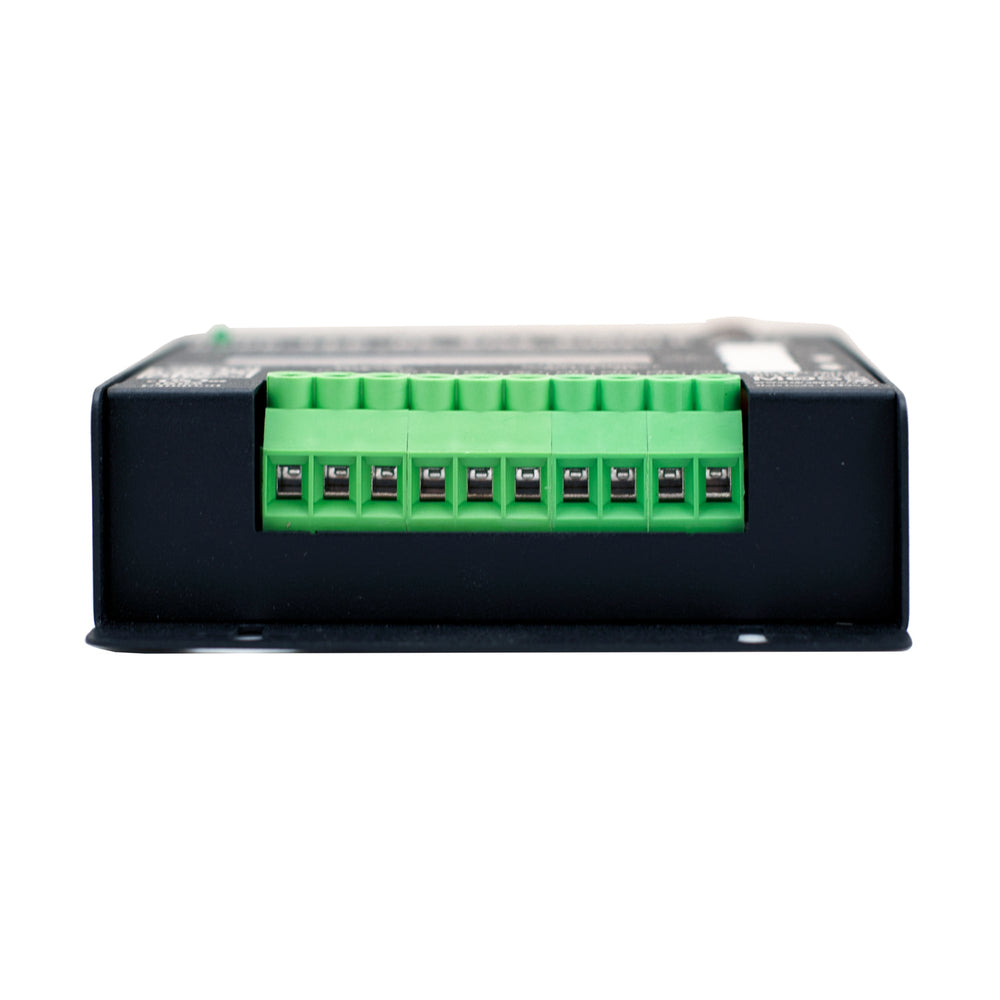

- High Current Handling @ 40 amps – Ensures stable, high-power LED operation.
- 12 ~ 24VDC input for supporting all our FlexLED tape
Note: After adjusting dimmer settings, ensure the unit remains powered for a few seconds to lock changes.
Need a custom solution? Contact us today!
Technical Specifications
|
Output Current (A)
|
:
|
4 CH @ 10A/CH = Max 40A (4 CH @ 8A/CH = Max 25A for UL Standards)
|
|
Output Power (W)
|
:
|
480W @ 12V / 960W @ 24V (384W @ 12V / 678W @ 24V for UL Standards)
|
|
Supply Voltage
|
:
|
DC12V - DC24V
|
|
Size (inches)
|
:
|

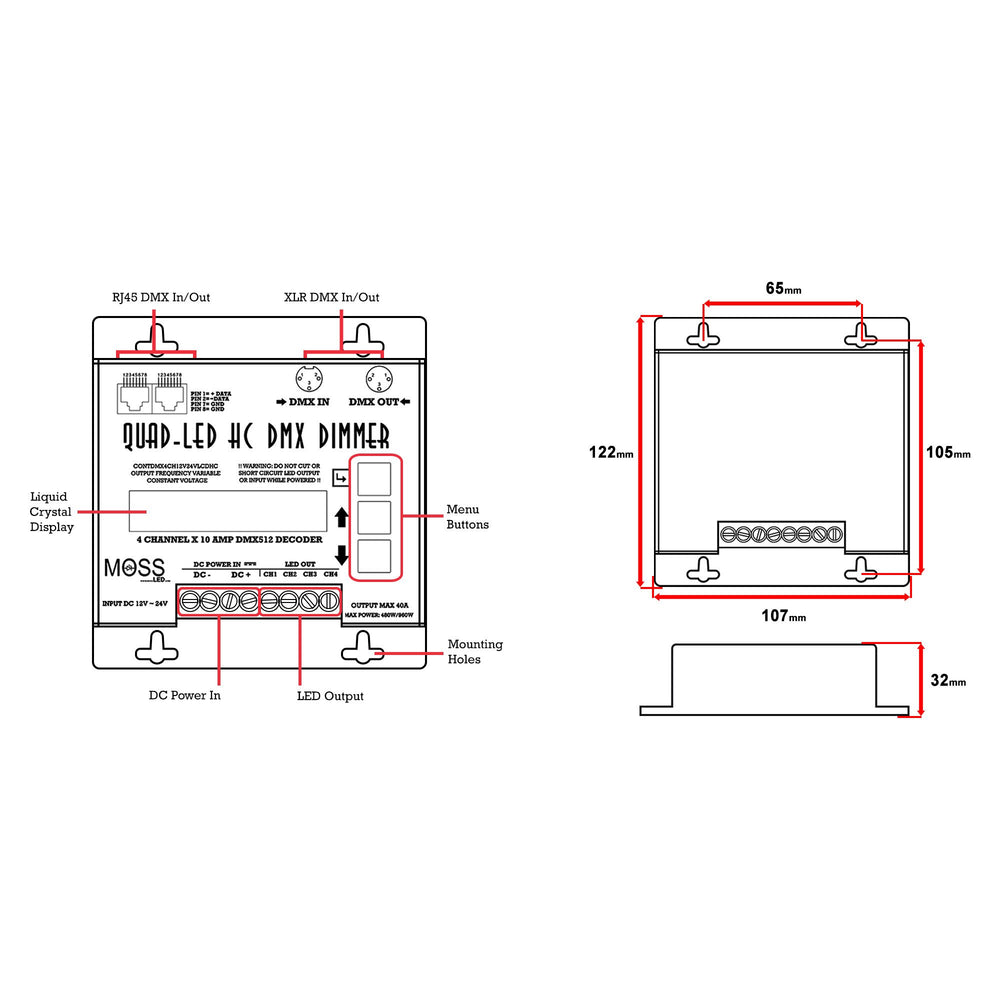

L 4.8” x W 4.2” x H 1.2”
|
|
Working Temperature
|
:
|
-0°C to + 70 °C
|
|
Bit Rate
|
:
|
8 Bit
|
|
Weight
|
:
|
400g
|
|
IP Rating
|
:
|
IP40
|
|
PWM Frequency
|
:
|
2.4 kHz / 9.6 kHz / 20 kHz / 30 kHz
|
|
IP Rating
|
:
|
IP40
|
DOWNLOADS
UL Certificate of Compliance- Specification Sheet - Version 6
