CinqueDrive-LED DMX Dimmer - 24VDC 96W Class 2

SKU CINQUEDRIVE24-TRM-U-120V
by MossLED
$402.49
Input Voltage
Output Connector
Input Connector
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 7 left!

Our most popular LED Controller is now available with a built-in 96-Watt, 24 Volt Class 2 Power Supply.

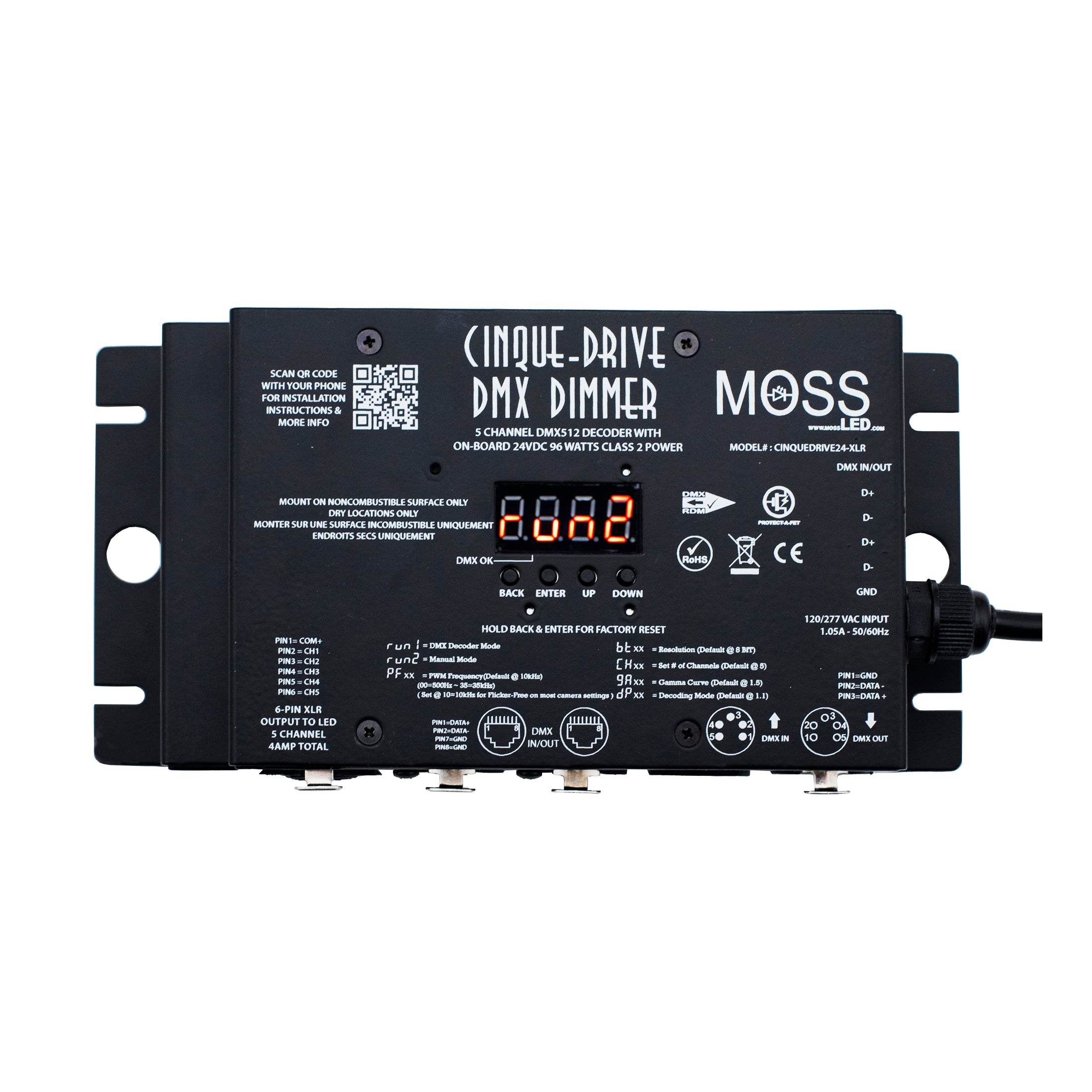

Simply put, the Cinque-LED DMX Dimmer is fantastic. It has all the features our film, television, and theatrical friends have been asking for. It has an extremely durable metal, rugged housing with professional-grade XLR 5-Pin In/Out and RJ45 In/Out for DMX signal.

Two versions of the CinqueDrive are available. One which has a 6-Pin XLR as an output and one with a terminal block output. The 6-Pin XLR output creates a plug'n'play unit when your LED also has a 6-Pin XLR. This is a great option for powering up your 24VDC, 5-Channel Luminaire quick and reliably time and time again.

The terminal block version allows you to wire in your LED as you traditionally would with our standard Cinque LED Dimmer. If you are powering an LED that requires more power than the on-board Class 2 24VDC power supply requires you can wire in a secondary power supply. Please refer to the installation guide for more details.

The terminal blocks used for the input have two spaces for Voltage + and two spaces for GND which allow for the huge current capability this unit has 5 X 7A = 35 AMPS of power when used with an external PSU.

Easy-to-read LED display for setting DMX address and other settings, including full manual mode. 8 bit and 16 bit resolution modes as well an output PWM frequency adjustable setting from 500Hz to 35kHz.  There is also a gamma curve value which adjusts the dimming curve of the unit so you can have an extremely high resolution low end or an extremely high resolution high end: it's entirely up to you!

The Cinque-LED DMX Dimmer is by far the most advanced standalone DMX Decoder controller unit on the market.

This controller can be used with all of our 24VDC Constant Voltage FlexLED Tape products and Modules

  • This unit converts DMX-512/1990 standard digital signal into five dimmable channels
  • Uses RJ45 Ethernet or 5-pin XLR connectors to control LEDs via any lighting console or through computer software
  • Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape
  • LED Interface provides easy functionality for DMX addressing as well as full manual mode & test control options




Technical Specifications - 120VAC / 277VAC

  UNITS CINQUEDRIVE24-XLR-U CINQUEDRIVE24-TRM-U
INPUT SPECIFICATION (@25°C ambient temperature)
Input Current - MAX A 1.05
Input Current - Standby A 0.02583
Input Power - MAX W 96
Input Power Standby W 3.1
Max Units on a 16 A Circuit Breaker : 16 @ 120VAC / 38 @ 277VAC
Power Factor PF > 0.9
Inrush Current A Meets NEMA-410 requirements
Leakage Current μA 400 μA @ 120VAC / 920 μA @ 277 VAC
Supply Voltage VAC 90 ~120 / 270 ~ 305
Input Frequency Range Hz 47 ~ 63
Input Harmonics : Complies with IEC61000-3-2 for Class C equipment
Total Harmonics Distortion THD Maximum @ 20% At nominal input voltage from 100% to 60% rated power. Complies with DLC (Design Light Consortium) technical requirements
Efficiency % Up to 92% Measured with nominal input voltage
Isolation : The AC input to the main DC output is isolated

MAIN OUTPUT SPECIFICATION (@25°C ambient temperature)

Output Current (Iout) A 4 (total for all 5 channels) 4 (with built-in power supply) or 35 (7A x 5ch with external power supply) - please check manual for full wiring instructions)
Output Power W 93 93 with built-in PSU) or 840 (168W x 5ch with external power supply) - please check manual for full wiring instructions)
Output Voltage (Vout) VDC 24
Ripple Voltage : ≤ 5% of rated output voltage
Start-up Time ms 500 Complies with ENERGY STAR® luminaire specification.

Output PWM Frequency
Hz 500 - 35,000 (user selectable)
Flicker Free : Yes
Bit Rate : 8 bit or 16 bit (user selectable)
DMX : Yes
RDM : Yes
Manual Mode : Yes
Gamma Curve Adjustable : Yes
Short-Circuit Protection : Yes - Protect-A-Fet Technology Yes - Protect-A-Fet Technology
Output Connector : 6-PIN Female Neutrik XLR 11 position Fixed Terminal Block

PHYSICAL DMX CONNECTIONS

PRIMARY : 5-PIN XLR IN/OUT
PRIMARY : RJ45 Ethernet via locking Ethercon connector (standard RJ45 cables can be used) IN/OUT
SECONDARY : Pluggable 5.08MM 5-Position Terminal Block

ENVIRONMENTAL CONDITIONS

Humidity % 5 ~ 95
Working Temperature °C -20 ~ 50
Maximum Case Temperature °C 90
Cooling : Convection Cooled


PHYSICAL:
Weight  g  540g / 1.2Lb  540g / 1.2Lb
IP Rating : Indoor Use Only
Size mm 195L X 95W X 46H
MOUNTING OPTION A : 1/2" Holes for Mounting via Industry-Standard Clamps
MOUNTING OPTION B : Four corner mounting slots via mechanical fastener
 **Connector Tails Not Included**
