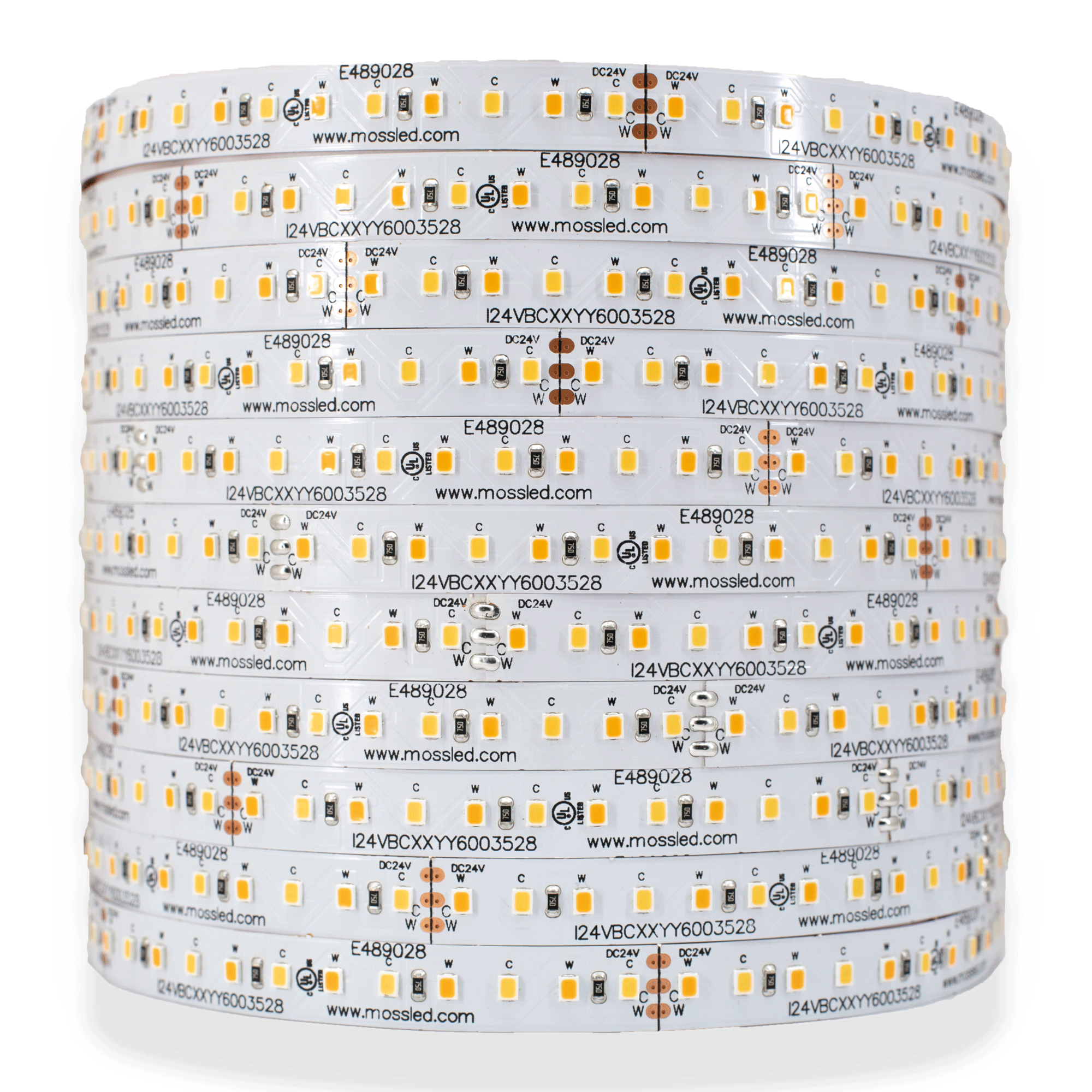

FlexLED Bi-Colour 3000K - 5600K 24v (CCT Adjustable)

SKU I24VBC30566003528
by MossLED
$168.68
IP Rating
Pixel Density
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 2 left!

This colour temperature range has been replaced by our wider range 2700k - 6000k LED.
3000k - 5600k is non-stock or low-stock but still available upon request

Two versions of our bi-colour FlexLED are now available.  120 LED/meter (12MM Width) standard as well as 196 LED/meter (10MM Width) high output version.  Both versions utilize the same high brightness and high CRI 3528 chip that is on all of our PRO high CRI FlexLED. The 196 LED/meter is ideally suited for areas where high output in a very tight space is required.  The 196 LED/meter is designed to be installed onto a metal heat sink for longevity purposes. The 120 LED/meter can be installed on virtually any surface and still provide nominal output for many tens of thousands of hours of use.

Both versions are suitable for residential, television, industrial, and commercial applications where high CRI white output is required.

The 120 LED/meter at 5 meters falls into a class 2 specification drawing a total of 94 watts when powered from one end. (100 watts when powered from both ends)

The 196 LED/meter at 5 meters is above a class 2 specification and draws 139 watts when powered from one end. (166 watts when powered from both ends)

Single bin LED chip ensures CCT accuracy within +/- 100k.

TESA 4965 high tack double-sided tape on the back makes installation as easy as peel n stick.

Controller, Power supply and Extension Cables are sold separately.
Custom Color Temperatures are available.

For specifications on Weatherproof and Waterproof product please download specifications sheet below.

Pricing is for 5 meters (16.4')



SPECIFICATIONS - INDOOR PRODUCT

Product Type : Bi-Color 120
Bi-Color 196
Product Code : I24VBC30566003528 I24VBC30569803528
CRI : 95 95
Kelvin : 2700k - 5600k 2700k - 5600k
PCB Color : White White
Current, Rating : 0.79 A / meter  1.4 A / meter
Voltage : 24 VDC 24 VDC
Wattage : 19.2 W / meter  33.6 W / meter
Wattage @ 5 Meters (Powered at one end)  94 W  139 W
Wattage @ 5 Meters (Powered at both ends)  100 W  166 W
CC / CV : Constant Voltage Constant Voltage
IP Rating : IP43 IP43
Lumens @ Full : 1800 lm / meter combined 2700K: 1400lm/meter - 5600k: 1700lm/meter - 3,100 lm/meter combined
Lumen / Watt : 94  94
Lifetime* : 50,000 hours  30,000 hours
Cutting Length : 10CM  7.143CM
LED Quantity : 120 LED / meter  196 LED / meter
Number of Contacts : 3 3
LED Type : 3528
3528
Copper Quantity : 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 12MM 10MM
Maximum Recommended Length : 10 meters  5 meters
Viewing Angle : 120 degree 120 degree
Adhesion : TESA 4965 TESA 4965

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance
