Please note we are not able to ship this product to the United States

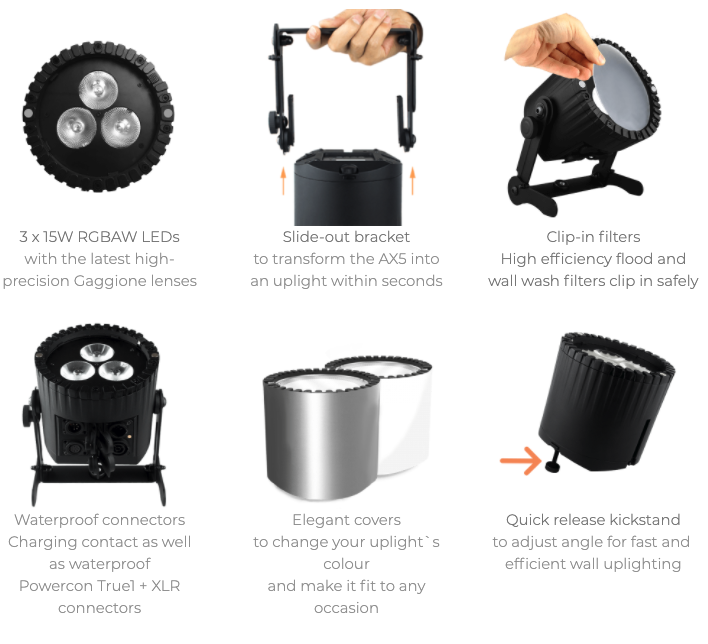

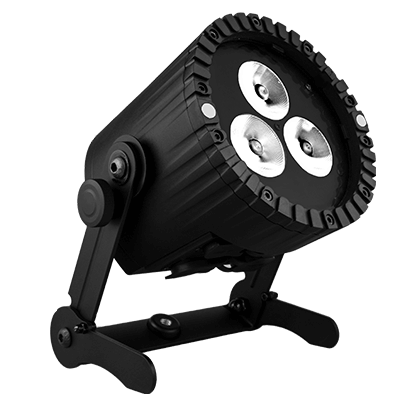

45W RGBAW  (3x 15W)  – 13° Beam Angle

Optimized for a fast return of investment, this stage lighting fixture replaces your wireless and wired PARs as well as battery uplight. It’s the ultimate tool for  entertainment professionals.

TECHNICAL SPECIFICATIONS

Optical

Colours: RGBAW Philips Lumileds
CRI: 92
Total LED power: 45W
Luminous Flux: 1340Lm
Emittance (@2m): 4800Lx
Strobe:  0-25Hz
Beam Angle: 13 ˚
Pixels: 1

Electrical

Battery: LG Chem Lithium-ion
Battery Lifetime: 70% after 300 cycles
Battery Runtime: Up to 20 hours
Charging time (nominal): 5 Hours
Input Voltage: 90-260V 50-60Hz

Control

Wireless Modules: 865-870MHz | 902-928MHz | 2.4GHz
Range: 300m | 330 Yards
Wired DMX: supported via 5-pin XLR in and out sockets
Wireless DMX: CRMX & others (excluding W-DMX G5, City Theatrical)

Construction

Housing: Aluminium
IP Rating: IP65
Relative humidity: 0-100%
Operating Temperature: 0-40 ˚C | 32-104 ˚F
Weight: 3.40kg |7.5Lbs
Dimensions: 145 x 190 x 221 (mm)

DOWNLOADS

  1.  Datasheet
  2.  Technical Reference Manual
  3.  DMX Common Values
  4.  DMX Profiles for AX5 and AX10
  5.  AX5 Release Notes
