Charging without wires

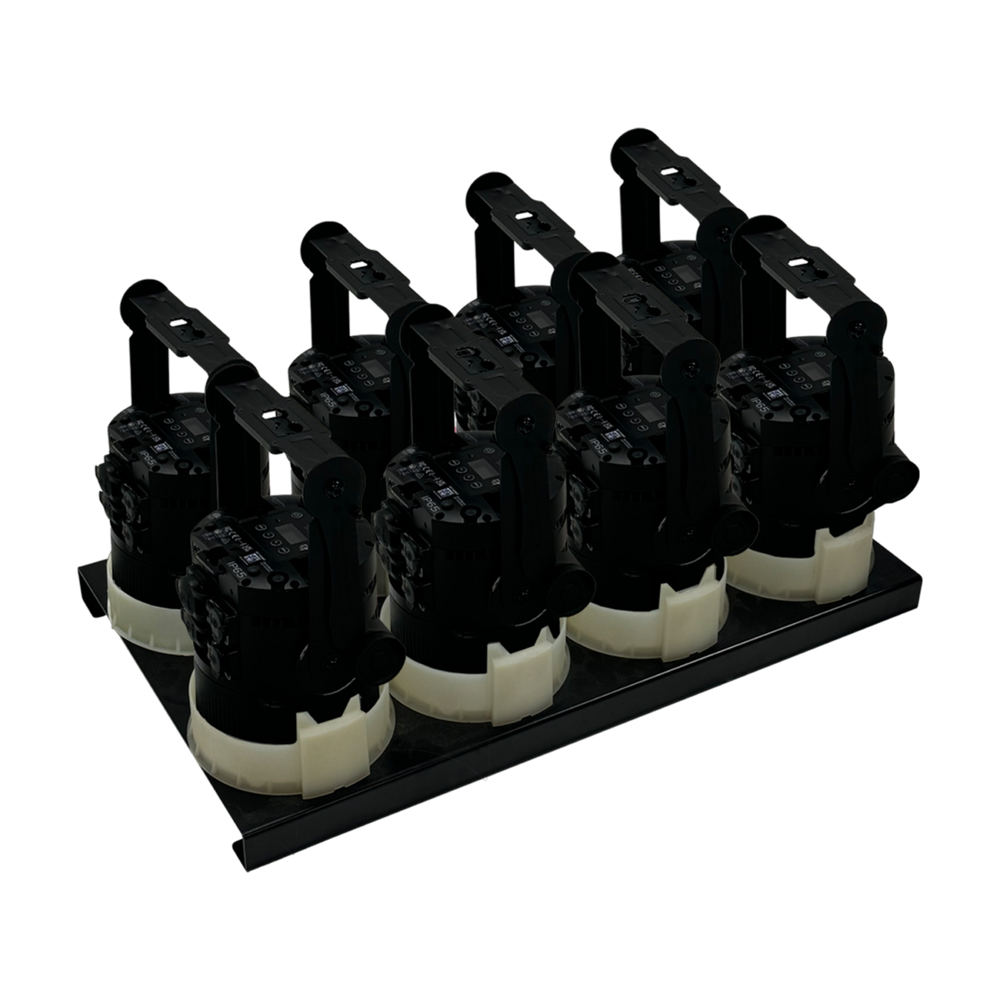

The fastest way to charge 8 QuikSpot units. Just place them upside down into a wired charging plate to start the contactless charging operation. The charging plate is designed to be placed inside cases so that the light can be charged inside.
Optionally, you can connect a PrepBox to enable setup and preparation inside the case within seconds.
Technical Specifications
|
Order Code |
AST-QUKSP-CHRPLT |
|---|---|
|
Input Voltage |
100 – 240 VAC, – 50/60 Hz 115 VAC – 2.2 A / 230 VAC – 1.2 A |
|
Output |
8 x 25.5 VDC, 1.8 A |
|
Connectors |
PowerCON TRUE1 IN/OUT / 7 Pin for PrepBox Cable |
|
Cables |
1 x PowerCON TRUE1 cable |
|
IP Rating |
IP44 |
|
Weight |
7.41 kg / 16.34 lbs |
|
Dimensions (L x W x D) |
686 mm x 400 mm x 121.5 mm / 17" x 15.75" x 4.8" |
