I24VRGBA12001210
Sold Out $75.00
Collections: 24VDC FlexLED 24VDC FlexLED Tape PRO All FlexLED Architectural & Commercial Broadcast TV & Live Entertainment Cinema MossLED OVERSTOCK ITEMS [Low stock products] All products
Type: Flexible LED Tape
Category: 240 LED/meter 24V 5-Pin Male Connector All FlexLED_24VDC FlexLED Bare End Wires Industry_Architectural & Commercial Industry_Broadcast TV & Live Entertainment Industry_Cinema LED Tape Professional RGBA

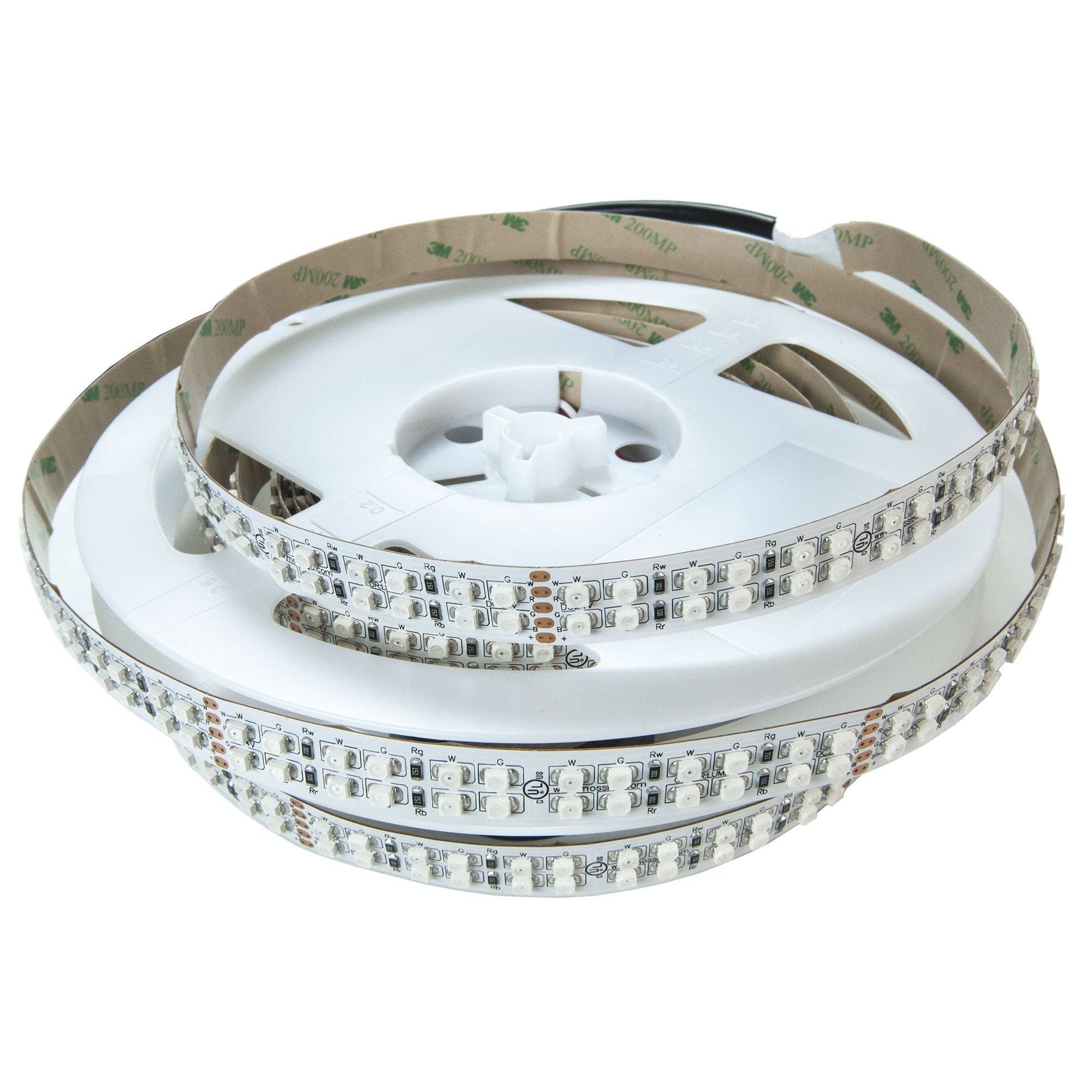

Extremely bright RGBA color changing FlexLED Tape
Suitable for on-camera use, or anywhere a high-quality LED product is required.
Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.
Waterproof must be mounted using silicone (not provided)
Maximum recommended length in order to prevent line-loss is 5m. (16.4')
Controller, Power supply and Extension Cables sold separately
Controller, power supply and extension cables sold separately
Please call 1.800.924.1585 or email info@mossled.com to inquire.
For specifications on Weatherproof and Waterproof product please download specifications sheet below.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | 240 RGBA 24V (Individual Diodes) |
| Product Code | : | I24VRGBA12001210 |
| CRI | : | N/A |
| Kelvin | : | RGBA |
| PCB Color | : | White |
| Current, Rating | : | 0.79 A / meter |
| Voltage | : | 24 VDC |
| Wattage | : | 19.2 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 1300 lm / meter |
| Lumen / Watt | : | 67.7 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | 10 CM |
| LED Quantity | : | 240 LED / meter |
| Number of Contacts | : | 5 |
| LED Type | : | 1210 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 14MM |
| Maximum Recommended Length | : | 5 meters |
| Viewing Angle | : | 120 |
| Adhesion | : | 200MP 3M |
