Home Products 5V - 50W - 10A Power Supply 5VDC 10A Power Supply

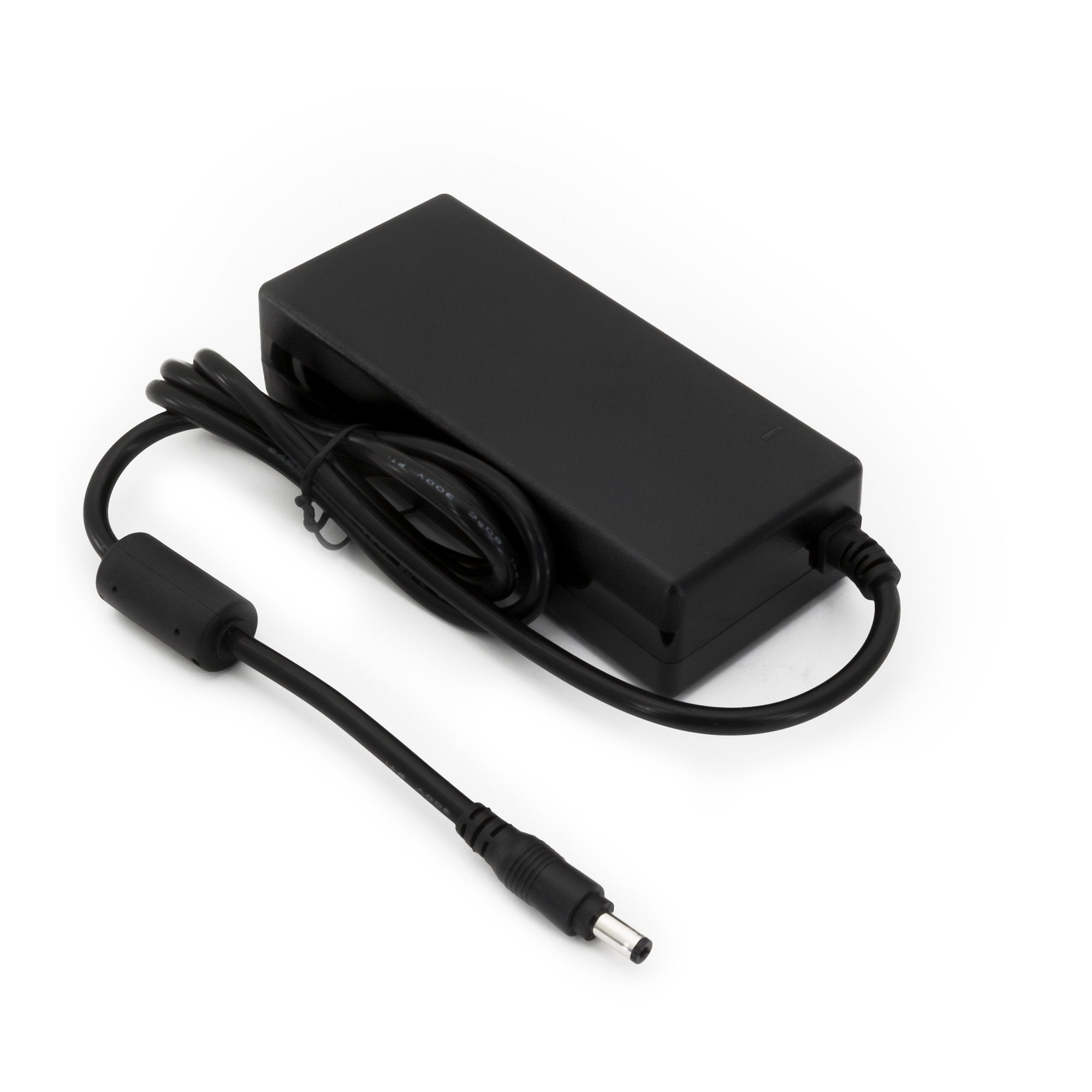

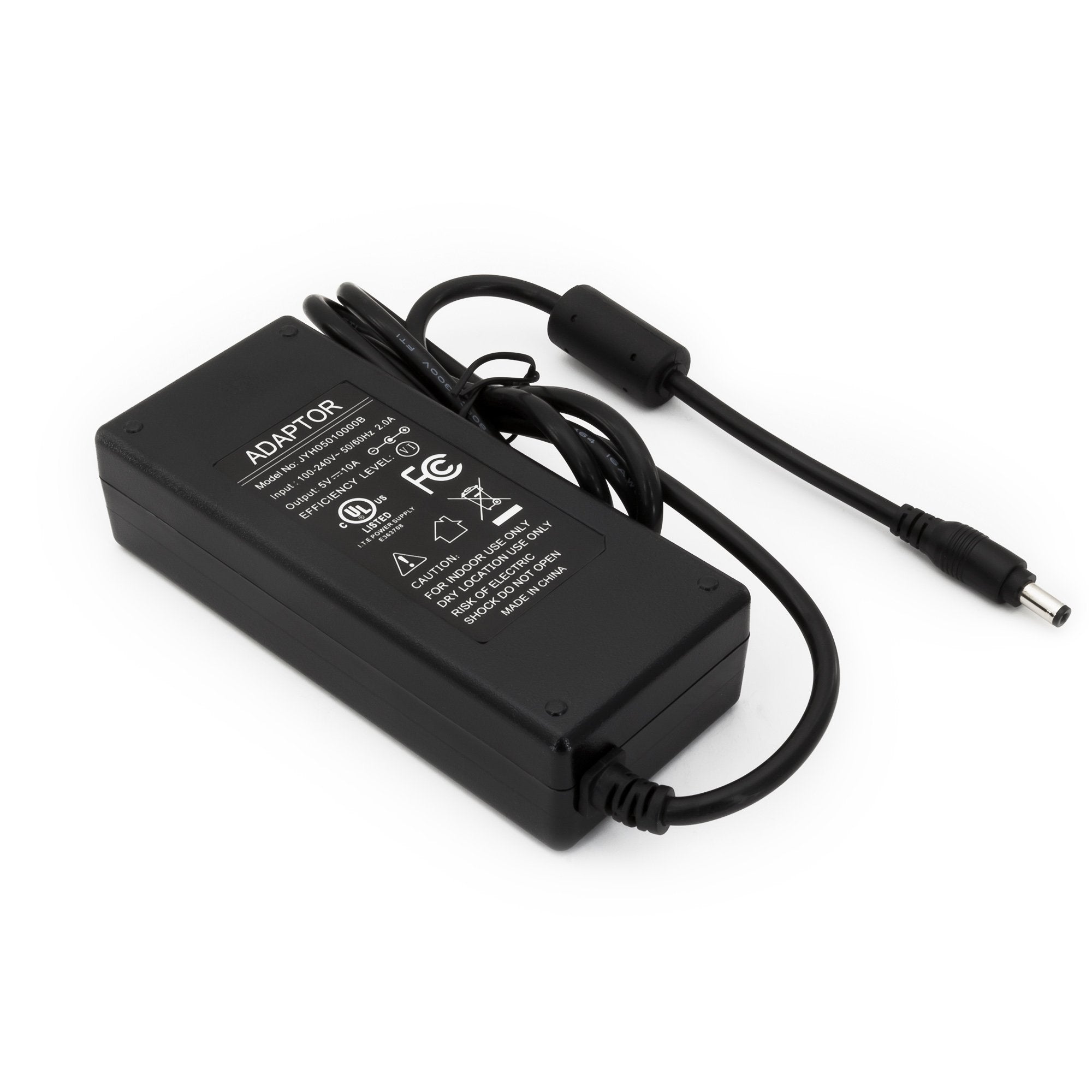

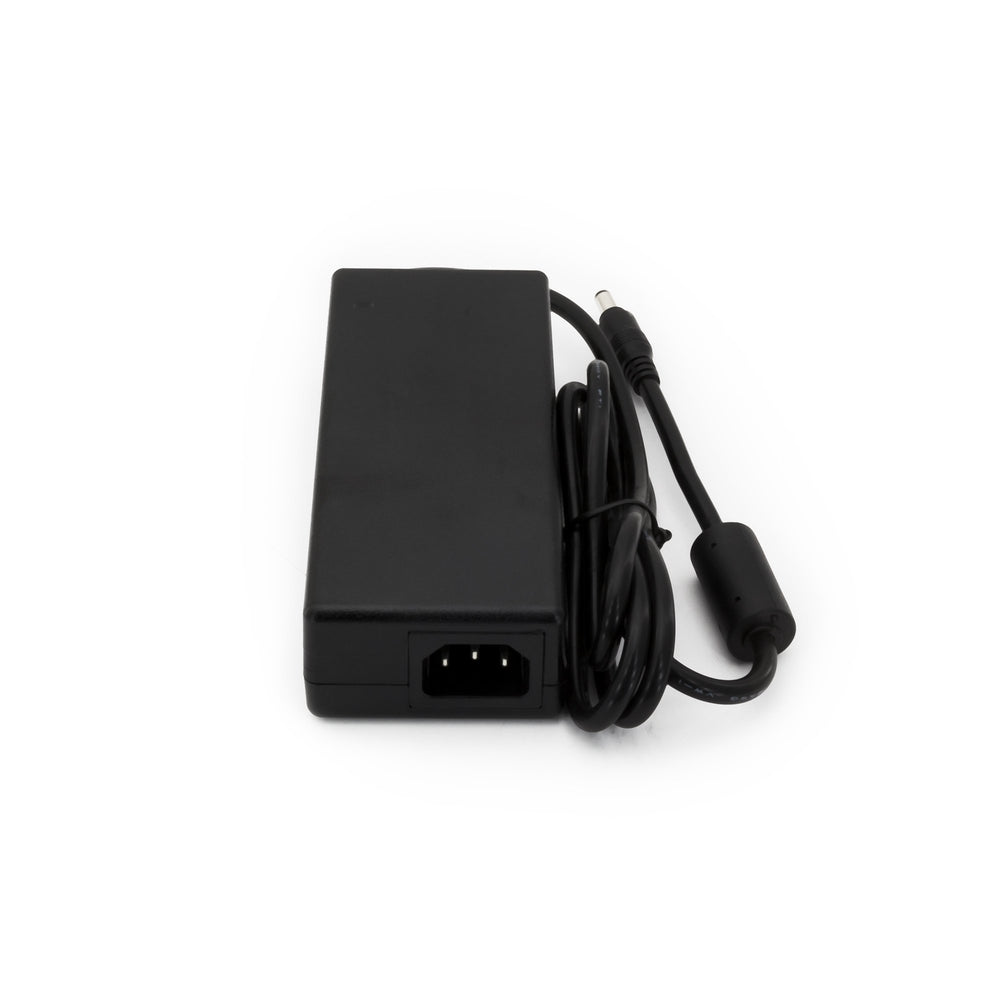

5V - 50W - 10A Power Supply 5VDC 10A Power Supply

JYH0501000B

$49.92 CAD

Notify me when this product is available:

83 items left

Qty

${{amount}} CAD

Collections: Power Supplies

Type: Power Supplies

Our smallest desk-top power supply can power our line of 5V Original Single-Color FlexLED Tapes and Gantom Fixtures.

Suitable for applications that draw 50W or less
125mm x 50mm x 33mm

Related Items

12V - 18W - 0.75A Power Supply - Moss LED

GSM 24V - 18W - 0.75A Power Supply GSM18B24P1J $31.36 CAD

New

GSM 24V - 18W - 0.75A Power Supply GSM18B24P1J

$31.36 CAD

Notify me when this product is available:

6 items left

Qty

${{amount}} CAD

Extremely reliable and robust medical-grade power supply. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class II safety ensures short-circuit, overload, and over-voltage protection. Safe, powerful, and reliable are the cornerstones of our GSM line of power supplies from Mean Well.

Output 18W
Class II

SPECIFICATIONS

Voltage (V)	:	24V DC
Current (A)	:	0.75 A
Output Power (W)	:	18 W
Agency Approvals	:	UL/CUL/CE/FCC/TUV/CB
Size (inches)	:	3.1 X 2.1 X 1.3
Ripple & Noise (mV p-p)	:	180
Load Regulation ()	:	2%
Line Regulation ()	:	1%
Efficiency	:	87%
Frequency Range	:	47 ~ 63 Hz
Universal AC input	:	80 ~ 264VAC 113 ~ 370VDC
Low leakage current	:	< 50 amps
Protections:	:	short circuit, over voltage, overload
AC Input	:	2 pole IEC320-C8
Housing	:	Fully enclosed plastic case
Medical safety approved	:	2 x MOPP between primary and secondary
Class	:	Class II power (w/o ground pin)
Indicator	:	LED indicates power on
Standby Power Consumption	:	< 0.1 watts
Output Connector Type	:	Cylindrical Female
Output Connector Diameter	:	2.1mm x 5.5mm
Output Polarity	:	Center Positive
Product Type	:	AC to DC Power Supply
MFR Product Family	:	GSM
Operating Temperature	:	-25C to 60C
Power Supply Color	:	Black

DOWNLOADS

Specification Sheet

SaveSaveSaveSaveSaveSave

View full product details

GSM 24V - 25W - 1.04A Power Supply 24VDC 1.04A Power Supply $32.00 CAD

GSM 24V - 25W - 1.04A Power Supply 24VDC 1.04A Power Supply

$32.00 CAD

Notify me when this product is available:

Qty

${{amount}} CAD

Output 25W
Class II

SPECIFICATIONS

Voltage (V)	:	24V DC
Current (A)	:	1.04 A
Output Power (W)	:	25 W
Agency Approvals	:	UL/CUL/CE/FCC/TUV/CB
Size (inches)	:	3.1 X 2.1 X 1.3
Ripple & Noise (mV p-p)	:	180
Load Regulation ()	:	2%
Line Regulation ()	:	1%
Efficiency	:	87%
Frequency Range	:	47 ~ 63 Hz
Universal AC input	:	80 ~ 264VAC 113 ~ 370VDC
Low leakage current	:	< 50 amps
Protections:	:	short circuit, over voltage, overload
AC Input	:	2 pole IEC320-C8
Housing	:	Fully enclosed plastic case
Medical safety approved	:	2 x MOPP between primary and secondary
Class	:	Class II power (w/o ground pin)
Indicator	:	LED indicates power on
Standby Power Consumption	:	< 0.1 watts
Output Connector Type	:	Cylindrical Female
Output Connector Diameter	:	2.1mm x 5.5mm
Output Polarity	:	Center Positive
Product Type	:	AC to DC Power Supply
MFR Product Family	:	GSM
Operating Temperature	:	-25C to 60C
Power Supply Color	:	Black

DOWNLOADS

Specification Sheet

SaveSaveSaveSaveSaveSaveSave

View full product details

24V - 40W - 1.67A Power Supply - Moss LED

GSM 24V - 40W - 1.67A Power Supply 24VDC 1.67A Power Supply $41.58 CAD

GSM 24V - 40W - 1.67A Power Supply 24VDC 1.67A Power Supply

$41.58 CAD

Notify me when this product is available:

5 items left

Qty

${{amount}} CAD

Extremely reliable and robust medical-grade power supply. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class II safety ensures short-circuit, overload, and over-voltage protection. Safe, powerful, plug-n-play, and reliable are the cornerstones of our GSM line of power supplies from Mean Well.

Output 40W
Class II

SPECIFICATIONS

Voltage (V)	:	24V DC
Current (A)	:	1.67 A
Output Power (W)	:	40 W
Agency Approvals	:	UL/CUL/CE/FCC/TUV/CB
Size (inches)	:	4.9 X 1.9 X 1.3
Ripple & Noise (mV p-p)	:	180
Load Regulation ()	:	2.5%
Line Regulation ()	:	1%
Efficiency	:	90%
Frequency Range	:	47 ~ 63 Hz
Universal AC input	:	80 ~ 264VAC 113 ~ 370VDC
Low leakage current	:	< 50 amps
Protections:	:	short circuit, over voltage, overload
AC Input	:	2 pole IEC320-C8
Housing	:	Fully enclosed plastic case
Medical safety approved	:	2 x MOPP between primary and secondary
Class	:	Class II power (w/o ground pin)
Indicator	:	LED indicates power on
Standby Power Consumption	:	< 0.1 watts
Output Connector Type	:	Cylindrical Female
Output Connector Diameter	:	2.1mm x 5.5mm
Output Polarity	:	Center Positive
Product Type	:	AC to DC Power Supply
MFR Product Family	:	GSM
Operating Temperature	:	-25C to 60C
Power Supply Color	:	Black

DOWNLOADS

Specification Sheet

SaveSaveSaveSaveSaveSave

View full product details

24V - 60W - 2.5A Power Supply - Moss LED

GSM 24V - 60W - 2.5A Power Supply 24VDC 2.5A Power Supply $45.18 CAD

GSM 24V - 60W - 2.5A Power Supply 24VDC 2.5A Power Supply

$45.18 CAD

Notify me when this product is available:

4 items left

Qty

${{amount}} CAD

Output 60W
Class II

SPECIFICATIONS

Voltage (V)	:	24V DC
Current (A)	:	2.5 A
Output Power (W)	:	60 W
Agency Approvals	:	UL/CUL/CE/FCC/TUV/CB
Size (inches)	:	4.9 X 2 X 1.2
Ripple & Noise (mV p-p)	:	180
Load Regulation ()	:	3%
Line Regulation ()	:	1%
Efficiency	:	90%
Frequency Range	:	47 ~ 63 Hz
Universal AC input	:	80 ~ 264VAC 113 ~ 370VDC
Low leakage current	:	< 50 amps
Protections:	:	short circuit, over voltage, overload
AC Input	:	2 pole IEC320-C8
Housing	:	Fully enclosed plastic case
Medical safety approved	:	2 x MOPP between primary and secondary
Class	:	Class II power (w/o ground pin)
Indicator	:	LED indicates power on
Standby Power Consumption	:	< 0.1 watts
Output Connector Type	:	Cylindrical Female
Output Connector Diameter	:	2.1mm x 5.5mm
Output Polarity	:	Center Positive
Product Type	:	AC to DC Power Supply
MFR Product Family	:	GSM
Operating Temperature	:	-25C to 60C
Power Supply Color	:	Black
