3.5MM Stereo Y Cable (for Gantom fixtures)
35MMYCABLE
$9.65 CAD
|

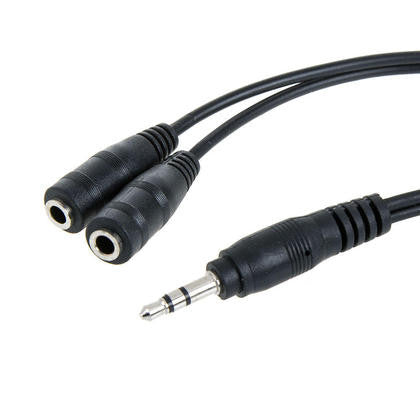

3.5mm Stereo 1M to 2F Cable - Black |
| This is?a brand new high quality 3.5mm (1/8" headphone jack size)stereo audio 1 male to 2 female allows for jumping Gantom fixtures together for data transmission.
This cable can be used for connecting Gantom fixtures for DMX data transmission.? It also can work with iPods, iPhones, or any device with a 3.5mm headphone jack output to a 3.5mm auxiliary input like those commonly found in vehicles, on computers, and on stereo receivers. |
Related Items
3.5MM Stereo Cable (for Gantom fixtures)
$5.59 CAD
|
3.5mm Stereo Plug/Plug M/M Cable - Black |
| This is a brand new high quality 3.5mm (1/8" headphone jack size)?stereo audio male to male cable.
This cable can be used for connecting Gantom fixtures for DMX data transmission. It also can work with iPods, iPhones, or any device with a 3.5mm headphone jack output to a 3.5mm auxiliary input like those commonly found in vehicles, on computers, and on stereo receivers. |
Gantom 12V Battery Pack
$23.08 CAD
Battery holder for 8 x AA batteries with 2.1mm ID circular DC plug, compatible with all of our LED luminaires. With 8 standard alkaline AA batteries (not included), you can run a single Precision Z or Precision Alpha for over 20 hours. Great for making any of our LED fixtures portable or for applications where outlet power is unavailable.
Features:
- Compact and fits in your pocket
- Lead wire terminates with 9V socket allowing user to power fixtures with 9V battery for temporary use
- Compatible with rechargeable AA batteries
Applications:
- Portable power for LED fixtures
- Costumes
- Parade floats
- Spot checking LED fixtures before install
- Events and set decoration
Specifications:
| SKU | PP11 |
| Input | 8 x AA batteries |
| Power Rating | Depends of battery used |
| Output | 12V DC |
| Dimensions | 65mm (2.6")x 60mm (2.4")x 30mm (1.2") |
| Lead Wire Length | 1.5m (59") |
| Connector Type | 2.1mm DC jack |
| 9V battery adapter | |
| Exterior Finish | ABS plastic |
| IP Rating | IP20 |
Gantom DarkBox DMX V2
$111.29 CAD
The DarkBox DMX is an ultra compact and scalable single output DMX tunable LED dimmer. The DarkBox DMX also has a variety of built-in patterns (blink, strobe, candle flicker, power surge flicker, and pulse) for special effects lighting without the need to program complex DMX signals. This device occupies 3 DMX channels, which controls brightness, speed, and mode, respectively.
The V2 features a new machined aluminum body to protect the unit in harsh environments as well as an upgraded MOSFET that allows for higher current capacity and protects against output short circuits.
Features
- Makes any dimmable 12VDC LED flicker, strobe, blink, surge, pulsate, or dim
- Fully tunable speed and brightness for any mode
- Standalone operation with DMX signal is possible if tuned and programmed with DMX Programmer app
- LED indicator displays output mode even without external LEDs attached
- Non-repeating algorithm for unique and realistic flicker patterns
Applications
- Dark attractions
- Candelabras
- Props and animatronics
- Lanterns
- Special effects strobe
- Signage
Downloads
Specifications
| SKU | DB22 |
| Input | 12VDC |
| Output | 12V PWM output, up to 2A load |
| Dimming | PWM |
| Dimensions | 71mm (2.8)x 67mm (2.6)x 15.5mm (0.8) |
| Power connector | 2.1mm DC jack with screw terminal adapter |
| Signal connector | 3.5mm TRS jack with screw terminal adapter |
| IP Rating | IP30 |
DMX Channel Descriptions
| Channel | Name | Level | Description |
| Ch 1 | Brightness Level | 0-255 | Dim to bright |
| Ch 2 | Speed | / | If Ch 3 is 0, Ch 2 controls blink speed If Ch3 is non zero, Ch 2 controls speed of function |
| Ch3 | Built-In Functions | 32-64 | Fade in |
| 65-96 | Fade out | ||
| 97-127 | Pulsing | ||
| 128-159 | Surge | ||
| 160-191 | Strobe | ||
| 191-255 | Flicker |
Product Videos
All Gantom Products Ship in 2 - 5 Business Days
Gantom DarkBox Flicker V2
$94.48 CAD
The DarkBox Flicker is a powerful, yet easy to use, special effects pattern generator and dimmer for LEDs. Single button operation allows the user to easily select different output patterns such as candle flicker, power surge flicker, blink, strobe, and brightness levels. Clicking the button cycles through the various modes while holding the button down chooses the brightness of each mode. Over 15 mode and speed combinations to choose from. The DarkBox Flicker?s memory allows the device to resume the previously selected pattern even when power is cut and restored.
The V2 features a new machined aluminum body to protect the unit in harsh environments as well as an upgraded MOSFET that allows for higher current capacity and protects against output short circuits.
Features
- Makes any dimmable 12VDC LED flicker, strobe, blink, surge, pulsate, or dim (3 speeds for each pattern)
- Single button click to change patterns
- Previous setting is retained even when power is cut
- LED indicator displays output mode even without external LEDs attached
- Non-repeating algorithm for unique and realistic flicker patterns
Applications
- Dark attractions
- Candelabras
- Props and animatronics
- Lanterns
- Special effects strobe
- Signage
Downloads
Specifications
| SKU | DB12 |
| Input | 12VDC |
| Output | 12VDC PWM output, up to 2A load |
| Dimming | PWM |
| Dimensions | 71mm (2.8) x 67mm (2.6)x 15.5mm (0.6) |
| Connector Type | 2.1mm DC jack with screw terminal adapters |
| IP Rating | IP30 |
