24V RGB+W 4100k Panel 1x1

MossLED

RGBW1544950602835

Notify me when this product is available:


Collections: LED Panels

Category: 24V, ML Panel, Professional

Type: LED+R Rigid Panels

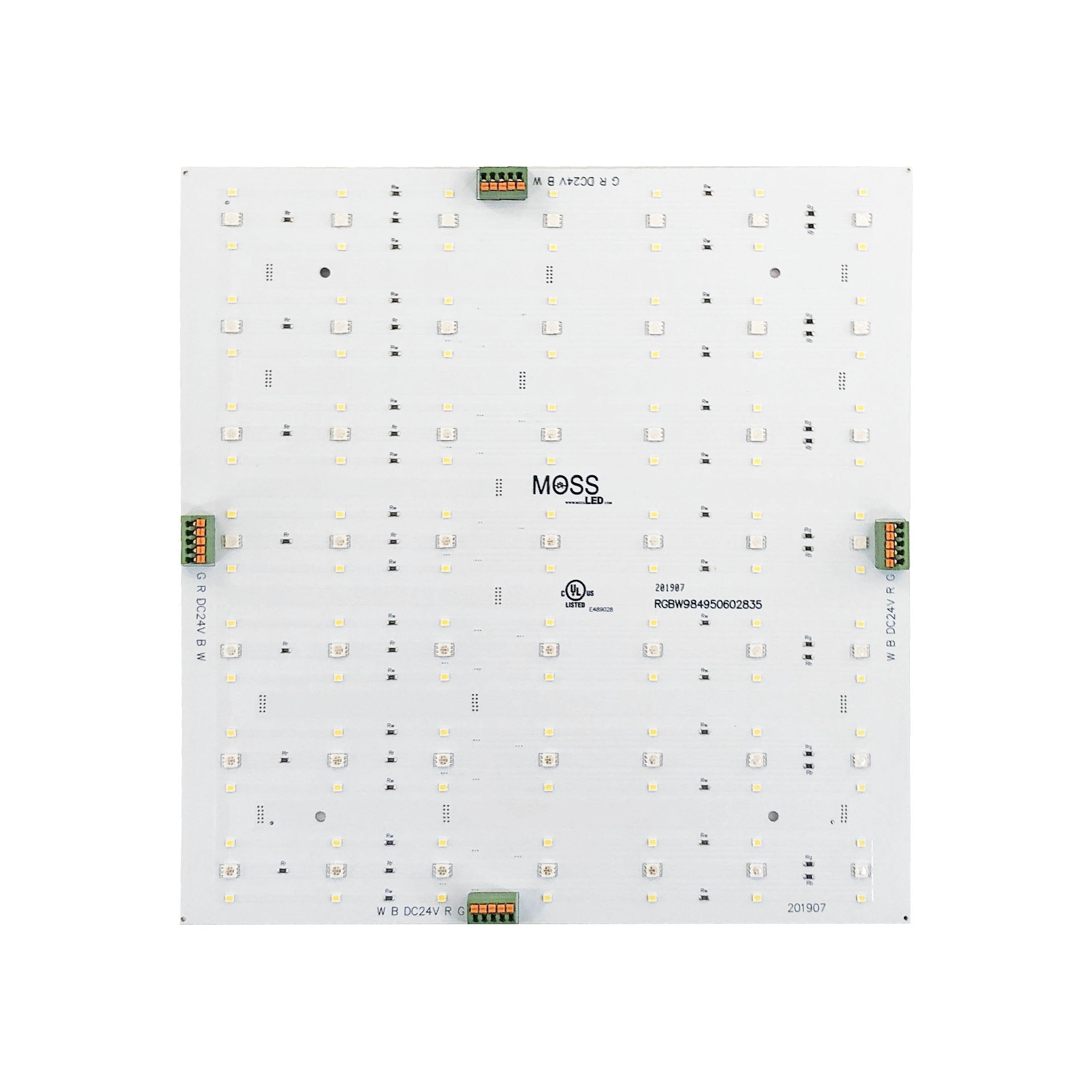

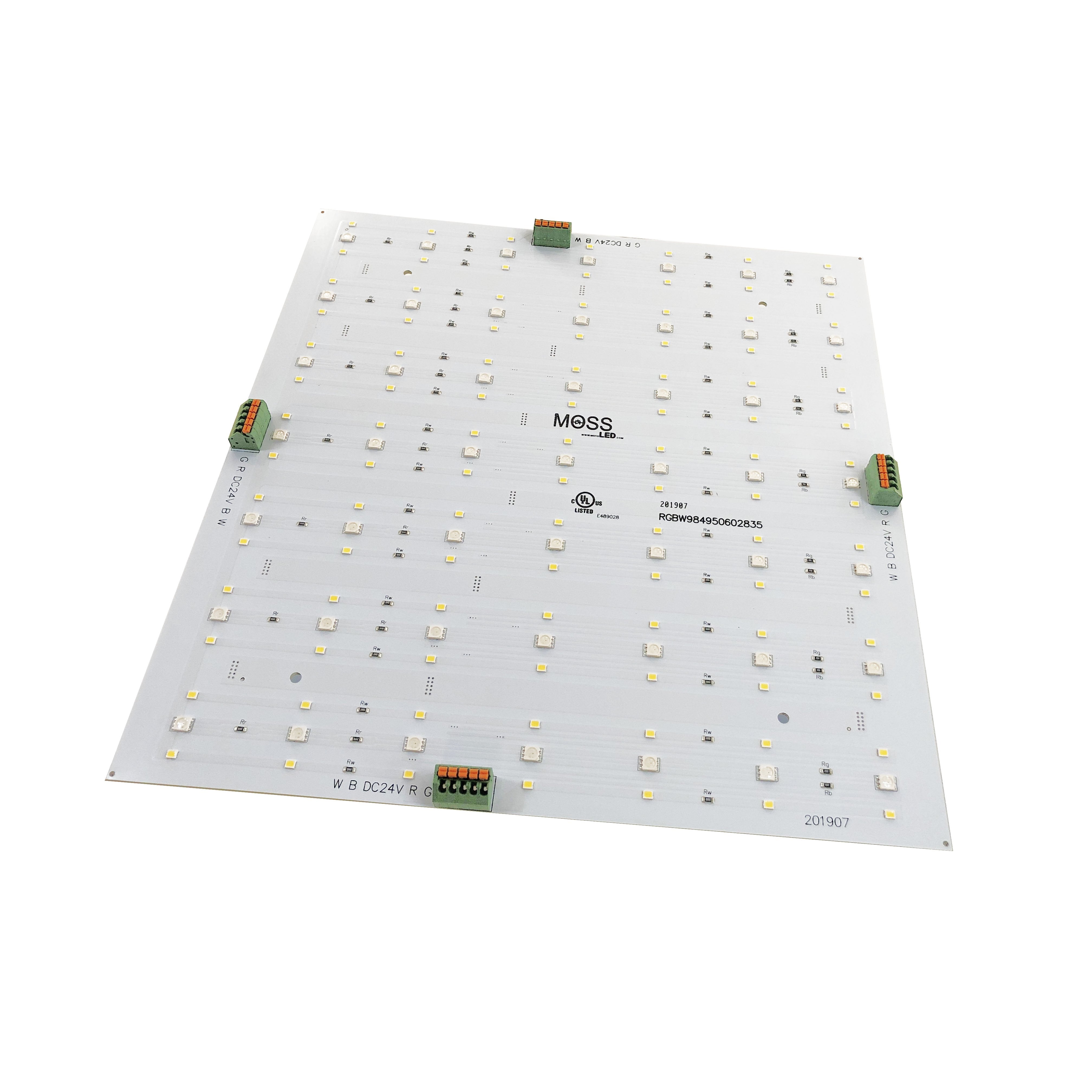

A high output RGB+W 1' x 1' panel.  49 X RGB and 98 X 4100k LEDs provide a nice even output for backlighting and downlighting.  This is a rigid panel with LEDs mounted on an FR4 PCB which provides fantastic heat dissipation properties.  Four mounting holes allow for quick and easy installation onto almost any surface.

Spring-loaded terminal blocks on each side of the panel allow easy connection to any wire from 14 to 20 AWG.  Pair this item with our male and female tails for even faster connections.



SPECIFICATIONS - INDOOR PRODUCT

Product Type : RGB + W (4100k)
Product Code : RGBW1544950602835
CRI : 95
Kelvin : 4100k
PCB Color : White
Current, Rating : 1.29A / panel
Voltage : 24 VDC
Wattage : 31W / panel
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full : TBD
Lumen / Watt : 91.6
Lifetime* : 50,000 hours
Cutting Length : Cannot be cut
LED Quantity : 147 LED / panel (49 RGB & 98 4100k)
Number of Contacts : 5
LED Type : 5050 + 2835
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 70 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : UL, CE, RoHS
PCB Width : 300MM X 300MM  11.8" x 11.8"
Maximum Recommended Panels : 4 Panels
Viewing Angle : 120 degree
Adhesion : 4 X Mounting Holes Provided
Mechanical Fasteners Sold Separately

DOWNLOADS

  1. Specification Sheet Pending

*nominal lifetime - dependent on installation location
