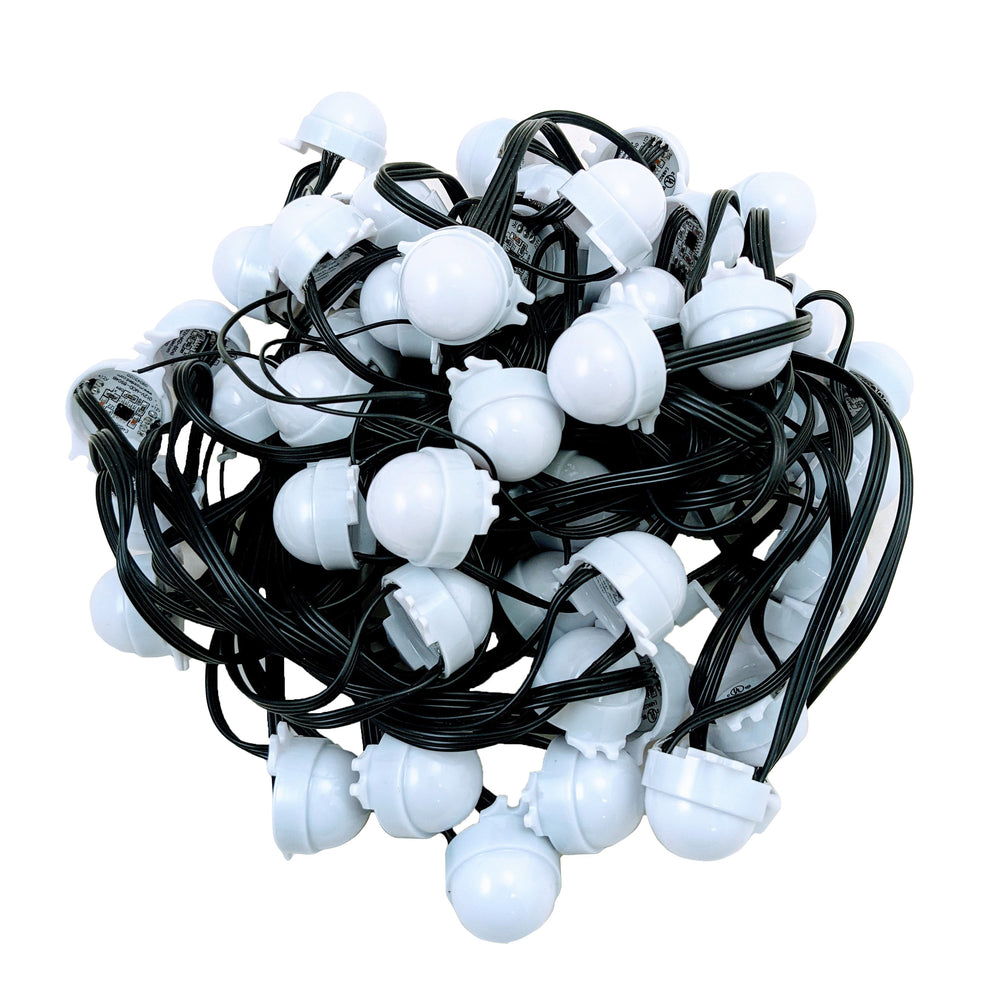

12V Pixel Dots

SKU O-12V-MOD-5050-D4PD-RGBW-8904B
by MossLED
$3.97
Diffused
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 173 in stock, ready to be shipped
Accessories

This is a highly responsive RGBW individually controlled pixel product. Each pixel dot can change colour independent of one another. Ideal for installations that require individual control. Colour chasing, strobing, and vitually limitless effect options are capable once paired with a capable controller. Compatible with our LXFXBX & PixlArt416 controllers or theoretically any device that outputs 8904B pixel protocol.

  • Industry standard strings of 50 dots.
  • 4 Khz PWM frequency allows for flicker-free operation under most camera settings
  • Controller, power supply and extension cables sold separately. Custom colour and colour temperature wavelengths are available.



SPECIFICATIONS

Product Type : RGBW Diffused Pixel Module
Product Code : O-12V-MOD-5050-D4PD-RGBW-8904B
CRI / TLCI : 91 / 87
Kelvin : 8000 (+/- 1000K)
Housing Color : White
Current, Rating : 0.04A / Pixel
Voltage : 12 VDC
Wattage : 0.96 W / Pixel
CC / CV : Constant Voltage
IP Rating : IP66
Lumens @ Full : N/A
Lumen / Watt : N/A
Lifetime* : 30,000 hours
Pixel Pitch : 11.8” [30CM] (CABLE DISTANCE = 10.8” [27.5CM]
LED Quantity : 4 X RGBW LEDs
Number of Contacts : 3
LED Type : 5050
PCB Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 60℃
Temperature, Operating, Minimum : -20℃
Agency Ratings : CE, RoHS
Dimensions : 30MM Diameter
 Maximum Recommended Length : 200 Pixel Dots (Power Injection Required Every 50)
Viewing Angle : 180 degree
Adhesion : Mechanical Fastener Required
Pixel Protocol
: UCS8904B / Input at right of SKU, output at left.
PWM Frequency
: 4 kHz
