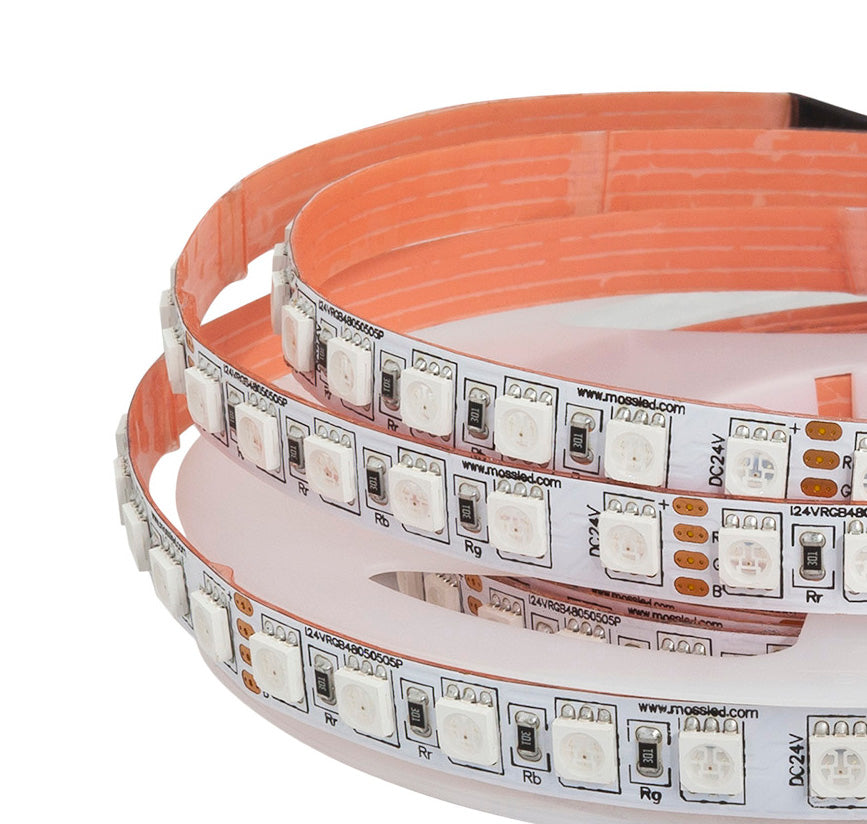

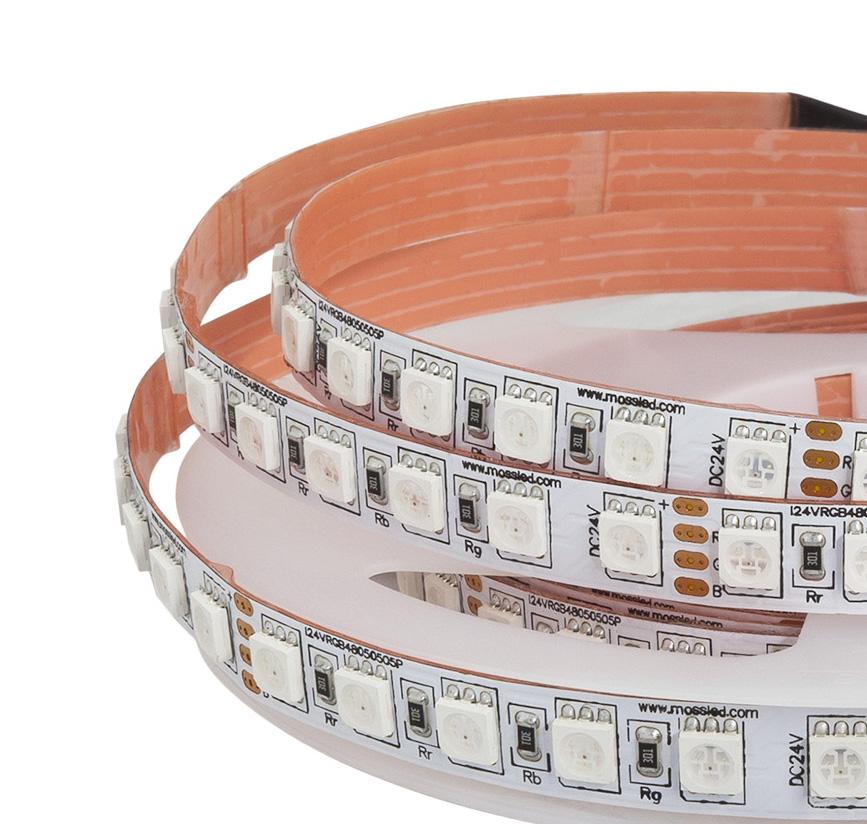

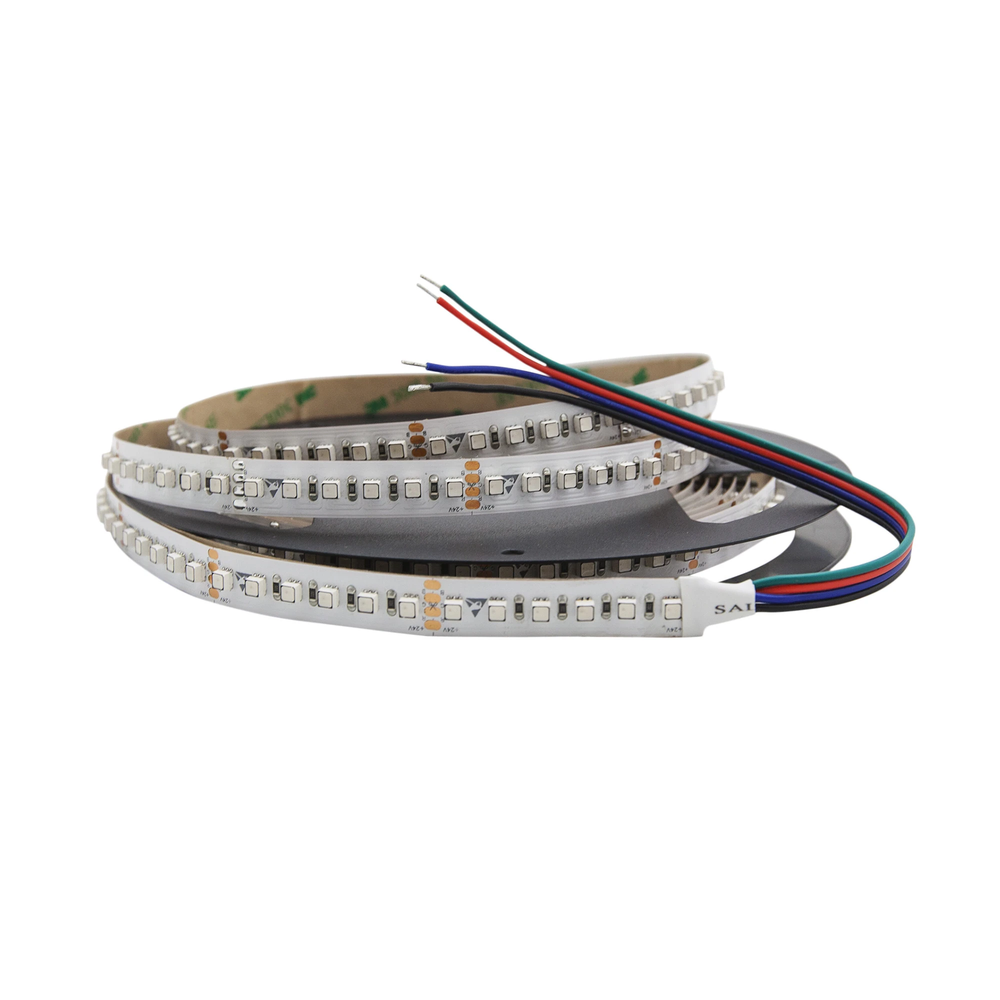

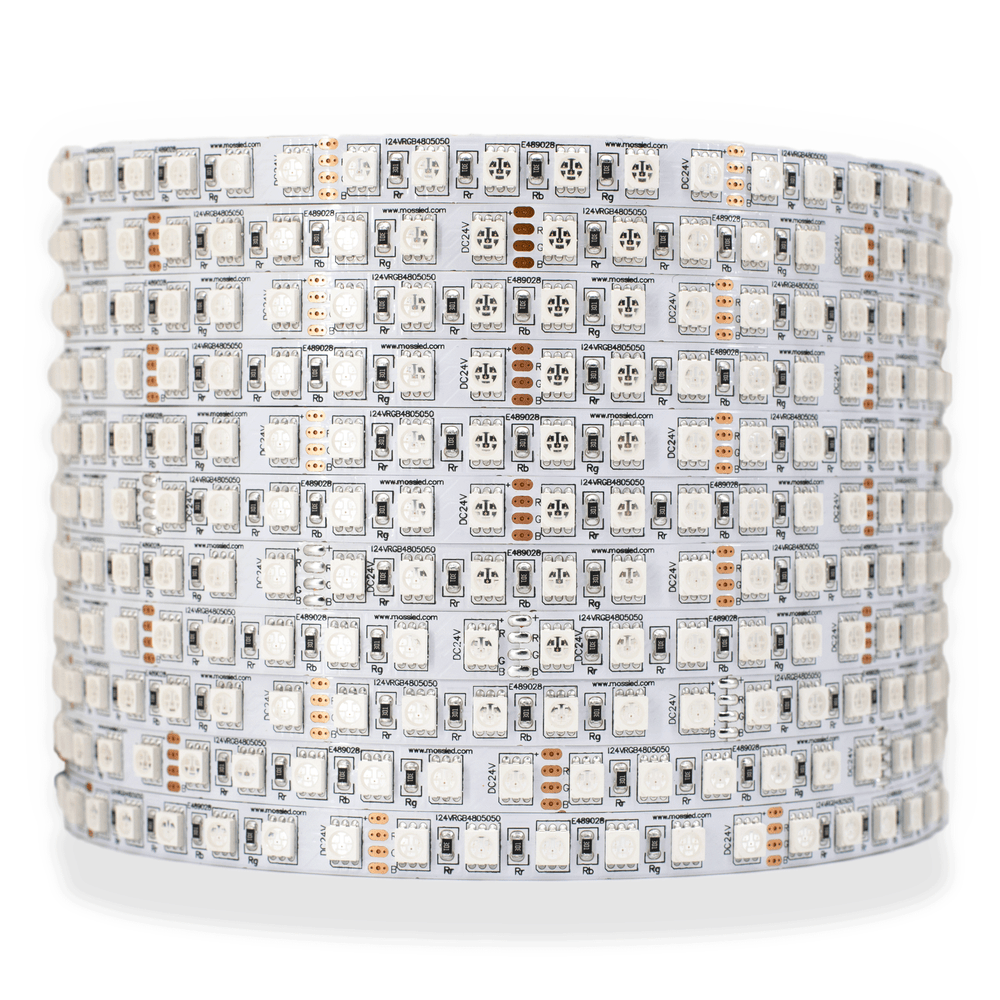

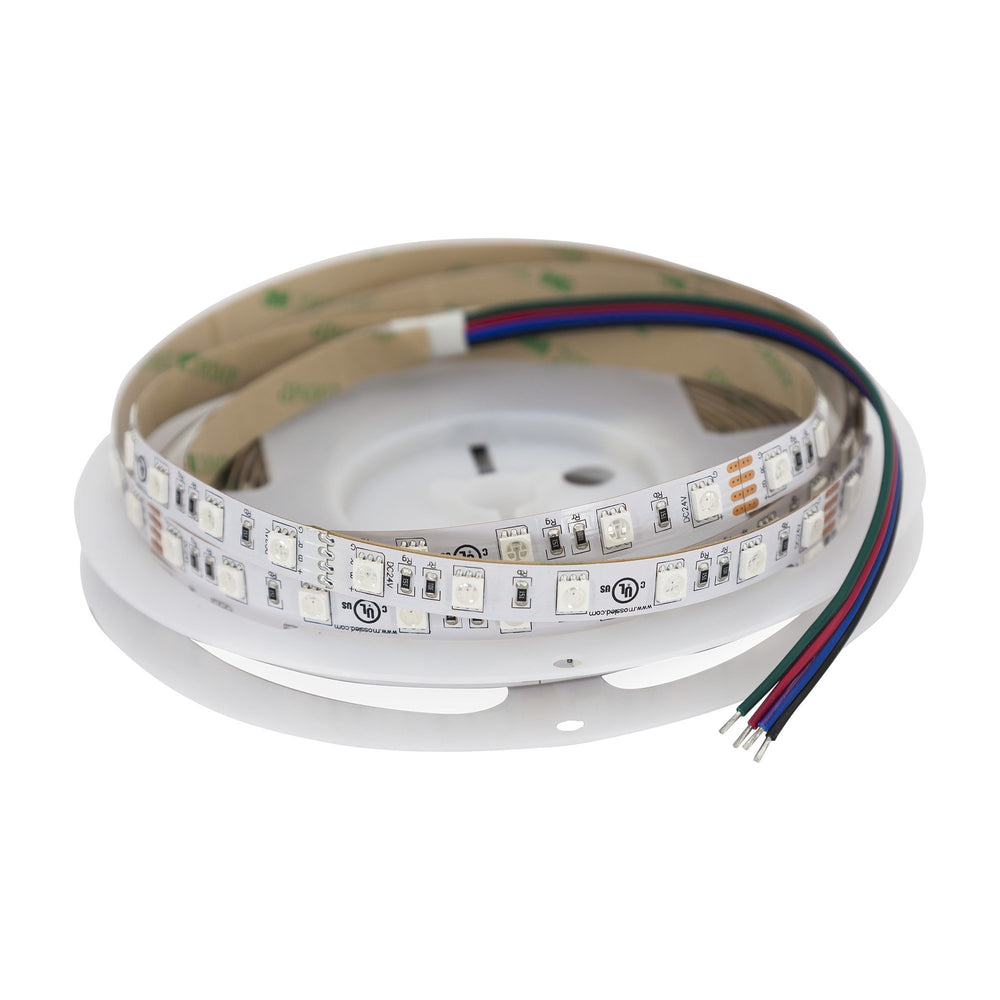

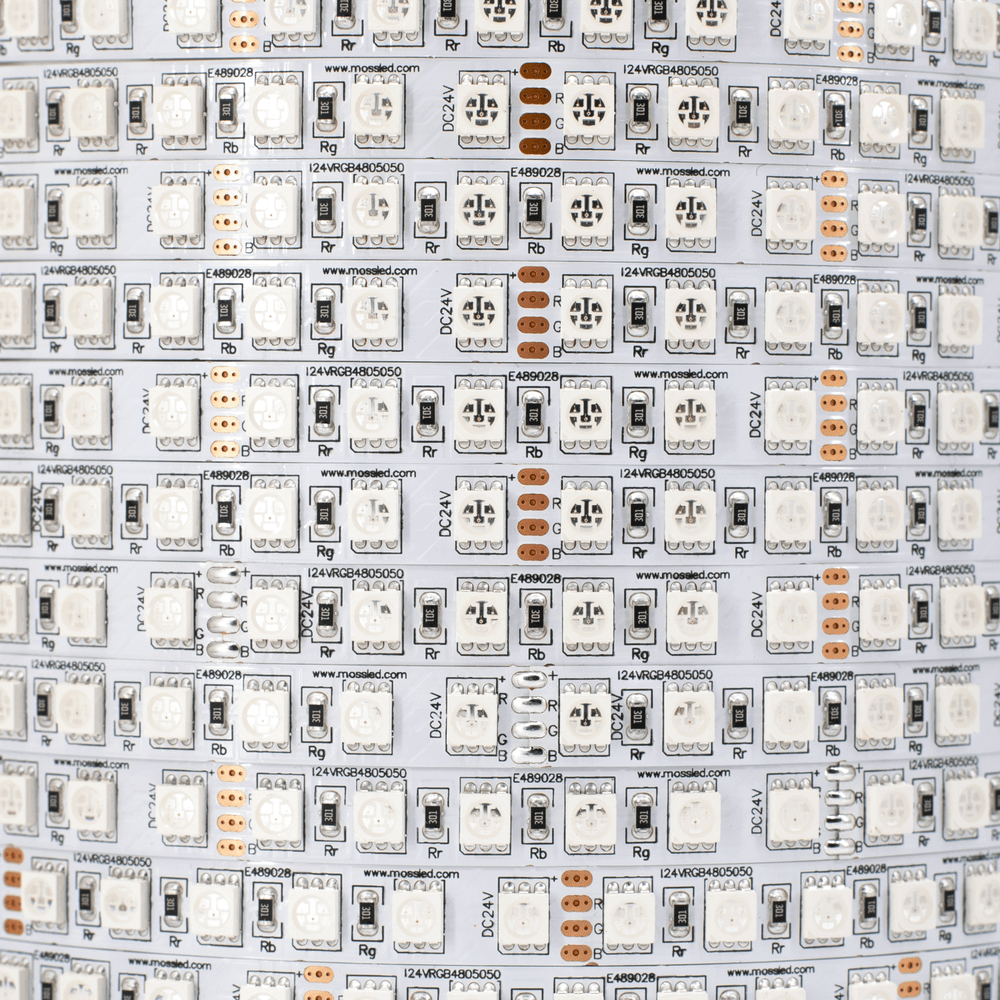

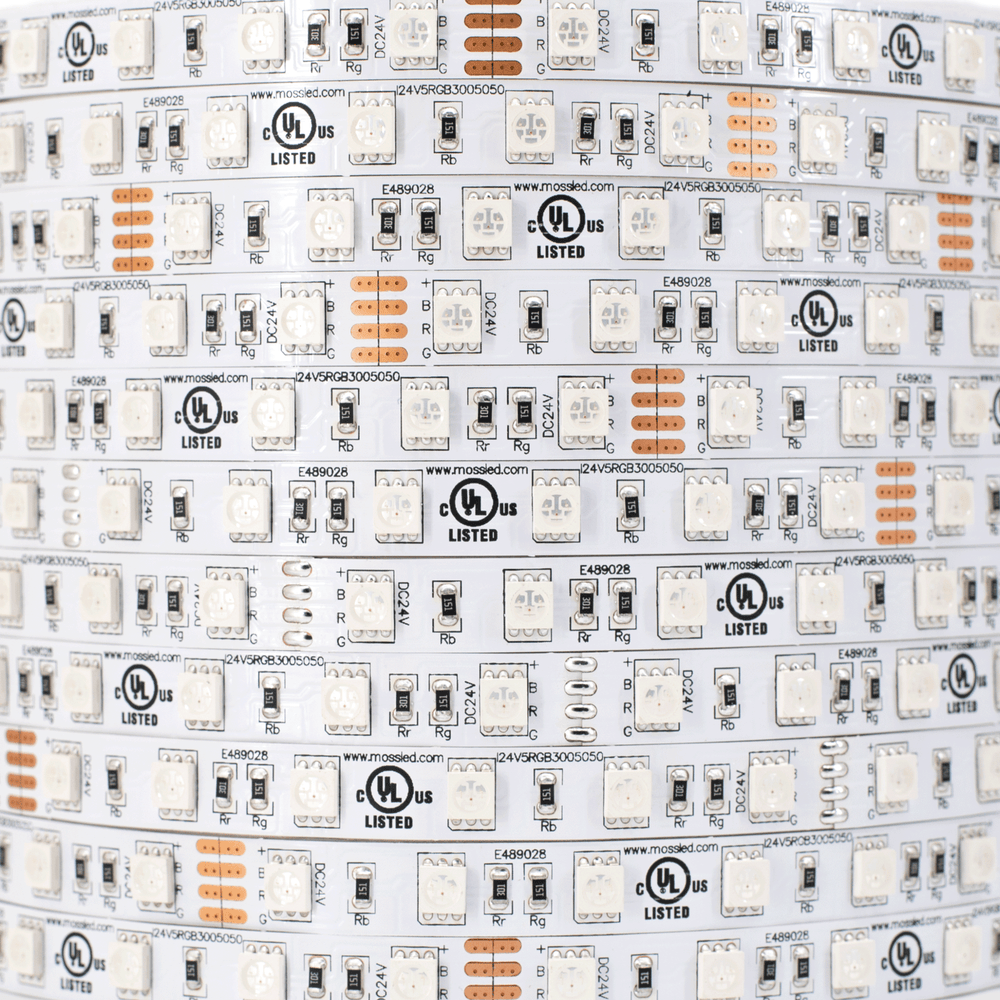

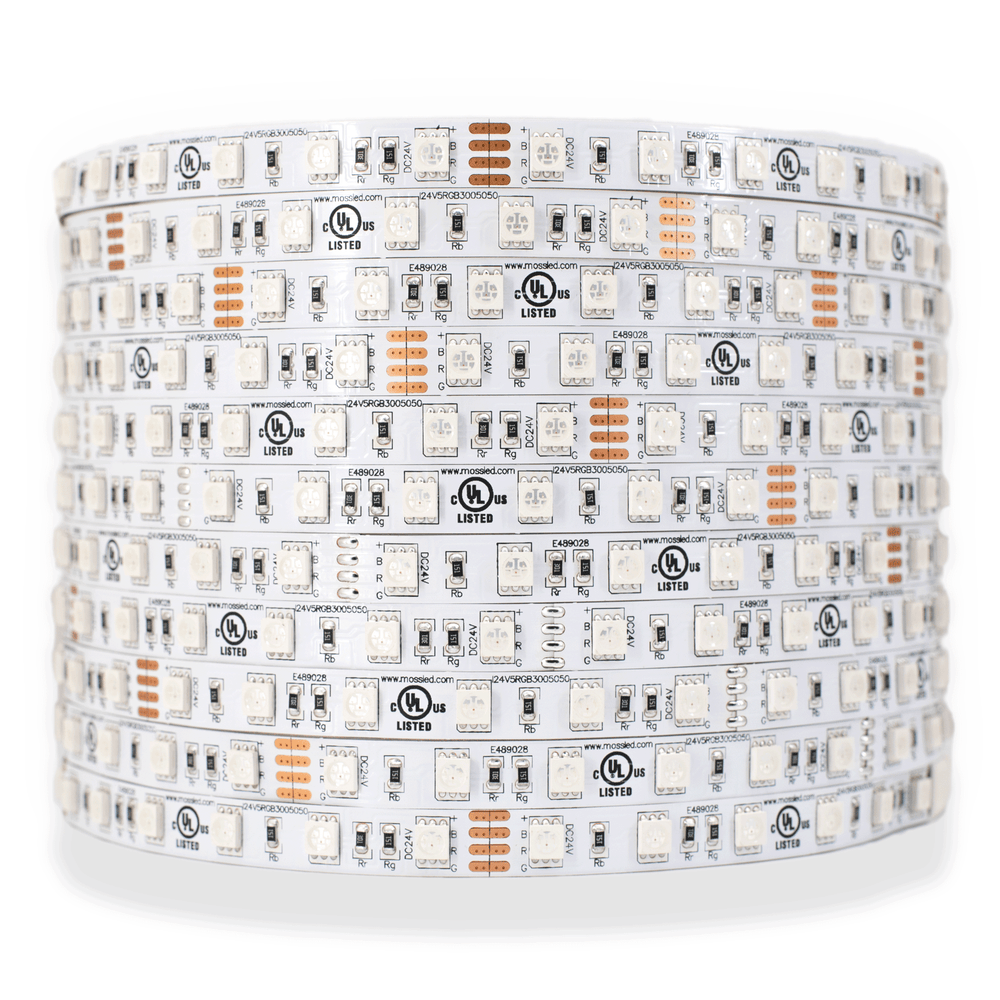

The FlexLED RGB 24V is a versatile, high-output LED strip, designed for dynamic colour-changing applications in residential, television, industrial, and commercial environments. Available in two densities—60 LED/m and 96 LED/m—both featuring high-efficiency 5050 chips, this LED strip provides smooth, vibrant illumination for a variety of lighting setups.
Key Features:
- Two Density Options – Choose from 60 LED/m for standard applications or 96 LED/m for a 60% brightness boost.

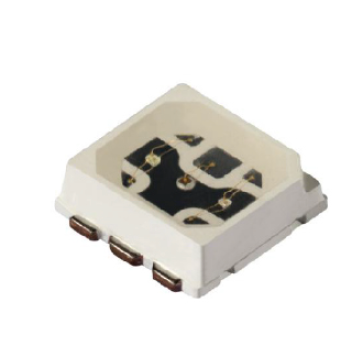

- High-Brightness 5050 RGB Chips – Delivers powerful, consistent colour output.
- Peel-and-Stick Installation – 3M 200MP adhesive backing ensures a secure and lasting bond.
- 24VDC Efficiency – Allows longer runs with reduced voltage drop.
- Flexible Application – Ideal for ambient lighting, accent lighting, and creative design projects.
Power Considerations:

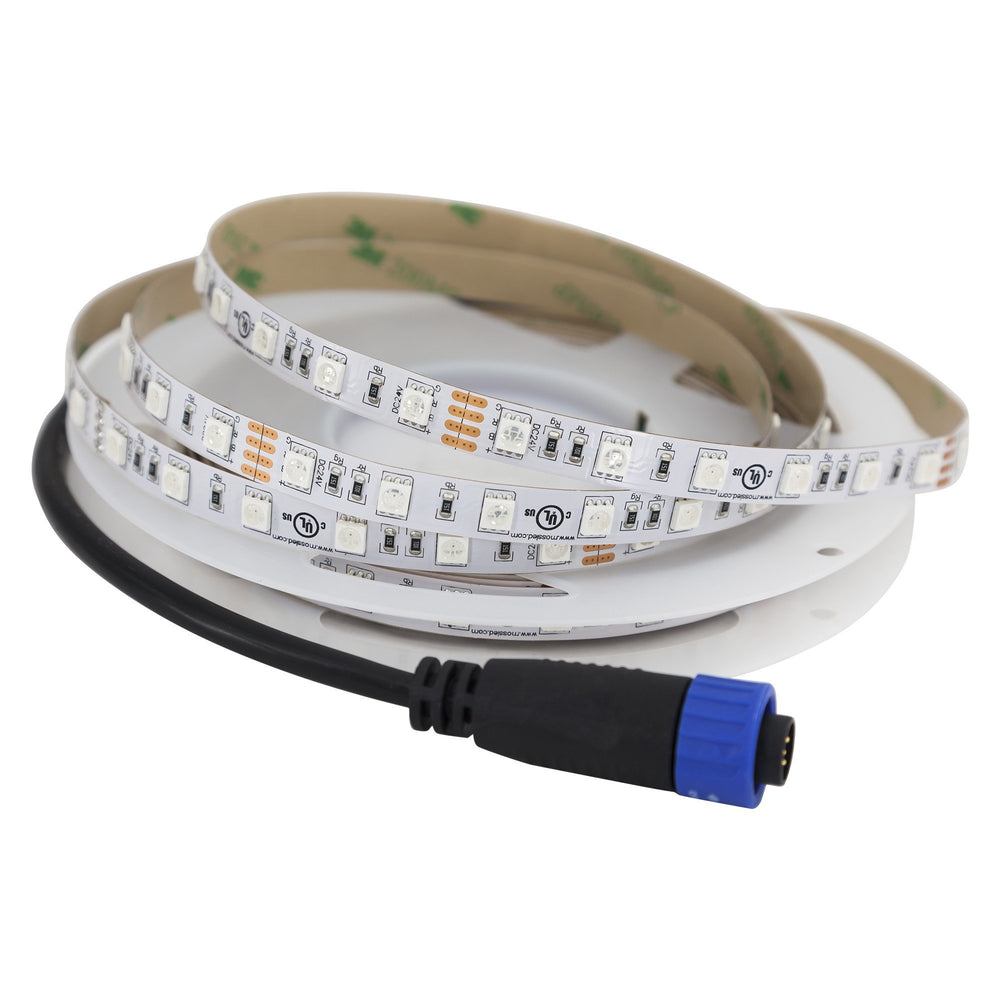

- 60 LED/m Version:
- 14.4W/m (72W total when powered from both ends, 64.3W from one end)
- Class 2 compliant at 5 meters

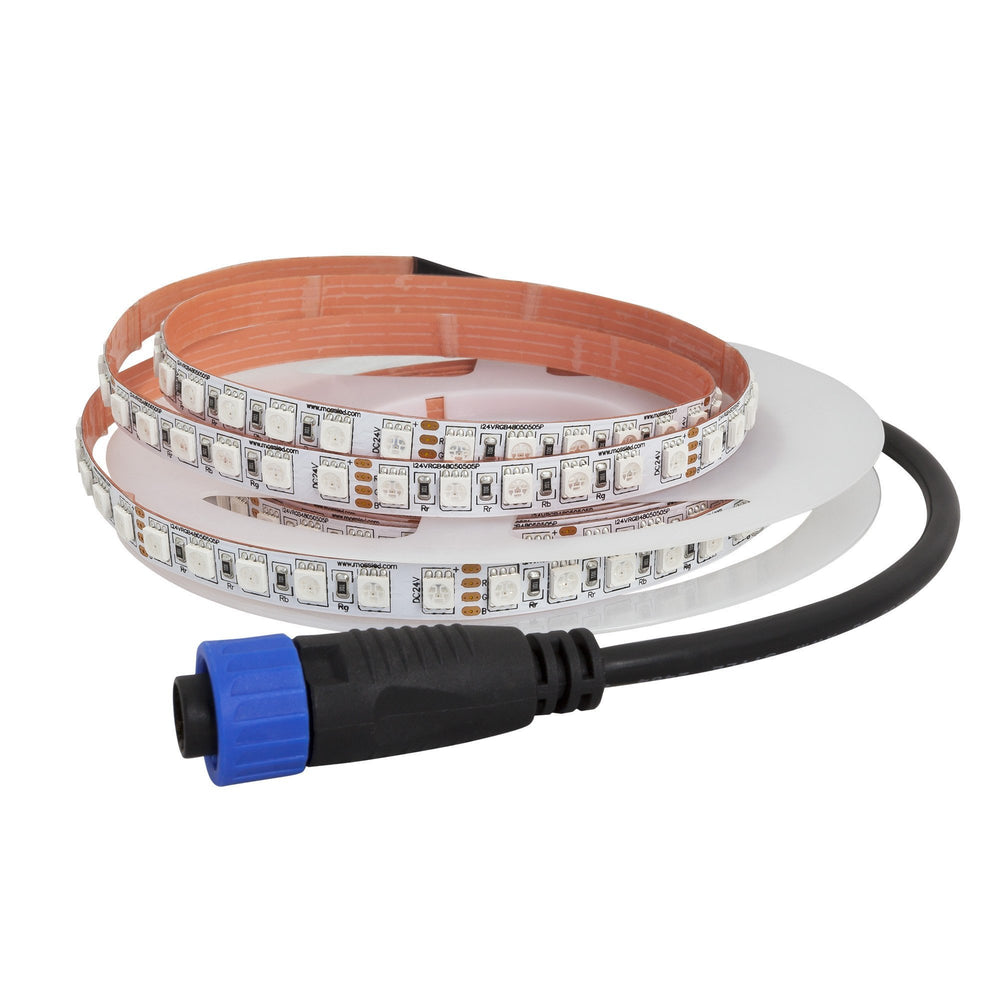

- 96 LED/m Version:
- 23W/m (115W total when powered from both ends, 100W from one end)
- Above Class 2 specification at 5 meters
Installation & Handling Considerations:
- Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
- Waterproof versions require mounting via silicone (not included).
Soldering Guidelines:
- Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
- Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Additional Details:
- Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
- Controller, power supply, and extension cables sold separately.
- Quantity discounts and custom colour temperatures available.
- Pricing is for 5 meters (16.4’) - custom lengths available
The FlexLED RGB 24V delivers brilliant, customizable lighting solutions, making it perfect for high-impact, colour-changing displays in any environment.
Need a custom solution? Contact us today!
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB 60 | RGB 96 |
| Kelvin | : | Color Changing | Color Changing |
| PCB Color | : | White | White |
| Current, Rating | : | 0.6 A / meter | 0.96 A / meter |
| Voltage | : | 24 VDC | 24 VDC |
| Wattage | : | 14.4 W / meter | 23 W / meter |
| Wattage @ 5 Meters (Powered at one end) | 64.3 W | 100 W | |
| Wattage @ 5 Meters (Powered at both ends) | 72 W | 115 W | |
| CC / CV | : | Constant Voltage | Constant Voltage |
| IP Rating | : | IP 43 | IP43 |
| Lumens @ Full | : | 1000 lm / meter | 1600 lm / meter |
| Lumen / Watt | : | 69 | 69 |
| Lifetime* | : | 50,000 hours | 50,000 hours |

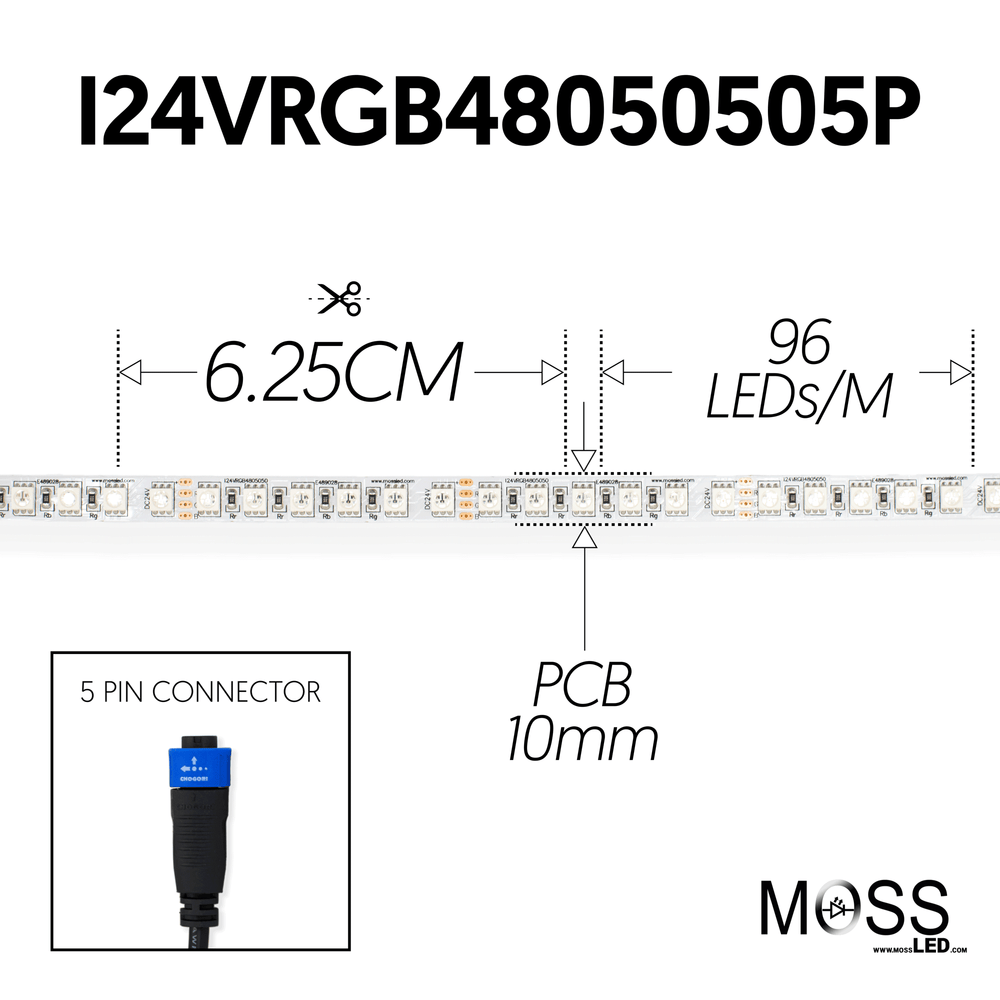

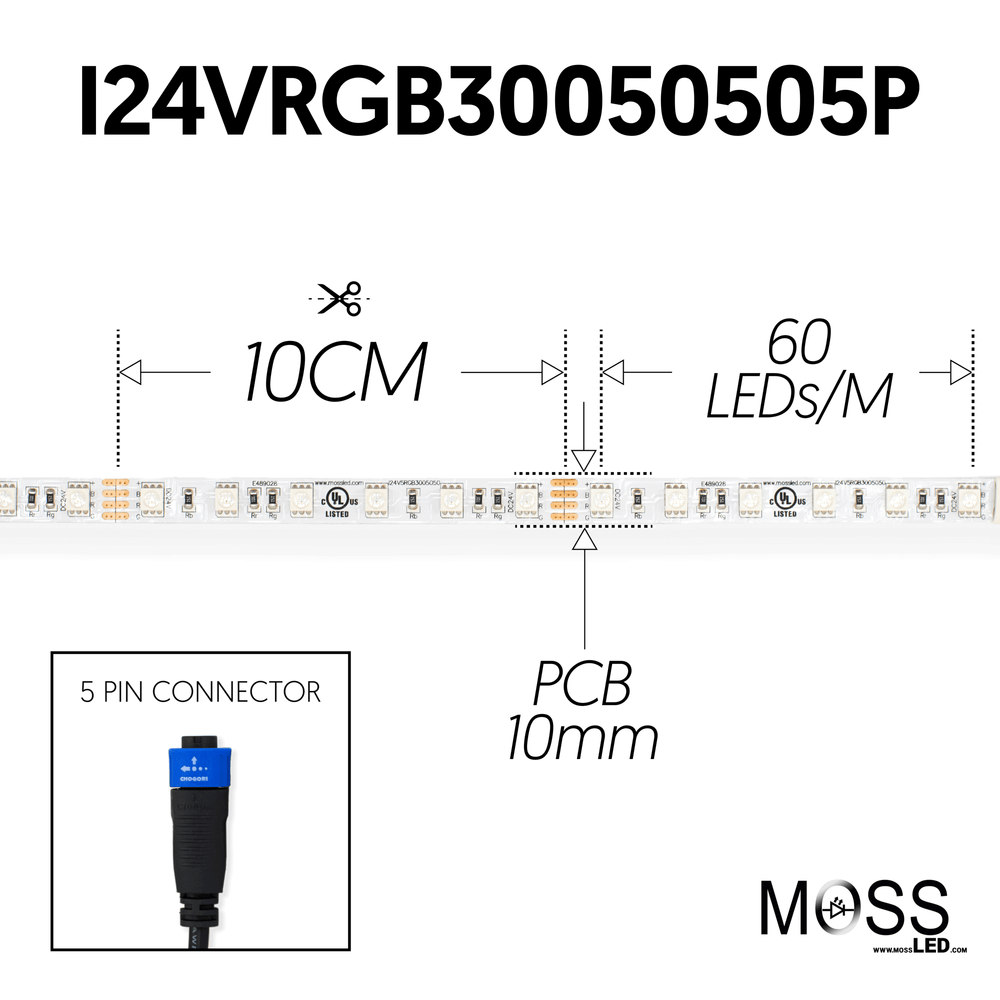

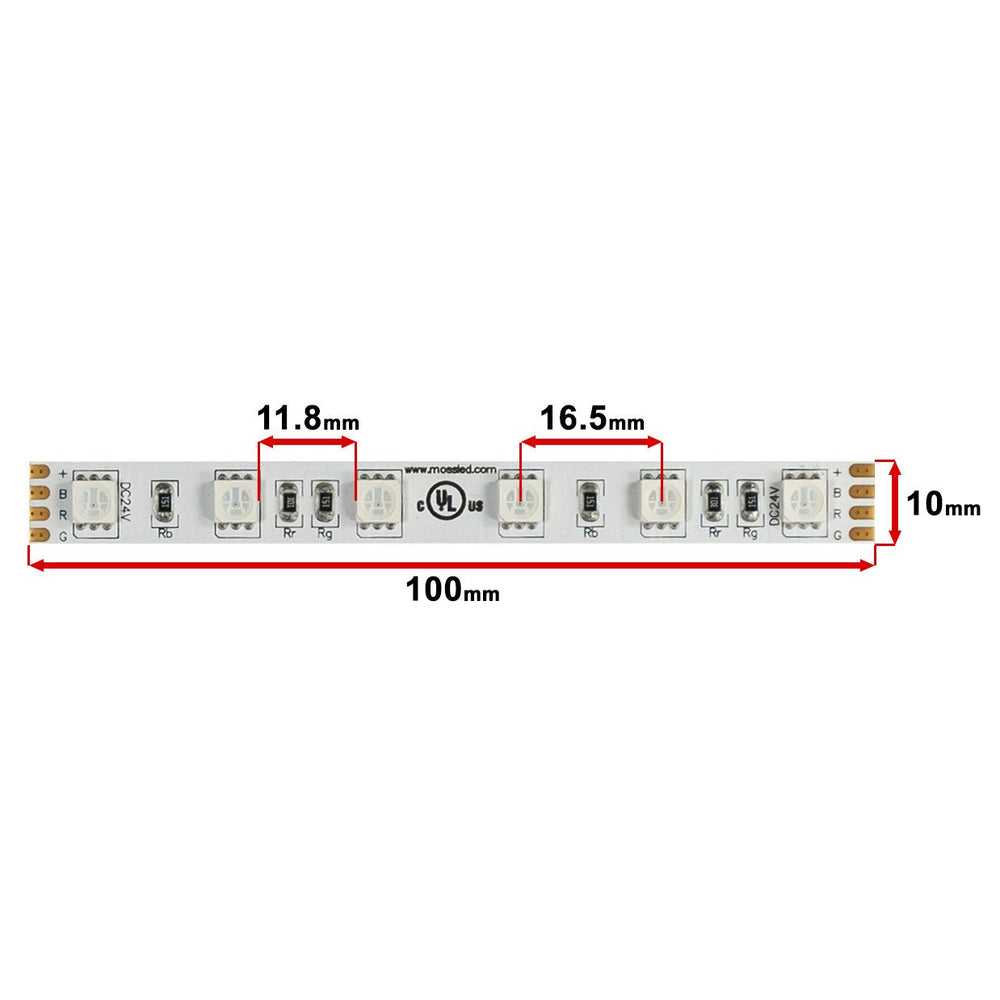

| Cutting Length | : | 10 CM | 6.25 CM |
| LED Quantity | : | 60 LED / meter | 96 LED / meter |
| Number of Contacts | : | 4 | 4 |
| LED Type | : | 5050 | 5050 |
| Copper Quantity | : | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 10MM | 10MM |
| Maximum Recommended Length | : | 10 meters | 5 meters |
| Viewing Angle | : | 120 | 120 |
| Adhesion | : | 200MP 3M | 200MP 3M |
| Wavelength A Red | : | 620 ~ 622.5nm | 620 ~ 625nm |
| Wavelength B Green | : | 520 ~ 522.5nm | 515 ~ 520nm |
| Wavelength C Blue | : | 470 ~ 472.5nm | 465 ~ 470nm |
| Standard length | : | 5m | 5m |
DOWNLOADS
Specification Sheet*nominal lifetime - dependent on installation location
Installation Notes

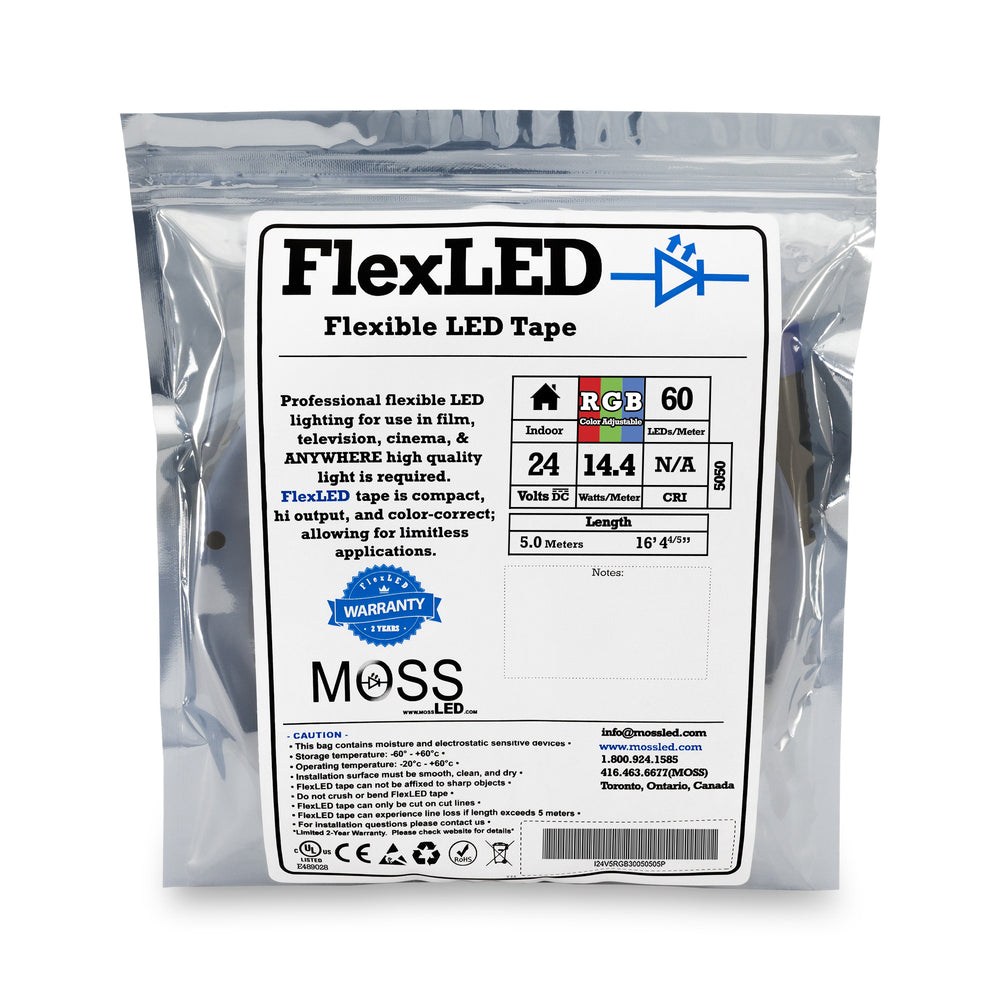

- Follow all instructions on bag label
- Install indoor product in dry locations only
- Weatherproof is rated at IP67 and Waterproof is rated at IP68.
- Waterproof FlexLED must be mounted using silicone (not provided)
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C. Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.
