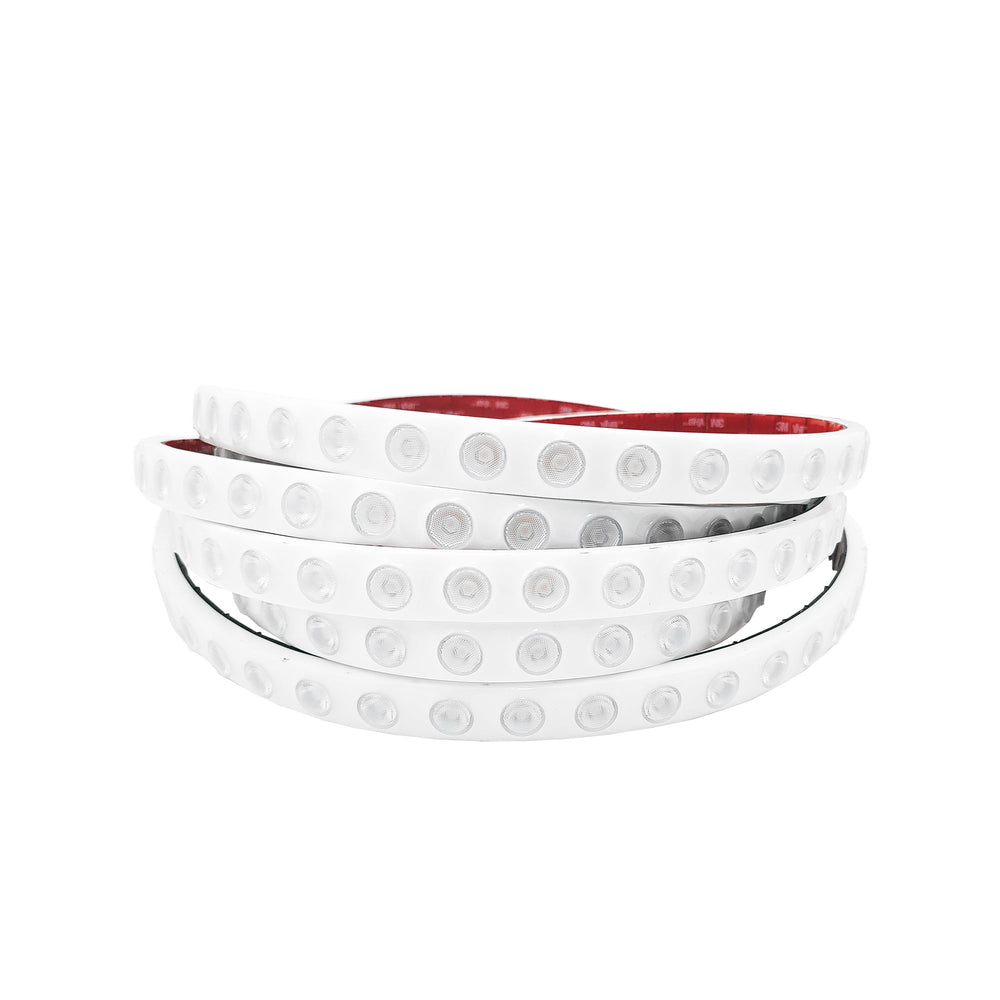

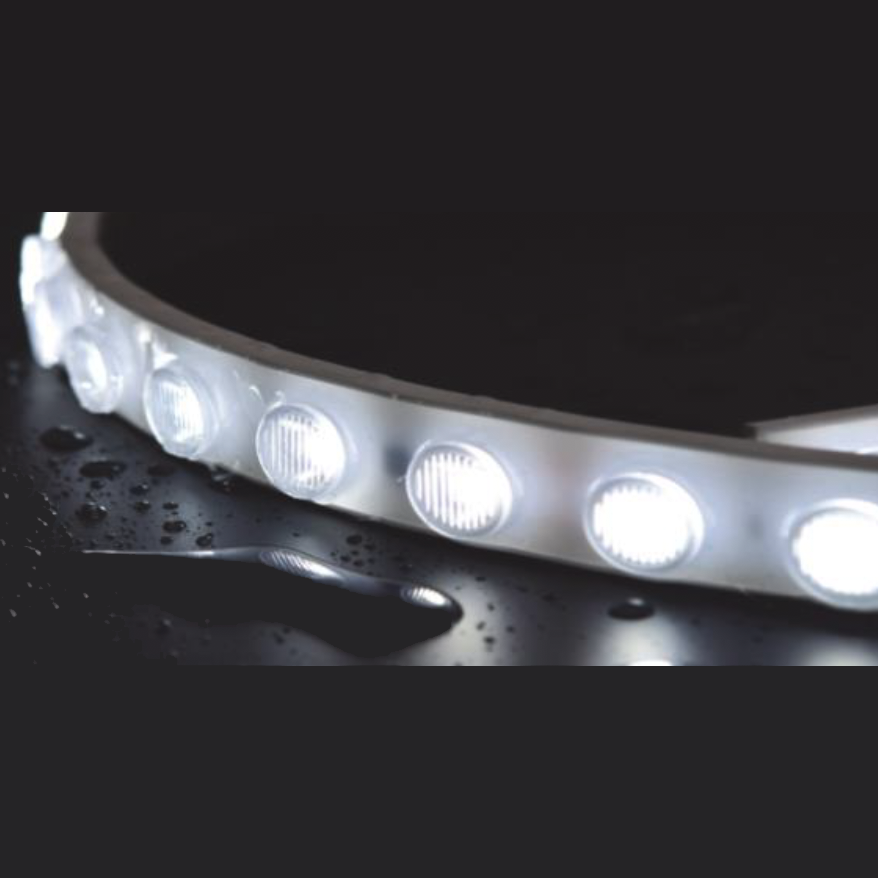

The SpotFlex LED 48 is a specialized FlexLED strip designed with integrated lenses to provide focused, long-range illumination. Unlike standard FlexLED strips with a typical 120° beam angle, SpotFlex LED narrows the beam to 30°, 45°, 60°, or oval beam angles (20° x 45°, 20° x 45° x 10°) for precise uplighting and downlighting applications. Featuring a durable thermoplastic polyurethane lens, this LED strip ensures controlled light distribution for walls, objects, and surfaces requiring extended reach.
Key Features:
- Integrated Lenses – Narrows beam angles for precise illumination (30°, 45°, 60°, and oval beam options).
- Optimized for Long-Throw Applications – Perfect for uplighting, downlighting, and accent lighting.
- Durable TPU Lensing – Provides consistent beam control and long-term reliability.
- Wide Colour Options – Available in 2700K, 3000K, 4000K, 5000K, Red, Green, Blue, and Amber.
- Custom Colours & Wavelengths – Special orders available upon request.
-
Flexible Cut Points – Standard 6.25cm cut intervals (6.7cm near factory-moulded end caps).
Additional Details:
- Pricing is for 5 meters (16.4') - custom lengths available.
- Controller, power supply, and extension cables sold separately.
- Quantity discounts available.
Soldering Guidelines:
- Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
- Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Need a custom solution? Contact us today!
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | White | Solid Colours | |
| Product Code | : | SDFX-O24VO2010-XXXX-95-240-ZZ-5MBEW | SDFX-O24VO2010-XXX-NA-240-2045-5MBEW | |
| CRI | : | 95+ | ||
| Kelvin | : | 2700K or 3000K or 4000K or 5000K (+/-100k) | Red / Green / Blue / Amber | |
| PCB Color | : | White | ||
| Current, Rating | : | 1.0 / meter | ||
| Voltage | : | 24 VDC | ||
| Wattage | : | 23.8 W / meter | ||
| CC / CV | : | Constant Voltage | ||
| IP Rating | : | IP67 | ||
| Lumens @ Full @ 30° | : | 1737 lm | NA | NA |
| Lumen / Watt @ 30° | : | 73 lm/w | NA | NA |
| Lifetime* | : | 30,000 hours | ||

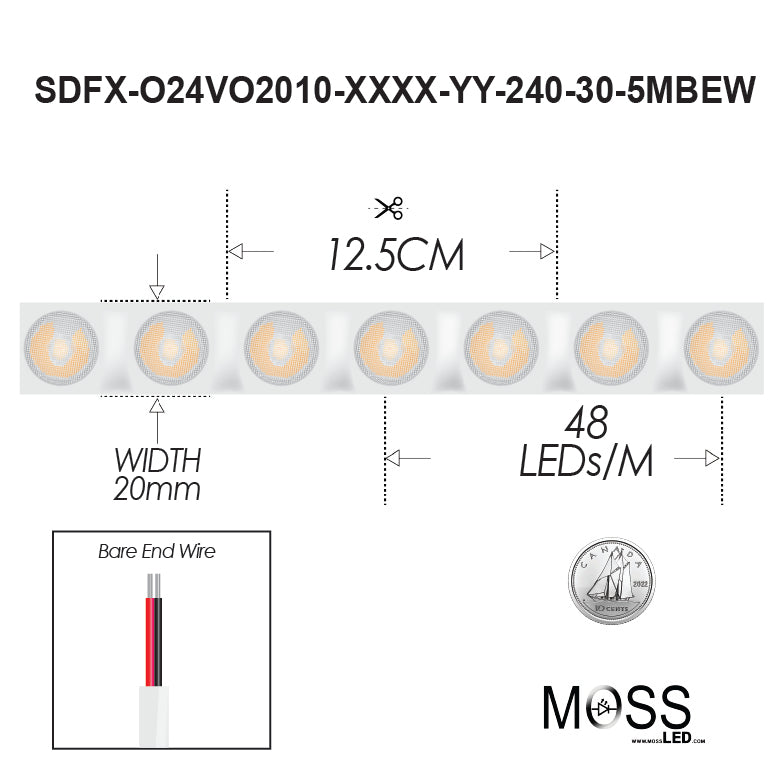

| Cutting Length | : | 12.5 cm except for end caps in which case it is 13.5 cm | ||
| LED Quantity | : | 48 LED / meter (6 / segment) | ||
| Number of Contacts | : | 2 | ||
| LED Type | : | 3030 | ||
| Copper Quantity | : | 3 Oz. | ||
| Temperature, Operating, Maximum | : | 70° C | ||
| Temperature, Operating, Minimum | : | -40° C | ||
| Agency Ratings | : | UL - E489028, CE, RoHS | ||
| Width / PCB Width | : | 18MM / 16MM | ||
| Maximum Recommended Length | : | 5 meters | ||
| Viewing Angle | : | 30°/ 45°/ 60° and 20° X 45° / 20° X 45° X 10° | ||
| Adhesion | : | 3M VHB 5952 | ||
Specification Sheet
IES File - SpotFlex LED White 2700k 30° Beam Angle
