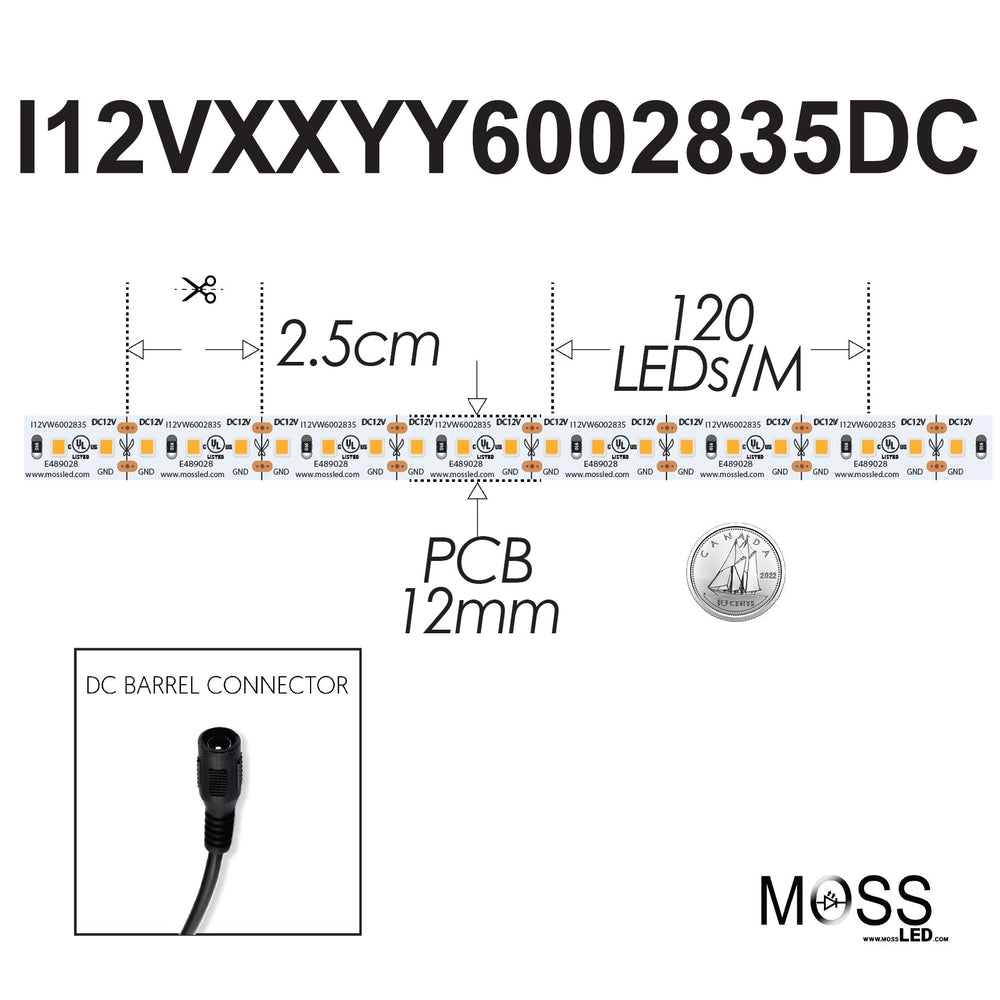

Moss LED FlexLED 120 White 12V spec diagram showing 2.5cm cut interval 120 LED per metre 12mm PCB and bare wire leads

FlexLED 120 White 12V

SKU I12VWW276002835
by MossLED

Qty Discount
5 5%
10 10%
21 15%
The more you buy, the more you save!
Save 27%
$197.55
$144.33
IP Rating
Colour
Connector Type

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

46 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 46 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

Industry Standard 2700k and 5600k High CRI >95
120 LED/Meter Flex LED Tape in 12V DC

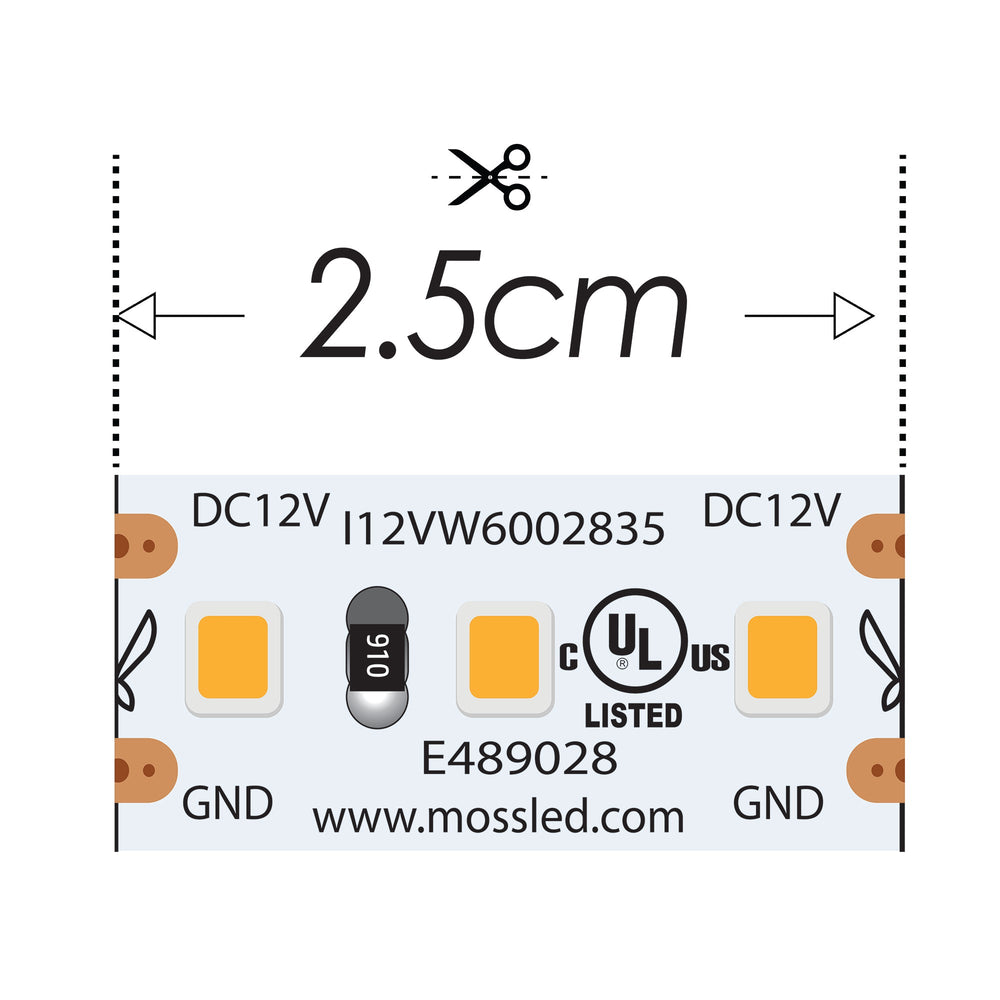

2.5CM Cutting Length!

Medium density white 12V FlexLED strips utilizing the same white chip as the rest of our 24V FlexLED lineup ensures colour consistency across all of our 12V and 24V products.

Suitable for on-camera use, or anywhere a high-quality white light is required.

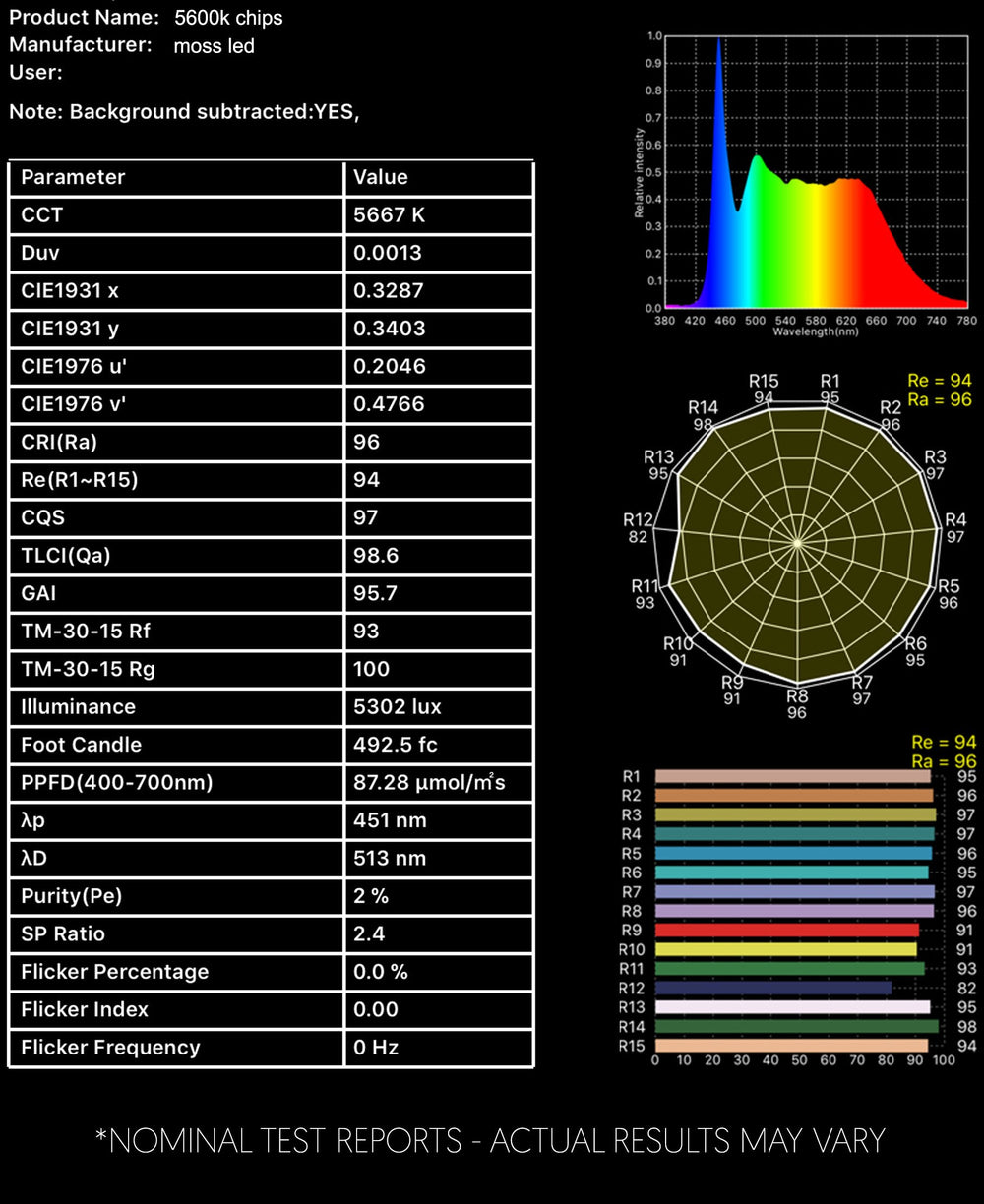

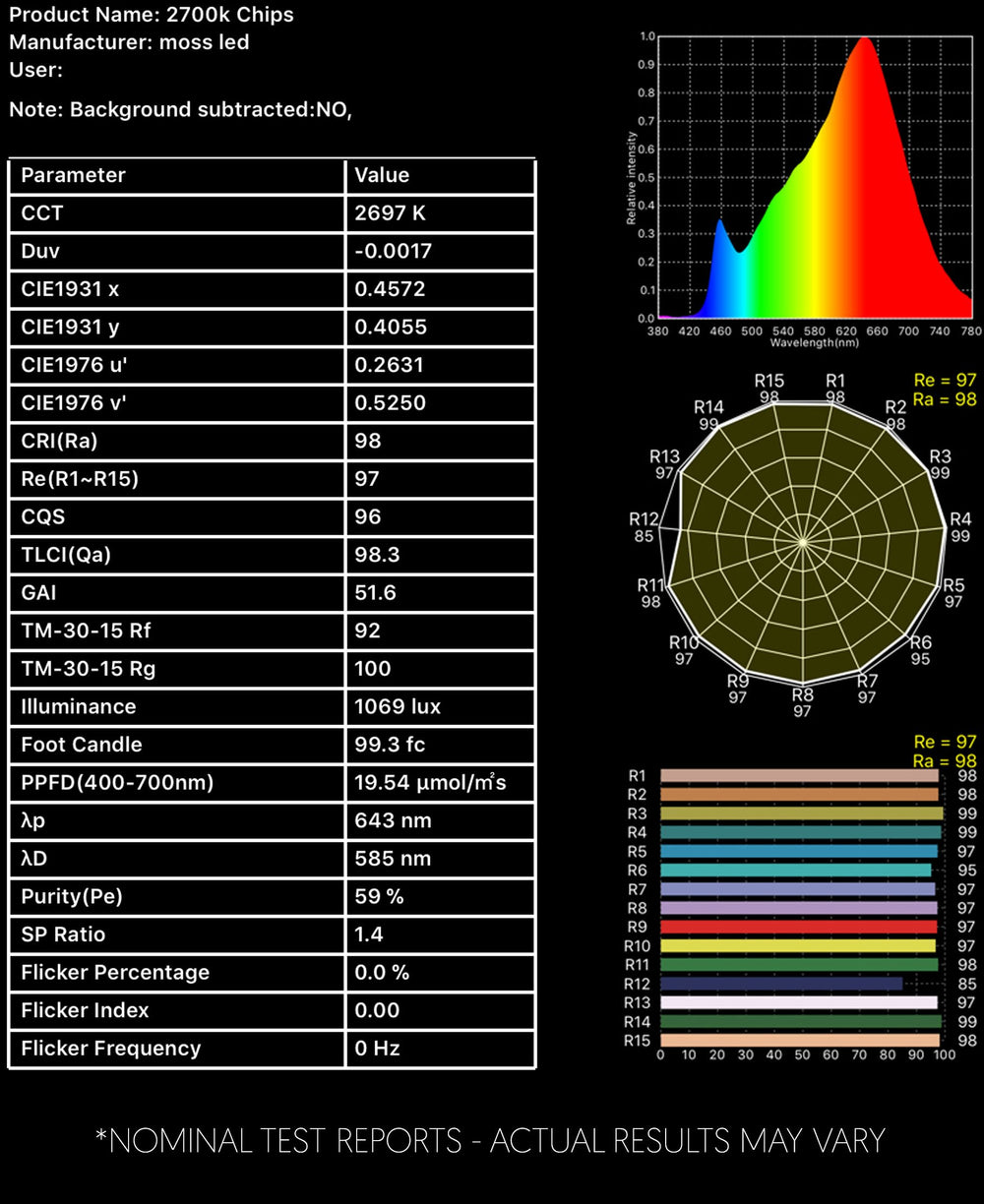

High CRI (Colour Rendering Index) >95. No green spike or color spectrum deficiencies.

Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.

Waterproof must be mounted using silicone (not provided)
Controller, power supply and extension cables sold separately
Quantity discounts and custom color temperatures available.

Please call 1.800.924.1585 or email info@mossled.com to inquire.

Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

Sold in standard 5 meter lengths


SPECIFICATIONS - INDOOR PRODUCT

Product Type : Warm White (2700k)
 Cool White (5600k)
Product Code : I12VWW276002835 I12VCW566002835
CRI : ≥95 ≥95
Kelvin : 2700k +/-100k 5600k +/-100k
PCB Color : White White
Current, Rating : 1.6 A / meter 1.6 A / meter
Voltage : 12 VDC 12 VDC
Wattage : 19.2 W / meter 19.2 W / meter
CC / CV : Constant Voltage Constant Voltage
IP Rating : IP43 IP43
Lumens @ Full : 1000 lm / meter 1000 lm / meter
Lumen / Watt : 69.4 69.4
Lifetime* : 50,000 hours 50,000 hours
Cutting Length : 2.5CM 2.5CM
LED Quantity : 120 LED / meter 120 LED / meter
Number of Contacts : 2 2
LED Type : 2835 2835
Copper Quantity : 2 Oz. 2 Oz.
Temperature, Operating, Maximum : 70 °C 70 °C
Temperature, Operating, Minimum : -40 °C -40 °C
Agency Ratings : UL - E489028, CE, RoHS UL - E489028, CE, RoHS
PCB Width : 12MM 12MM
Maximum Recommended Length : 5 meters 5 meters
Viewing Angle : 120 degree 120 degree
Adhesion : TESA 4965 TESA 4965
Cutting Length : 3 LEDs 2.5CM 3 LEDs 2.5CM

DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance

*nominal lifetime - dependent on installation location
