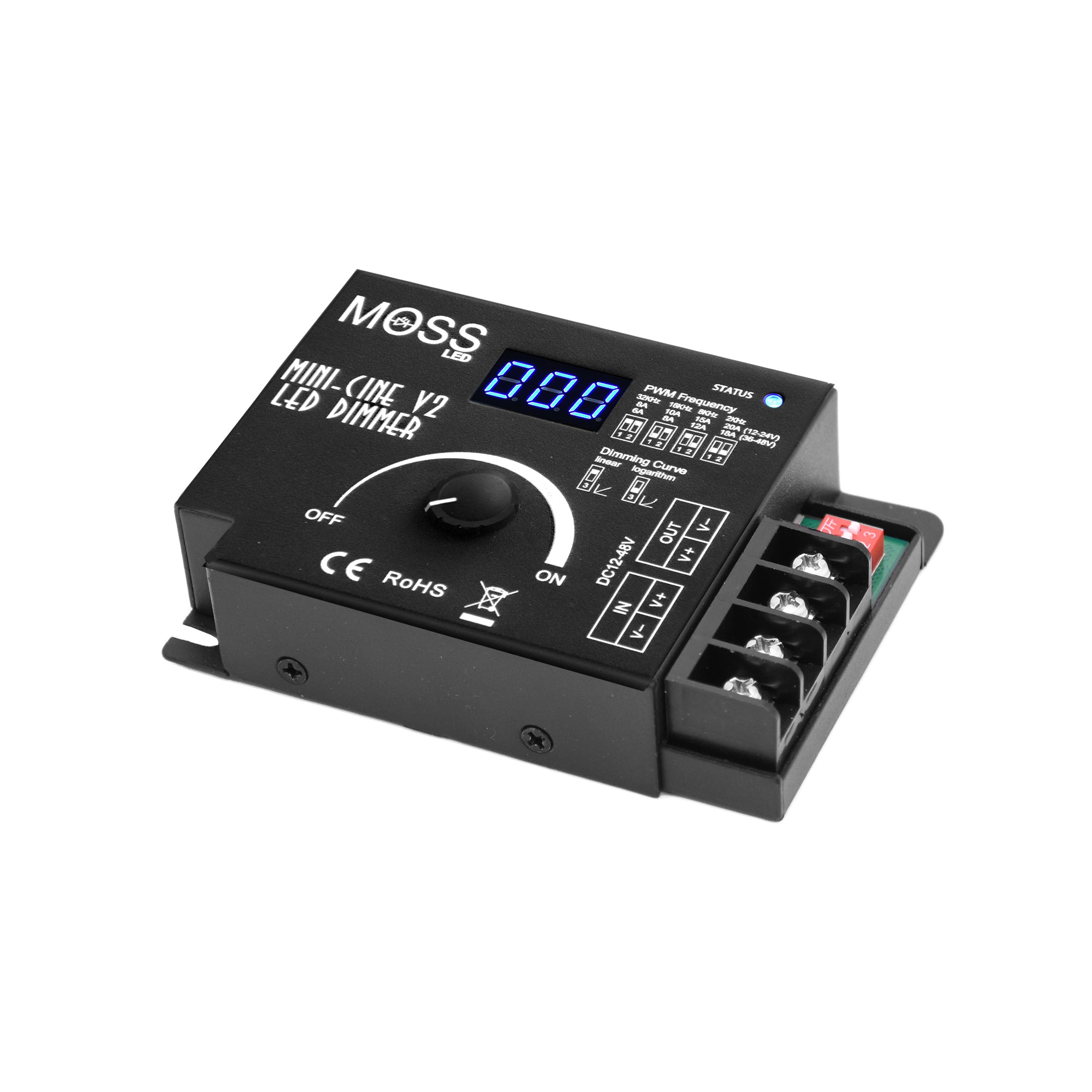

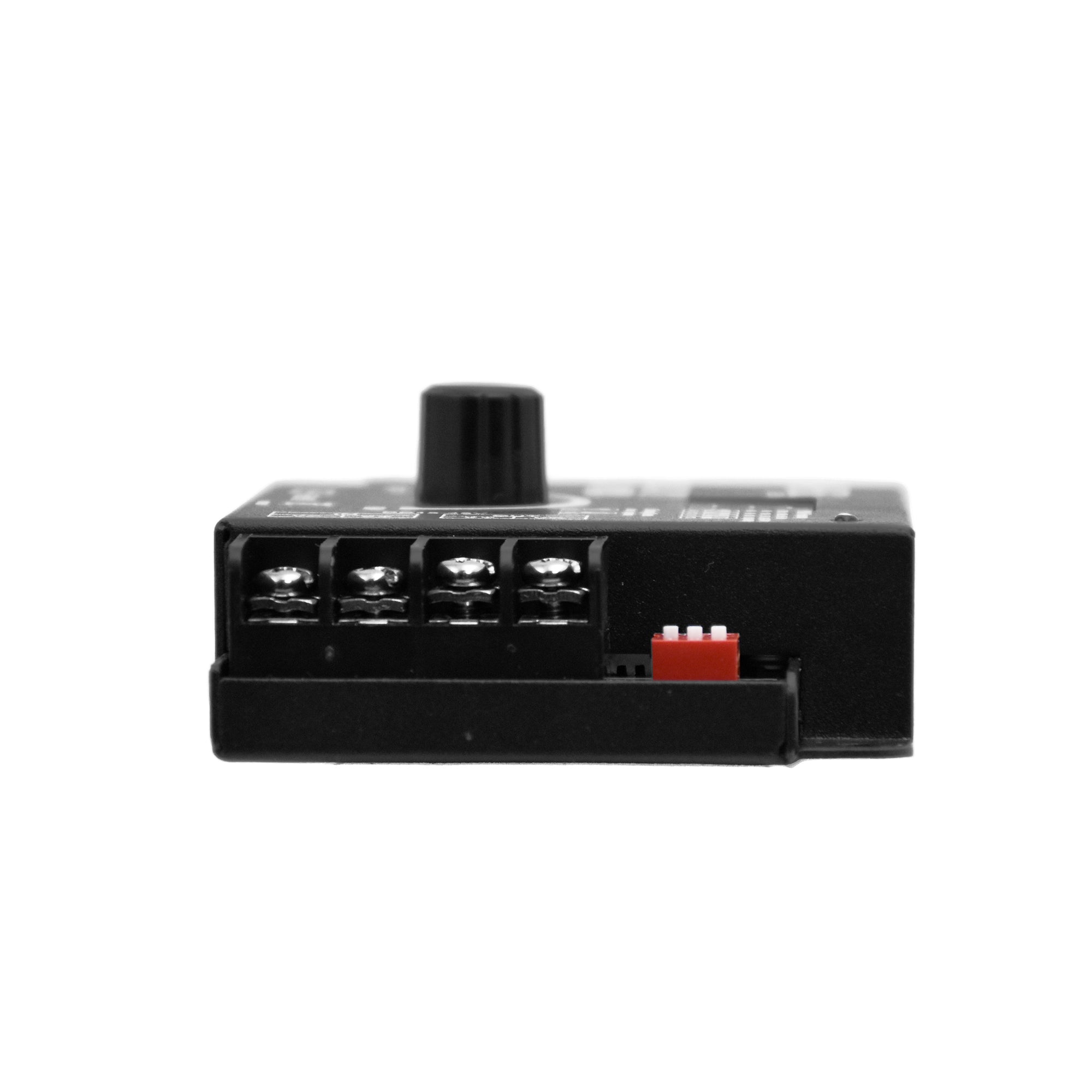

A simple single rotary dimmer for controlling any of our white FlexLED Tape.
- Dimmer for any constant voltage LED
- 12 ~ 48VDC (240 Watts ~ 864 Watts)
- Beefy high current rating @ 20 amps (please see spec sheet)
- Easily mountable using the two built-in screw holes
- PWM Frequency Adjustable - 2kHz - 8kHz - 16kHz - 32kHz
Technical Specifications
| PRODUCT TYPE | : | MINI-CINE V2 |
| PRODUCT CODE | : | XDIMMER1CH12V48V2 |
| VOLTAGE | : | 12V ~ 48VDC |
| INPUT CURRENT (12 ~ 24V) | : | 20A @ 2KHZ / 15A @ 8KHZ / 10A @ 16KHZ / 6A @ 32KHZ |
| INPUT CURRENT (36 ~ 48V) | : | 18A @ 2KHZ / 12A @ 8KHZ / 8A @ 16KHZ / 6A @ 32KHZ |
| OUTPUT POWER | : | CONSTANT VOLTAGE, PWM CONTROL |
| TYPE | : | SINGLE CHANNEL ROTARY DIMMER |
| WATTAGE (MAX @ 2KHZ) | : | 240W @ 12VDC / 480W @ 24VDC / 648W @ 36VDC / 864W @ 48VDC |
| SAFETY STANDARD (LVD) | : | EN 62368-1 ; 2020+A11:2020 |
| EMC STANDARD | : | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-1 7 V3.2.4 |
| CERTIFICATION | : | CE, EMC, LVD, RED, ROHS |
| DIMMING RANGE | : | 0-100% (101 LEVELS) |
| DIMMING CURVE | : | LOGARITHMIC OR LINEAR |
| PWM FREQUENCY | : | 2KHZ, 8KHZ, 16KHZ, 32KHZ |
| OPERATION TEMPERATURE | : | Ta: -30ºC~ +50ºC |
| CASE TEMPERATURE (MAX.) | : | Tc: +85ºC |
| WARRANTY | : | 1 YEAR |
Mini-Cine Specification Sheet
