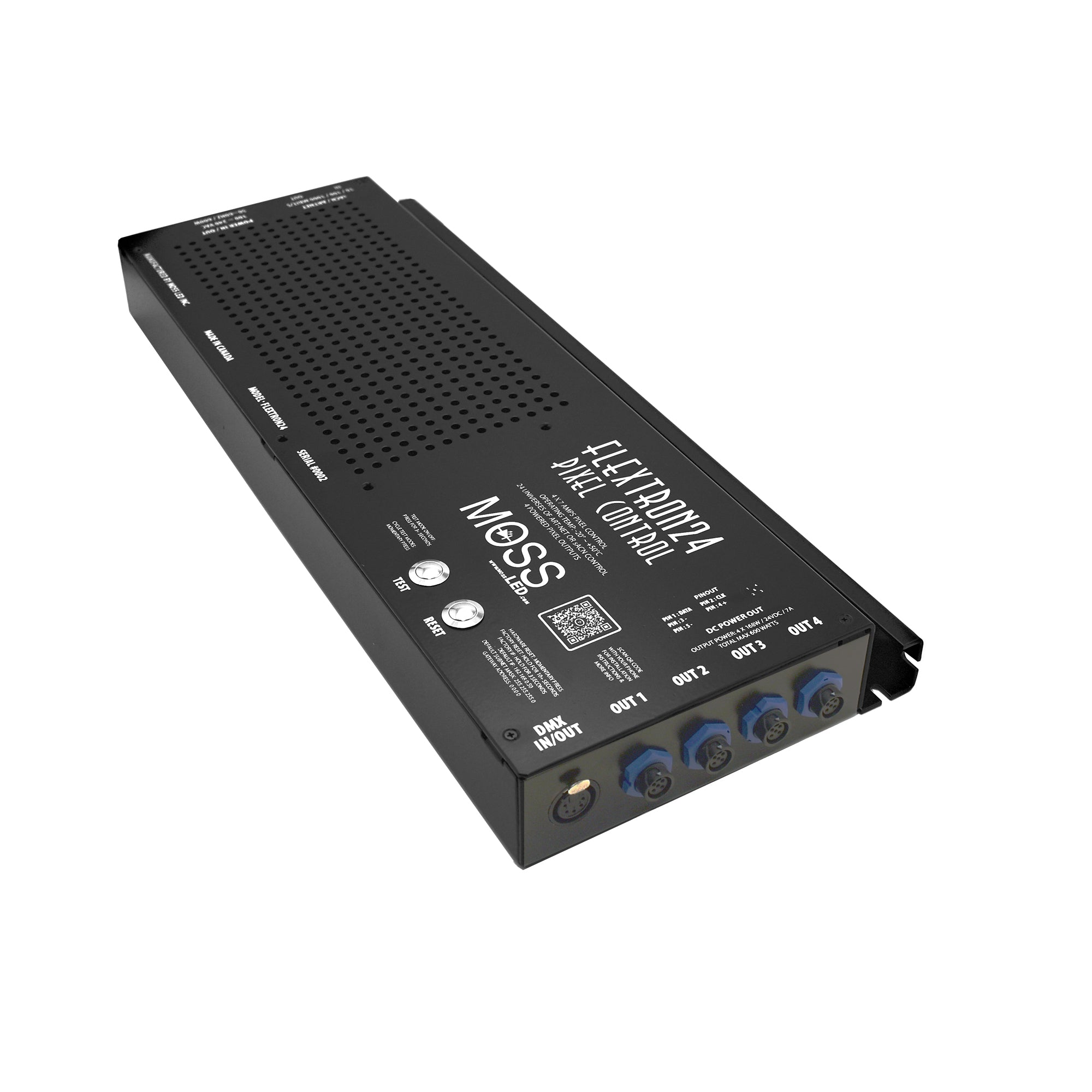

Moss LED FlexTron 24 Pixel Controller top view black enclosure with FlexTron24 Pixel Control branding Moss LED logo QR code test and reset buttons output ports Made in Canada white background

FlexTron 24 - Pixel Controller

SKU FLEXTRON24
by MossLED
$2,772.99

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

0 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : Out of stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

FlexTron 24 – Advanced 4-Output Pixel Controller for OmniFlex 360

The FlexTron 24 is a powerful and versatile pixel controller, designed for seamless control of OmniFlex 360 Pixel products. With 4 independent outputs, it supports up to 24 universes of pixel control via Art-Net or sACN through its ethercon connectors. Featuring rugged waterproof twist-lock cabling, high-speed pixel processing, and advanced addressing capabilities, the FlexTron 24 delivers precision control for professional lighting applications.

Key Features:

  • 4 Independent Outputs – Powers 4 x 6m (19.68') OmniFlex 360 Pixel products.
  • Advanced Pixel Control – Supports 24 universes of Art-Net or sACN and 60+ pixel protocols.
  • Rugged Connectivity – Features ethercon in/out and True1 TOP power connectors.
  • Web-Based Configuration – Easily manage settings via any modern browser.
  • Advatek Mk3 Software Integration – Includes dynamic frame rate adjustment, gamma correction, dithering, and pixel grouping.
  • Built-In DMX512 I/O – Auxiliary port for additional DMX512 input or output.
  • High-Speed Processing – Ultra-fast refresh rates for smooth, real-time performance.
  • Compact & Truss-Mountable – Slim design fits easily inside truss for discreet installations.
  • Comprehensive Safety Features – Fault protection on all outputs for maximum reliability.

The FlexTron 24 Pixel Controller is the ultimate solution for large-scale pixel control, delivering unmatched precision, power, and ease of use.

Need a custom solution? Contact us today!







SPECIFICATIONS

AC Input (Voltage) : 100 ~ 240VAC 50/60 Hz Universal Input
AC Input (Current) : 7A @ 115VAC      3.3A @ 230VAC      2.9A @ 277VAC
Output (Voltage) : 24VDC
Output Power (Current) : 4 x 150W (4 x 6.25A @ 24V) Total 600W (25A)
AC Input / Output Connector : powerCON TRUE1 TOP
DC Output Connector : 5-Pin Female Chogori
Size (inches) :
L 21" x W 7.8" x H 2.4"
Pixel Protocols :

Over 60+ Pixel Protocols
Channel Count : 3,072 (6 universes) x 4 Outputs (24 Universes / 12,288 Total)
Control Protocols : sACN / ArtNet / DMX512
Protections: : short circuit, over voltage, overload, over current, over temp
sACN / Artnet Connector : Ethercon
Housing : Aluminum housing
Indicator : Side Red/Green/Blue LED - See Specification Sheet for Details
DMX512 Input / Output Connector : 5-Pin XLR
Output Connector Lock : Yes
Output Polarity : + / Clk / Data / Gnd
Weight :  6.0kg / 13.2Lb
Mounting Options : 3/4" Bolt Holes Provided
Cooling : Passive
 IP Rating : Outdoor Weatherproof IP53 (Mount with Vent Holes Away From Water Source)
Product Type : LED Pixel Control Product
MFR Product Family : FlexTron
Ambient Operating Temperature : -40 °C to 50 °C
Chassis Color : Black
Wiring Color Codes Output : *Refer to Specification Sheet


DOWNLOADS

  1.  Specification Sheet (Coming Soon)
  2.  Two-Page Cut Sheet
  3. Configuration Guide (Advatek Mk3)
