DiffuseFlex LED

DFLX-O24V-WW27-140-10M

42 items left

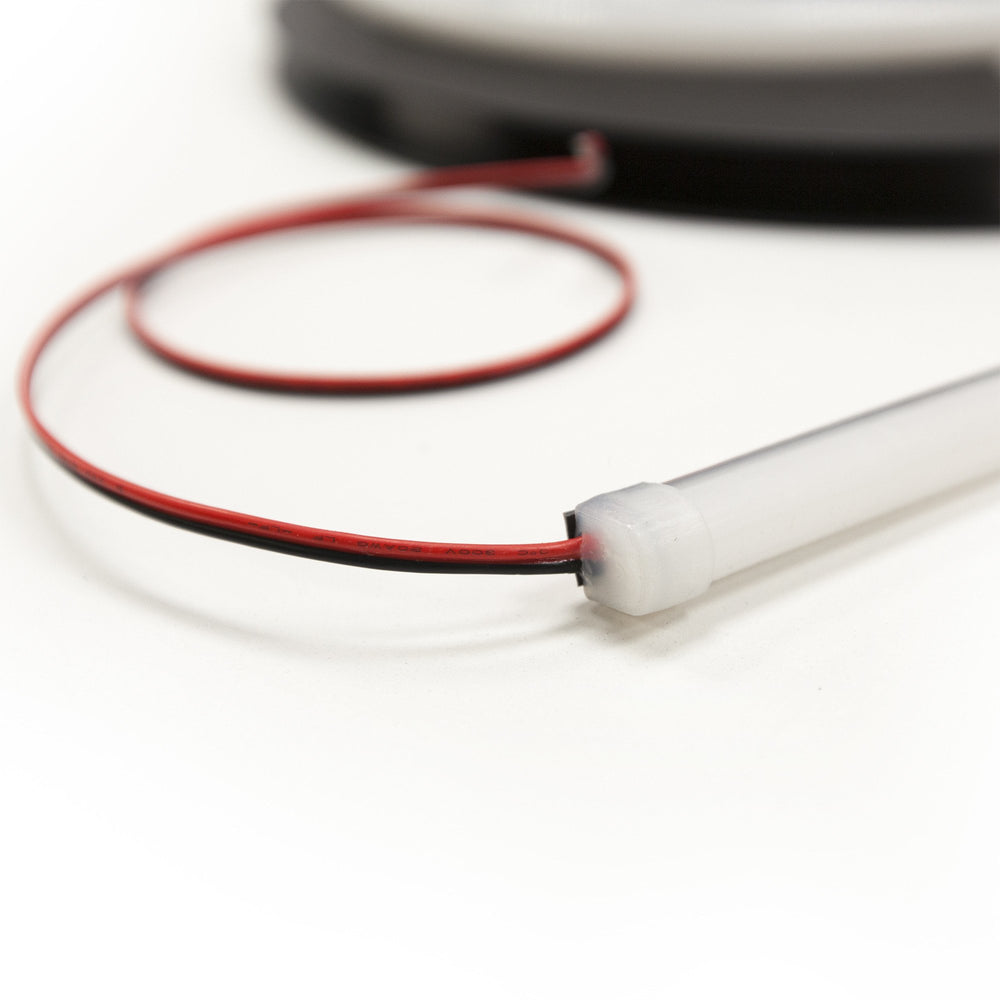

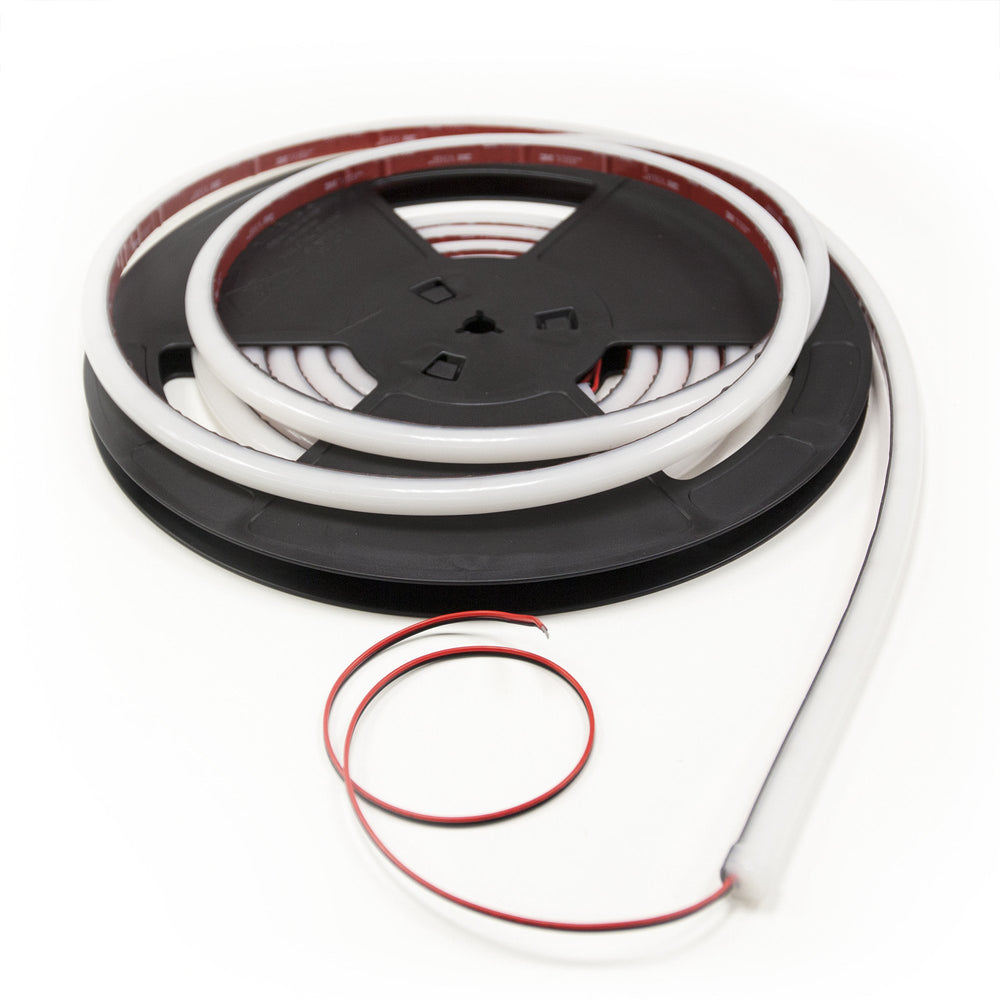

Pre-Diffused Flexible LED strips.  You asked for it and now it's here!  Tired of the pixelized look of

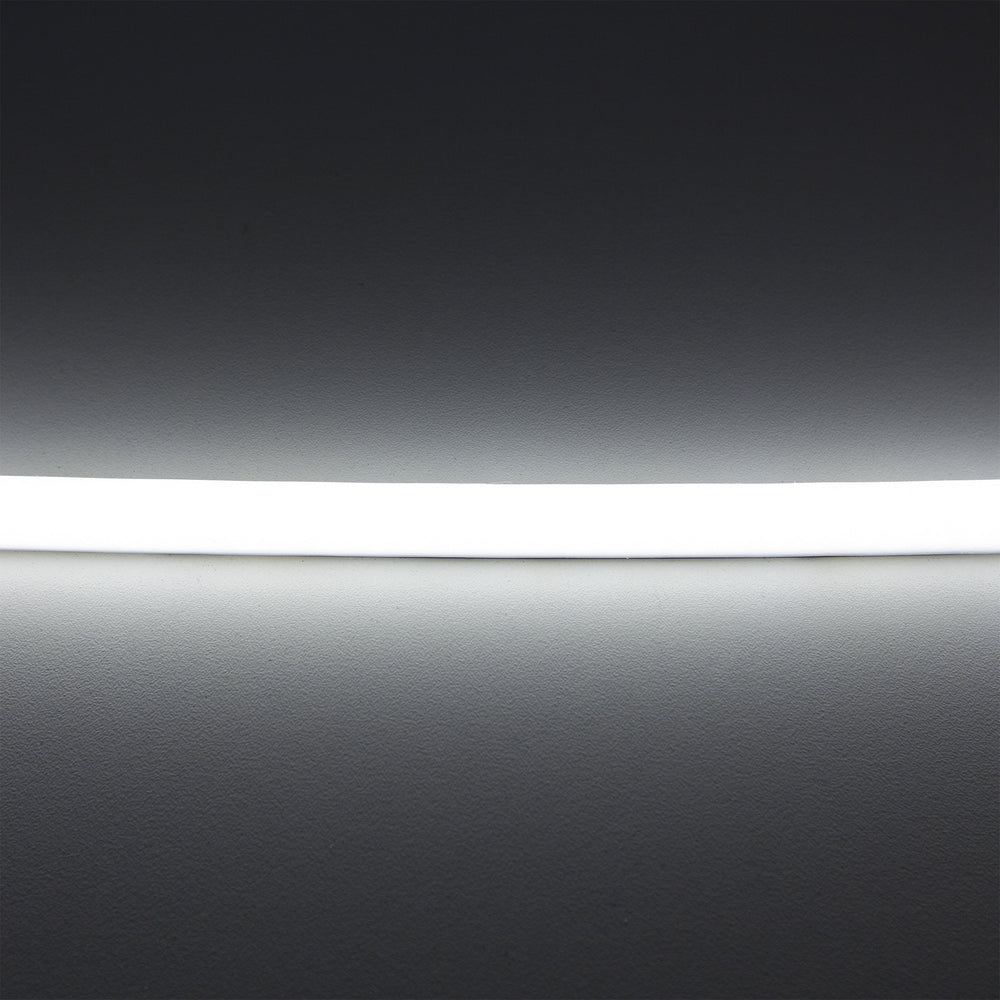

our classic FlexLED strips?  Our DiffuseFlex LED is the solution!  Beautiful uniform look provides seemless, even output across a full 10 or 5 meters.  Customized lengths are available upon request.  IP67 rated for outdoor use and 35,000 hour lifespan.

• Suitable for on-camera use, or anywhere a high-quality white light is required.

• High CRI (Colour Rendering Index) >90. No green spike or colour spectrum deficiencies.

• Indoor and weatherproof strips have 3M double-sided tape on the back which makes installation as easy as peel n stick.   • Waterproof must be mounted using silicone (not provided)
• Maximum recommended length in order to prevent line-loss is 10m (32')
• Controller, Power supply and Extension Cables sold separately
• Quantity Discounts and Custom Color Temperatures available.  Please call to inquire.

Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.



SPECIFICATIONS - INDOOR PRODUCT



Product Type : White Only Bi-Colour (2700k - 6000k) RGB RGB+W Pixel APA-102
Product Code : DFLX-O24V-XXYY-140-10M DFLX-O24V-BC2760-280-10M DFLX-O24V-RGB-120-10M DFLX-O24V-RGBWXX-120-10M DFLX-O5V-RGBAPA102-144-4.5M

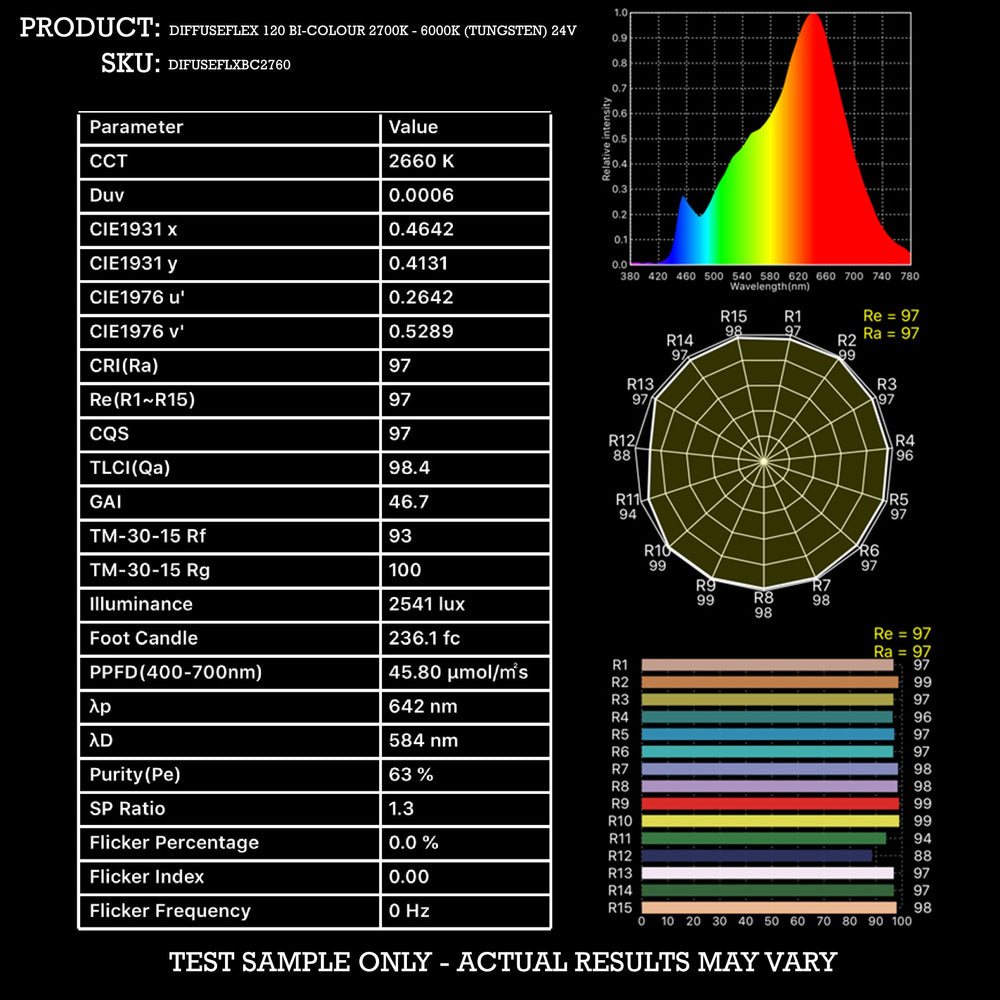

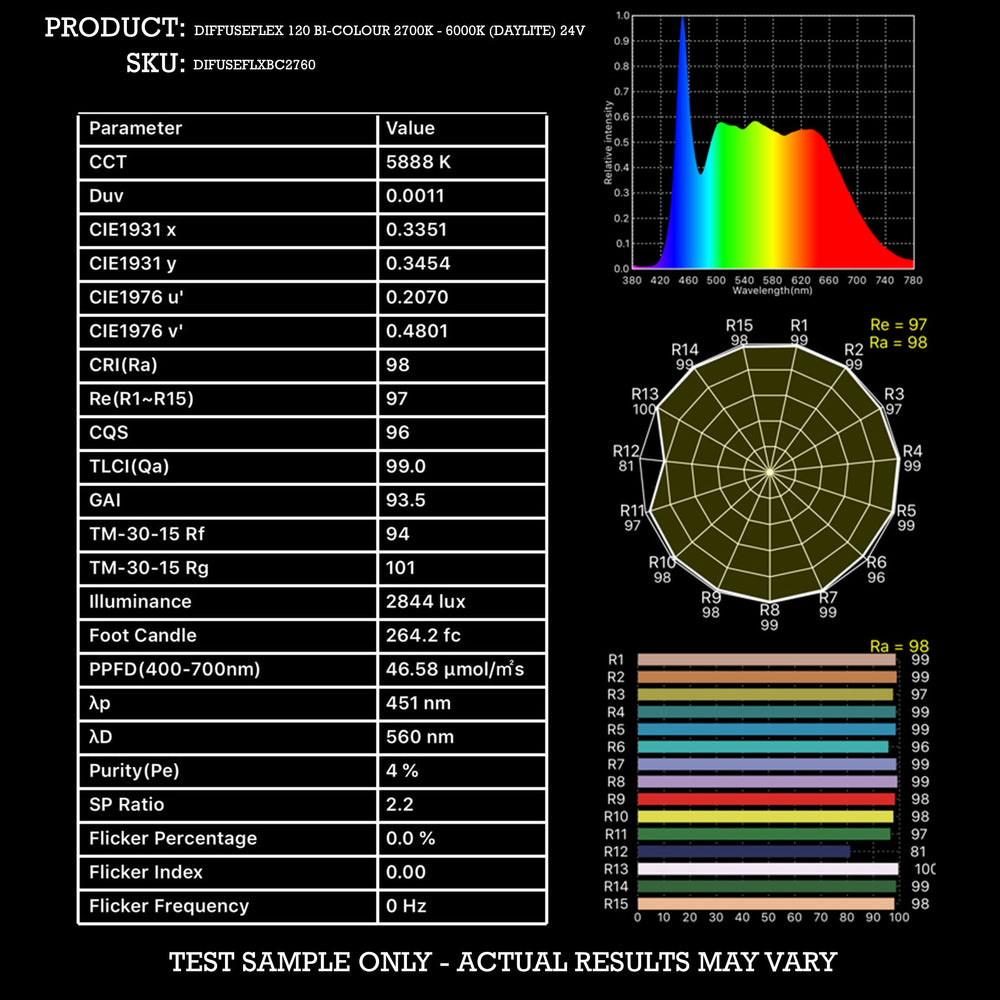

CRI : ≥95 ≥95 N/A ≥95 N/A
Kelvin : 2700k/3000k/4000k/5500k Adjustable 2700k - 6000k Colour Changing Colour Changing plus White (2700k/4000k/5500k) Colour Changing
PCB Color : White White White White White
Current, Rating : 0.832 A / meter 0.832 A / meter 0.832 A / meter 1.292 A / meter 8.6 A / meter
Voltage : 24 VDC 24 VDC 24 VDC 24 VDC 5 VDC
Wattage : 20 W / meter 20 W / meter 20 W / meter 31 W / meter 43 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage Constant Voltage Constant Current (Pixel Control)
IP Rating : IP65 IP65 IP65 IP65 IP65
Lumens @ Full : 1000lm ~ 1400lm / meter 80~ 1200  lm / meter 875lm / meter XX lm / meter XX lm / meter
Lumen / Watt : N/A N/A N/A N/A N/A
Lifetime* : 30,000 hours 30,000 hours 30,000 hours 30,000 hours 30,000 hours
Cutting Length : 5 CM 5 CM 5 CM 5 CM 6.55 MM
LED Quantity : 140 LED / meter 280 LED / meter 120 LED / meter 120 LED / meter 144 LED / meter
Number of Contacts : 2 3 4 5 4
LED Type : 3528 3528 5050 5060 5050
Copper Quantity : 3 Oz. 3 Oz. 3 Oz. 3 Oz. 3 Oz.
Temperature, Operating, Maximum : 70 C 70 C 70 C 70 C 70 C
Temperature, Operating, Minimum : -40 C -40 C -40 C -40 C -40 C
Agency Ratings : UL E489028, CE, RoHS UL E489028, CE, RoHS UL E489028, CE, RoHS UL E489028, CE, RoHS UL E489028, CE, RoHS

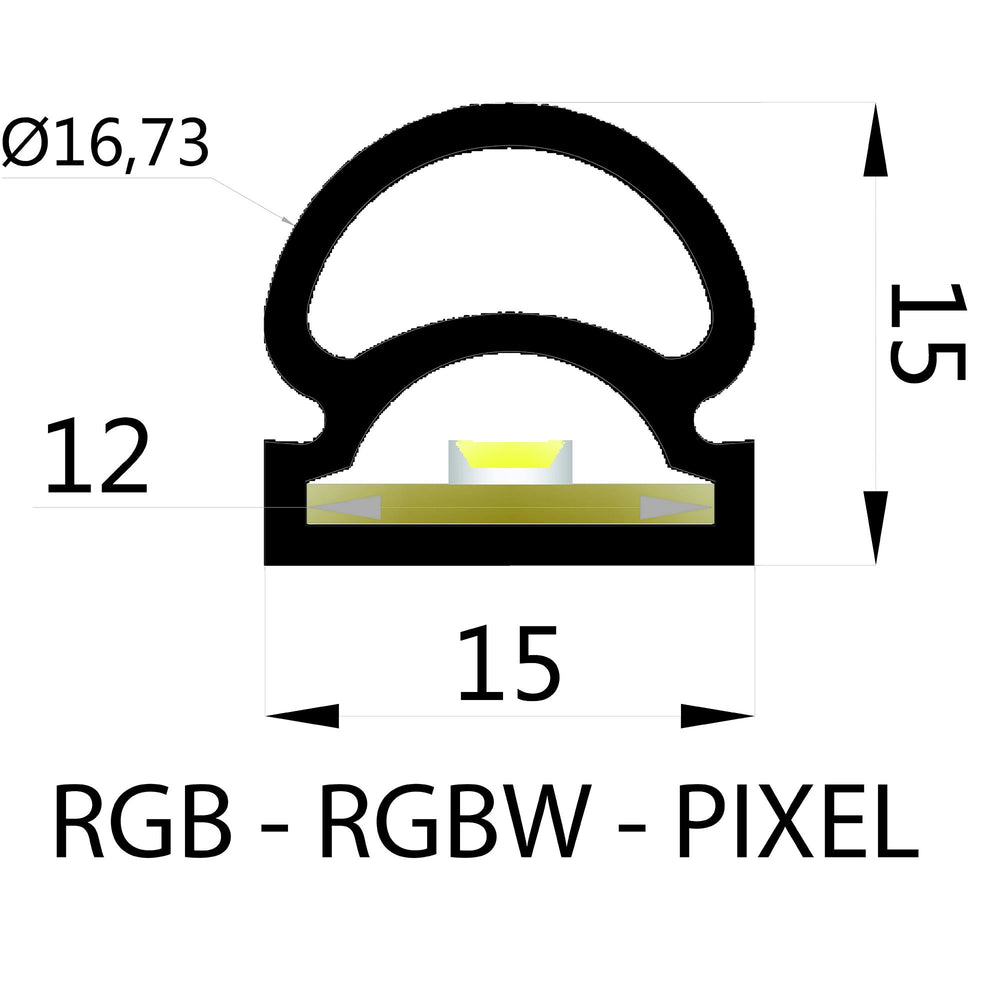

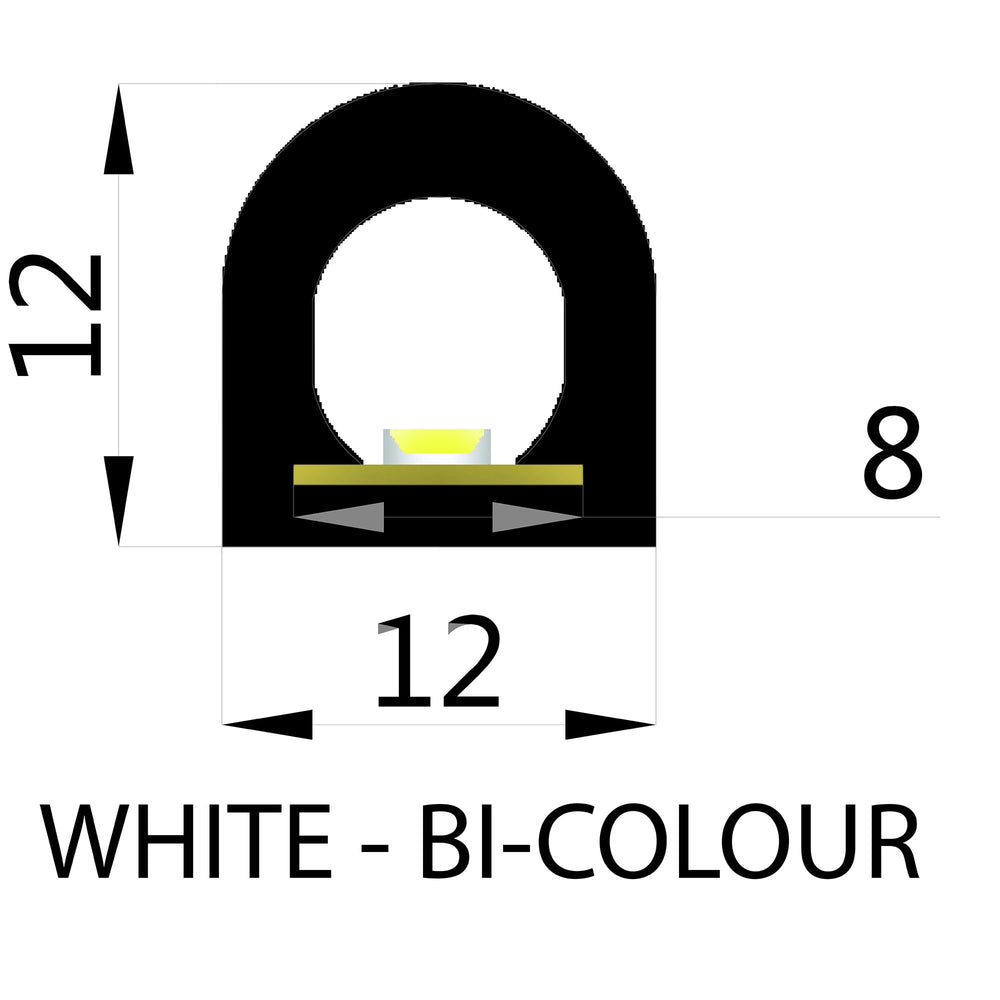

PCB Width : 10 MM 10MM 12MM 12MM 12MM
Maximum Recommended Length : 10 meters 10 meters 10 meters 10 meters 4.5 meters
Viewing Angle : 180 180 180 180 180
Adhesion : VHB 5952 VHB 5952 VHB 5952 VHB 5952 VHB 5952

DOWNLOADS

  1.   VHB 5952 Tape Specification Sheet
  2.  Installation Guide

*nominal lifetime - dependent on installation location
