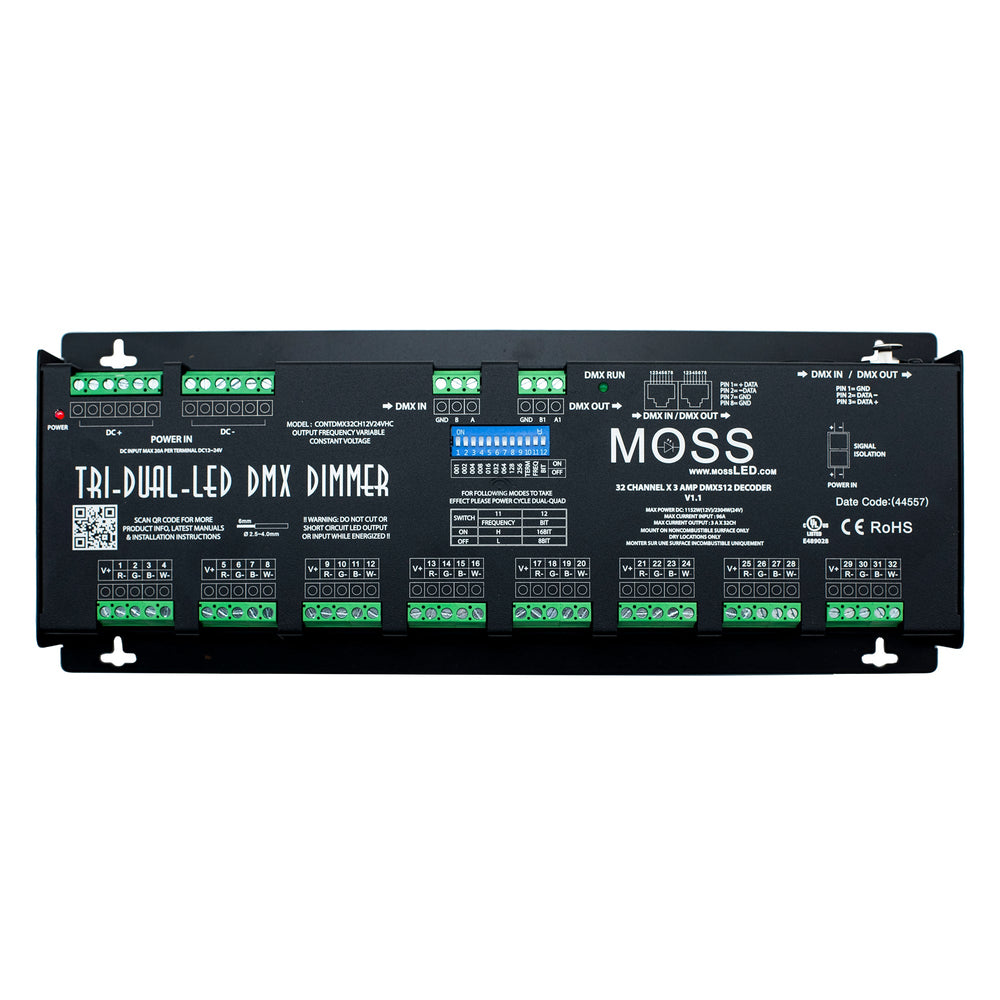

Moss LED 32 channel DMX LED decoder controller top front view showing MOSS branding TRI-DUAL-LED DMX DIMMER label DIP switch address settings green screw terminal output blocks DMX IN OUT connectors power indicator CE RoHS QR code mounting brackets black housing white background

Tri-Dual-LED DMX - 32 Channel Dimmer

SKU CONTDMX32CH12V24VHC
by MossLED
Sold out
$452.00
$387.42

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

0 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : Out of stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

THIS PRODUCT IS DISCONTINUED

This controller can be used with all of our Constant Voltage FlexLED Tape products and Modules

  • This unit is beefy! 3A X 32 Channel = MAX 96A!
  • 32 Channel DMX Decoder - 16 Bit - High Current.
  • This unit converts DMX-512/1990 standard digital signal into 32 dimmable channels.
  • Isolated DMX inputs.
  • Uses RJ45 Ethernet or 5-pin XLR connectors to control LEDs via any DMX capable lighting console or through computer software.
  • Can create over 16 million colors when used with our Colorful RGBA or RGBW or RGB or combined with Bi-Color or White FlexLED Tapes.
  • Dip Switch No. 10 is Termination for DMX.
  • Dip Switch No. 11 is Frequency Option (500Hz or 5kHz).
  • Dip Switch No. 12 is Bit-Rate Option 16 Bit or 8 Bit.



**Connector Tails Not Included**



DOWNLOADS

  1. UL Certificate of Compliance

Specifications

⚲
