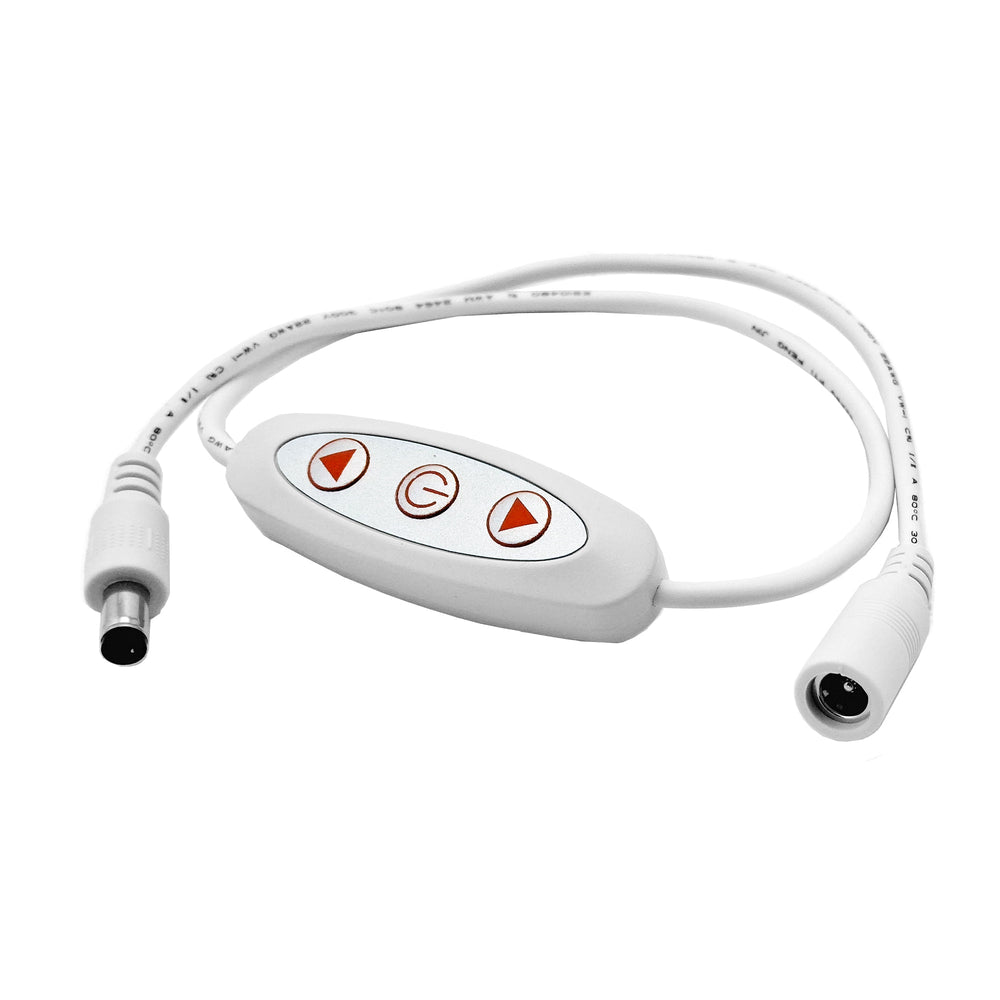

Moss LED Flicker Free In-Line 12VDC to 24VDC Dimmer white inline controller with orange dim down power and dim up buttons DC barrel connectors white cable white background

Flicker Free In-Line 12VDC - 24VDC Dimmer

SKU CONTILD1CH12V24V-32KHZ-DCM-DCF
by MossLED
Save 9%
$15.65
$14.31

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

119 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 119 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock

A simple intuitive dimmer with on/off and dim functions.  This small dimmer is designed to fit into the smallest places and works with any 12V or 24V constant voltage LEDs. Operating at 32khz it provides flicker-free operation to the eye as well as under most camera settings.



TECHNICAL SPECIFICATIONS

• ON / OFF and dimming function.

• Input Voltage: 12V-24VDC.

• Output Voltage: 12V-24VDC.

• Input Current: 2A

• Maximum Load 24W for 12V, or 48W for 24V.

• Input and output cable length: DC wire 25cm.

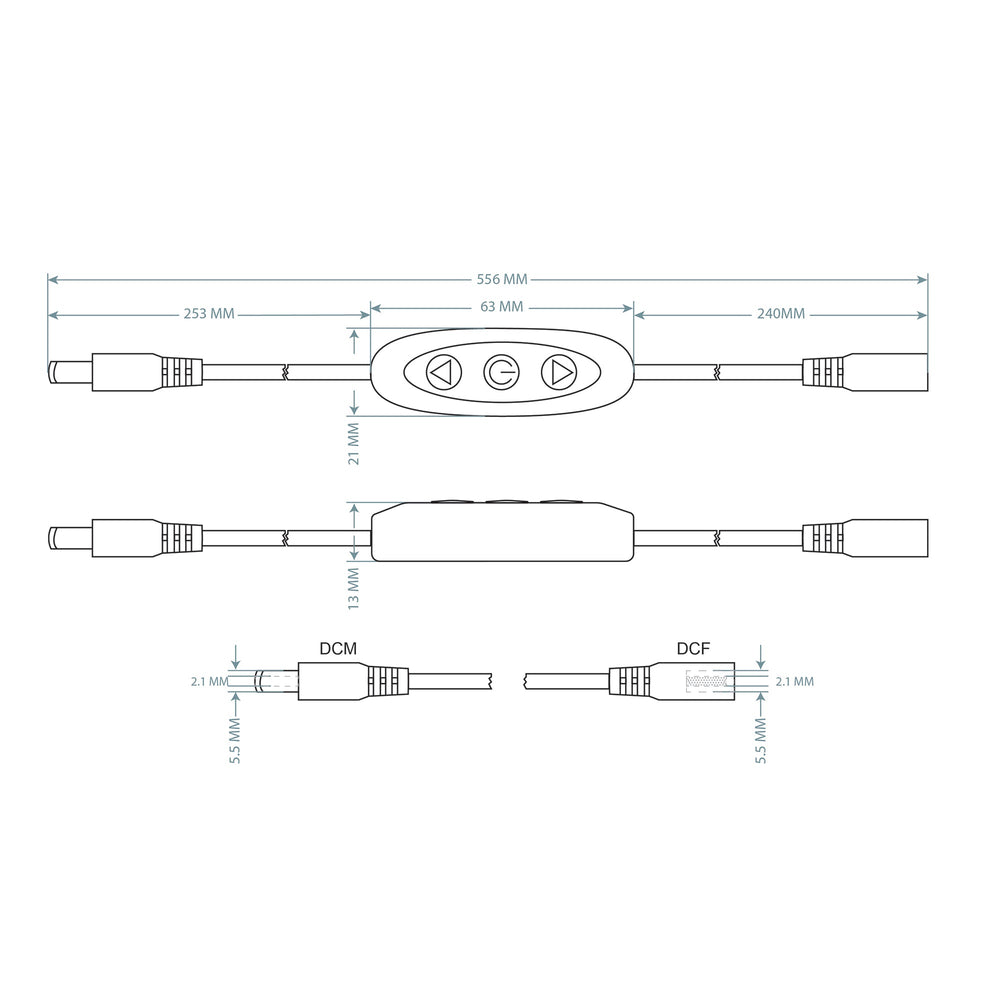

• Dimensions 63MM L X 21MM W X 13MM H
