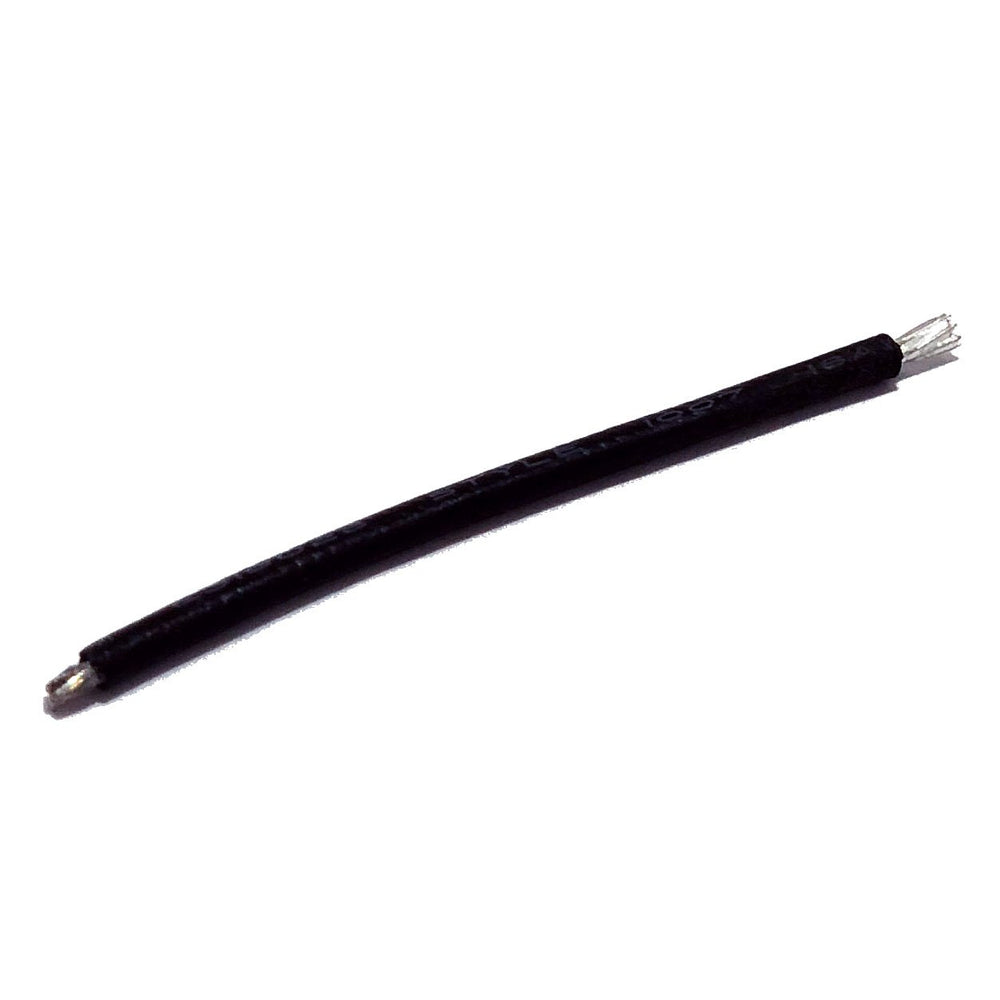

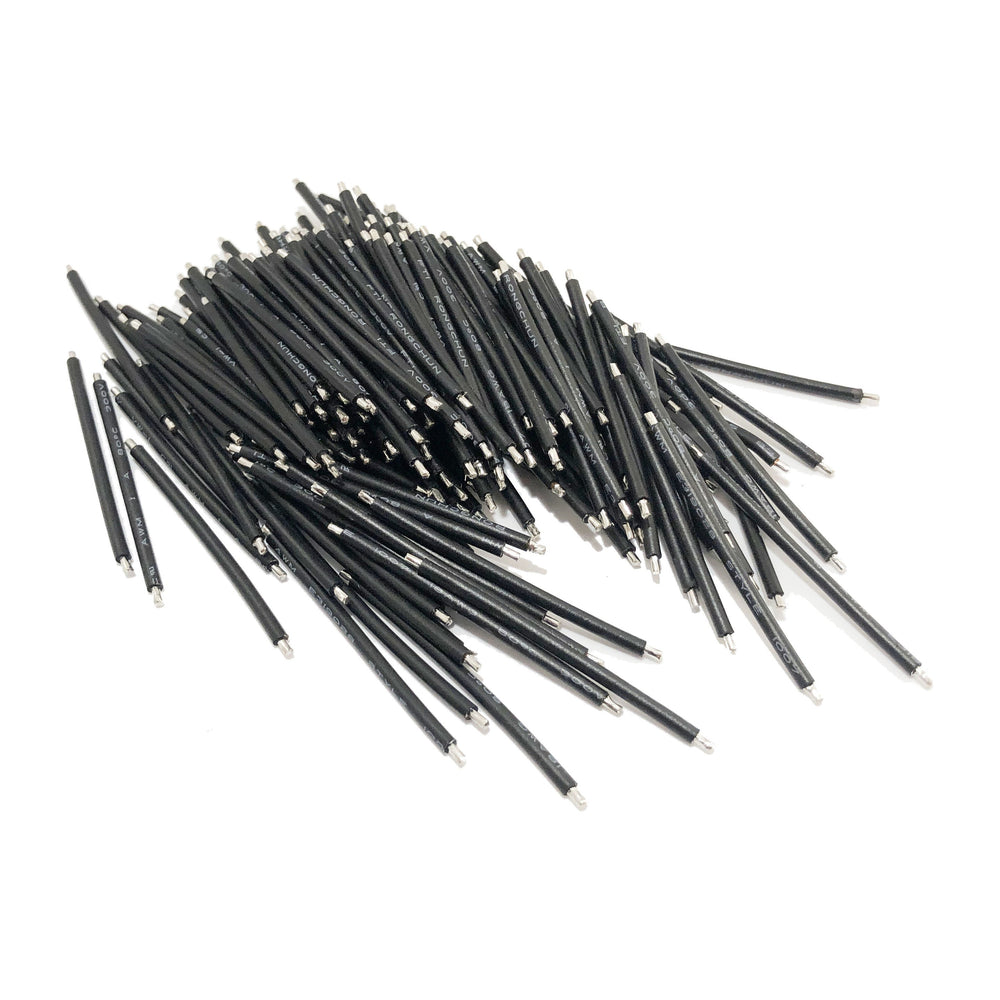

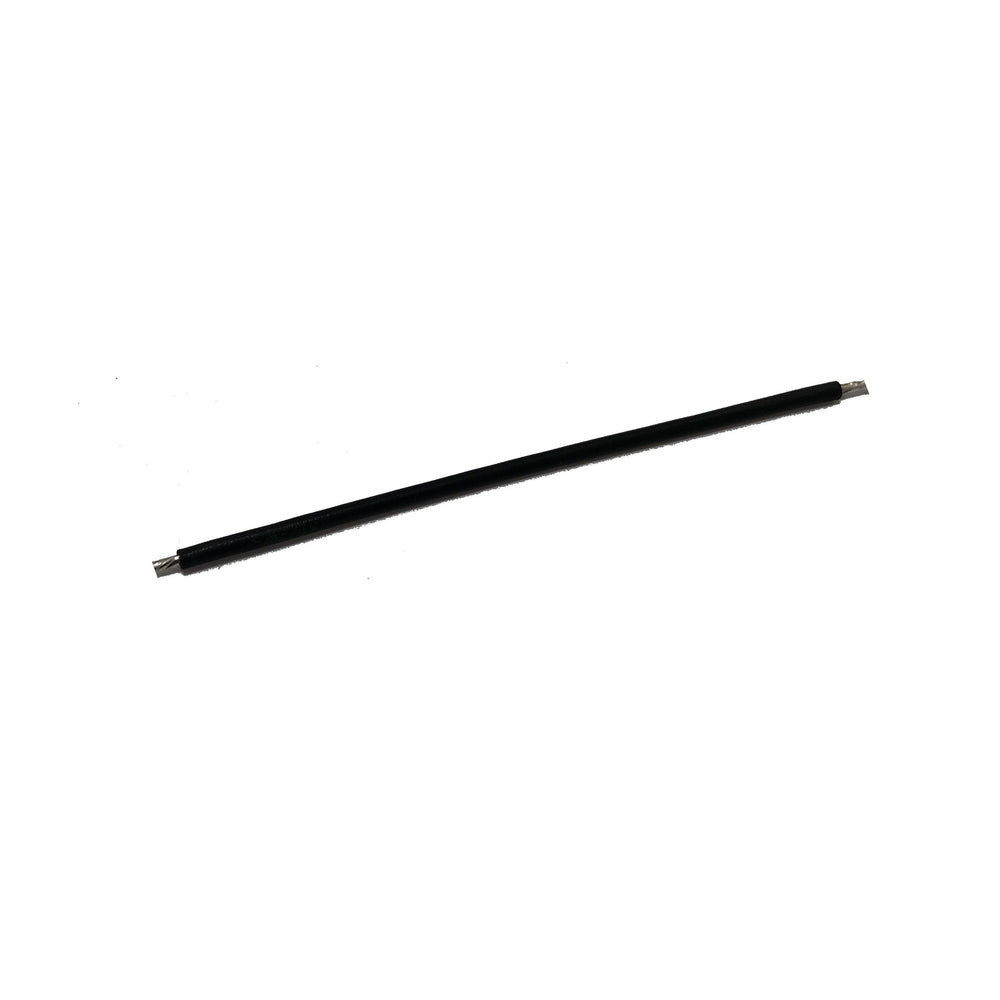

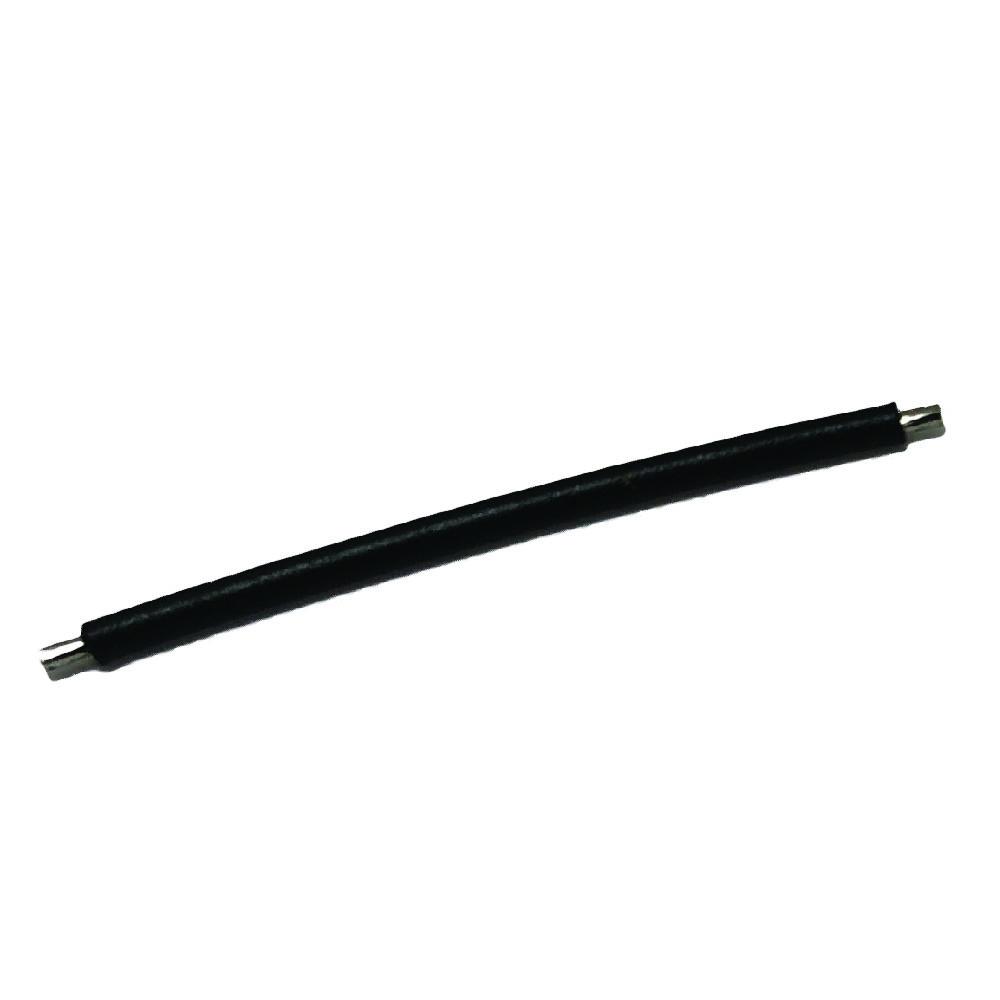

Short black jumper wires pre stripped and tinned make for quick connecting and soldering of various LED circuit boards. Length is overall length including the stripped and tinned portion of the jumper wire.
SPECIFICATIONS
| Agency Approvals | : | UL 1185, cRU, RU |
| Amperage | : | 8 A |
| Color | : | Black |
| Stripped & Tinned Length | : | 2.5 MM |
| Cord (NO./mm) | : | 41/0.160 -> 17/0.160 |
| Insulation Material | : | Polyvinylchloride (PVC) |
| Flammability | : | VW-1 |
| IP Rating | : | IP20 |
| Cable Type | : | Copper Strands |
| Material, Contact | : | Copper Alloy, Tin Plated |
| DC Plug Rating | : | N/A |
| Material, Housing | : | N/A |
| NEMA Type | : | N/A |
| Number of Contacts | : | N/A |
| Inside Contact Diameter | : | N/A |
| Outside Contact Diameter | : | N/A |
| Temperature, Operating, Maximum | : | 80 C |
| Temperature, Operating, Minimum | : | -40 C |
| Outer Diameter | : | 10.8MM |
| Type | : | Parallel Flat Wire |
| Voltage, Rating | : | 300V |
| Weight | : | 0.1 lbs. |
| Wire, AWG | : | #18 |
DOWNLOADS
-
Cable Specification 20AWG
