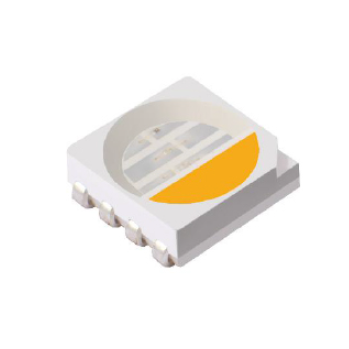

RGB+White All-In-One Diode in High CRI
This product is Temporary Install Grade as it is above our specification of 23 watts/meter. This product operates at 31 watts / meter with all four RGBW channels at full. Operating this strip with all four channels at full may cause premature failure and require increased thermal management such as installing onto a heat sink.

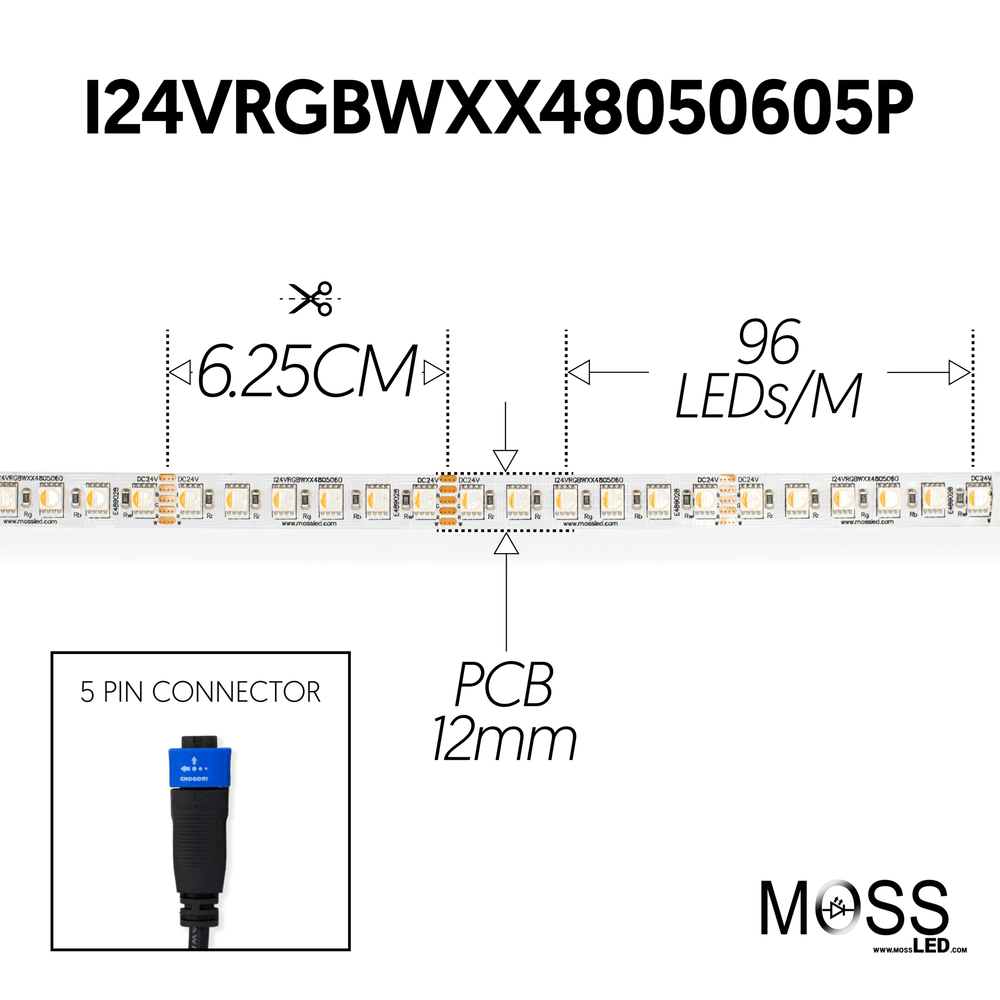

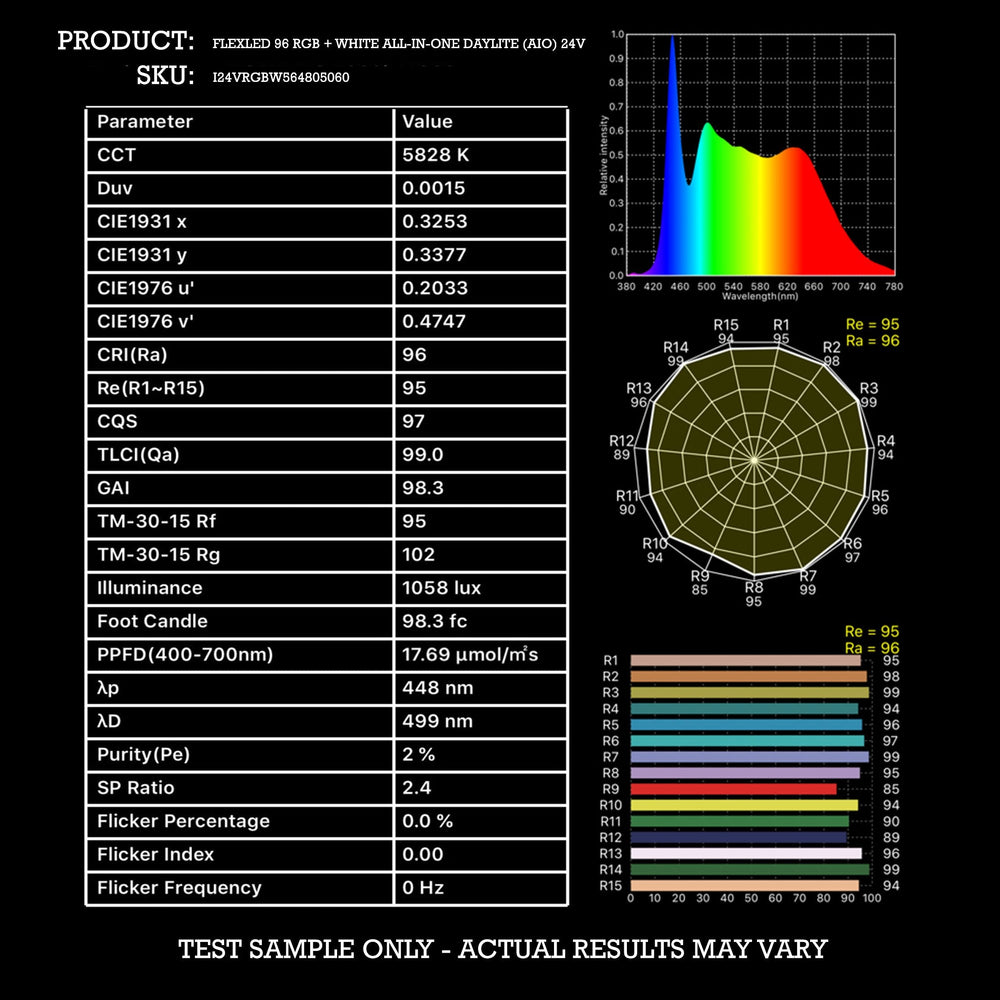

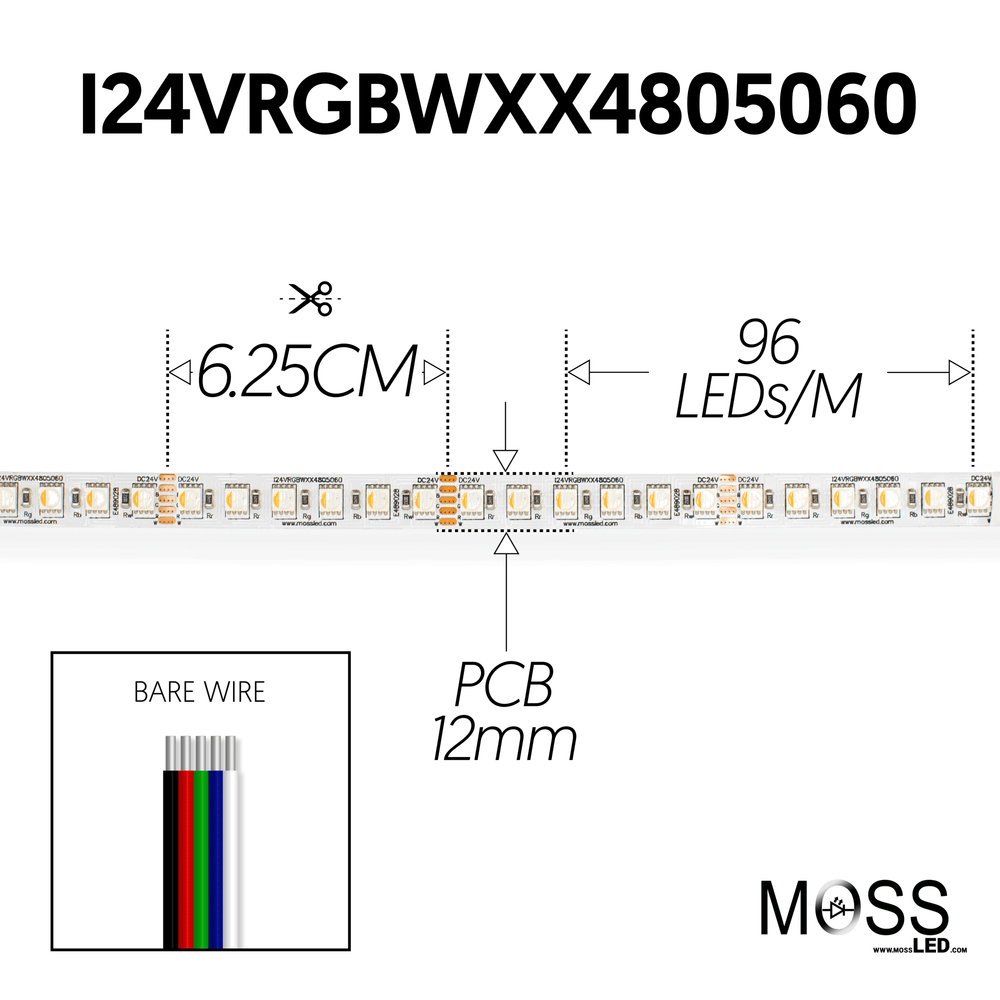

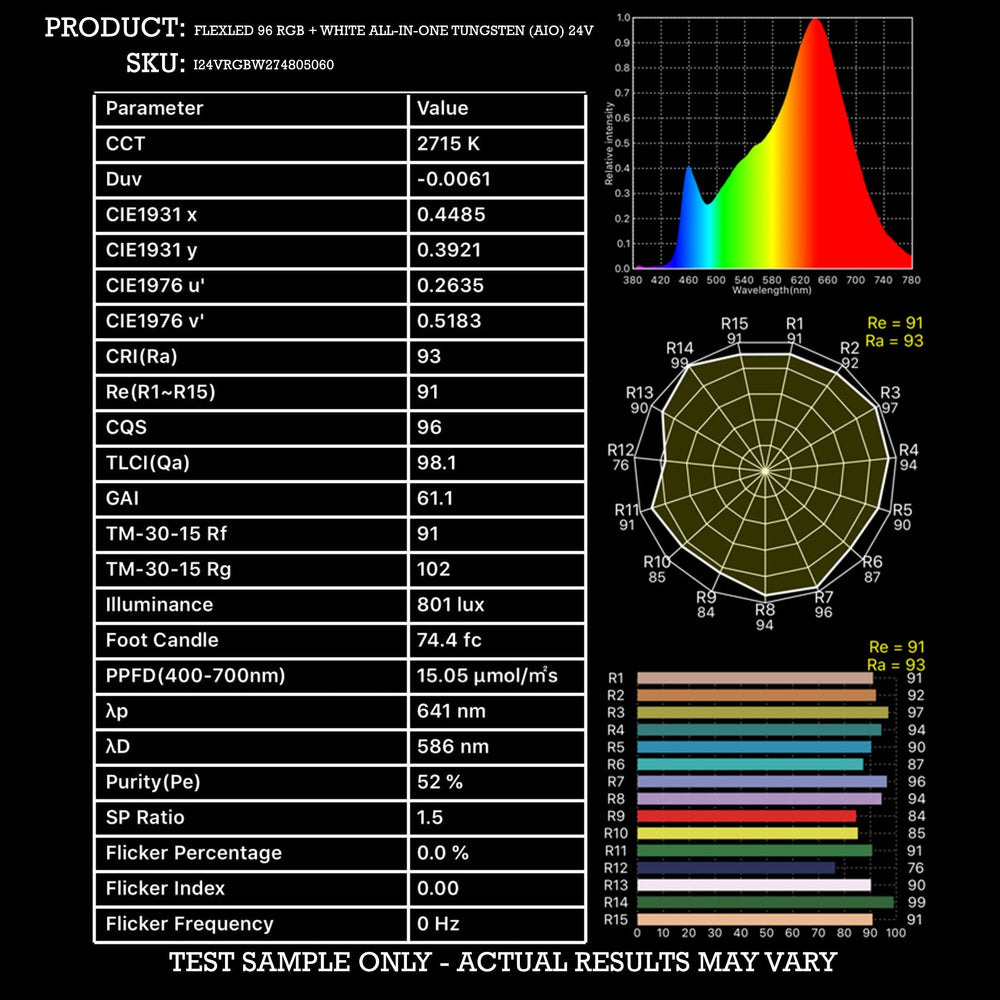

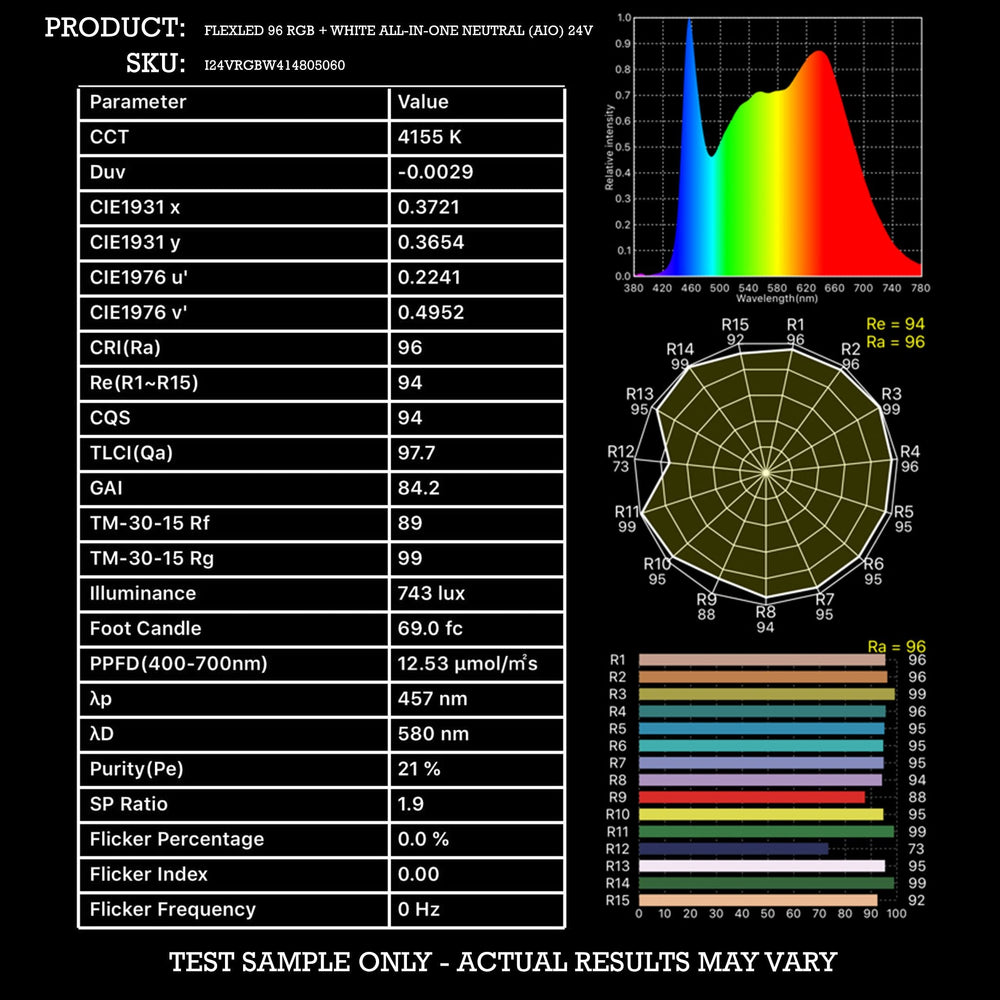

This product is designed for anywhere high quality light and the ability to change colour is required. It's cutting length of 6.25CM is the closest cutting length for a 24V RGBW product. The white LED produces a full-spectrum of over 95 CRI and an R9 over 85+.Â
Suitable for cinema, television, industrial, commercial, hospitality and anywhere high colour quality is required. Indoor and weatherproof strips have TESA 4965 double-sided tape on the back which makes installation as easy as peel n stick.Â
This cost friendly RGBW LED is designed to be used for temporary installs such as trade shows or limited run productions. It is not to be used for permanent high-use installations. Warranty on all Temporary Install Grade LED is for 2,000 hours of use.
Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

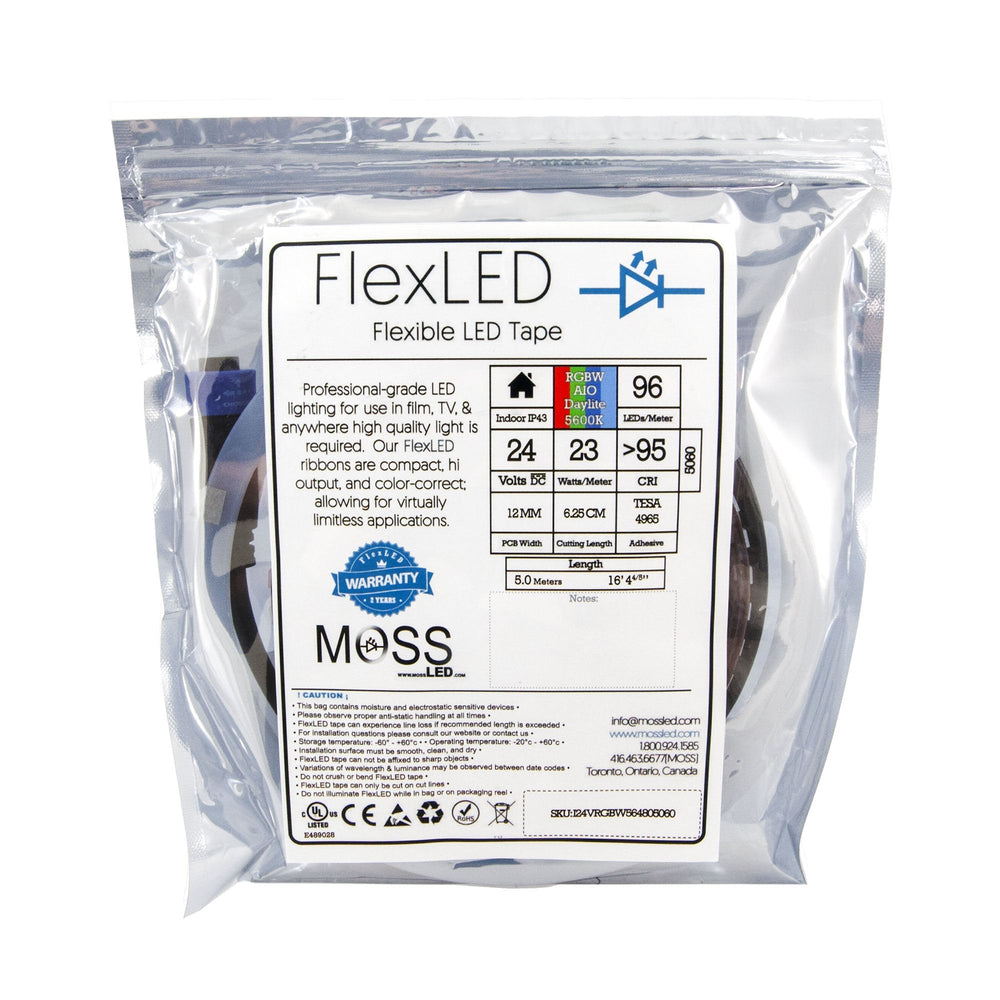

Pricing is for 5 meters (16.4')
SPECIFICATIONS - INDOOR PRODUCT
Product Type |
: |
RGB + Warm White |
RGB + Neutral White |
RGB + Cool White |
Product Code |
: |
I24VRGBW274805060 |
I24VRGBW414805060 |
I24VRGBW564805060 |
CRI |
: |
95 |
95 |
95 |
Kelvin |
: |
2700k +/-100k |
4100k +/-100k |
5600k +/-100k |
PCB Color |
: |
White |
White |
White |
Current, Rating |
: |
0.96 A / meter |
0.96 A / meter |
0.96 A / meter |
Voltage |
: |
24 VDC |
24 VDC |
24 VDC |
Wattage |
: |
23 W / meter |
23 W / meter |
23 W / meter |
CC / CV |
: |
Constant Voltage |
Constant Voltage |
Constant Voltage |
IP Rating |
: |
IP43 |
IP43 |
IP43 |
Lumens @ Full |
: |
1500 lm / meter |
1500 lm / meter |
1500 lm / meter |
Lumen / Watt |
: |
65 |
65 |
65 |
Lifetime* |
: |
2,000 hours |
2,000 hours |
2,000 hours |
Cutting Length |
: |
6.25CM |
6.25CM |
6.25CM |
LED Quantity |
: |
96 LED / meter |
96 LED / meter |
96 LED / meter |
Number of Contacts |
: |
5 |
5 |
5 |
LED Type |
: |
5060 |
5060 |
5060 |
Copper Quantity |
: |
3 Oz. |
3 Oz. |
3 Oz. |
Temperature, Operating, Maximum |
: |
70 C |
70 C |
70 C |
Temperature, Operating, Minimum |
: |
-40 C |
-40 C |
-40 C |
Agency Ratings |
: |
UL - E489028, CE, RoHS |
UL - E489028, CE, RoHS |
UL - E489028, CE, RoHS |
PCB Width |
: |
12MM |
12MM |
12MM |
Maximum Recommended Length |
: |
7 meters |
7 meters |
7 meters |
Viewing Angle |
: |
120 |
120 |
120 |
Adhesion |
: |
TESA 4965 |
TESA 4965 |
TESA 4965 |
Wavelength A Red |
: |
620~625nm |
620~625nm |
620~625nm |
Wavelength B Green |
: |
515~520nm |
515~520nm |
515~520nm |
Wavelength C Blue |
: |
460~465nm |
460~465nm |
460~465nm |
DOWNLOADS
-
Specification Sheet
UL Certificate of Compliance
Controller, Power supply and Extension Cables sold separately
*nominal lifetime - dependent on installation location
