A high-output, colour-controllable LED panel engineered for even, powerful illumination in architectural, commercial, broadcast, and entertainment applications. Perfect for large area light boxes. Combining vibrant RGB colour channels with a white LED, this 1′ × 1′ rigid LED panel delivers smooth, consistent light output ideal for backlighting, downlighting, set lighting, and feature lighting.
Key Features
- RGB + White Mix – Blends rich RGB colour with balanced white for maximum design flexibility.
- High LED Density for Uniform Output – 49 RGB LEDs and 98 4000K LEDs provide wide, even coverage across the panel surface.
- High CRI White Channel – 95+ CRI white ensures accurate colour rendering for architectural and camera environments.

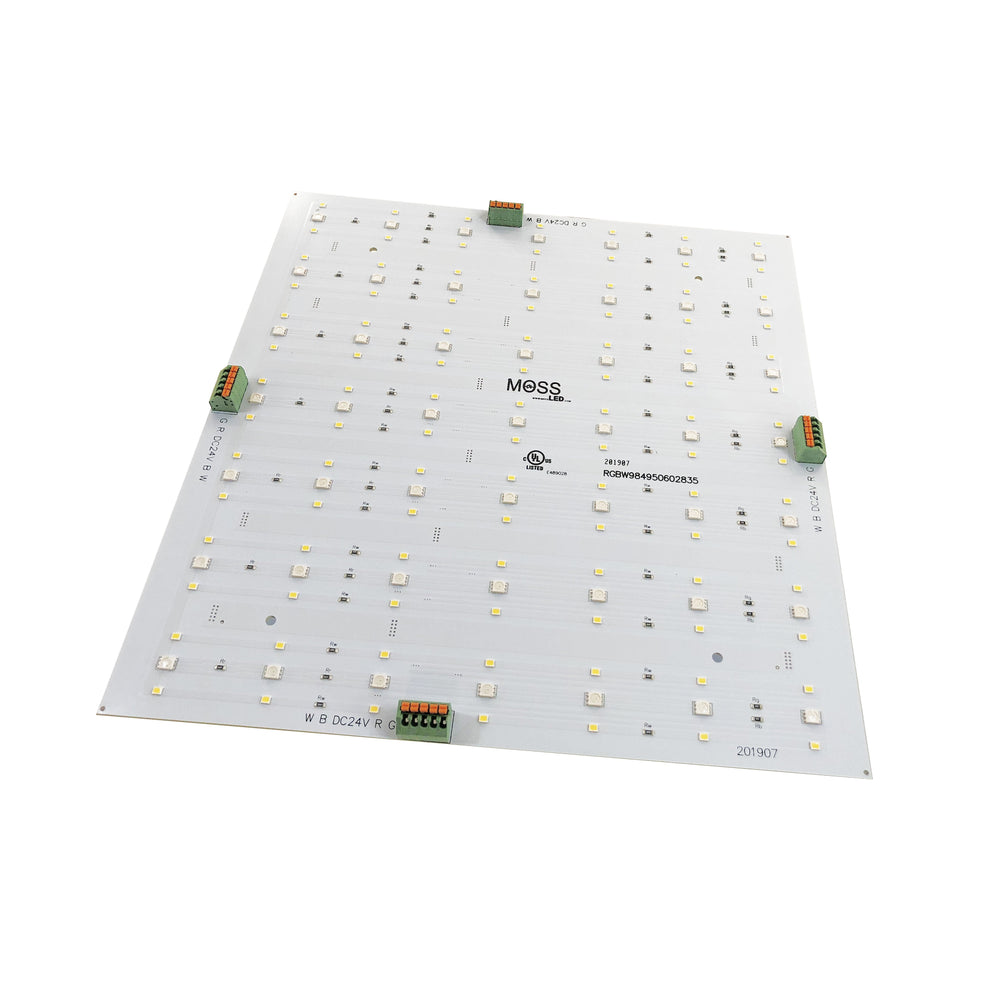

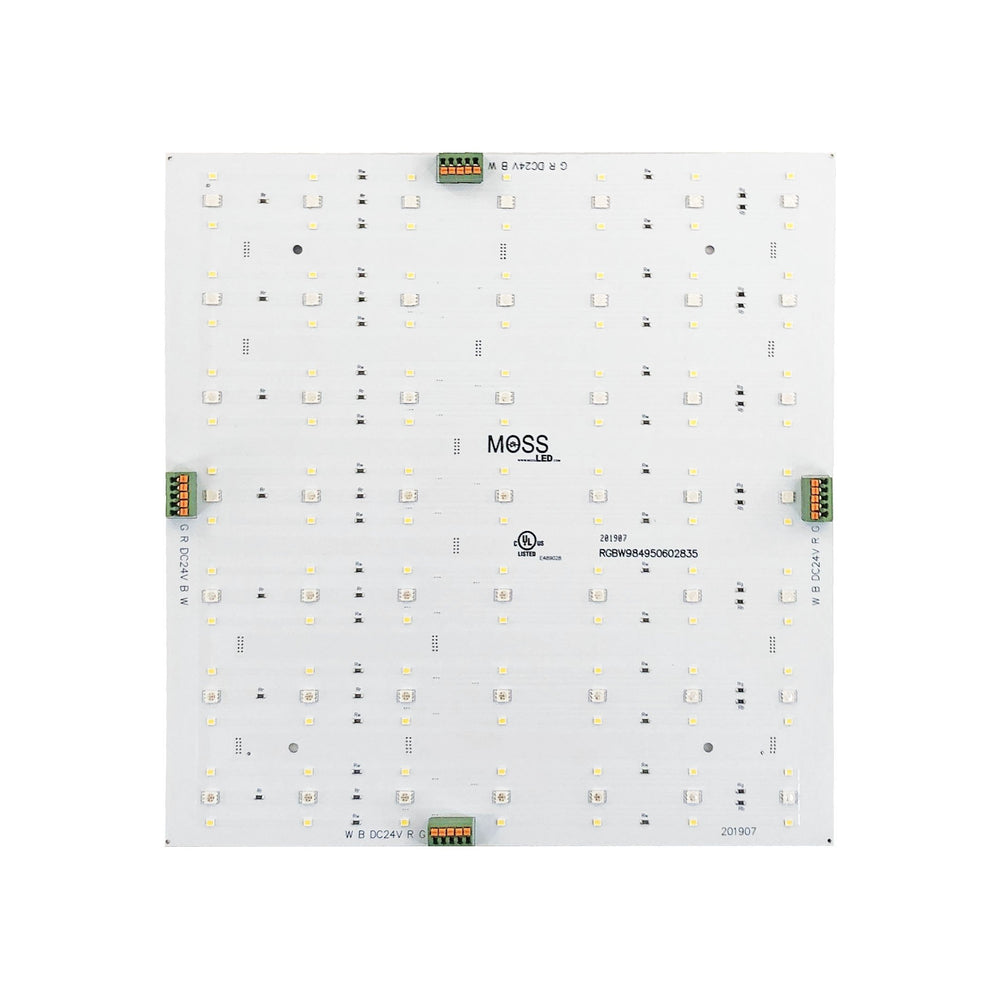

- Rigid, Heat-Dissipating Construction – LEDs mounted on FR4 PCB for durability and effective thermal management.
- Easy Installation – Four integrated mounting holes allow secure attachment to a wide range of surfaces.
- Spring-Loaded Terminal Blocks - Friendly Connectivity – Spring-loaded terminal blocks support 14–20 AWG wiring for clean, reliable connections.
Technical Specifications
- Voltage: 24VDC
- Power Consumption: 31W per panel
- LED Count: 147 LEDs (49 RGB + 98 White LED)
- CRI (White Channel): 95+
- IP Rating: IP43 Indoor Rated
- Expected Lifespan: 50,000 hours
Applications
- Large format even lighting
- Retail and commercial installations
- Set and scenic lighting
- Backlit panels and light boxes
The 24V RGB + White Panel 1×1′ is the ideal solution when you need saturated colour, clean neutral white, and professional-grade performance in a compact, rigid LED panel format.
Please contact Moss LED for availability and project-specific support.
DOWNLOADS
Specification Sheet*nominal lifetime - dependent on installation location
