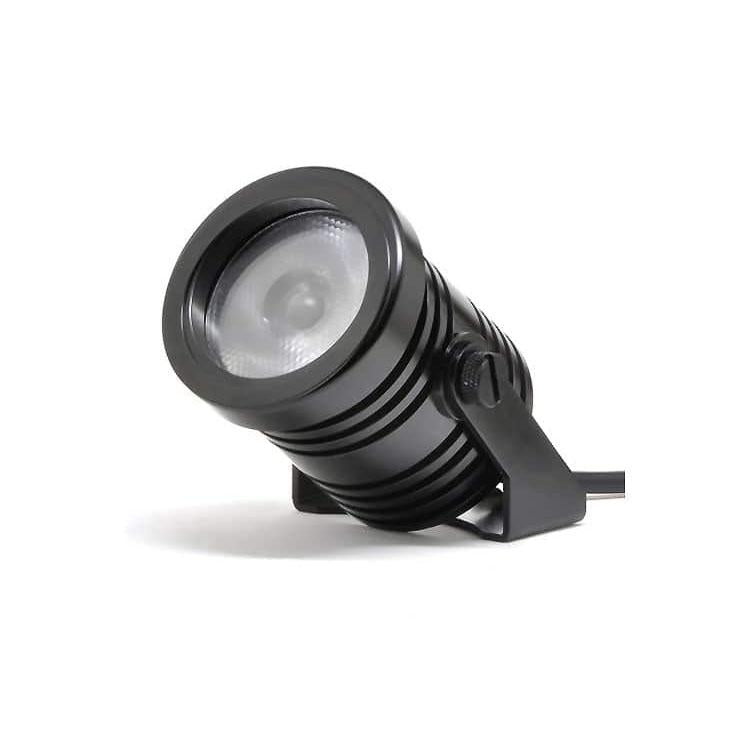

Gantom 7 compact LED spotlight front three quarter view showing lens ribbed body and mounting bracket

Gantom 7

SKU GTM-GP277
by Gantom

Qty Discount
5 2%
10 4%
25 6%
The more you buy, the more you save!
$656.23
Colour
Connector

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

2 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 2 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : Out of stock
The Gantom 7 packs seven-color output into a tiny package. With a native 13 degree beam angle, this LED spotlight produces a punchy yet soft beam with homogeneous color mixing even at a close distance. Included micro-lenses and the magnetic accessory holder offer easy beam control solutions; diffusing the spotlight to a floodlight is literally a snap.

Native DMX control and a balanced, non-linear dimming curve meets the most demanding theming tasks. This compact spotlight features lime, amber, and ultraviolet beyond the common RGBW to achieve colors unavailable in standard LED fixtures. With the Gantom 7, lighting designers obtain a virtually unlimited color palette in a compact and efficient 7-Watt LED fixture.

FEATURES

  • Full spectrum output with 7 LED colours. Multiple colour profiles selectable (RGB, RGBA, RGBW, RGBAWUv, RGBAWLUv).
  • Color control via DMX512 or DMX Programmer app.
  • Precision-tuned non-linear dimming curve and colour balance algorithm.
  • Standalone mode allows set and forget operation without DMX signal (requires DMX Programmer app).
  • DMX address and configuration stored in memory.
  • Low voltage and minimal heat for improved safety over incandescent sources.
  • Internal constant current driver gives highly efficient and consistent output.
  • Minimal maintenance required with over 50,000 hour lamp life.
  • Indoor and outdoor use.

APPLICATIONS

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Theatre and stage accent lighting
  • Mobile displays
  • Floral centerpieces
  • Retail spaces
  • Architectural accent lighting
  • General purpose accent lighting
  • Props and animatronics
  • Special effects lighting
  • Temporary event lighting




SPECIFICATIONS - INDOOR PRODUCT



Product Type : Gantom 7
Product Code : GNTM7 - GP277
CRI : N/A
Kelvin : N/A
Housing Color : Black
Current, Rating : 620 ma
Nominal Voltage : 12 VDC
Voltage Range : 12 VDC
Wattage : 7.5 W
CC / CV : CC
IP Rating : IP65
Lux @ Full @ 1 Meter Throw : 650
Lux @ Full @ 2 Meter Throw : 220
Lux @ Full @ 3 Meter Throw : 100
Beam Angle (50% Max) : 15 degree
Field Angle (10% M : 35 degree
Housing Material : Anodized Aluminum
Temperature, Operating, Maximum : 85 C
Temperature, Operating, Minimum : -20 C
Agency Ratings : UL, CE
Dimensions : 69MM X 68.5MM
Mounting Hole : 6.5MM Diameter
Wavelength A Red : 635 nm
Wavelength B Green : 515 nm
Wavelength C Blue : 450 nm
Wavelength D Amber : 598 nm
Wavelength E White : 6500k
Wavelength F Lime : 4250k
Wavelength G Ultraviolet : 395 nm
Data Clock Frequency : N/A
PWM Dimming Frequency : N/A

DOWNLOADS

    1. Specification Sheet

    2. Gantom 7 User Guide
    3.  Gantom 7 IES File



*nominal lifetime - dependent on installation location
