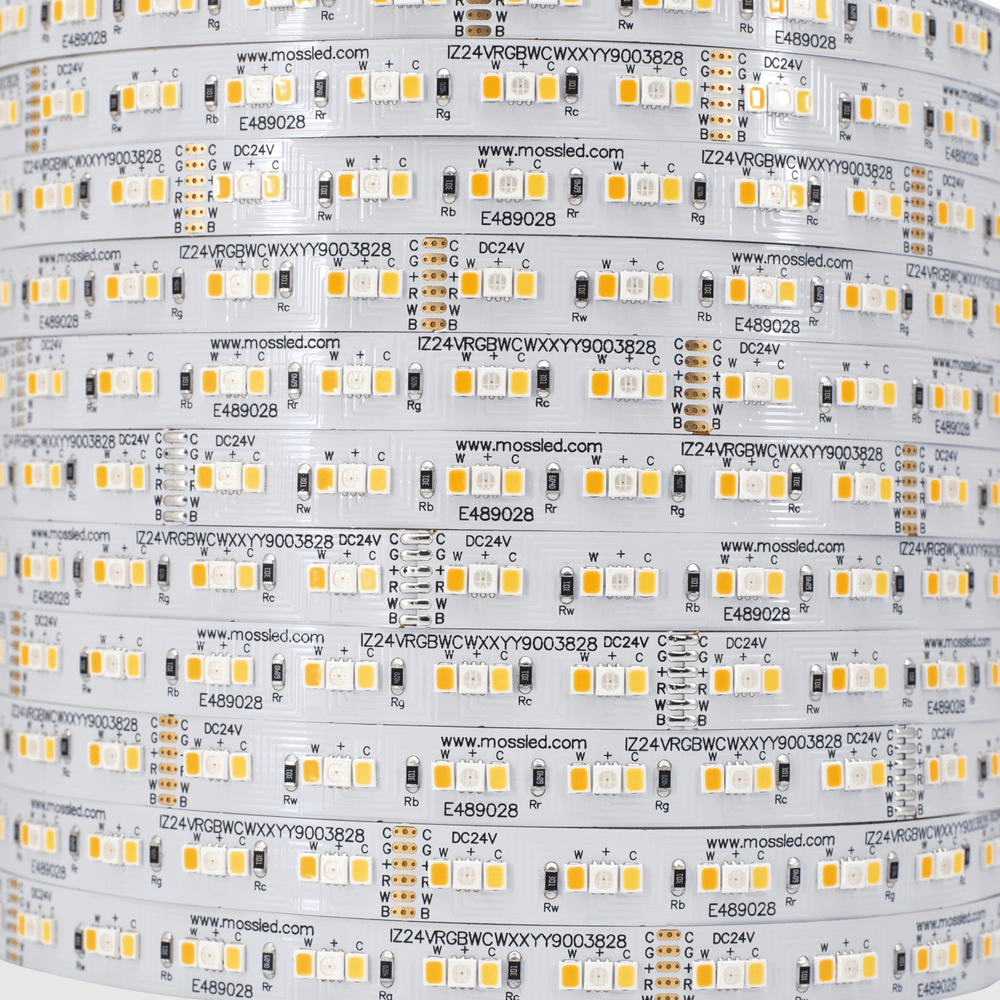

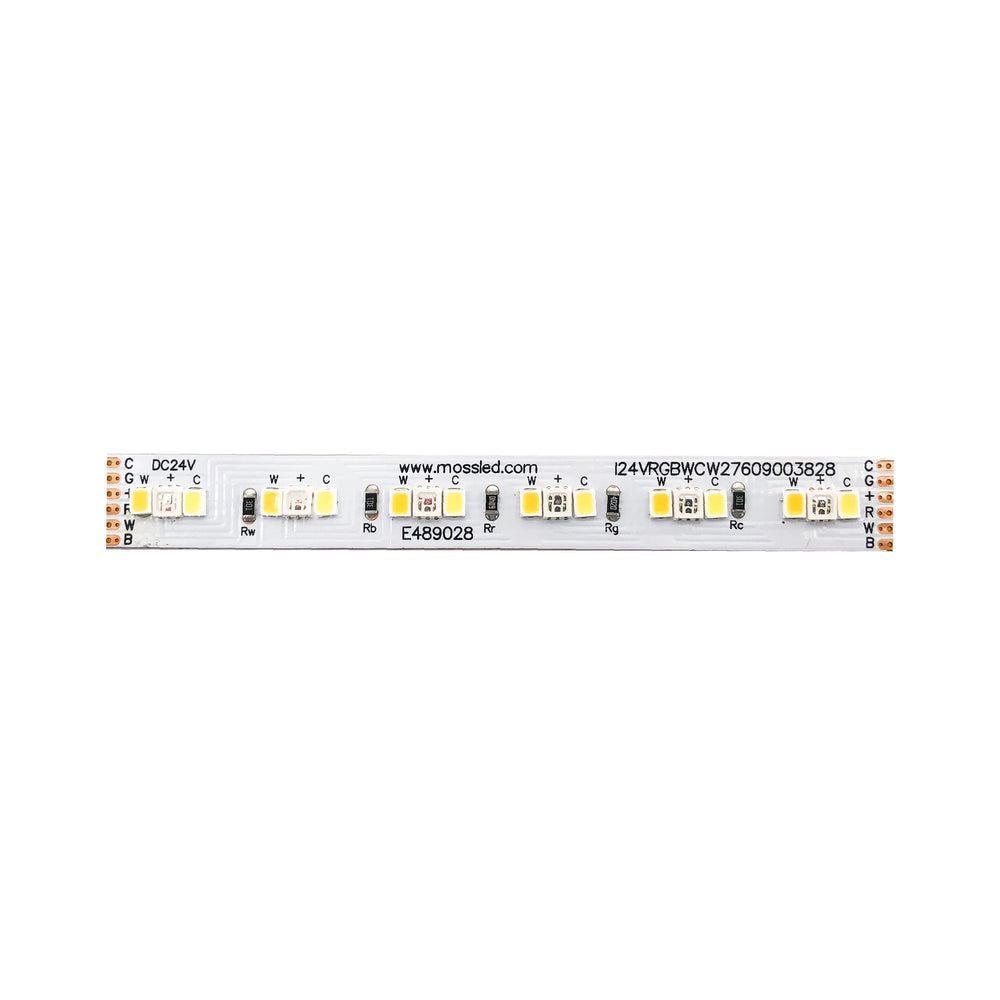

FlexLED 180 RGB+WW+CW 24V

The FlexLED 180 RGB+WW+CW is a high-performance, space-efficient LED strip, featuring our new 3838 RGB chip, which delivers a similar power output as a 5050 RGB chip in a 24% smaller footprint. This versatile LED solution combines full-colour RGB with dynamic warm 2700k and cool 6000k white tuning, making it ideal for film, television, architectural, and commercial applications.

Key Features:

• Compact 3838 RGB Chips – Smaller footprint with the same high output as 5050 RGB.
• RGB + Dynamic White (WW+CW) – Versatile colour mixing and adjustable white light.
• 24VDC Efficiency – Allows for longer runs with minimal voltage drop.

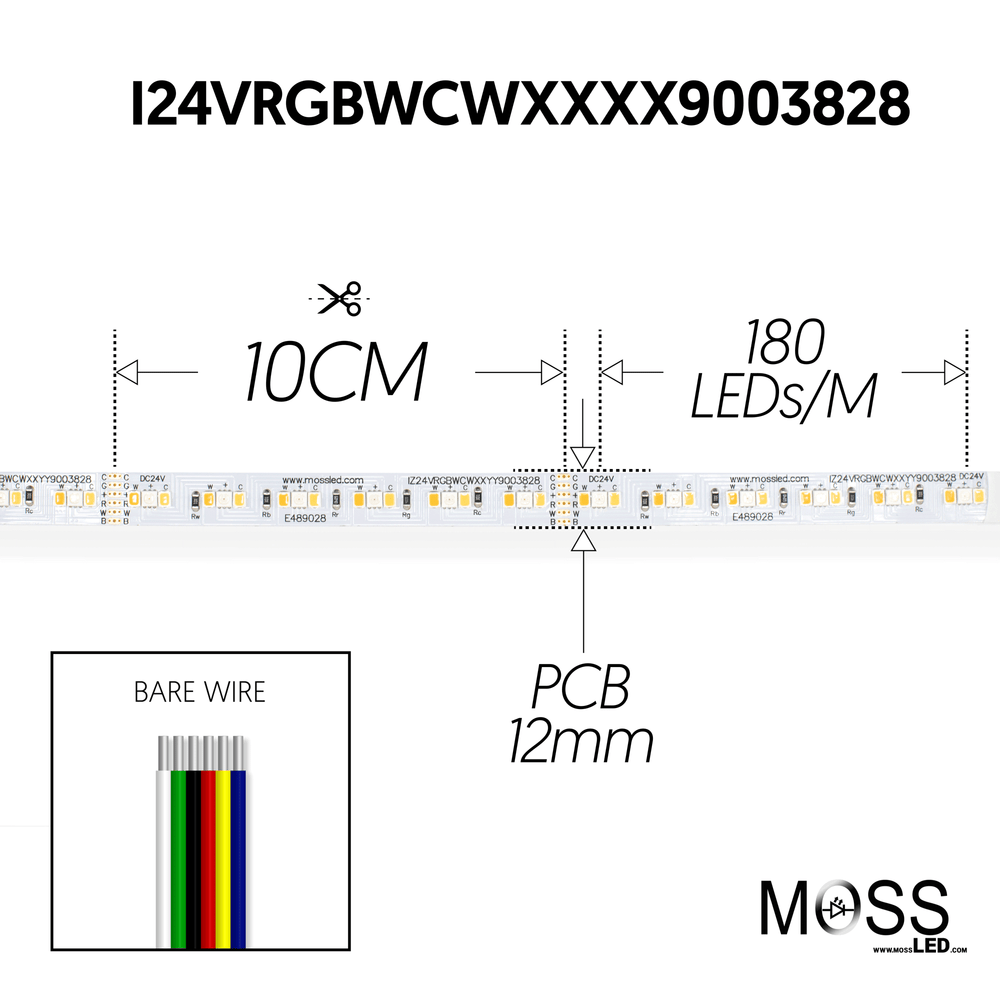

• Flexible & Customizable – Cuttable and adaptable for a variety of installations.
• Durable & Reliable – Designed for high-performance applications.

Installation & Handling Considerations:

• Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
• Waterproof versions require mounting via silicone (not included).

Soldering Guidelines:

• Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
• Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.

Additional Details:

• Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
• Controller, power supply, and extension cables sold separately.
• Quantity discounts and custom colour temperatures available.
• Pricing is for 5 meters (16.4’) - custom lengths available

The FlexLED 180 RGB+WW+CW 24V offers a powerful, space-saving lighting solution, delivering high brightness, precision control, and seamless colour blending.

Need a custom solution? Contact us today!

DOWNLOADS

1. Specification Sheet

*nominal lifetime - dependent on installation location
