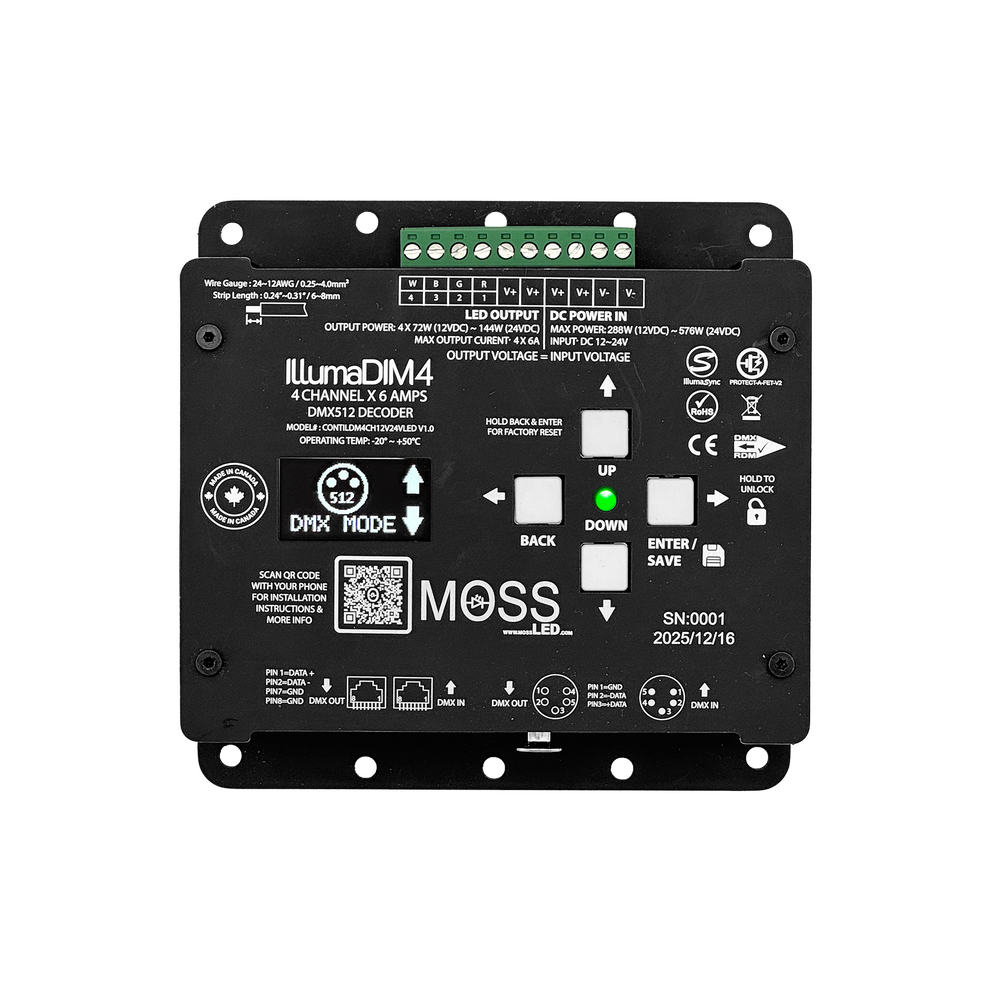

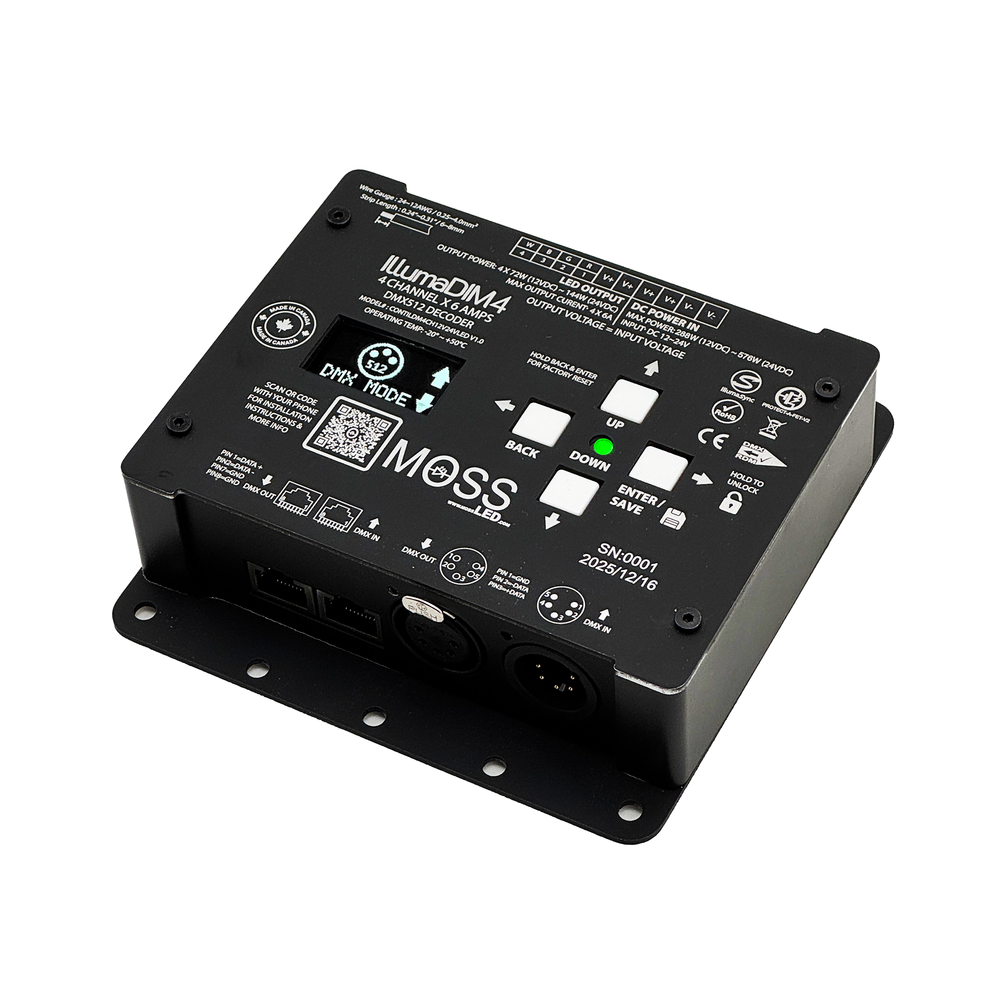

IllumaDIM™ 4 - 4-Channel DMX Dimmer

IllumaDIM™ 4 – Advanced 5-Channel DMX Dimmer with Smart Features

The IllumaDIM™ 4 DMX Dimmer offers unmatched reliability, precision, and smart control features. Designed for on-camera use, theatrical productions, and high-precision dimming applications, it features Protect-A-Fet™ 2.0 for enhanced short-circuit protection and IllumaSync™ technology for batch updating multiple controllers simultaneously. With flicker-free dimming, advanced RDM capabilities, and an intuitive OLED display, the IllumaDIM™ series is the most advanced standalone DMX decoders available today. With Protect-A-Fet 2.0 technology, when a short circuit happens, the IllumaDIM will tell you which channel the short has occurred on to help make troubleshooting a breeze. It also allows you to reset the internal fuses remotely via RDM.

Key Features:

• 4-Channel DMX Dimming – Converts DMX-512/1990 signals into six independently controlled outputs.
• Protect-A-Fet™ 2.0 – Smart short-circuit detection for individual channel protection.
• IllumaSync™ Technology – Allows batch updating of multiple controllers for faster setup.
• Adjustable PWM Frequency – 1kHz to 35kHz for flicker-free dimming at all camera settings.
• 8-bit & 16-bit Resolution Modes – Ensures smooth, precise dimming and colour control.
• Customizable Gamma Correction – Fine-tune dimming response for optimized low-end or high-end performance.
• Industry-Standard DMX Connectivity – Features 5-pin XLR and RJ45 Ethernet in/out for seamless integration.
• OLED Graphical Display – Enables easy DMX addressing, manual mode, test control, and controller settings
• Enhanced Safety Features – Optically isolated DMX, voltage spike protection, and overcurrent detection.
• Three Preset Memory Slots – Save and recall manual scenes or DMX channel values instantly.
• Built-in Test Modes & Firmware Updates – Selectable via GUI, or RDM over DMX.

The IllumaDIM™ 4 DMX Dimmer delivers industry-leading performance and intelligent control, making it the ultimate choice for demanding professional lighting applications.

Need a custom solution? Contact us today!

Technical Specifications

DOWNLOADS

1. Specification Sheet (Coming Soon)
2. Installation Guide (Coming Soon)
3. IllumaSync™ - User Manual
4. IllumaSync™ - Software Download - Windows
5. IllumaSync™ - Software Download - MAC M Chip (BETA)

Videos
