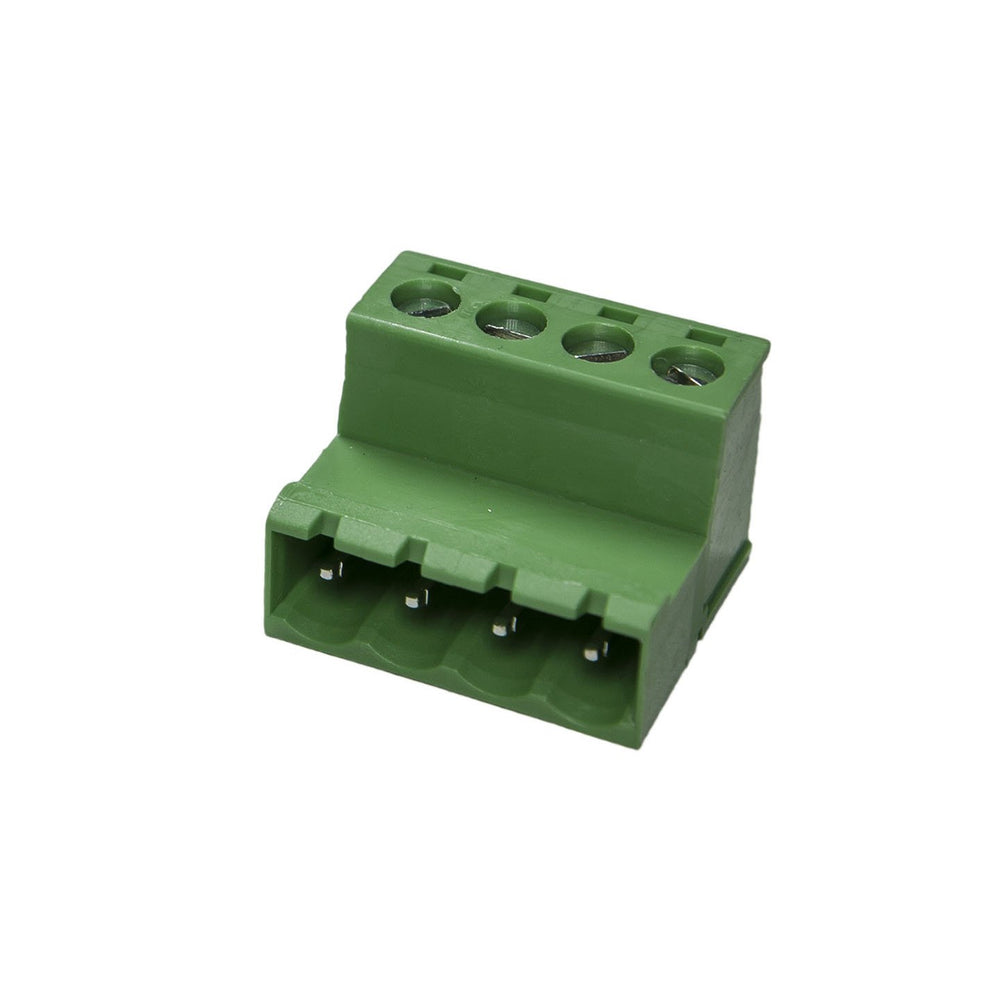

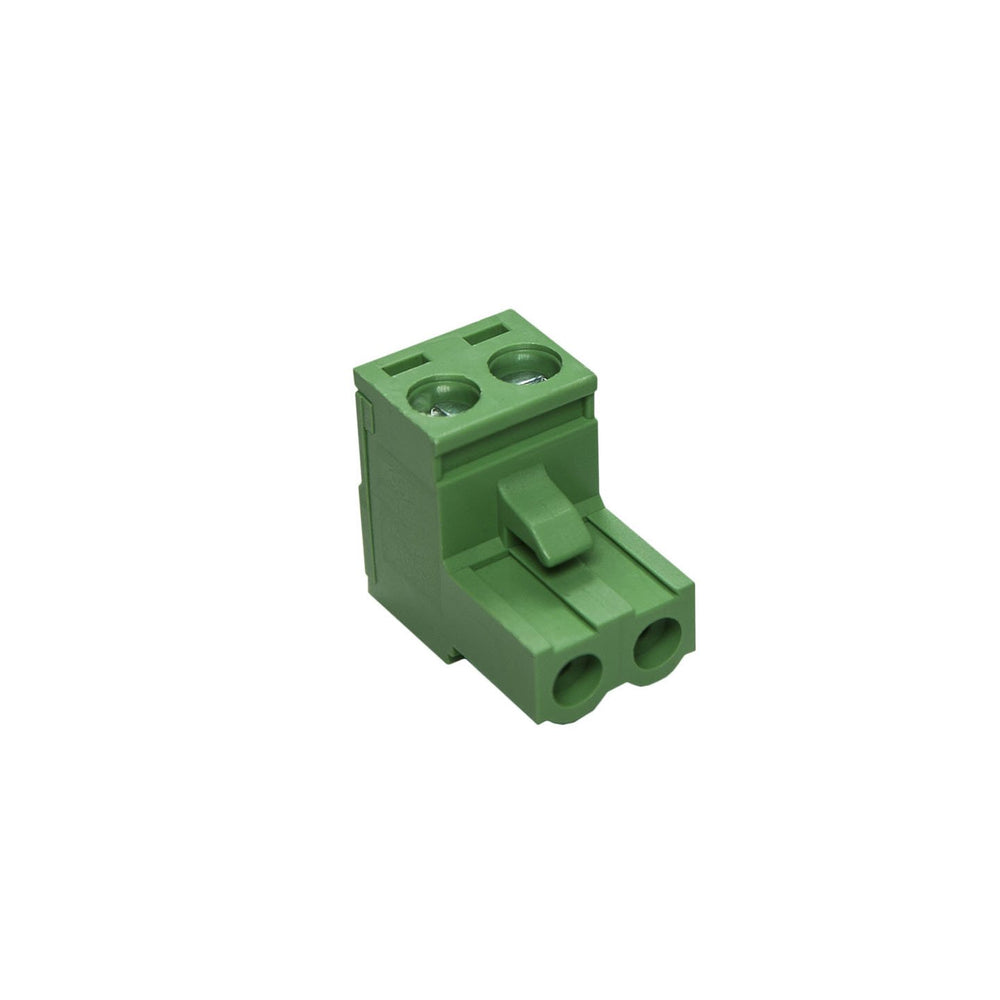

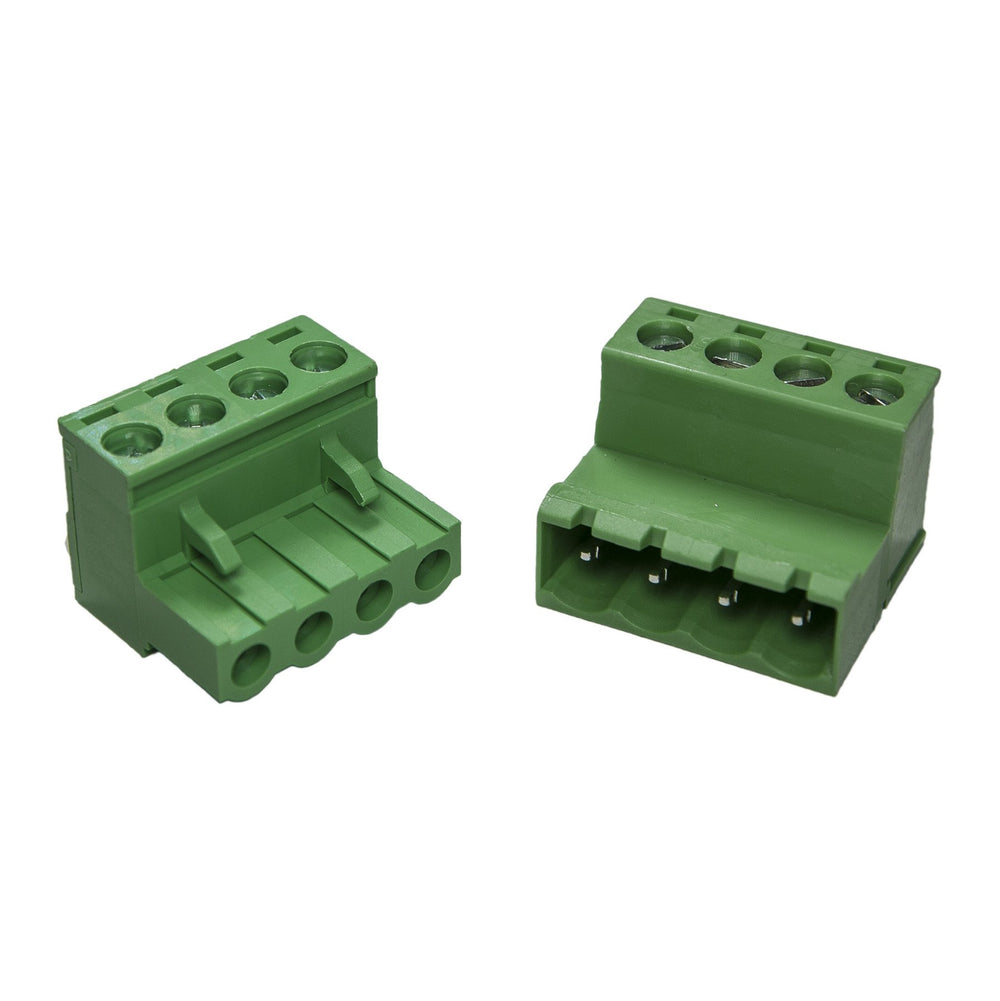

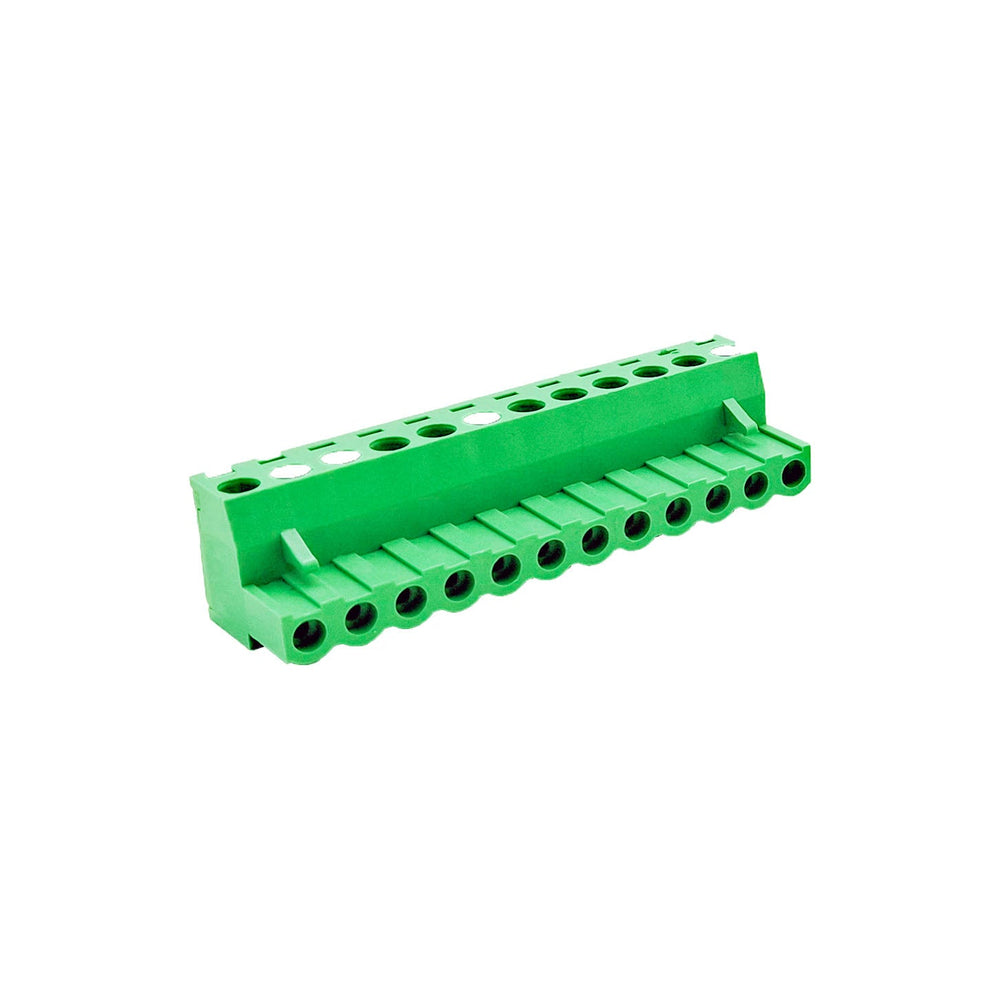

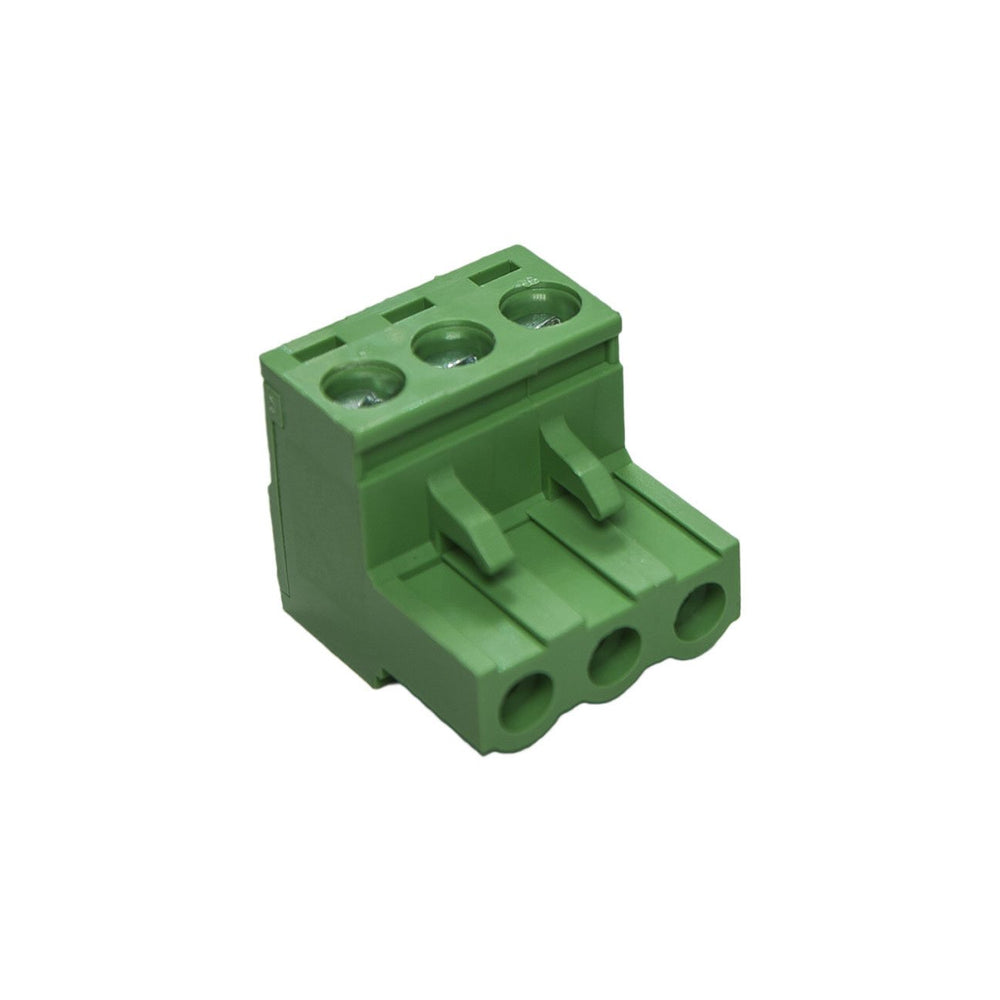

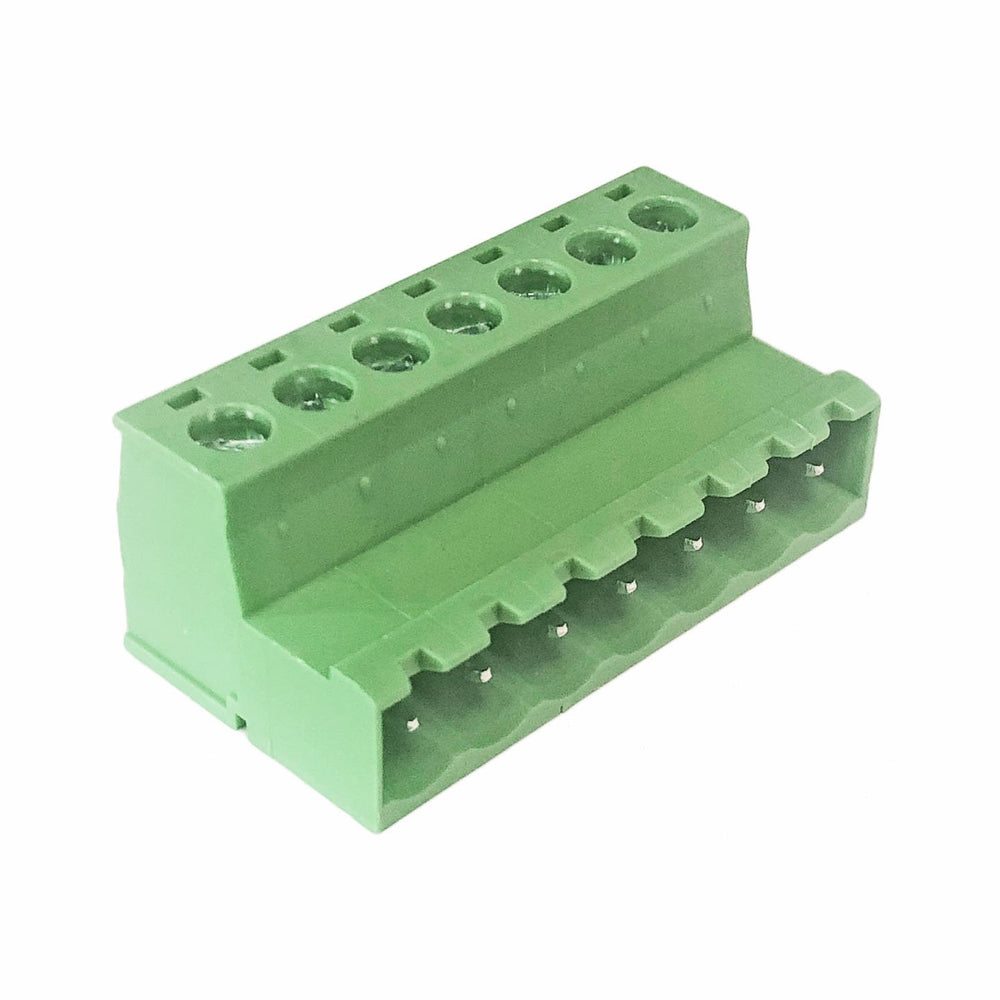

Terminal Block - Pluggable

SKU 2POSTRMBLK
by MossLED
$1.35
Position
Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 2414 in stock, ready to be shipped
Accessories

Position Terminal Blocks

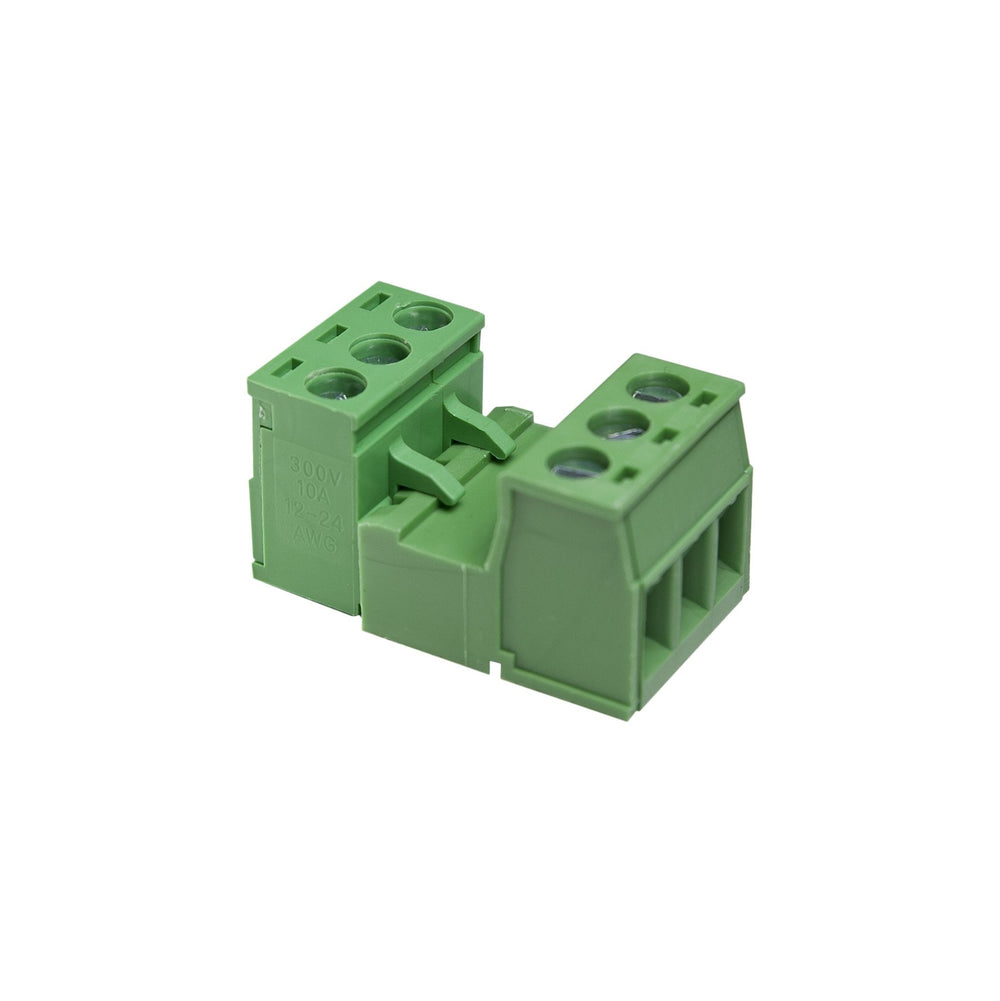

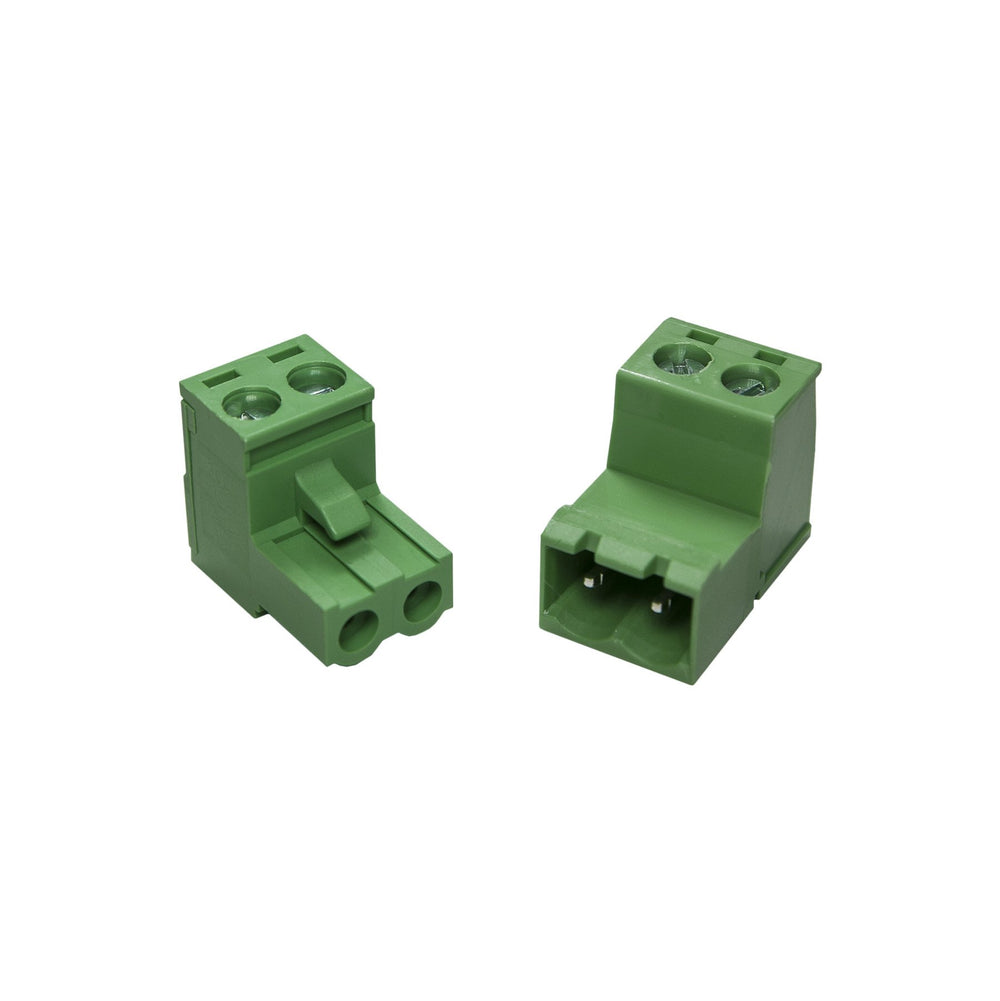

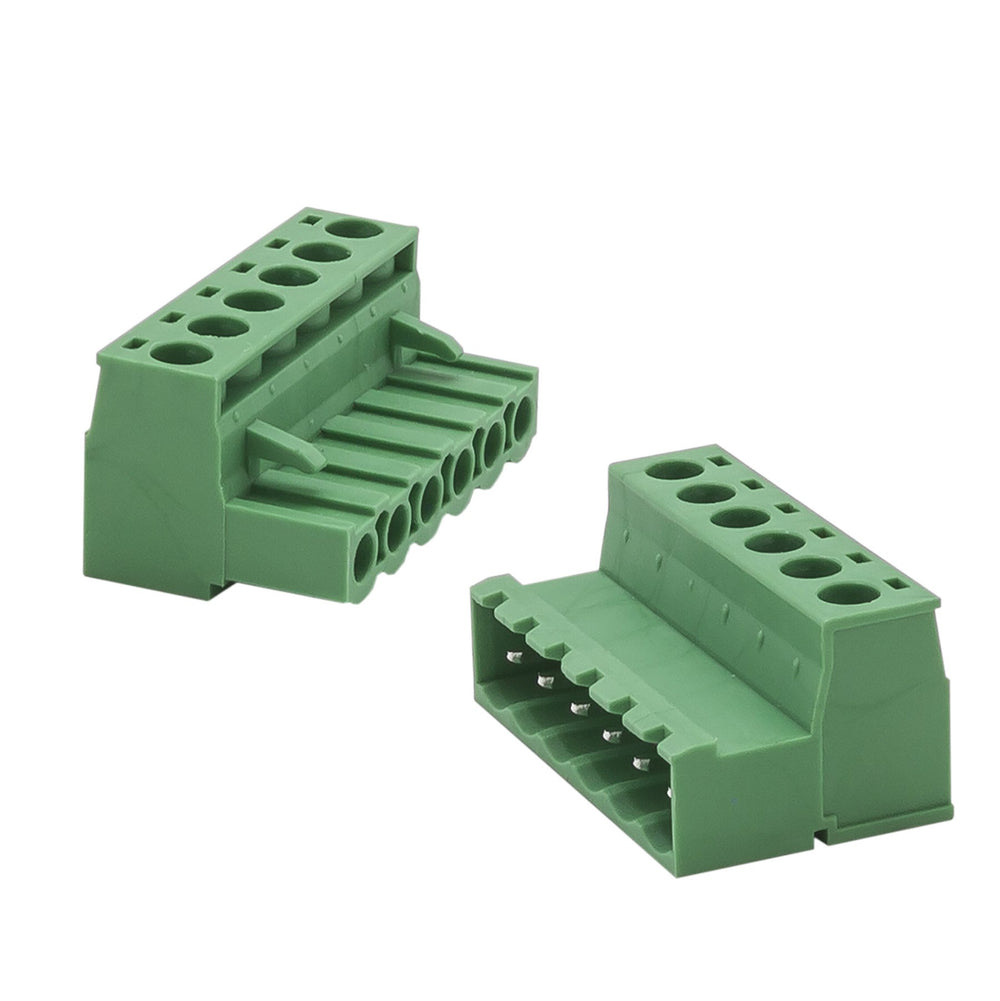

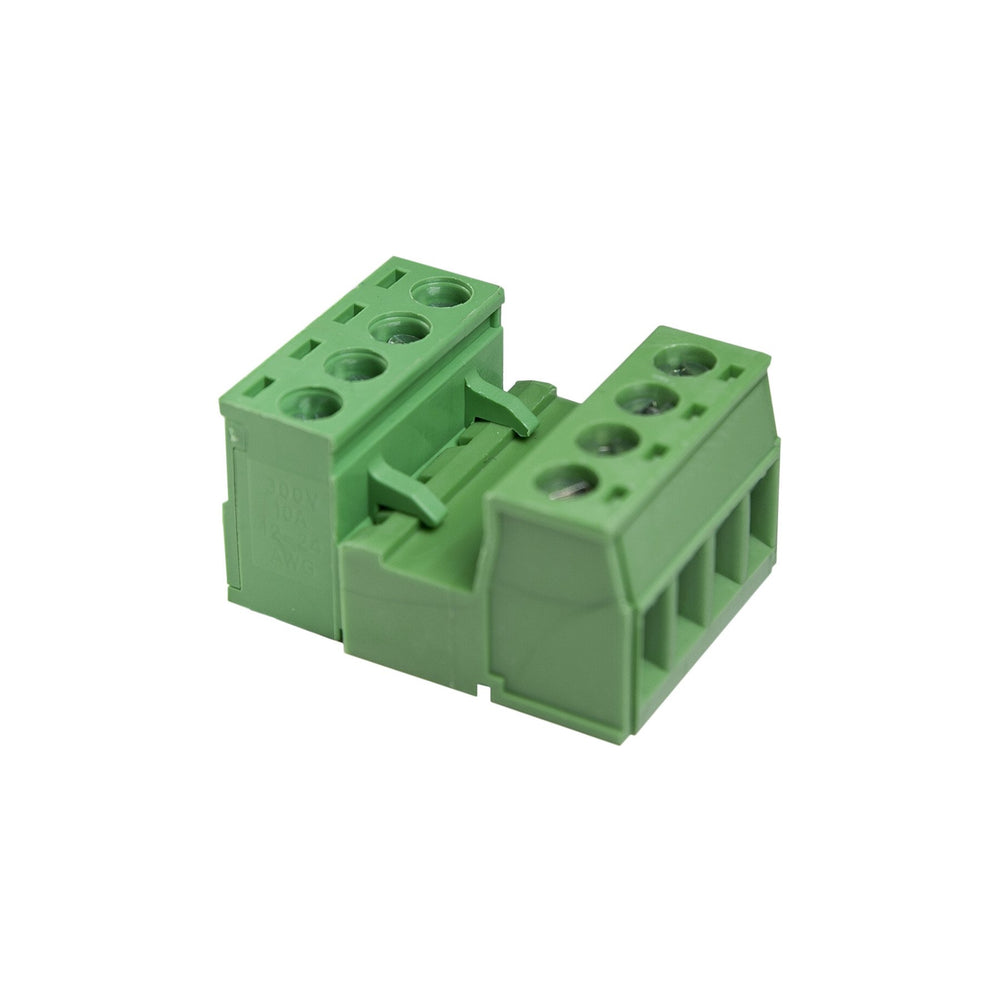

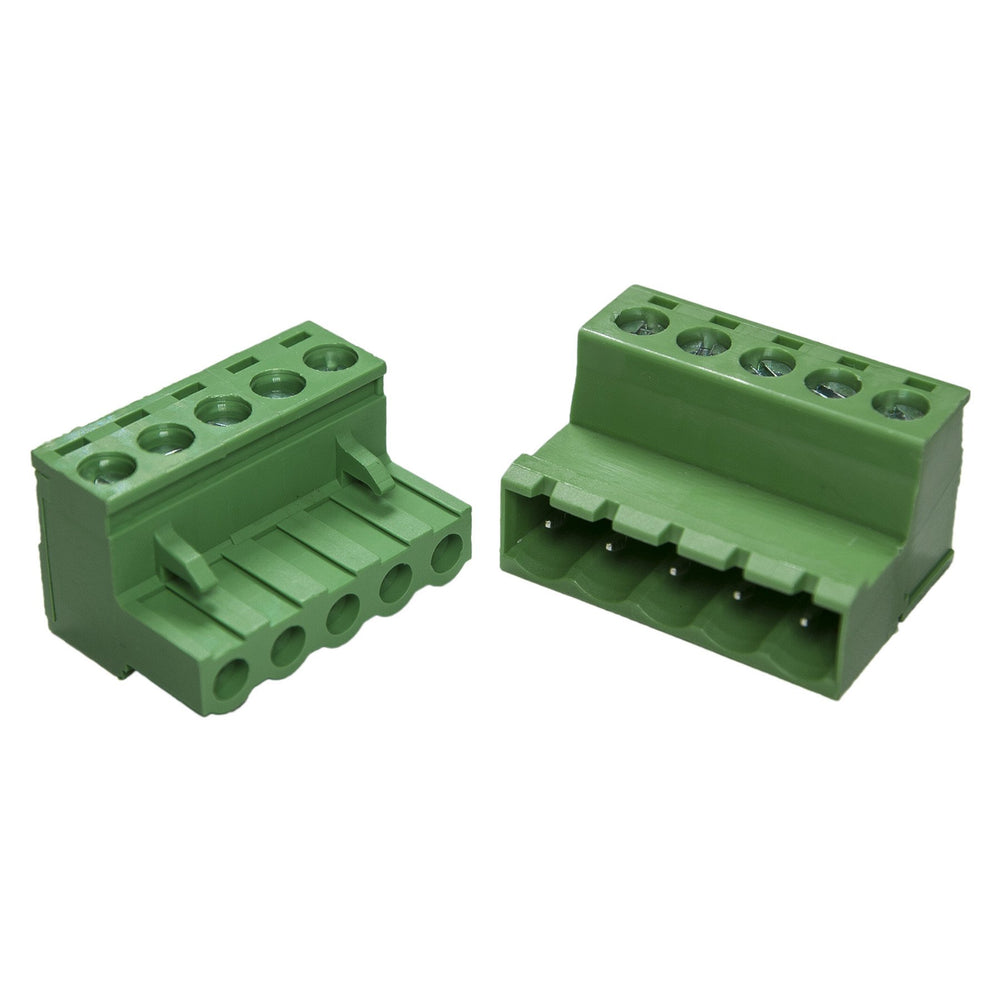

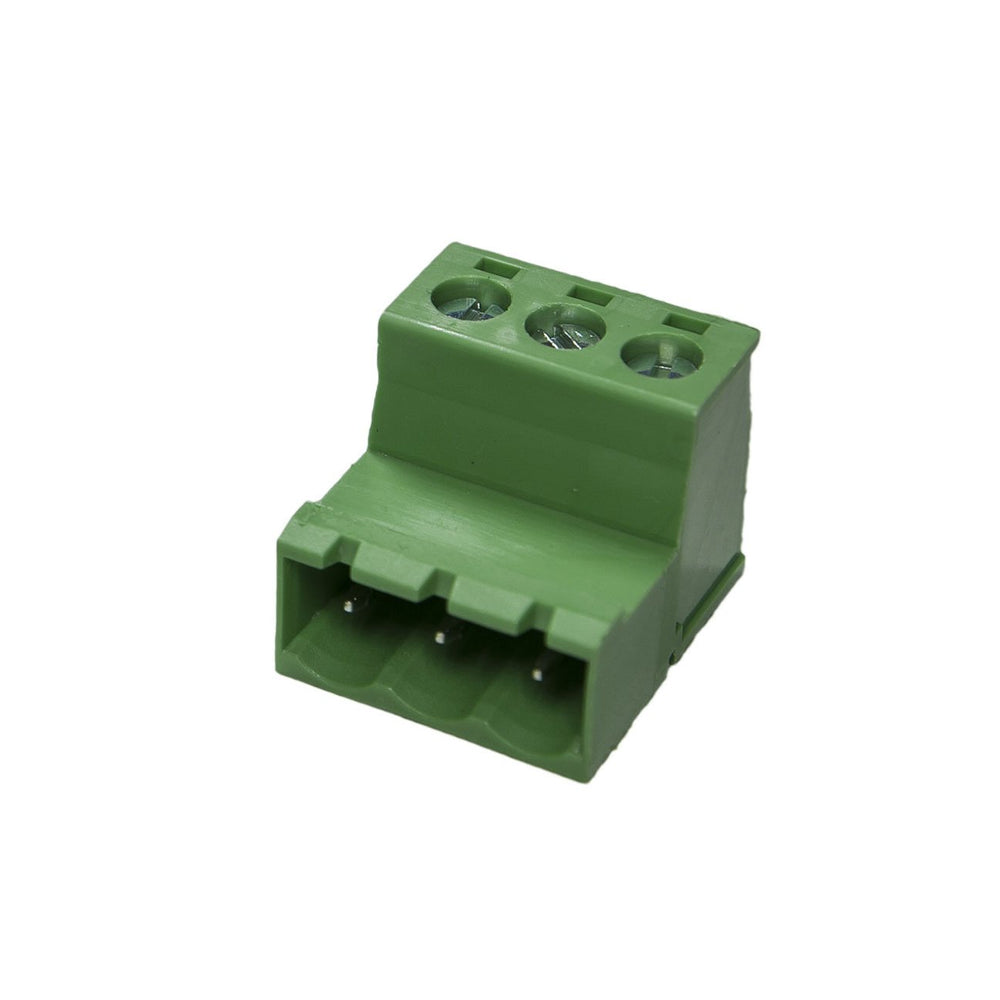

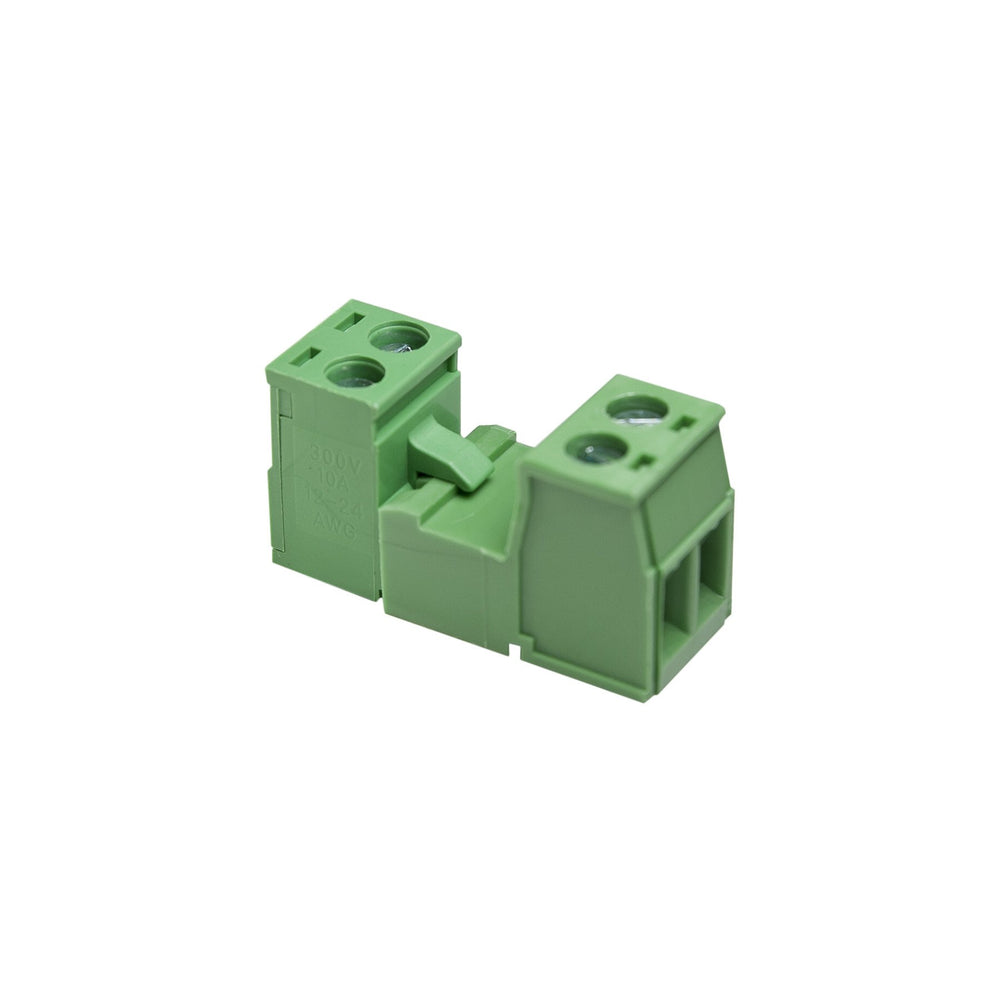

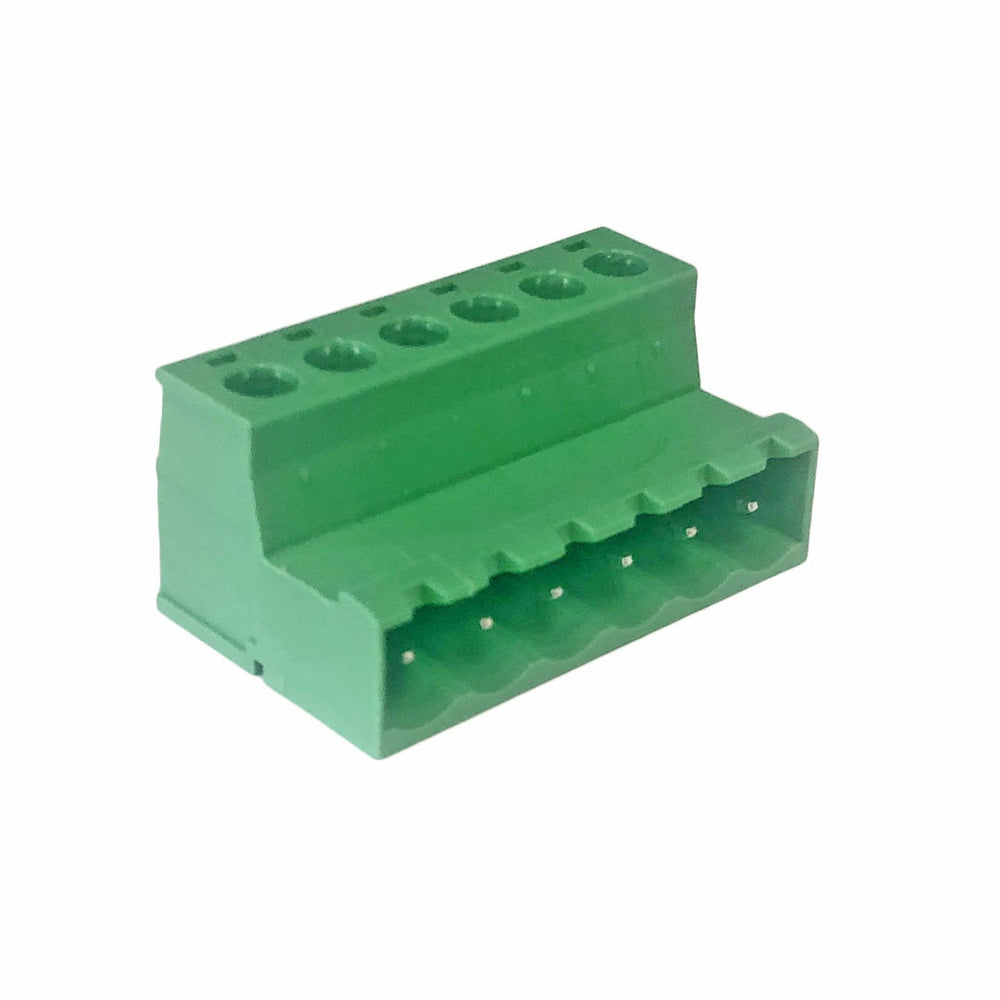

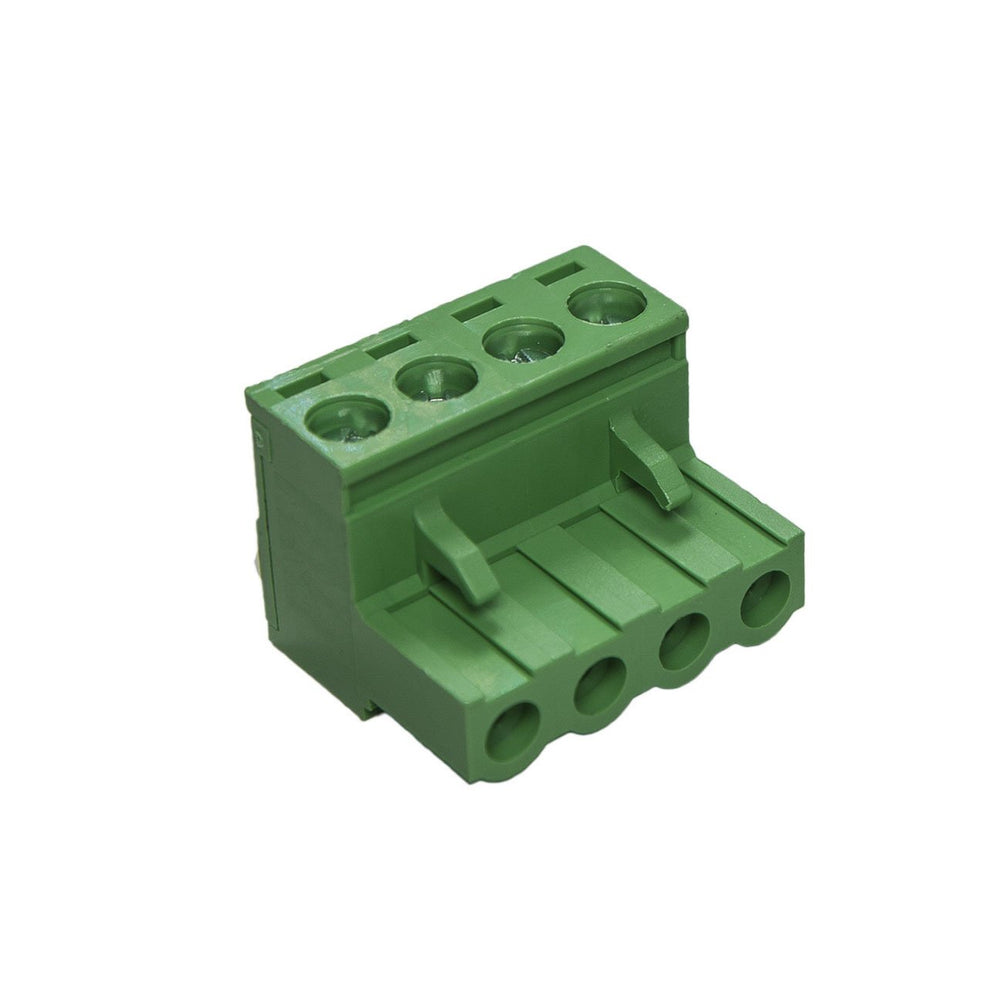

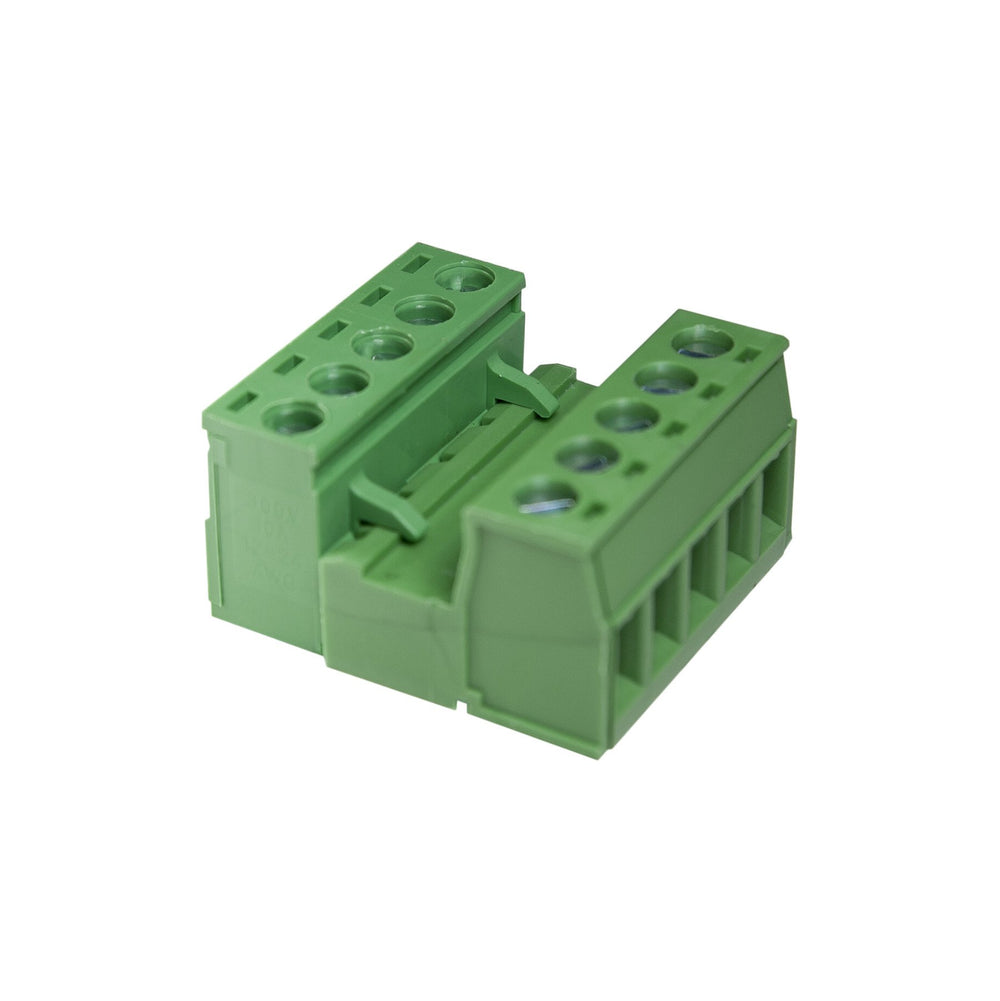

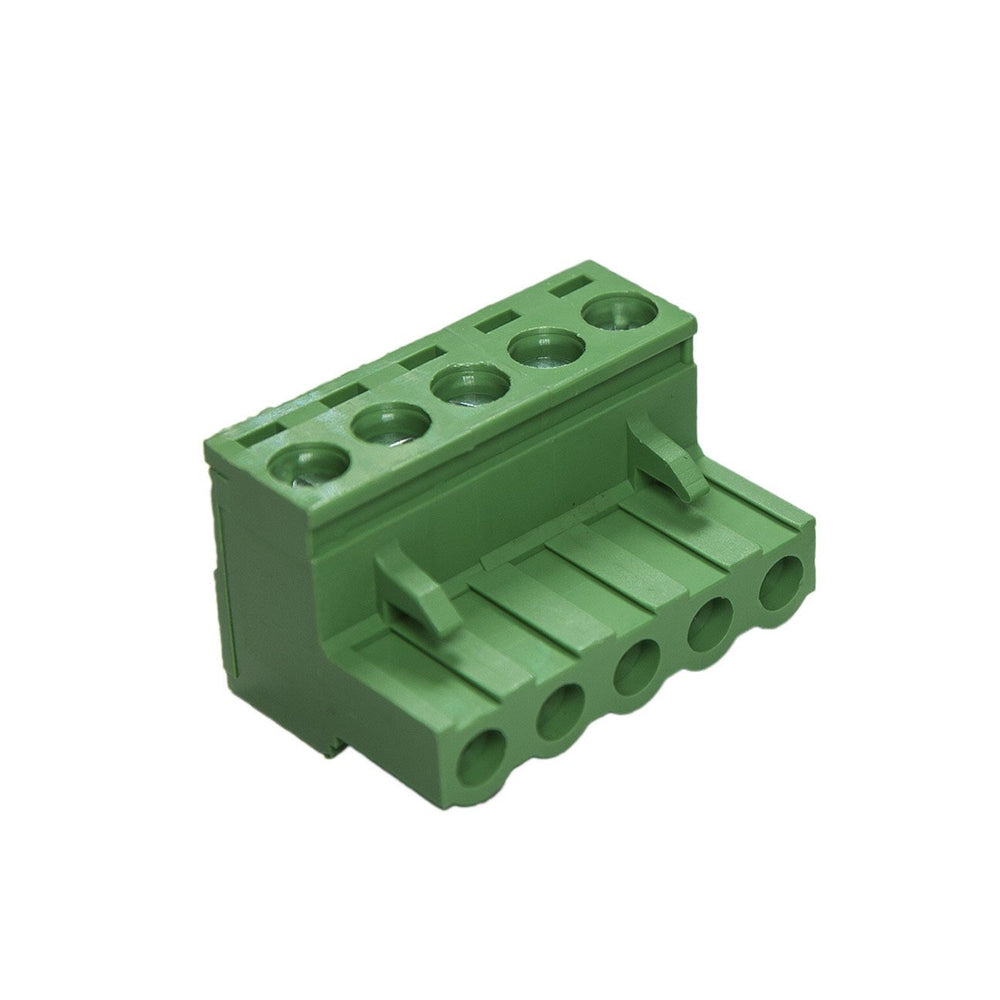

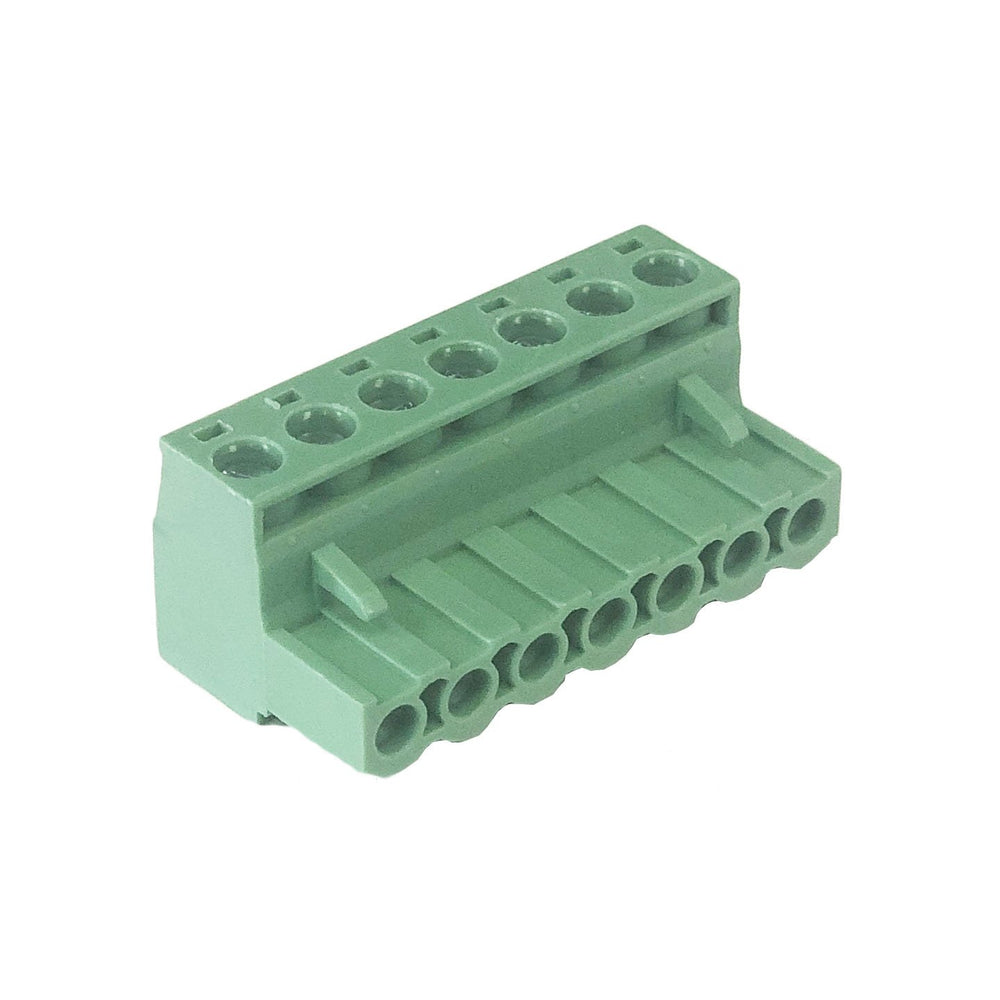

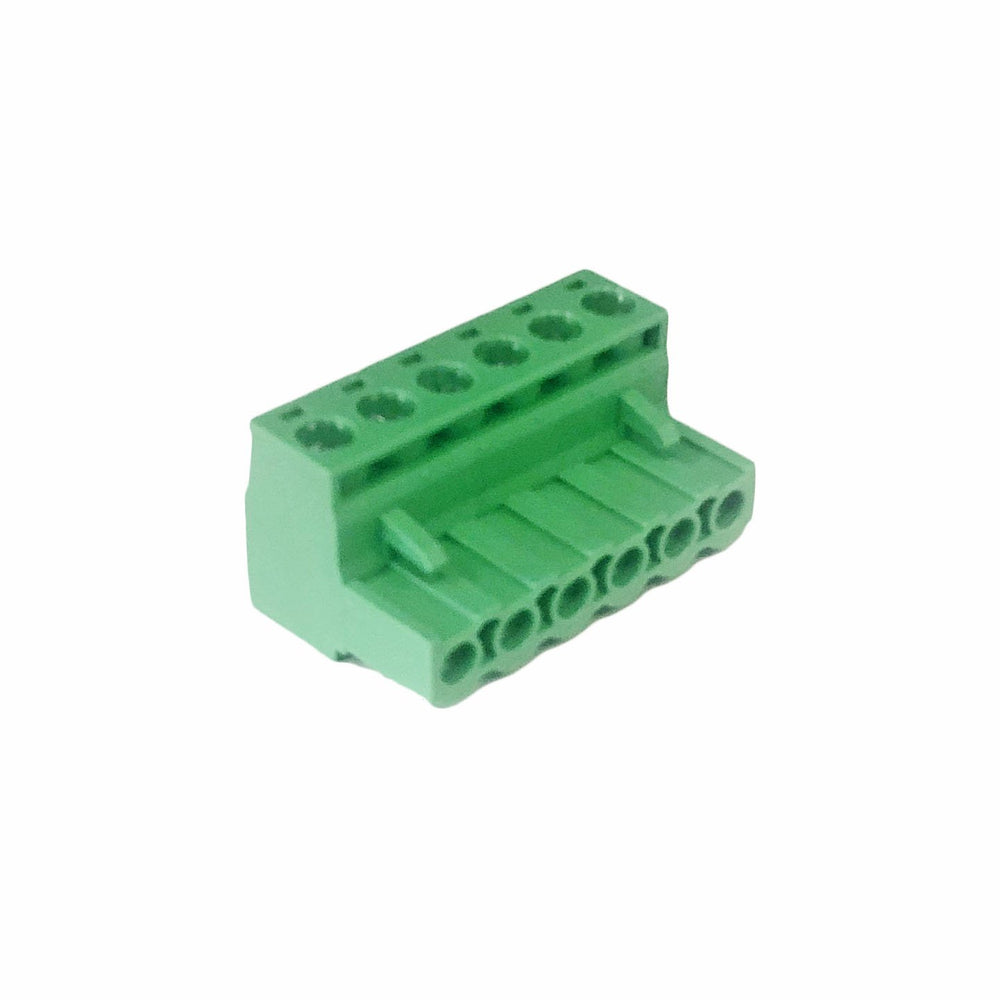

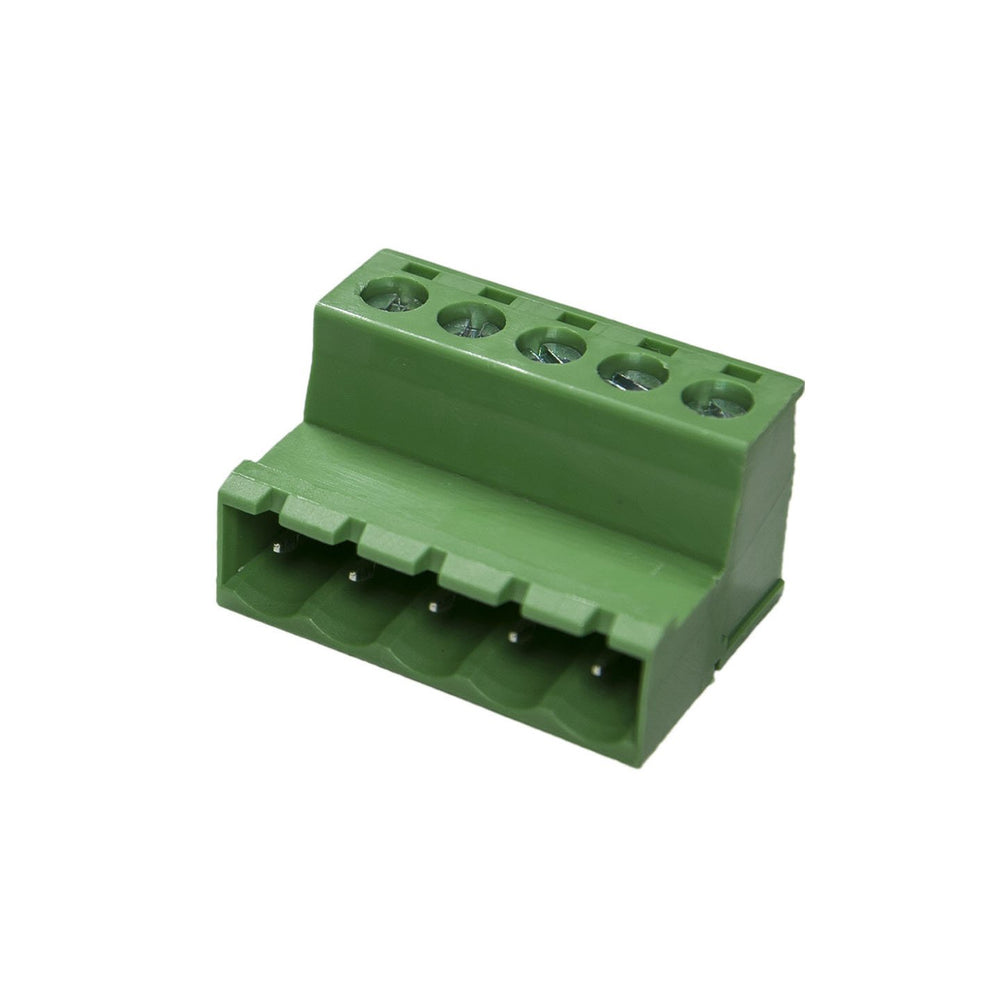

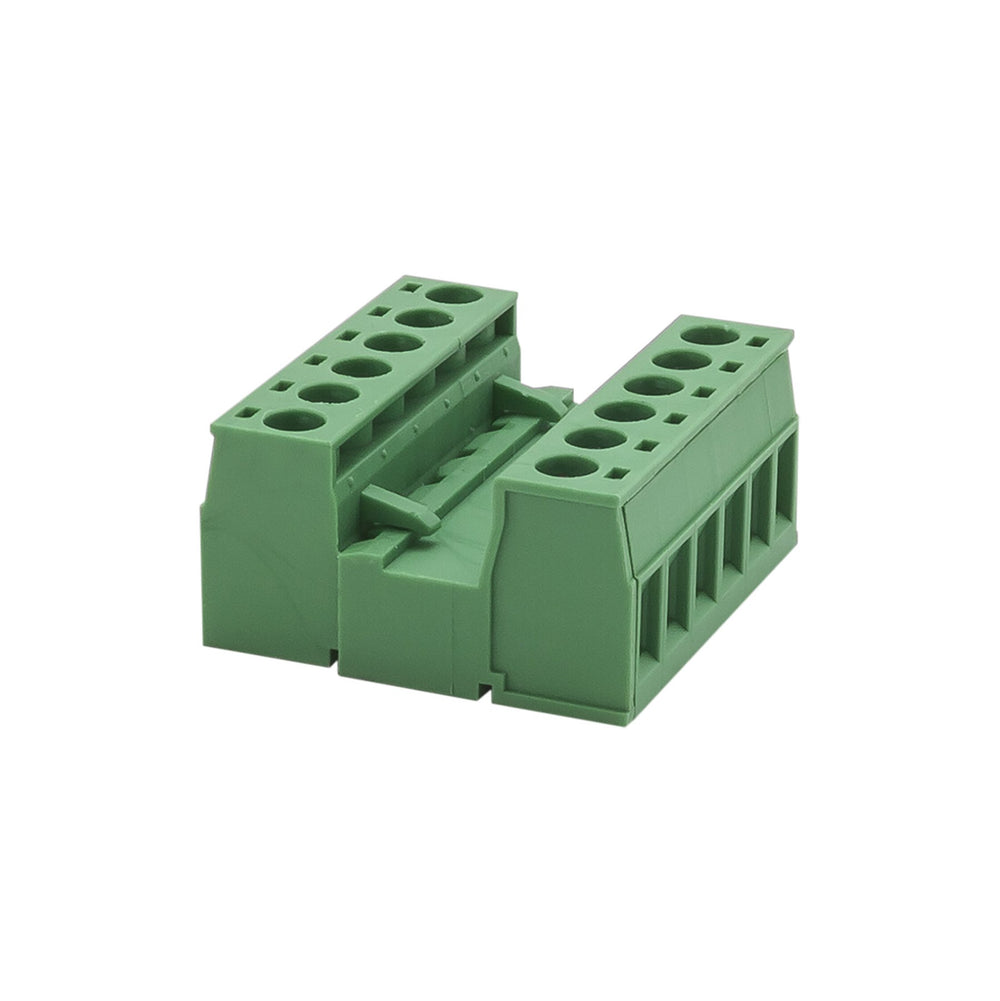

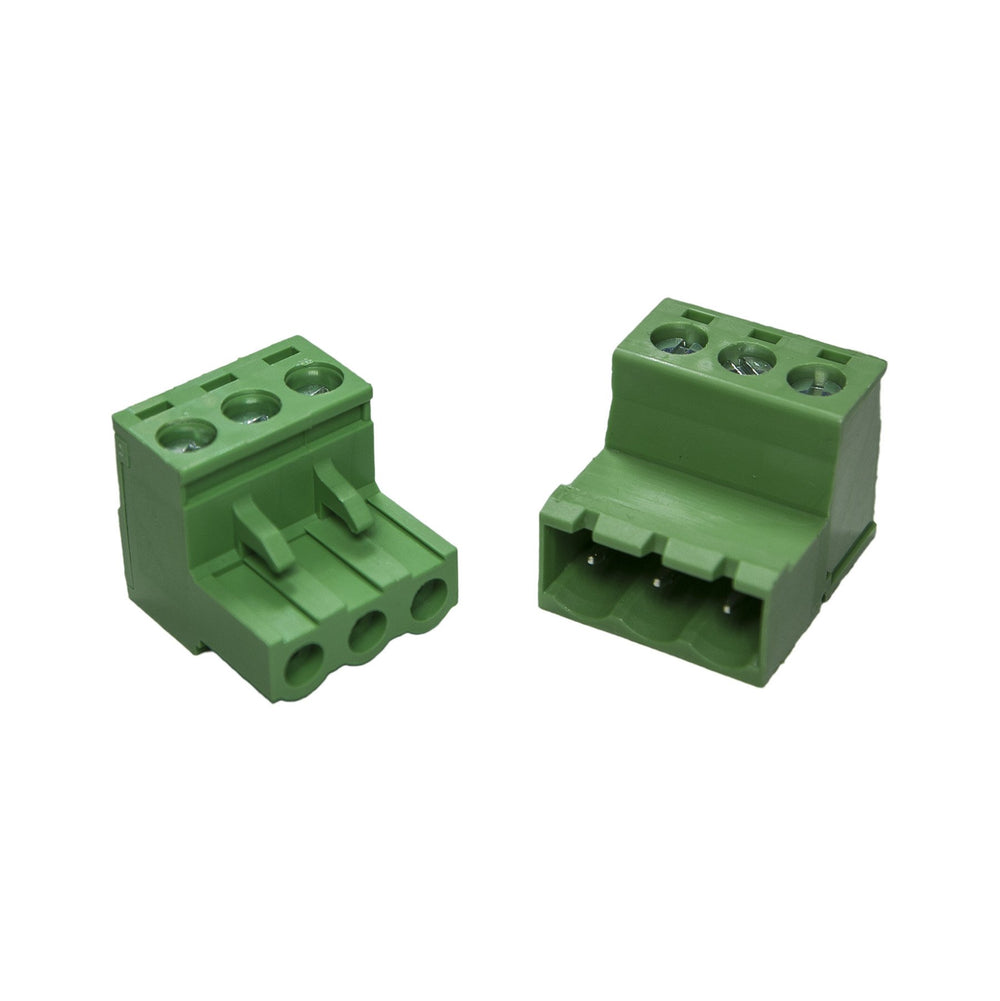

Extremely useful terminal blocks. Available in 2 position, 3 position, 4 position, 5 position, 6, 7 position, and 8 position. (Sold individually)

  • Quick & Convenient Connection of Wires
  • Requires flat-head screw driver for assembly
  • Pluggable version

SPECIFICATIONS

Max Voltage (V) : 320 V
Max Current Per Pin (A) : 15 A (UL Rating) / 20A (IEC Rating)
AWG : 28 AWG to 14 AWG
Agency Approvals : CE/ROHS/cUL
Size (MM) : Various
Housing : Polyamide 66, 94-V2 grade
Screw : Plated-Steel
Max Ambient Temp : -40 ~ 105 C
Screw Type : Flat-Head M3
Pitch (MM) : 5.08MM



DOWNLOADS

  1. Terminal Block Specification Sheet
