Pixel FlexLED 12V RGB High Frequency Individual Chip Control

The Pixel FlexLED 12V RGB is the world’s first individually addressable and individually cuttable 12VDC pixel LED strip, offering extended run lengths, high-frequency operation, and precise colour control. Designed for on-camera use, this 8kHz frequency pixel strip ensures flicker-free performance up to 267fps at most camera settings, making it ideal for film, television, and high-speed recording applications. Compatible with PixlArt 416 controllers via ArtNet or sACN or any pixel controller that supports GS8208. This pixel tape enables stunning visual effects and seamless integration into professional lighting setups.

Key Features:

• Individually Addressable Pixels – Each LED is independently controlled for unlimited effect possibilities.
• 8kHz High-Frequency PWM – Flicker-free operation up to 240 fps for on-camera applications.
• Seamless Pixel Control – Compatible with PixlArt 416 and any Pixel Controller with GS8208
• Customizable Cut Lengths – Individually cuttable LEDs for precise installations.
• Durable & Flexible Design – Available in indoor, weatherproof, and waterproof versions.

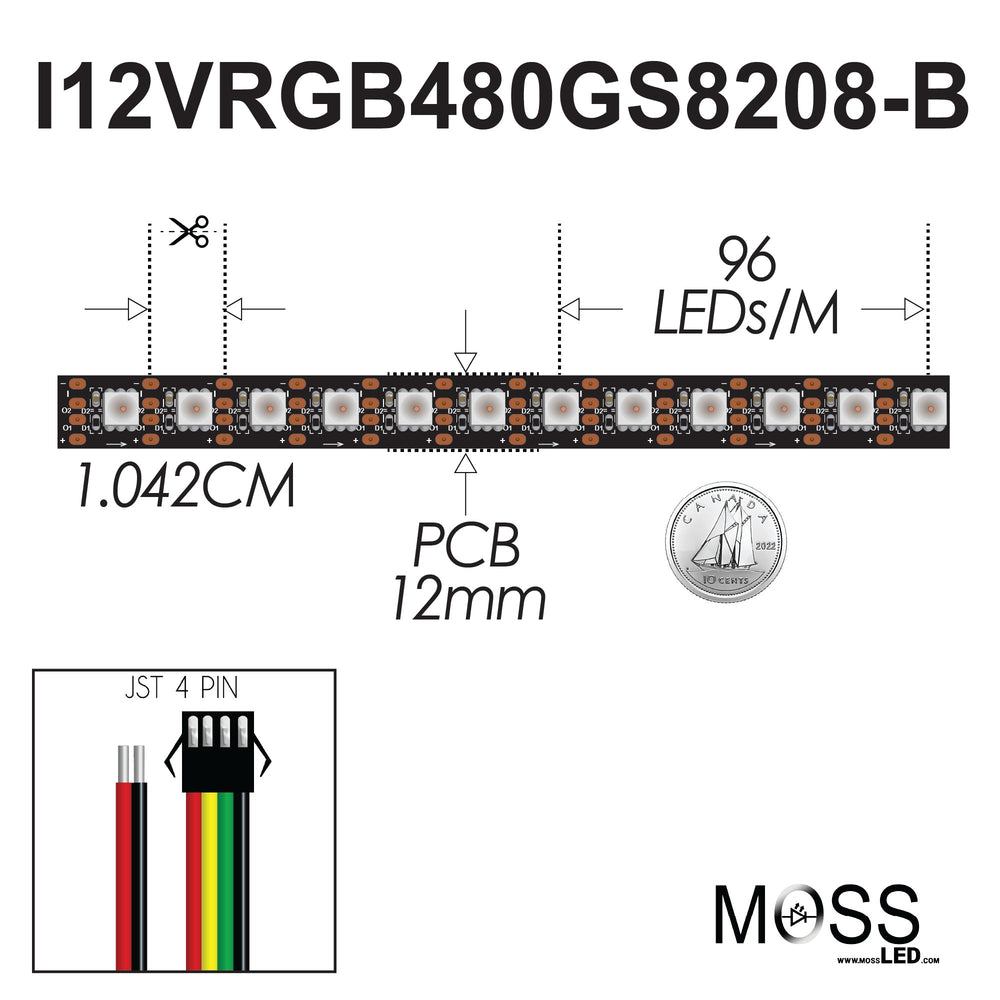

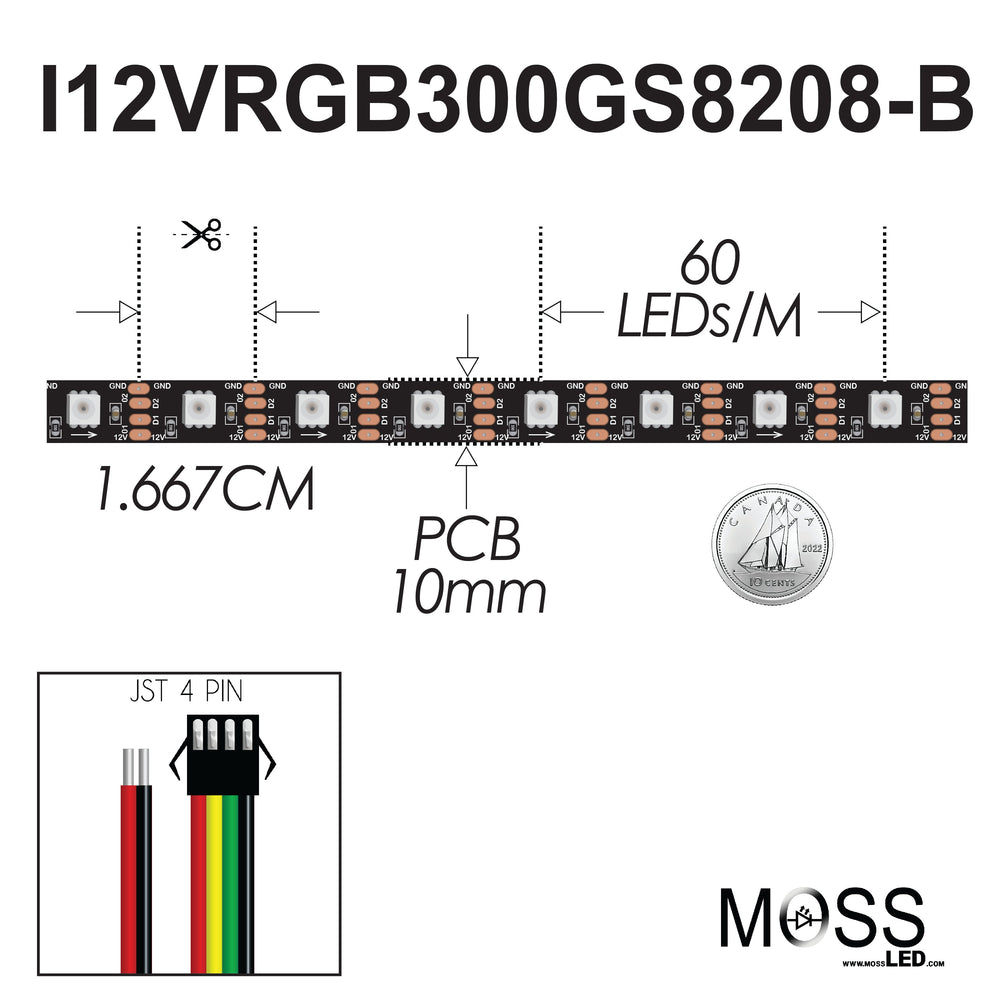

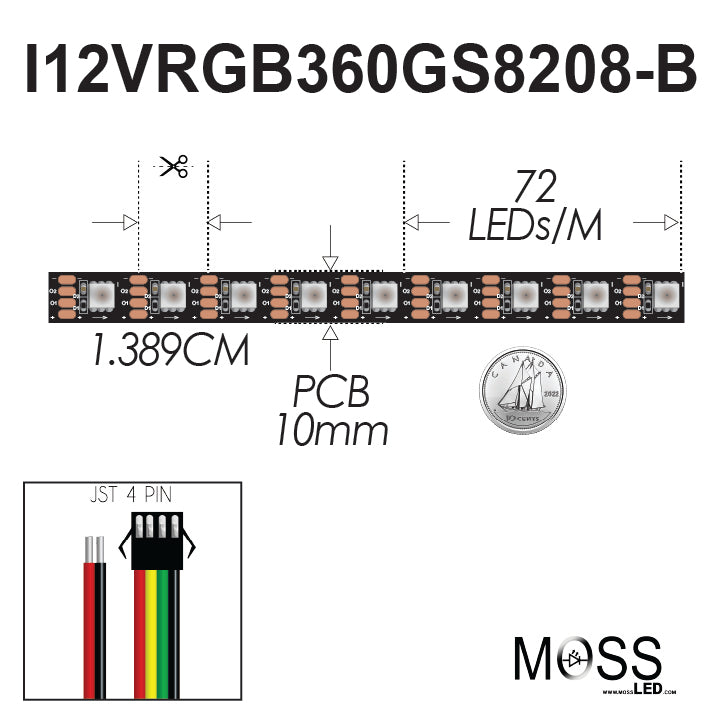

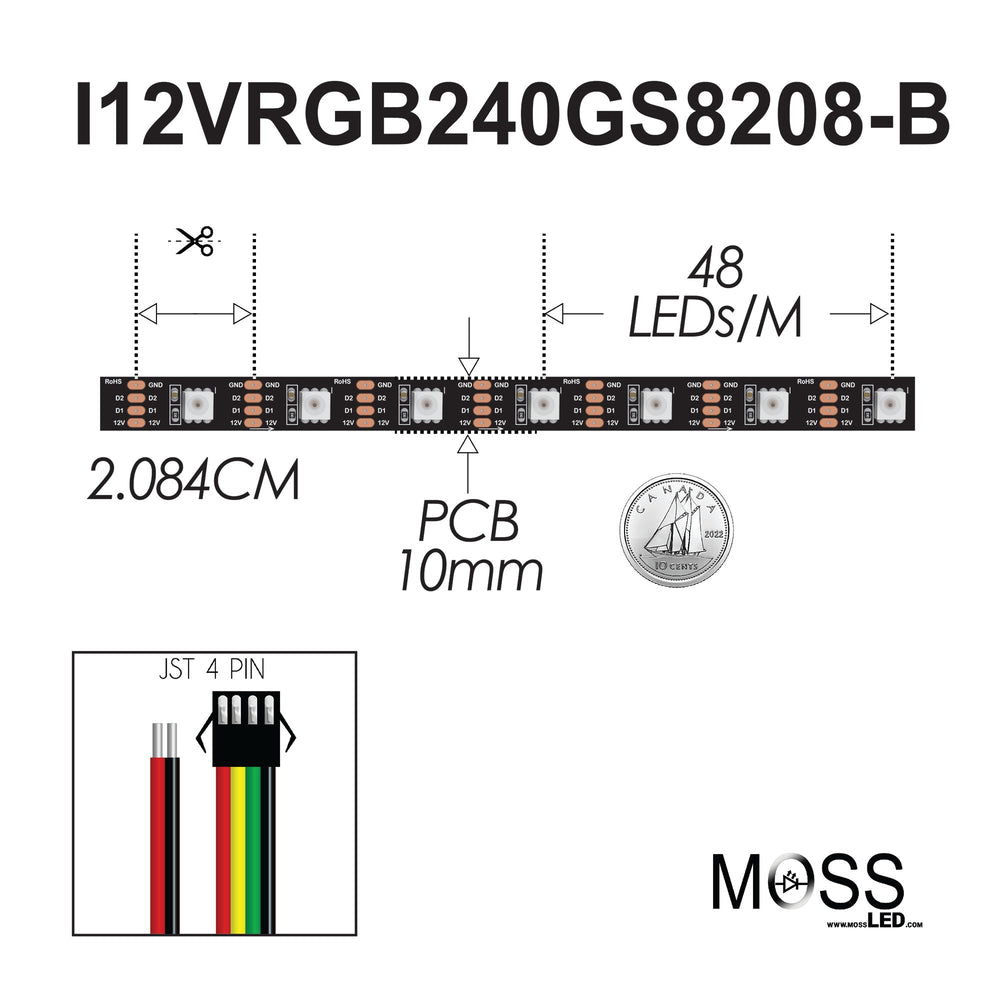

• 48, 60, 72 or 96 LED / meter pixel densities

Installation & Power Considerations:

• Fixed PWM Frequency – 8 KHZ - flicker free at most camera settings up to 267fps
• Prevent Voltage Drop – Place power supplies near LED strips or use multiple power injection points.
• Separate Power for Controller & LEDs – The controller’s power supply does not need to match the LED strip power supply; do not connect controller + to strip +.
• Verify Voltage During Testing – Use a voltmeter to check +/- along the LED strip for stable power delivery.

Additional Details:

• Maximum run length: 10 meters (32.81’) – Power required at both ends and at the center to avoid line loss.
• Controller, power supply, and extension cables sold separately.
• Quantity discounts and custom colour temperatures available.
• Pricing is for 5 meters (16.4’) - custom lengths available

Soldering Guidelines:

• Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
• Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.

The Pixel FlexLED 12V RGB provides unmatched flexibility, precision, and reliability, making it the ideal choice for professional pixel lighting applications.

Need a custom solution? Contact us today!

SPECIFICATIONS - INDOOR PRODUCT

DOWNLOADS

1. Specification Sheet

2. UL Certificate of Compliance

*nominal lifetime - dependent on installation location
