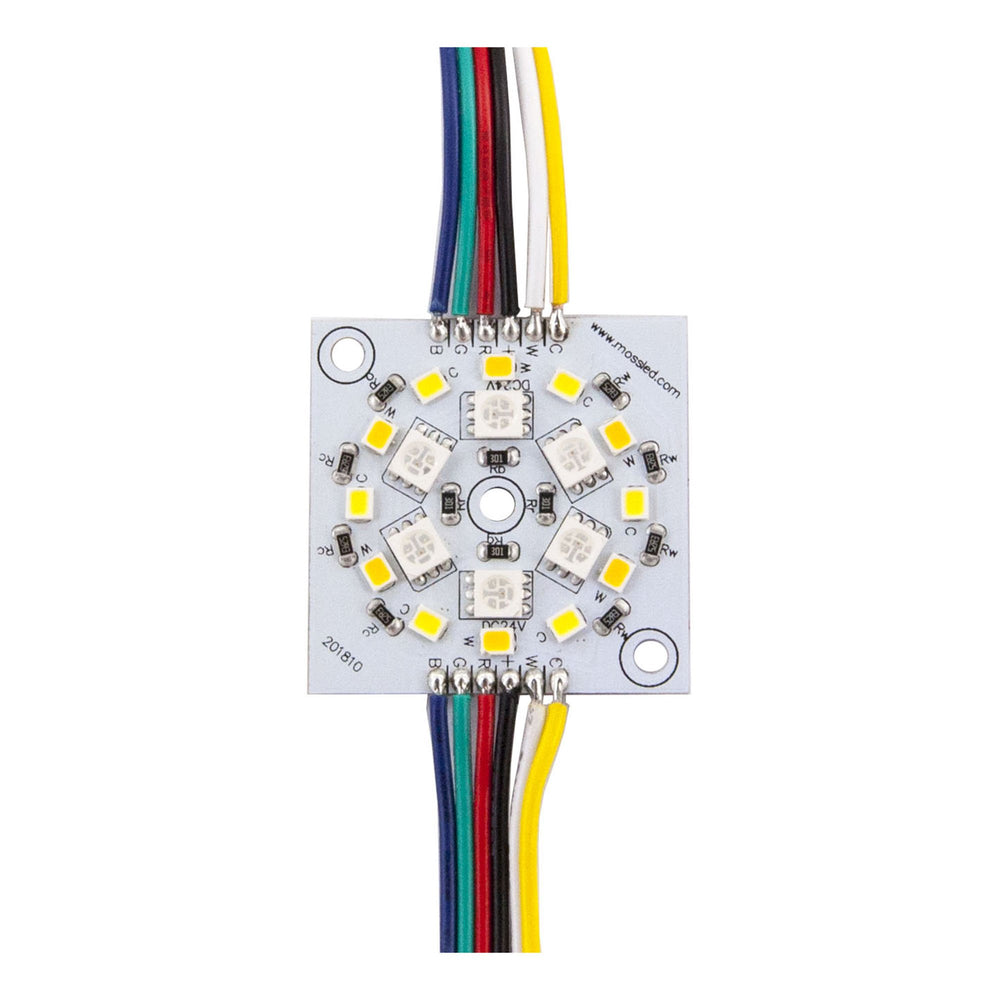

RawModule 18-LED RGB+WW+CW

The RawModule 18-LED RGB+WW+CW delivers high-intensity, high-CRI lighting for residential, television, industrial, and commercial applications. Designed for indoor use (IP43-rated), these 24VDC modules feature peel-and-stick installation with 3M adhesive backing for quick and secure mounting. With adjustable spacing and energy-efficient performance, these modules provide seamless, high-quality illumination for signage, backlighting or anywhere modular lighting is required.

Key Features:

• High-CRI, Multi-Source LED Design – Features SMD 5060 RGB & SMD 2835 White LEDs for accurate, vibrant colour and white light.
• Easy Installation – Peel-and-stick 3M adhesive backing for secure mounting.
• Indoor-Rated (IP43) – Suitable for dry environments requiring consistent, high-CRI lighting.
• Adjustable Spacing – Standard 30CM or 10CM cable jump between modules for flexible layouts.
• Energy Efficient 24VDC – Low power consumption with maximum brightness.
• Maximum Run Length – Up to 50 modules per power run to prevent line loss.

Applications:

• Signage & Lightboxes – Backlighting for channel letters and illuminated displays.
• Architectural Lighting – Enhancing indoor environments with professional-grade illumination.
• Event & Entertainment Lighting – Ideal for bars, clubs, theatres, and stage productions.
• Decorative & Accent Lighting – Creates dynamic, colour-rich lighting effects.

Stocked in 2700K–6000K; 2700K–5600K available by special order.

Need a custom solution? Contact us today!

SPECIFICATIONS - IP43 PRODUCT

Product Type	:	18-LED RGB+WW+CW
Product Code	:	RM-I24V50502835RGBWCW2760-XXYY
CRI	:	95+
Kelvin	:	RGB+W+CW (2700k + 6000K)
PCB Color	:	White
Current Rating	:	60mA for RGB, 70mA for Whites
Voltage	:	24 VDC
Wattage	:	3.12W / Module
CC / CV	:	Constant Voltage
IP Rating	:	IP43
Lumens @ Full	:	TBD
Lifetime	:	50,000 hours
Cable Length	:	10CM OR 30CM
Dimensions	:	40 x 40 x 4.5MM (with double-sided tape)
Mounting Holes	:	3x 3.6mm diameter, 22.6mm distance from center
LED Quantity	:	6 X RGB, 6 X 2700k, 6 X 6000k
Number of Contacts	:	6
PCB type	:	3 Oz.
LED Type	:	6 X 5060 RGB : 12 X 2835 White
Operating Temperature	:	-20°C ~ 60°C
Agency Ratings	:	CE, RoHS, UL E489028
Maximum Recommended Length	:	50 Modules (156 Watts Total)
Viewing Angle	:	120 degree
Adhesive	:	Mounting Holes / Foam Rubber Adhesive Tape

DOWNLOADS

1. Specification Sheet
2. UL Certificate of Compliance
3. STEP File
4. STL File
