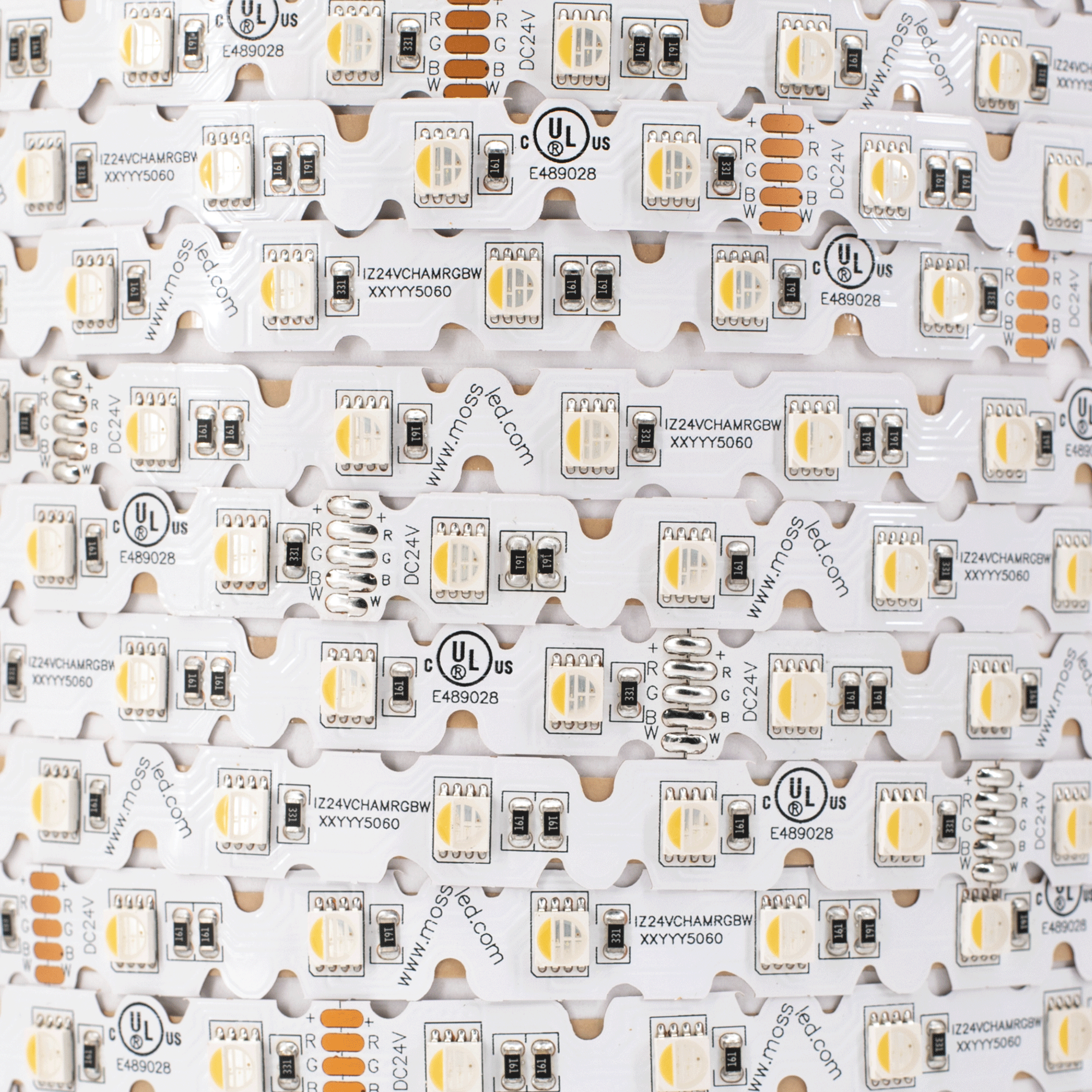

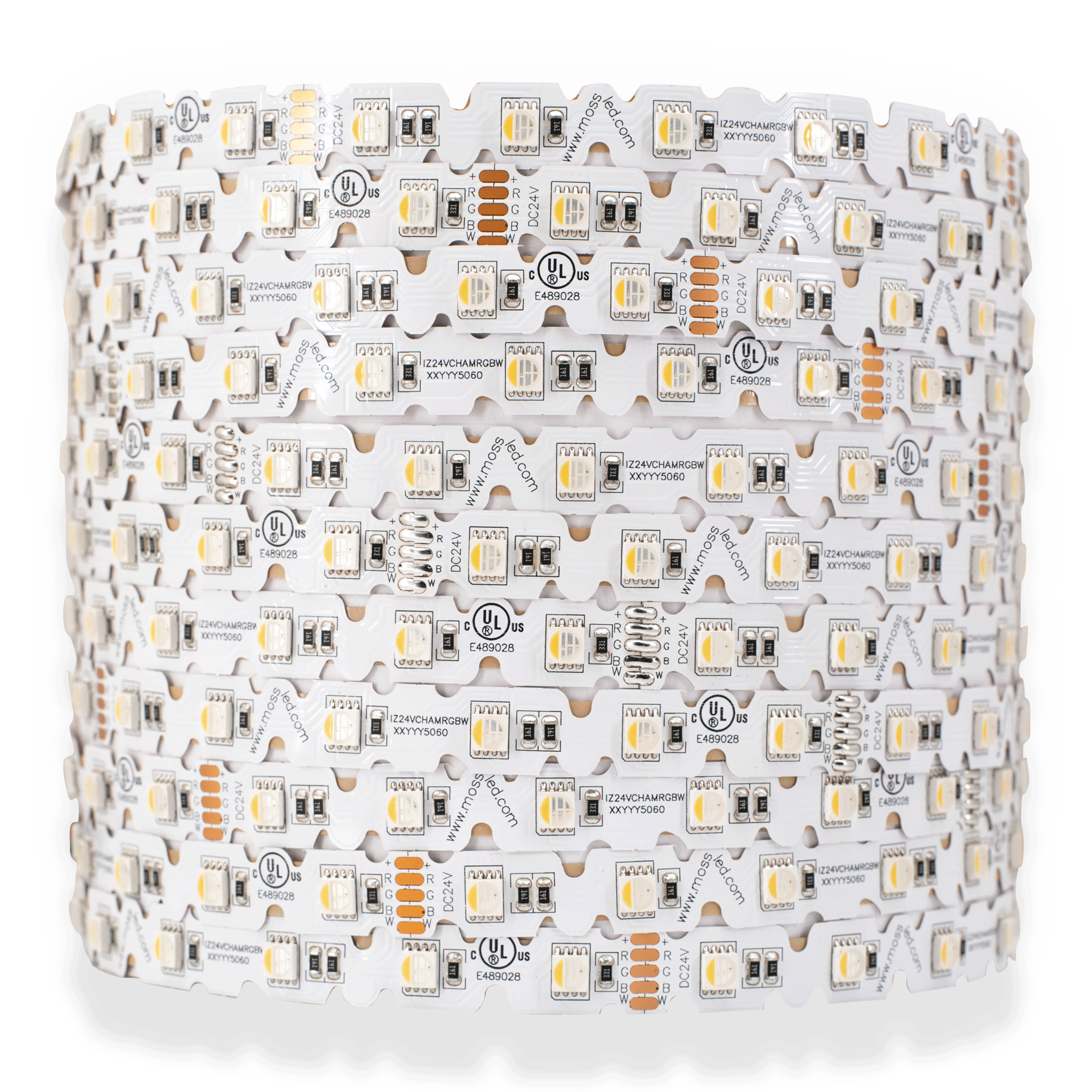

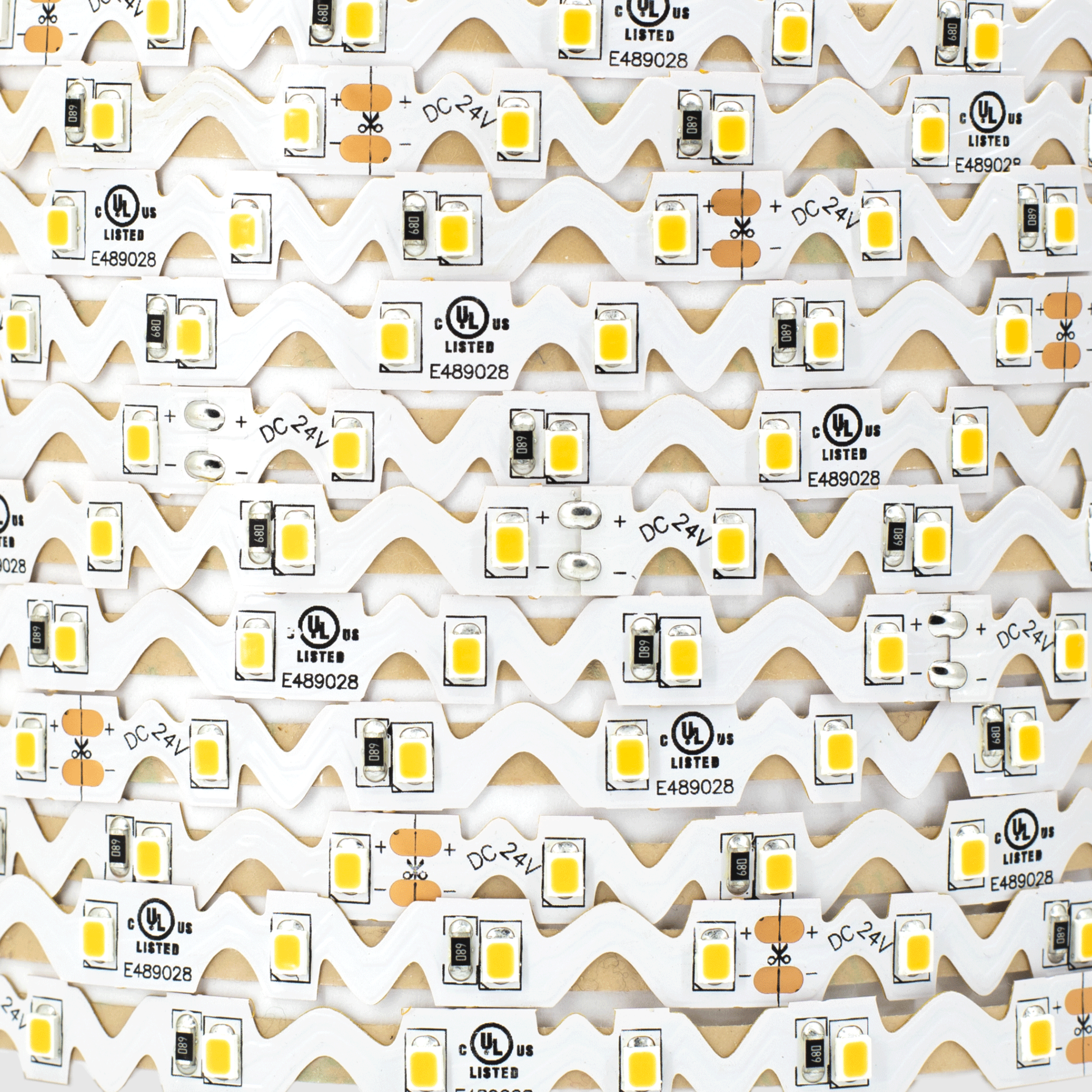

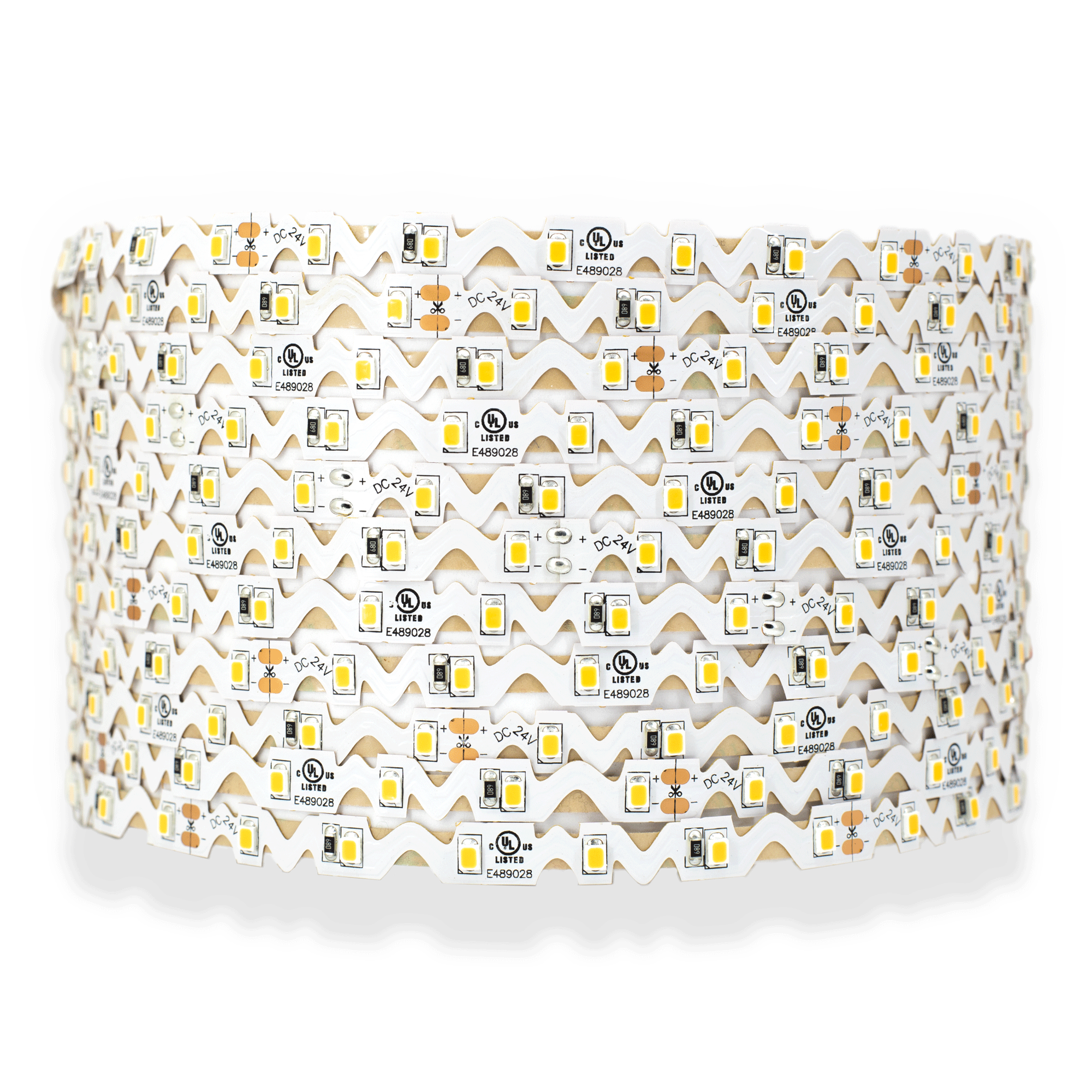

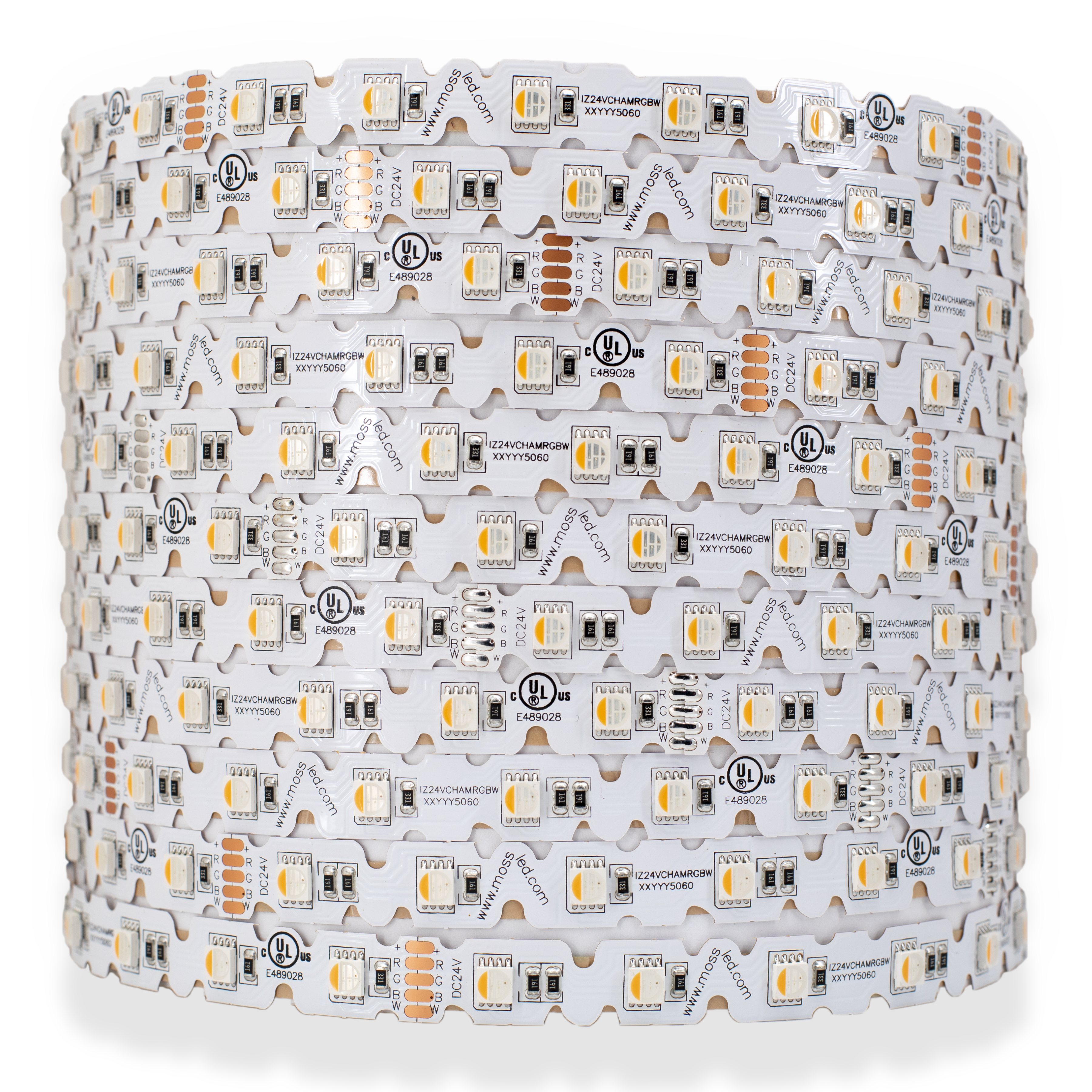

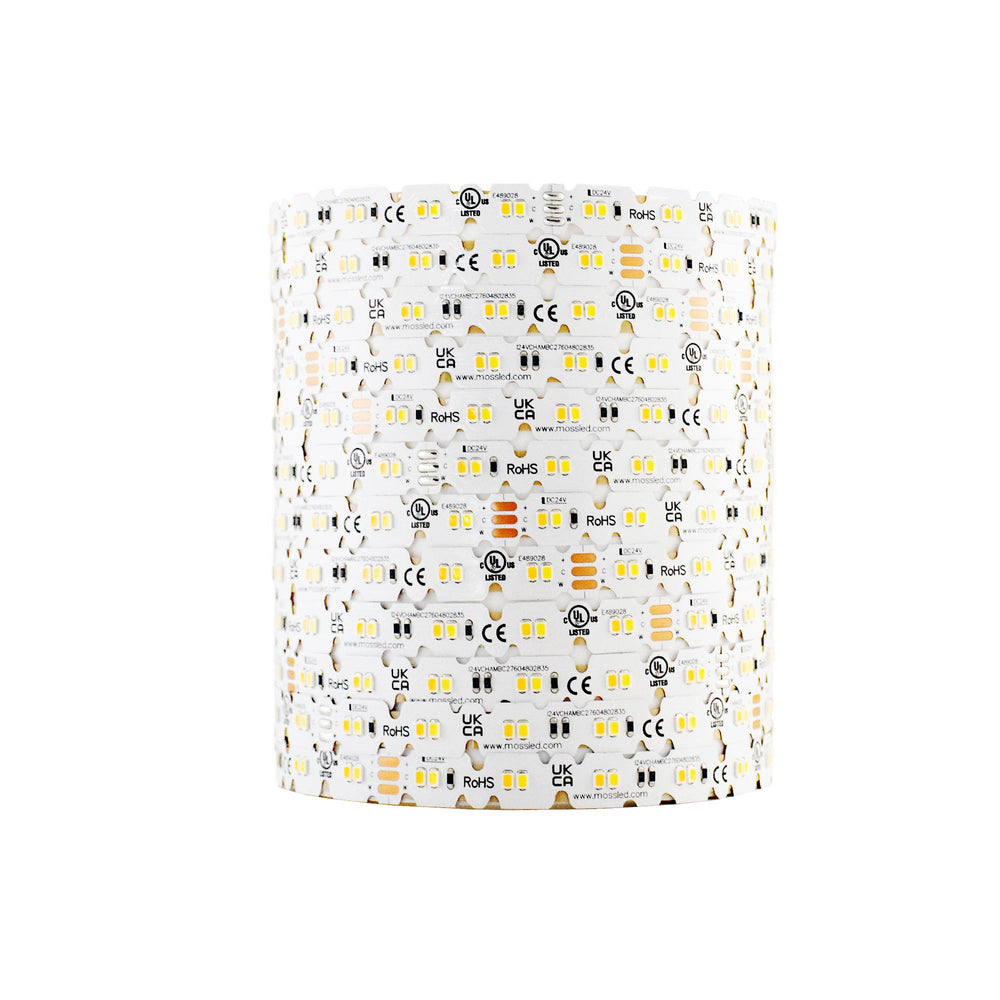

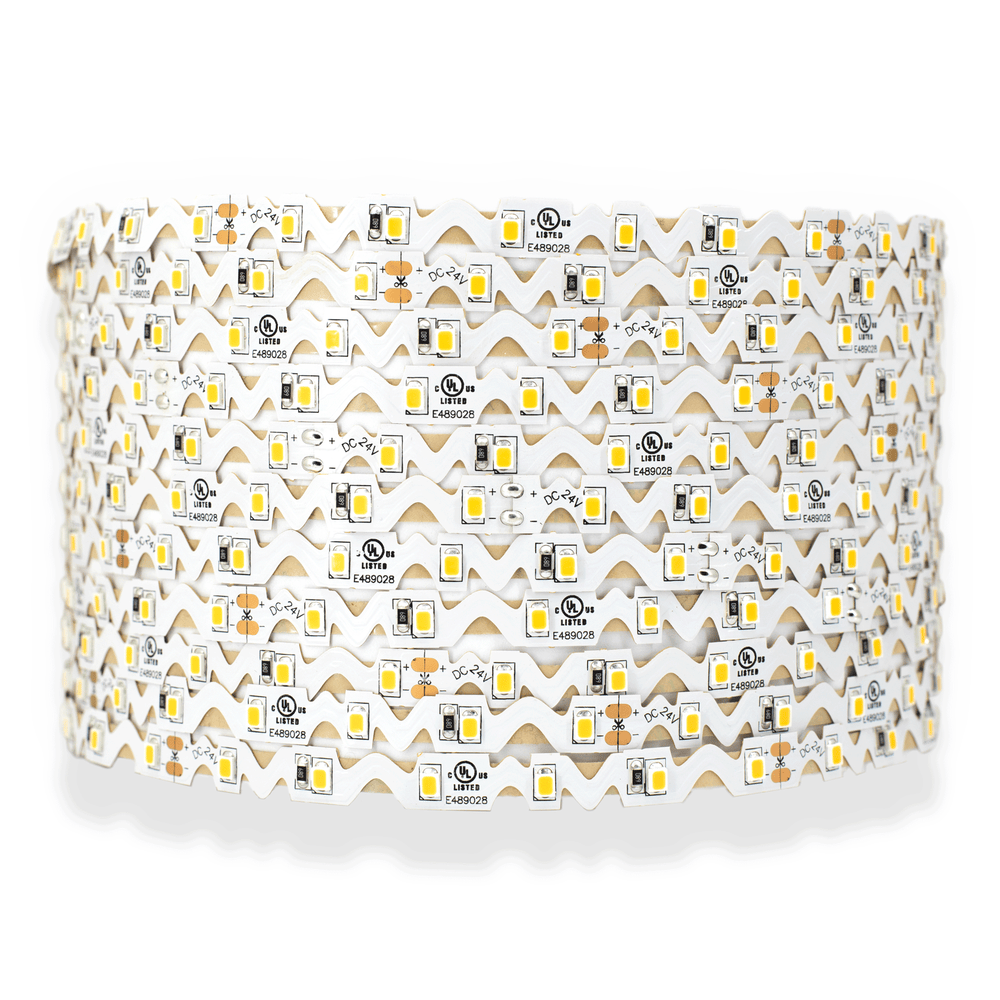

The FlexLED Chameleon 24V is fully bendable in any direction, engineered for applications where standard linear LED strips are not feasible. Featuring V-shaped cuts in the circuit board, this strip bends in any direction, making it ideal for curved surfaces, signage, and complex surfaces or challenging locations. While lower in LED density, power consumption and brightness than standard FlexLED strips, the Chameleon series offers versatile lighting solutions for non-linear locations.
Key Features:
-
Fully Bendable Design – V-cut circuit board allows multi-directional flexibility.
-
Multiple Variants Available – Choose from 2700K, 3000K, 4100K, 5600K, Dynamic White, RGB, RGBA, and RGB+W (2700K/4100K/5600K).
-
Energy Efficient – Lower wattage per meter while maintaining vibrant illumination.
-
Easy Peel-and-Stick Installation – 3M double-sided adhesive backing ensures secure mounting.
-
Custom Colour Temperatures Available – Tailor the strip to your specific needs.
Additional Details:
-
RGB and RGBA variants are non-stock items (3–4 week lead time).
-
Controller, power supply, and extension cables sold separately.
Pricing is for 5 meters (16.4’).
The FlexLED Chameleon 24V delivers exceptional adaptability, allowing for creative lighting applications in even the most challenging spaces.
Need a custom solution? Contact us today!
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | Chameleon Dynamic White | Chameleon White | Chameleon RGB | Chameleon RGBA | Chameleon RGB+W | |

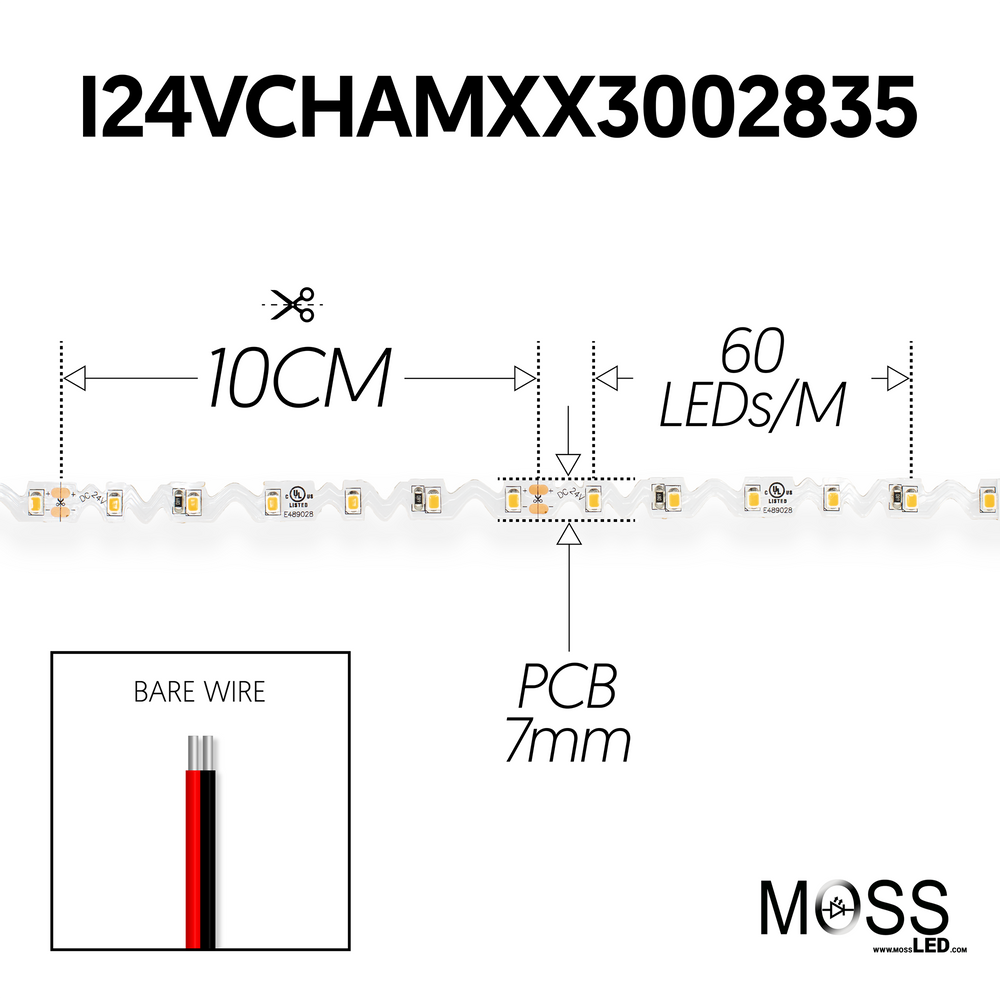

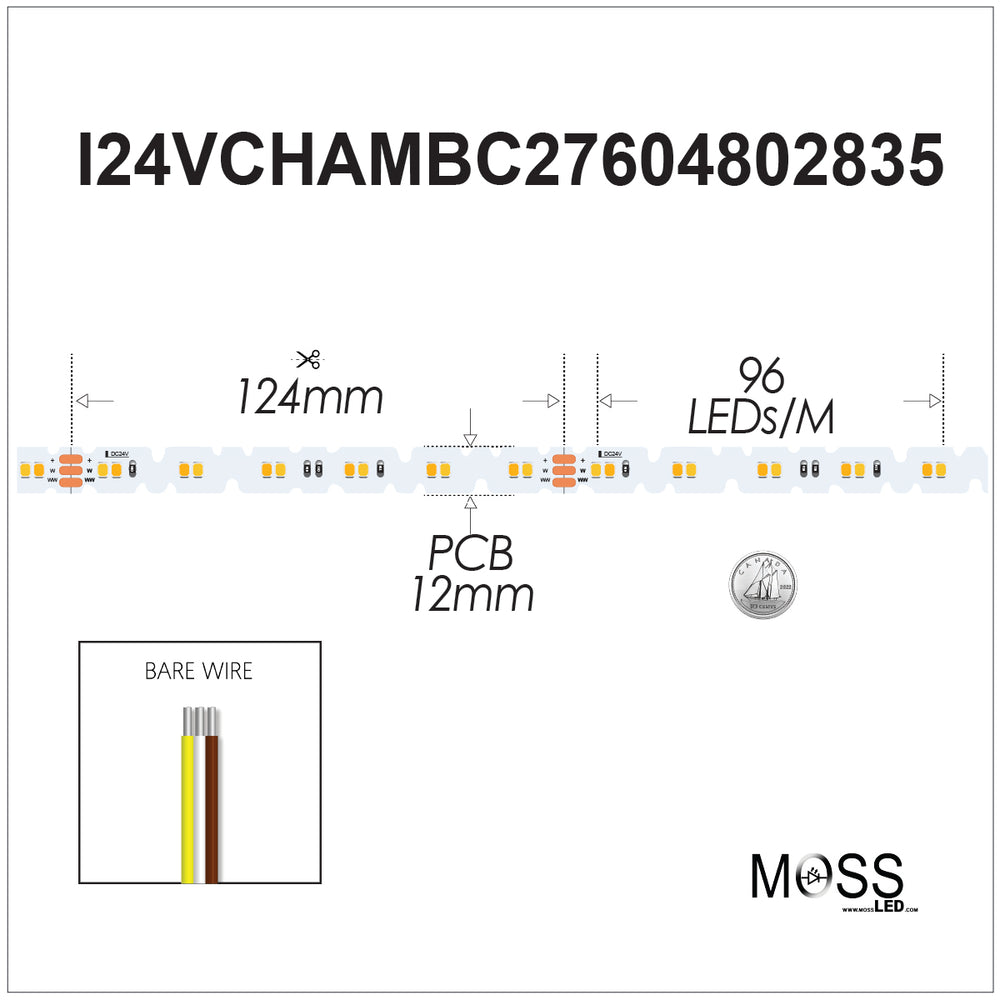

| Product Code | I24VCHAMBC27604802835 | I24VCHAMXX3002835 | I24VCHAMRGB2105050 | I24VCHAMRGBA2405050 | I24VCHAMRGBWXX2405060 | |
| CRI | 95+ | 95+ | N/A | N/A | 95+ | |
| Kelvin | 2700k ~ 6000k | 2700k / 3000k / 4100k / 5600k | N/A | N/A | Colour Changing + 2700k / 5600k | |
| PCB Color | White | White | White | White | White | |
| Current, Rating | 0.625 A / meter | 0.45 A / meter | 0.6 A / meter | 0.6 A / meter | 0.64 A / meter | |
| Voltage | 24 VDC | 24 VDC | 24 VDC | 24 VDC | 24 VDC | |
| Wattage / meter | 2700k = 7.5 6000k = 7.5 2700k & 6000k = 15 |
10.8 | 10.08 | 15.36 | 15.4 | |
| CC / CV | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage | |
| IP Rating | IP43 | IP43 | IP43 | IP4 | ||
| Lumens @ Full | 2700k = 727 6000k = 879 2700k & 6000k = 1580 |
2700k = 926.4 5600k = 1097 |
XX lm / meter | XX lm / meter | 5600k = 345.4 | |
| Lumen / Watt | 2700k = 98 6000k = 117 2700k & 6000k = 104 |
83.32 @ 2700k - 98.52 @ 5600k | N/A | N/A | 87.6 | |
| Lifetime* | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours | ||

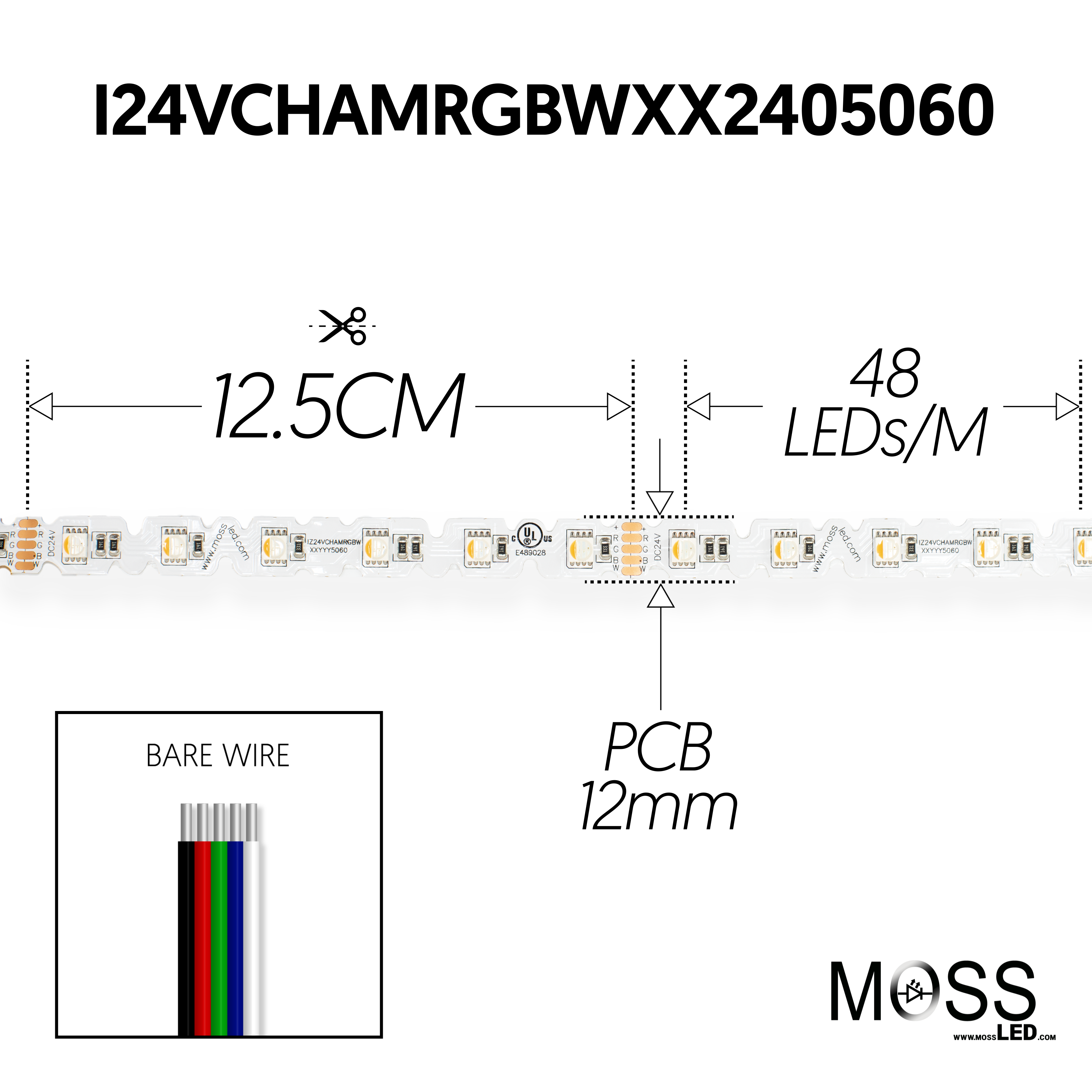

| Cutting Length | 10 CM | 10 CM | 10 CM | 12.5 CM | ||

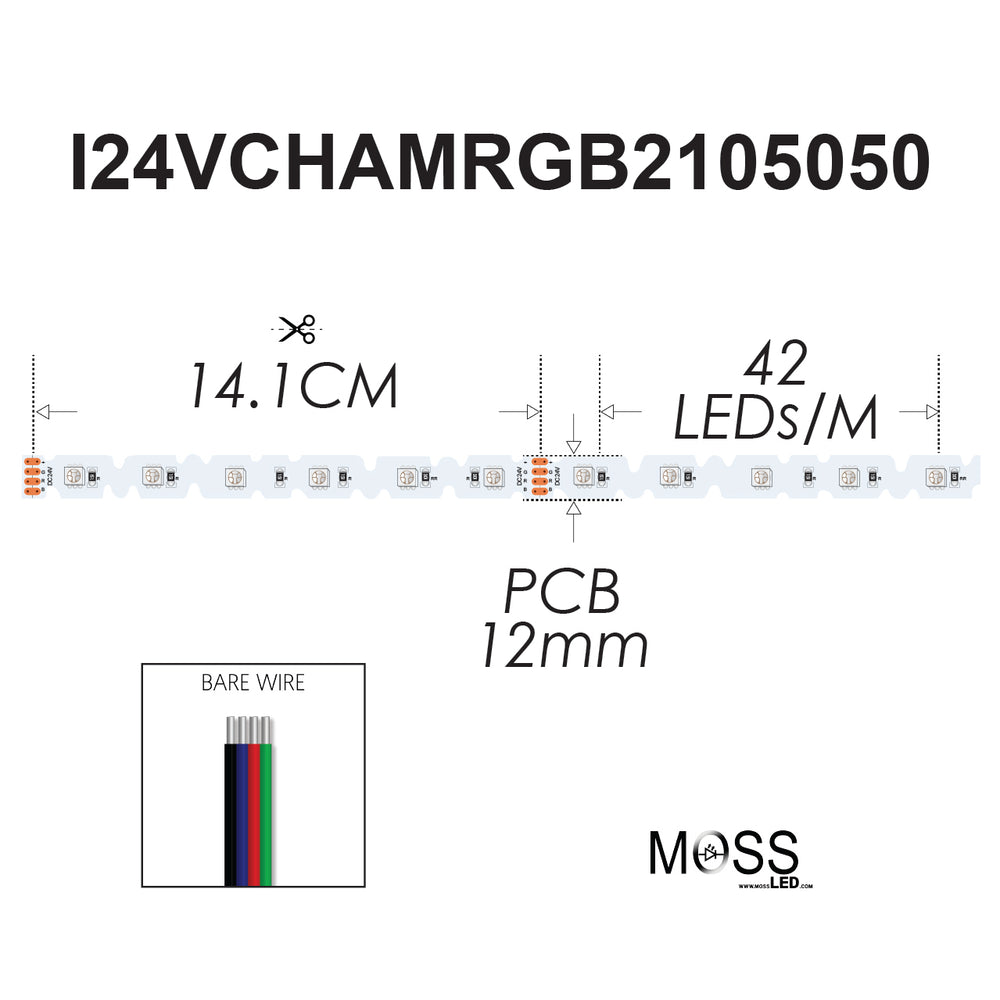

| LED Quantity | 60 LED / meter | 42 LED / meter | 48 LED / meter | 48 LED / meter | ||
| Number of Contacts | 2 | 4 | 5 | 5 | ||
| LED Type | 2835 | 5050 | 5050 | 5050 | ||
| Copper Quantity | 1 Oz. | 1 Oz. | 1 Oz. | 1 Oz. | ||
| Temperature, Operating, Maximum | 70 C | 70 C | 70 C | 70 C | ||
| Temperature, Operating, Minimum | -40 C | -40 C | -40 C | -40 C | ||
| Agency Ratings | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | ||
| PCB Width | 6.5MM | 12MM | 12MM | 12MM | ||
| Maximum Recommended Length | 2 meters | 5 meters | 5 meters | 5 meters | ||
| Viewing Angle | 120 | 120 | 120 | 120 | ||
| Adhesion | 200MP 3M | 200MP 3M | 200MP 3M | 200MP 3M |
Specification Sheet
IES Files - Chameleon
