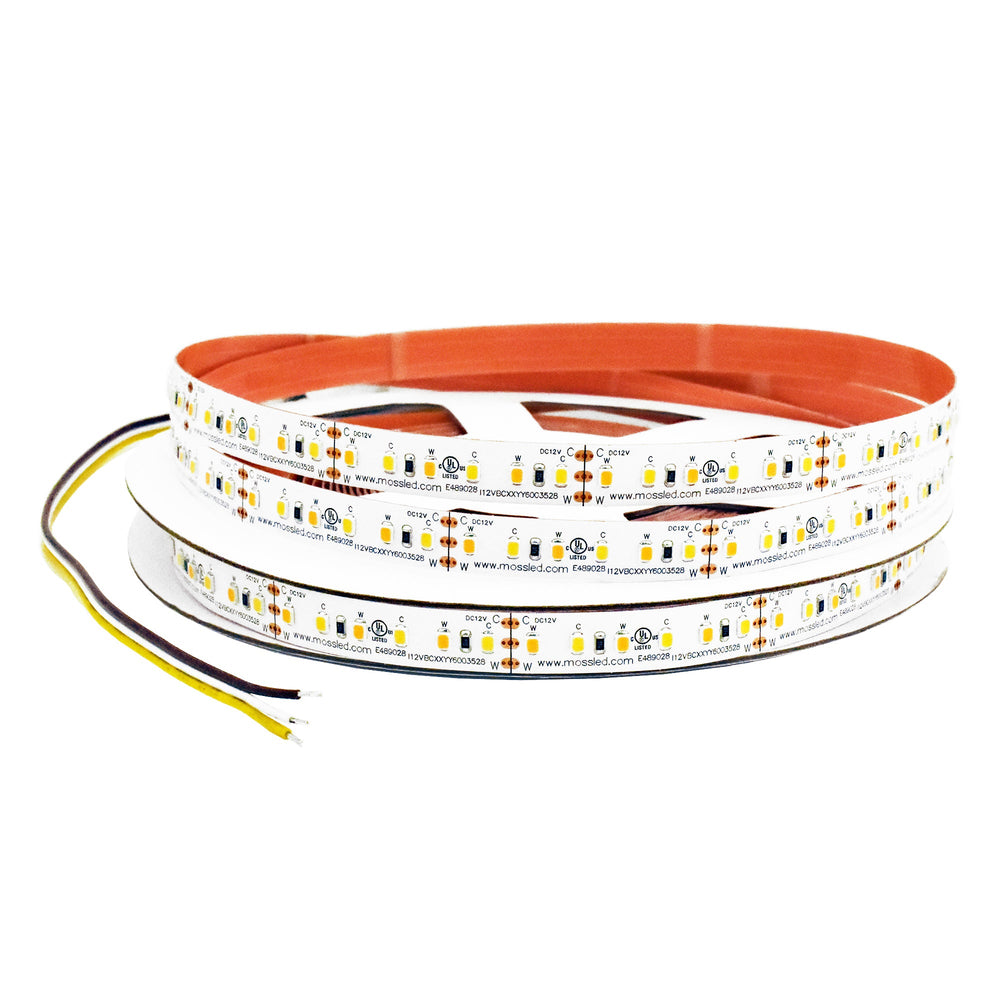

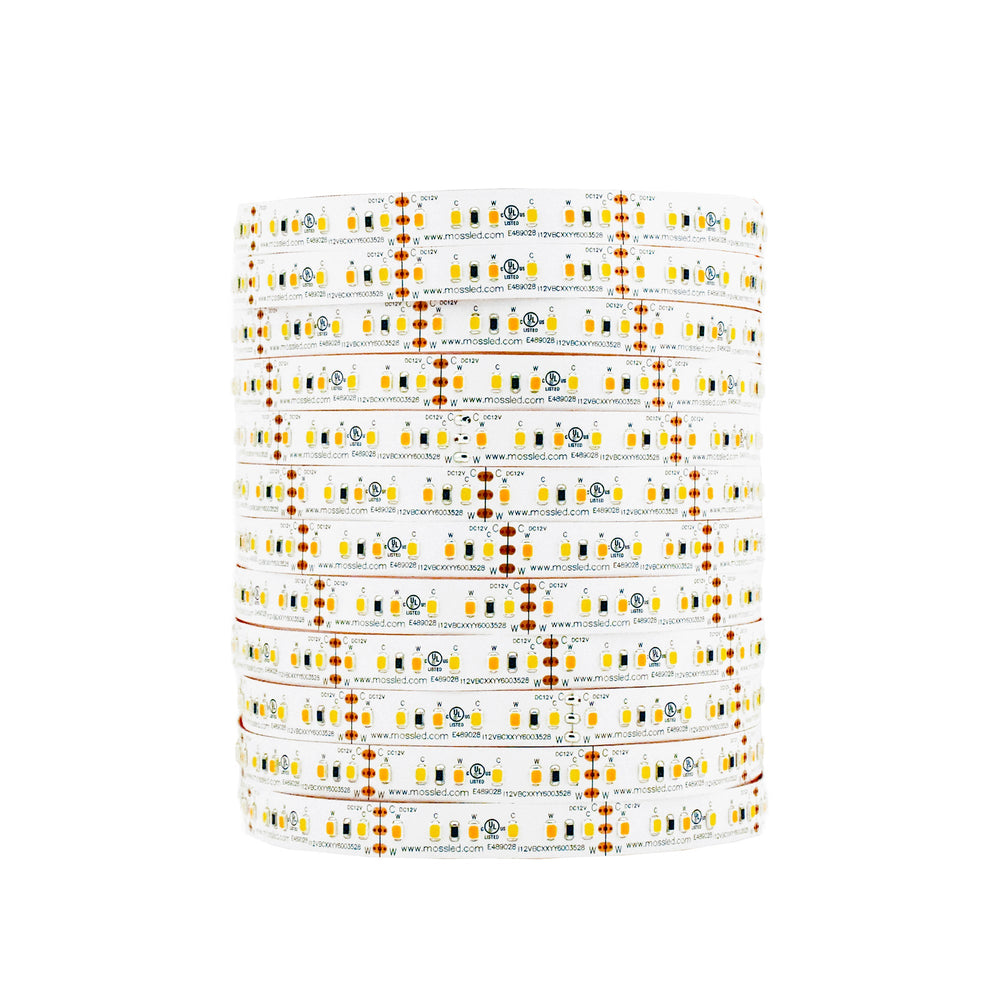

The FlexLED Bi-Colour 2700K - 5600K 12V is a high-density, colour temperature adjustable LED strip, delivering smooth tunable white light with CRI 95+ for residential, television, industrial, and commercial applications. With 120 LEDs per meter and a 12mm-wide PCB for optimal heat dissipation, this strip provides consistent, high-quality illumination with precise colour accuracy.
Key Features:
- Adjustable White Light (2700K - 5600K) – Seamlessly transitions from warm to cool white.
- High LED Density (120 LEDs/m) – Delivers bright, uniform output with smooth dimming.

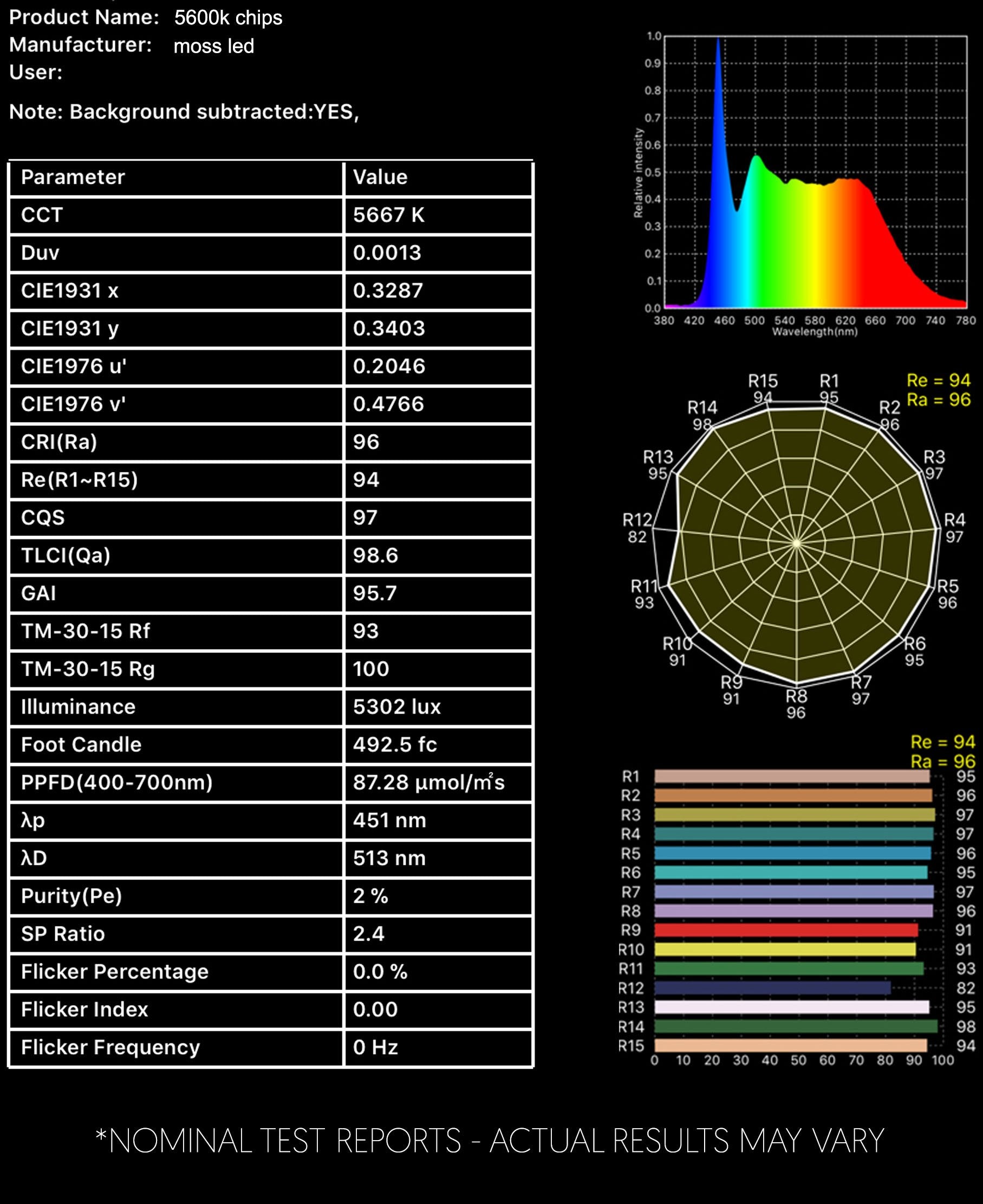

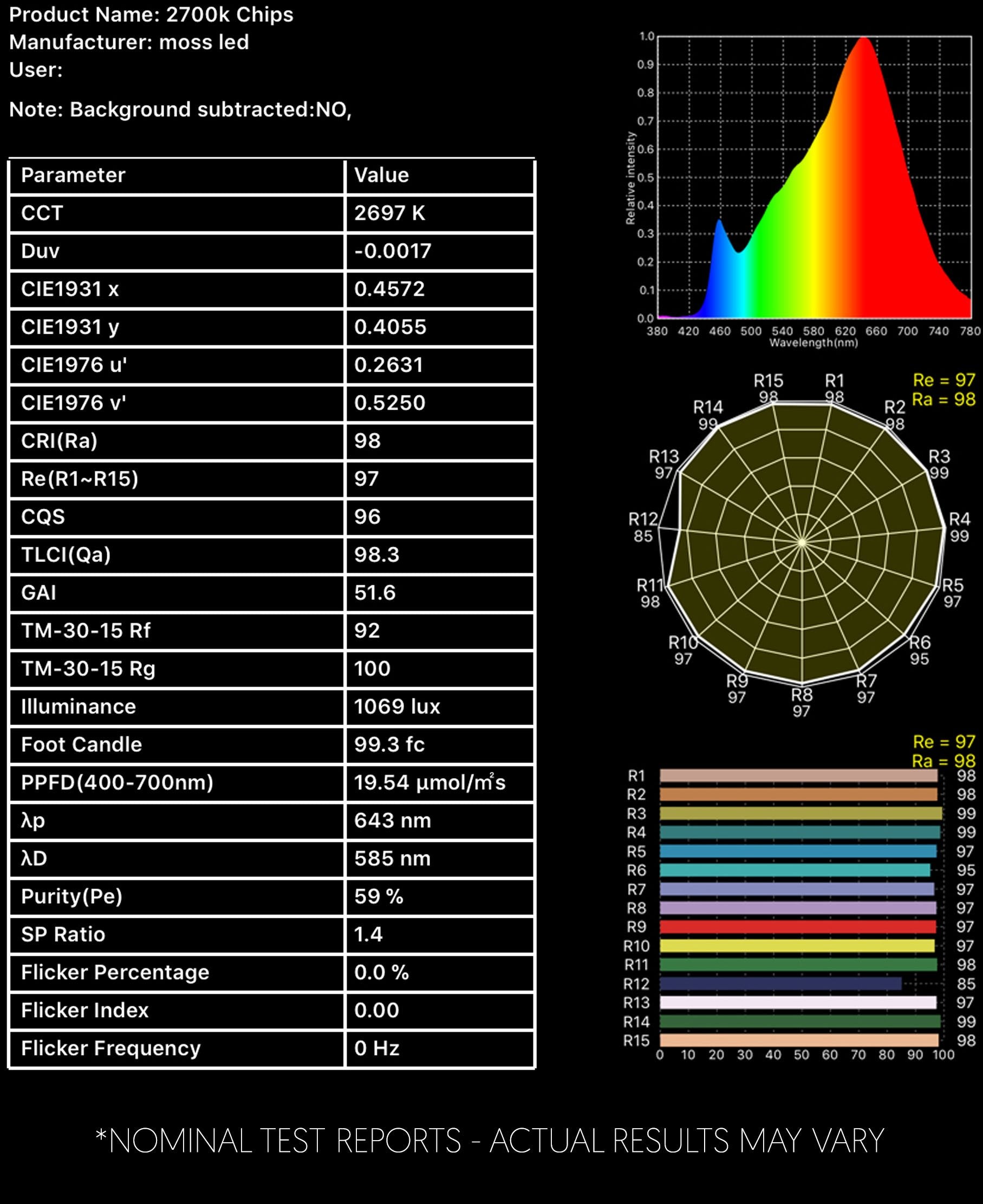

- High CRI (95+) – Accurate colour rendering for professional-grade applications.
- Optimized Thermal Dissipation – Wide PCB design ensures long-lasting performance.
- Easy Installation – TESA 4965 high-tack adhesive backing for secure mounting.
Installation & Handling Considerations:
- Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
- Waterproof versions require mounting via silicone (not included).
Soldering Guidelines:
- Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
- Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Additional Details:
- Maximum run length: 10 meters (32.81’) – Power required at both ends and the center to avoid line loss.
- Controller, power supply, and extension cables sold separately.
- Quantity discounts and custom colour temperatures available.
- Pricing is for 5 meters (16.4’) - custom lengths available
The FlexLED Bi-Colour 2700K - 5600K 12V provides versatile, high-quality white light with smooth dimming and precise colour temperature control, making it ideal for both professional and everyday applications.
Need a custom solution? Contact us today!
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Bi-Color 120 |
| Product Code | : | I12VBC27566003528 |
| CRI | : | ≥95 |
| Kelvin | : | 2700k - 5600k |
| PCB Color | : | White |
| Current, Rating | : | 1.59 A / meter |
| Voltage | : | 12 VDC |
| Wattage | : | 19.2 W / meter |
| CC / CV | : | Constant Voltage |
| IP Rating | : | IP43 |
| Lumens @ Full | : | 1800 lm / meter combined |
| Lumen / Watt | : | 94 |
| Lifetime* | : | 50,000 hours |
| Cutting Length | : | 5CM |
| LED Quantity | : | 120 LED / meter |
| Number of Contacts | : | 3 |
| LED Type | : | 2835 |
| Copper Quantity | : | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C |
| Temperature, Operating, Minimum | : | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM |
| Maximum Recommended Length | : | 10 meters |
| Viewing Angle | : | 120 degree |
| Adhesion | : | TESA 4965 |
