The FlexLED 96 RGB + White All-In-One is a high-performance, full-colour LED strip featuring RGB and high-CRI white LEDs in a single diode. Designed for cinema, television, commercial, hospitality, and industrial applications, this versatile LED solution provides seamless colour mixing with full-spectrum white light at CRI 95+ and R9 85+. Featuring a precise 6.25cm (2.46”) cut length offers the closest cutting length available for a 24V RGBW product, making it ideal for custom installations requiring flexibility and precision.
Key Features:
- RGB + White in One Diode – Provides vibrant colour mixing and full-spectrum white light.
- High-CRI White Light (95+ CRI, R9 85+) – Ensures exceptional colour accuracy and natural-looking illumination.
- Closest Cut Length for 24V RGBW (6.25cm) – Maximizes installation precision and customization.
- Durable & Reliable – Optimized for professional-grade applications.
- Multiple Protection Ratings – Available in IP65 (weatherproof) and IP68 (waterproof) versions.
Installation & Handling Considerations:
- Indoor and weatherproof strips feature 3M adhesive backing for easy installation.
- Waterproof versions require mounting via silicone (not included).
Soldering Guidelines:
- Use a soldering iron between 360°C and 372°C (680°F ~ 702°F)
- Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Additional Details:
- Maximum run length: 10 meters (32.81’) – Power required at both ends to avoid line loss.
- Controller, power supply, and extension cables sold separately.
- Quantity discounts and custom colour temperatures available.
- Pricing is for 5 meters (16.4’) - custom lengths available
The FlexLED 96 RGB + White All-In-One 24V is the perfect choice for precision installations requiring high-CRI white light with full-colour control, making it ideal for professional and commercial lighting applications.
Need a custom solution? Contact us today!
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | RGB + Warm White | RGB + Neutral White | RGB + Cool White |
| Product Code | : | I24VRGBW274805060 | I24VRGBW414805060 | I24VRGBW564805060 |
| CRI | : | 95 | 95 | 95 |
| Kelvin | : | 2700k +/-100k | 4100k +/-100k | 5600k +/-100k |
| PCB Color | : | White | White | White |
| Current, Rating | : | 0.96 A / meter | 0.96 A / meter | 0.96 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 23 W / meter | 23 W / meter | 23 W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP43 | IP43 | IP43 |
| Lumens @ Full | : | 1500 lm / meter | 1500 lm / meter | 1500 lm / meter |
| Lumen / Watt | : | 65 | 65 | 65 |
| Lifetime* | : | 50,000 hours | 50,000 hours | 50,000 hours |

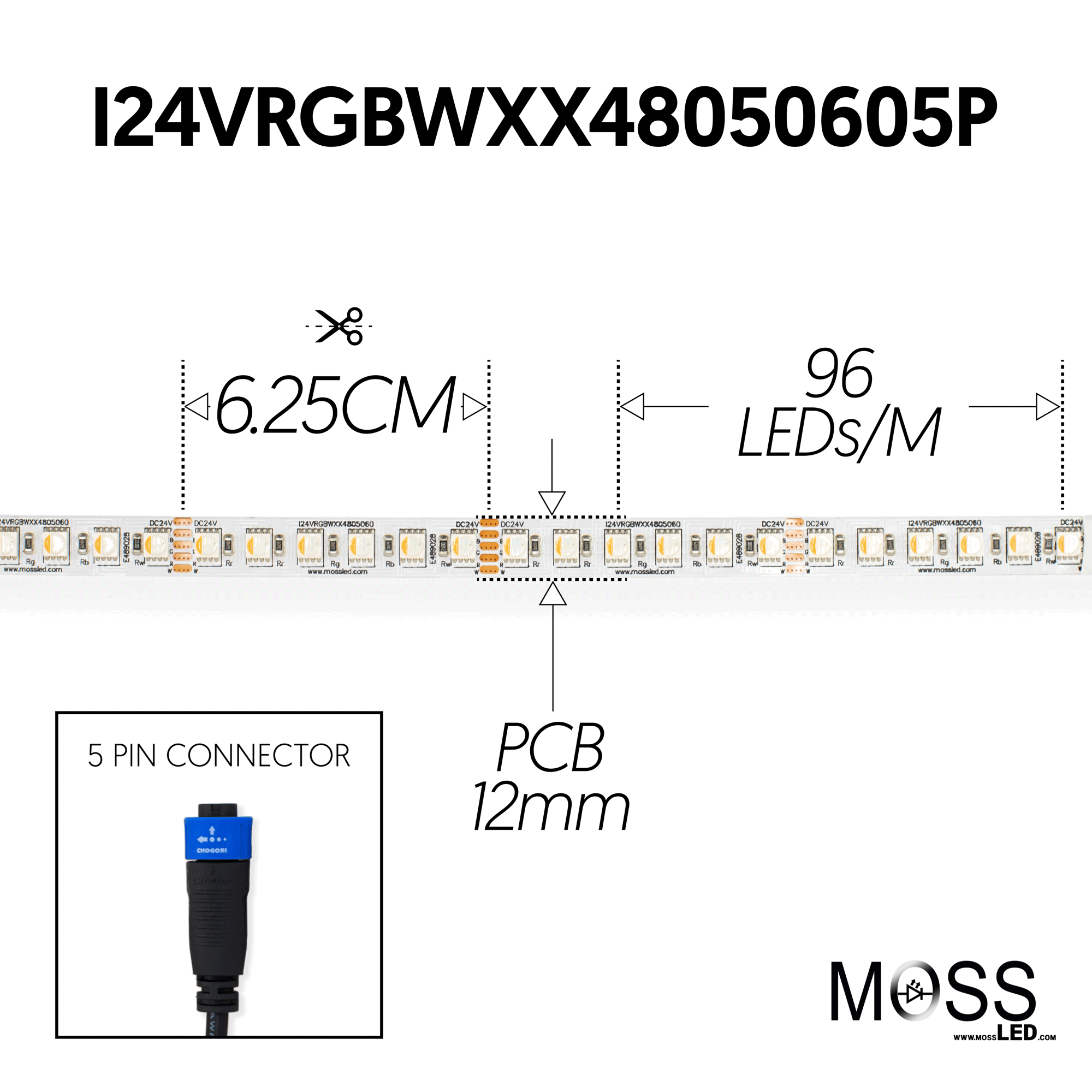

| Cutting Length | : | 6.25CM | 6.25CM | 6.25CM |
| LED Quantity | : | 96 LED / meter | 96 LED / meter | 96 LED / meter |
| Number of Contacts | : | 5 | 5 | 5 |

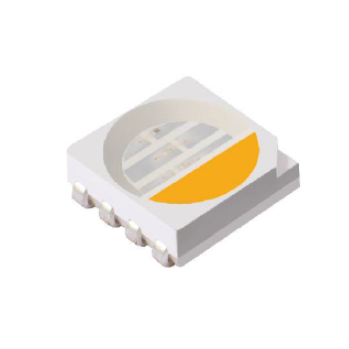

| LED Type | : | 5060 | 5060 | 5060 |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS | UL - E489028, CE, RoHS |
| PCB Width | : | 12MM | 12MM | 12MM |
| Maximum Recommended Length | : | 7 meters | 7 meters | 7 meters |
| Viewing Angle | : | 120 | 120 | 120 |
| Adhesion | : | TESA 4965 | TESA 4965 | TESA 4965 |
| Wavelength A Red | : | 620~625nm | 620~625nm | 620~625nm |
| Wavelength B Green | : | 515~520nm | 515~520nm | 515~520nm |
| Wavelength C Blue | : | 460~465nm | 460~465nm | 460~465nm |
DOWNLOADS
Specification SheetController, Power supply and Extension Cables sold separately
*nominal lifetime - dependent on installation location
