FlexLED Bi-Colour 2700K - 6000K 12V (CCT Adjustable)

SKU I12VBC27606003528
by MossLED
$178.79
IP Rating
Colour
Connector Type
Availability: Translation missing: en.general.icons.icon_check_circle icon 79 in stock, ready to be shipped
Accessories

Color Temperature adjustable high density FlexLED Tape

2700K - 6000K CRI <95

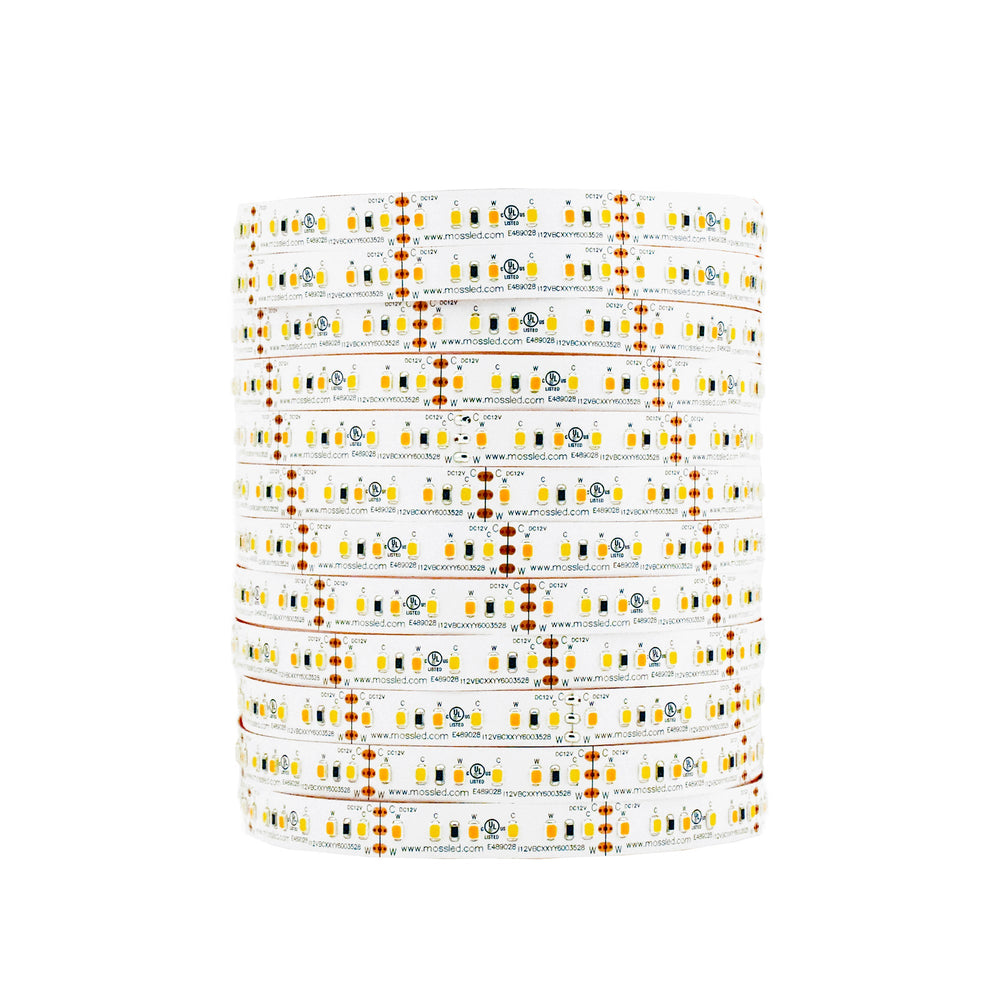

Only one pixel density bi-color 12V FlexLED is currently available.  120 LED/meter (12MM Width) standard installation grade includes a wide PCB surface area for optimal thermal dissipation.  The 120 LED/meter can be installed on virtually any surface and still provide nominal output for many tens of thousands of hours of use.

Suitable for residential, television, industrial, and commercial applications where high CRI white output is required.

Single bin LED chip ensures CCT accuracy within +/- 100k.

TESA 4965 high tack double-sided tape on the back makes installation as easy as peel n stick.  When used in damp or wet locations it is advised to use silicone caulking or glue to ensure proper adhesion.


Controller, Power supply and Extension Cables are sold separately.
Custom Color Temperatures are available.  Please contact us for specifics.

For specifications on Weatherproof and Waterproof product please download specifications sheet below.

Soldering Guidelines:
Soldering iron should be between 360°C and 372°C.  Please ensure not to heat each solder pad for longer than 3 seconds otherwise separation of the solder pads can occur.

SPECIFICATIONS - INDOOR PRODUCT

Product Type : Bi-Color 120
Product Code : I12VBC27606003528

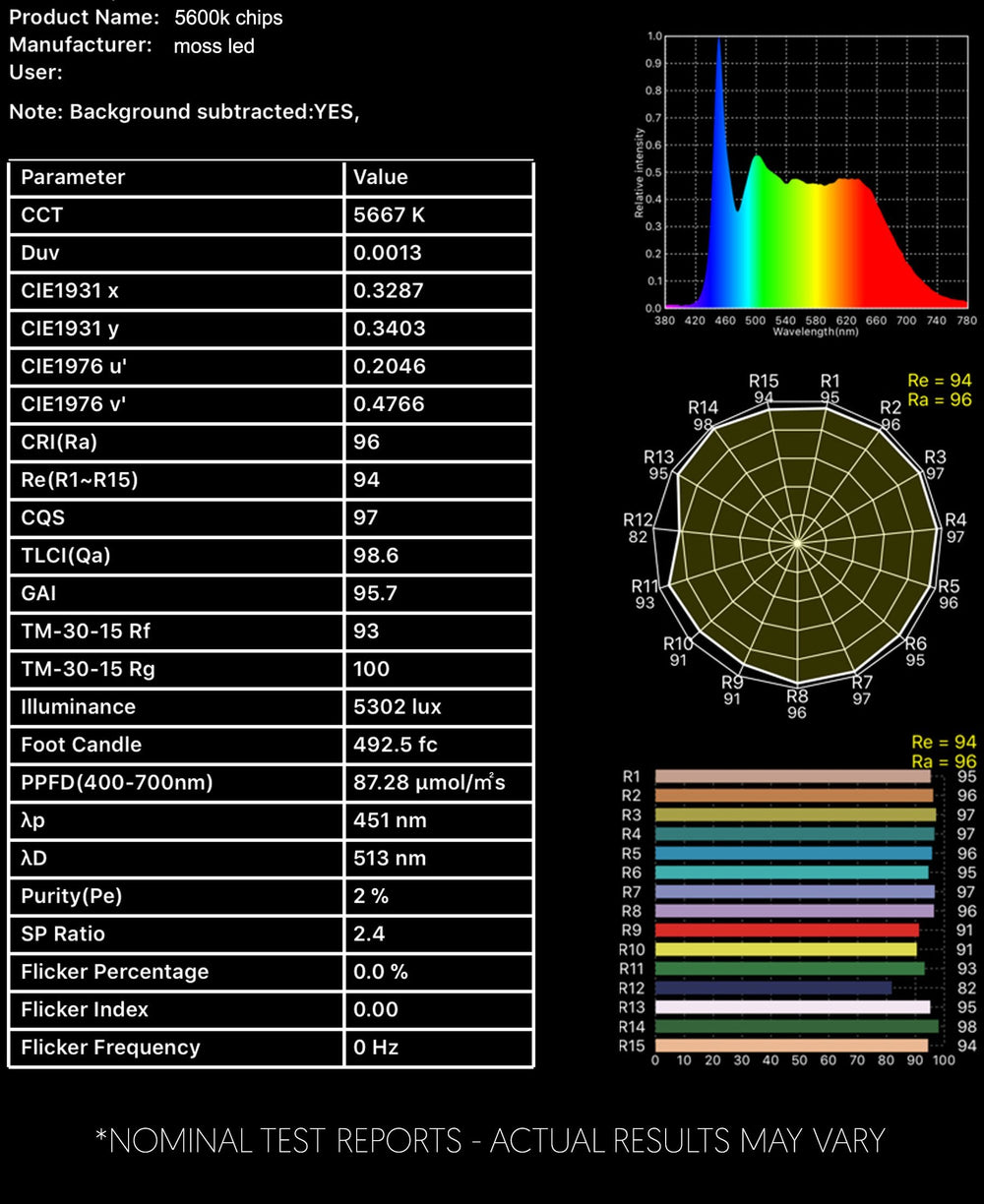

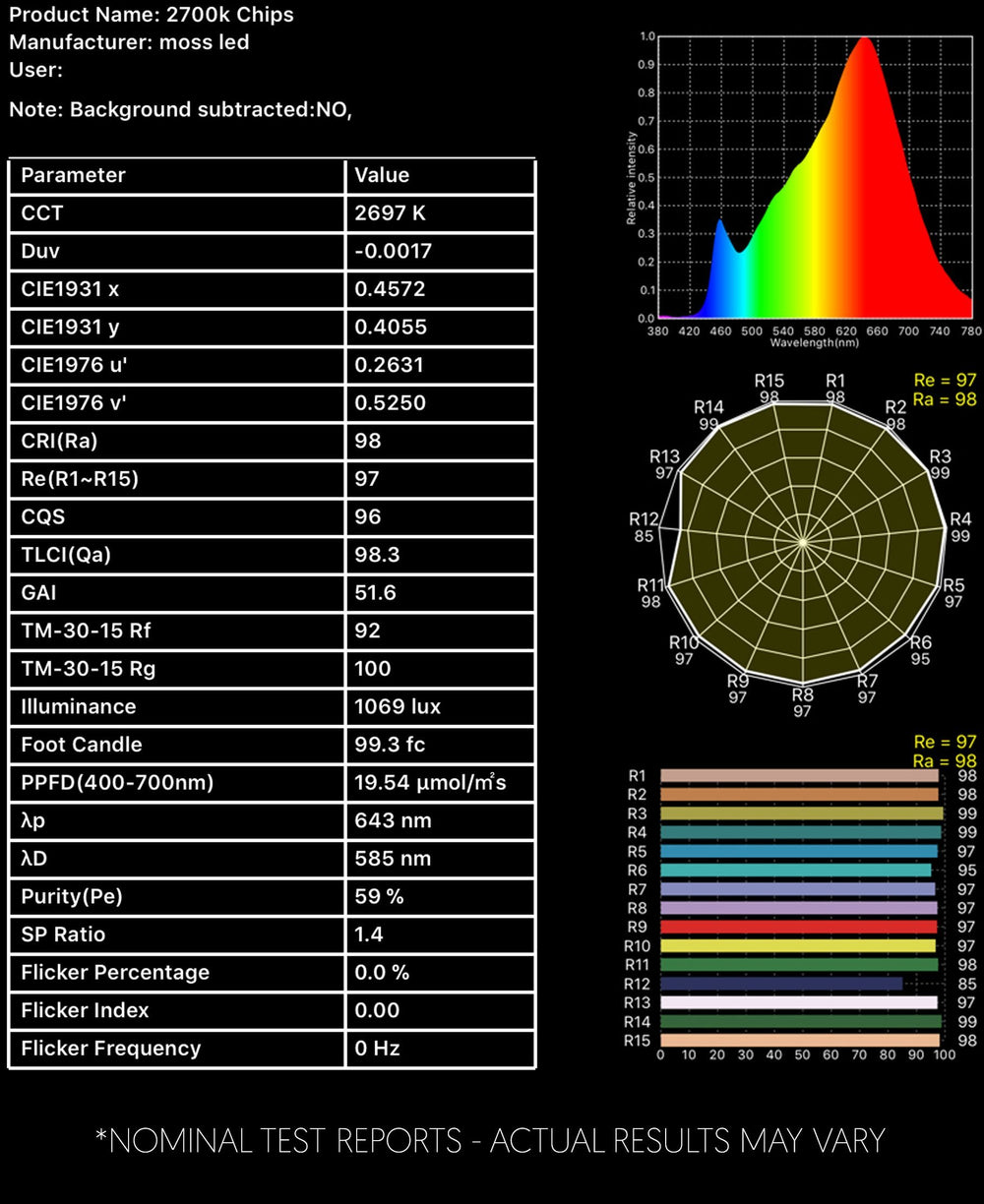

CRI : 95
Kelvin : 2700k - 6000k
PCB Color : White
Current, Rating : 1.59 A / meter
Voltage : 12 VDC
Wattage : 19.2 W / meter
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full : 1800 lm / meter combined
Lumen / Watt : 94
Lifetime* : 50,000 hours

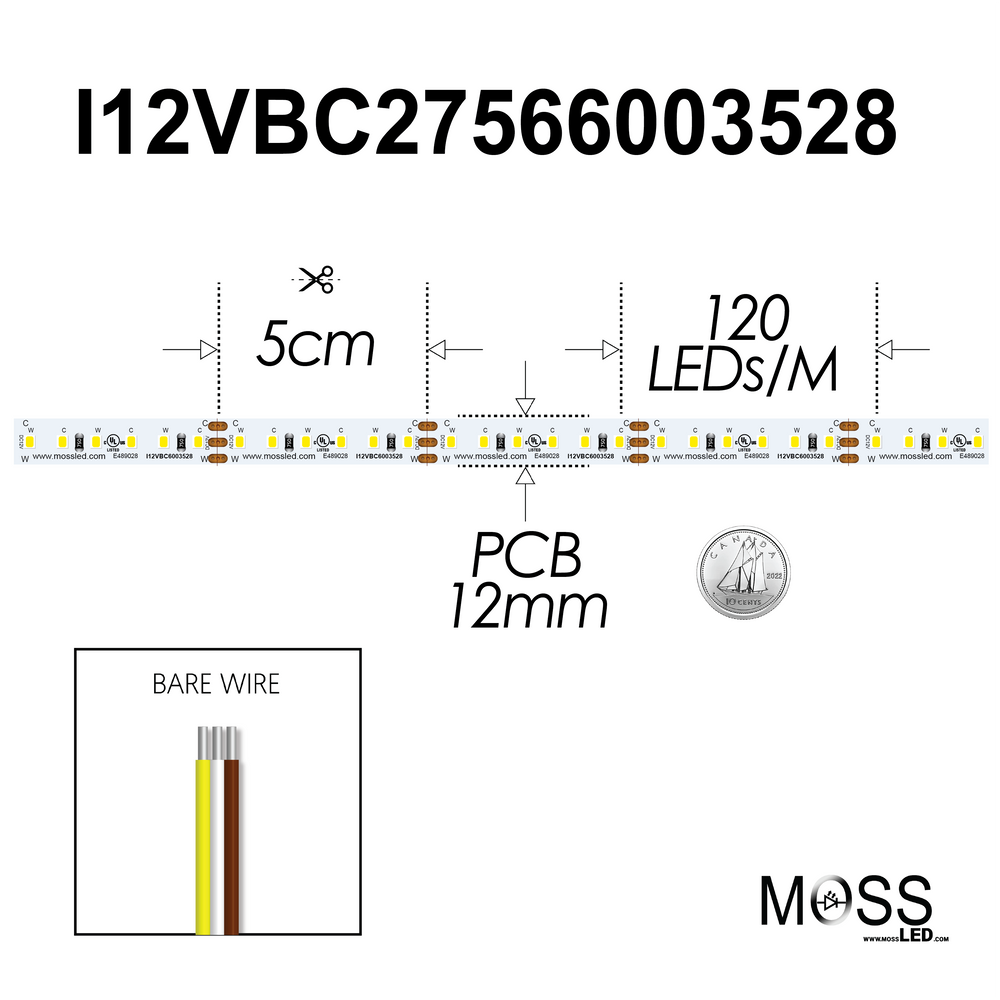

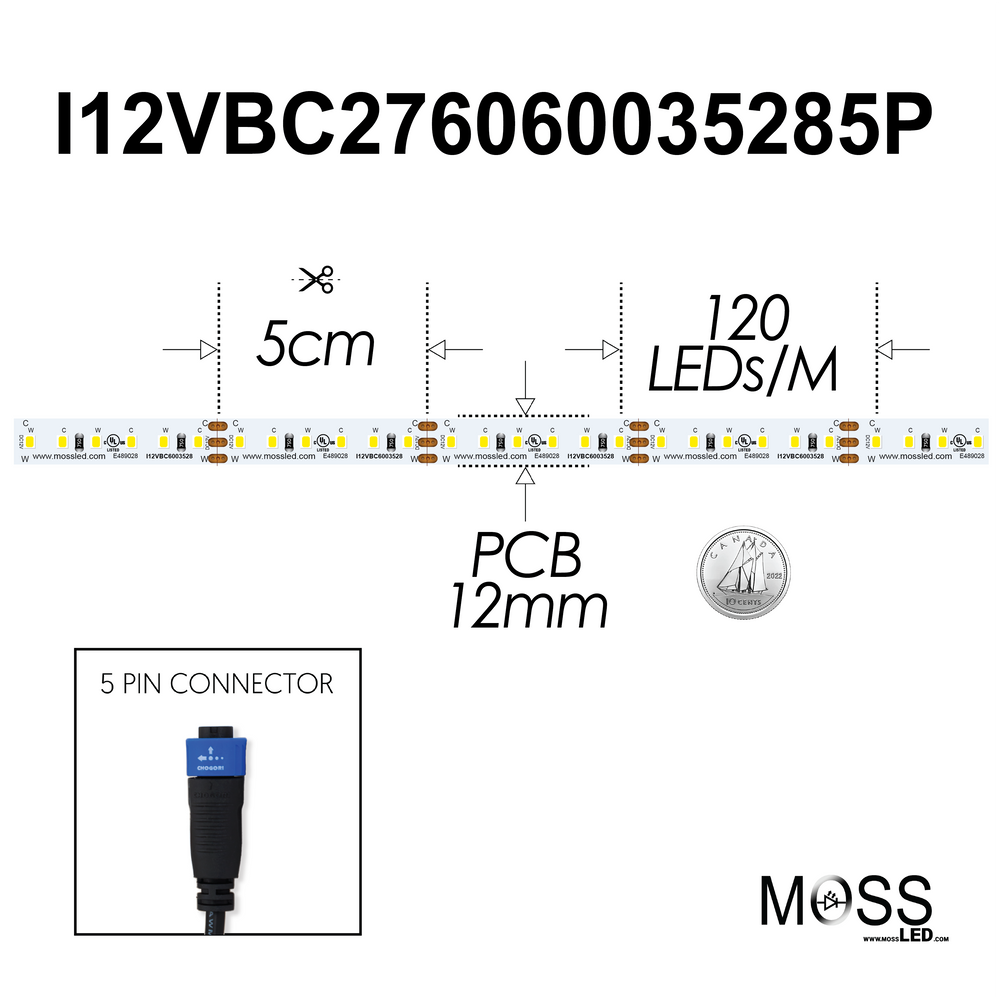

Cutting Length : 10CM
LED Quantity : 120 LED / meter
Number of Contacts : 3
LED Type : 2835
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 70 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : UL - E489028, CE, RoHS
PCB Width : 12MM
Maximum Recommended Length : 10 meters
Viewing Angle : 120 degree
Adhesion : TESA 4965


DOWNLOADS

  1. Specification Sheet

  2. UL Certificate of Compliance
