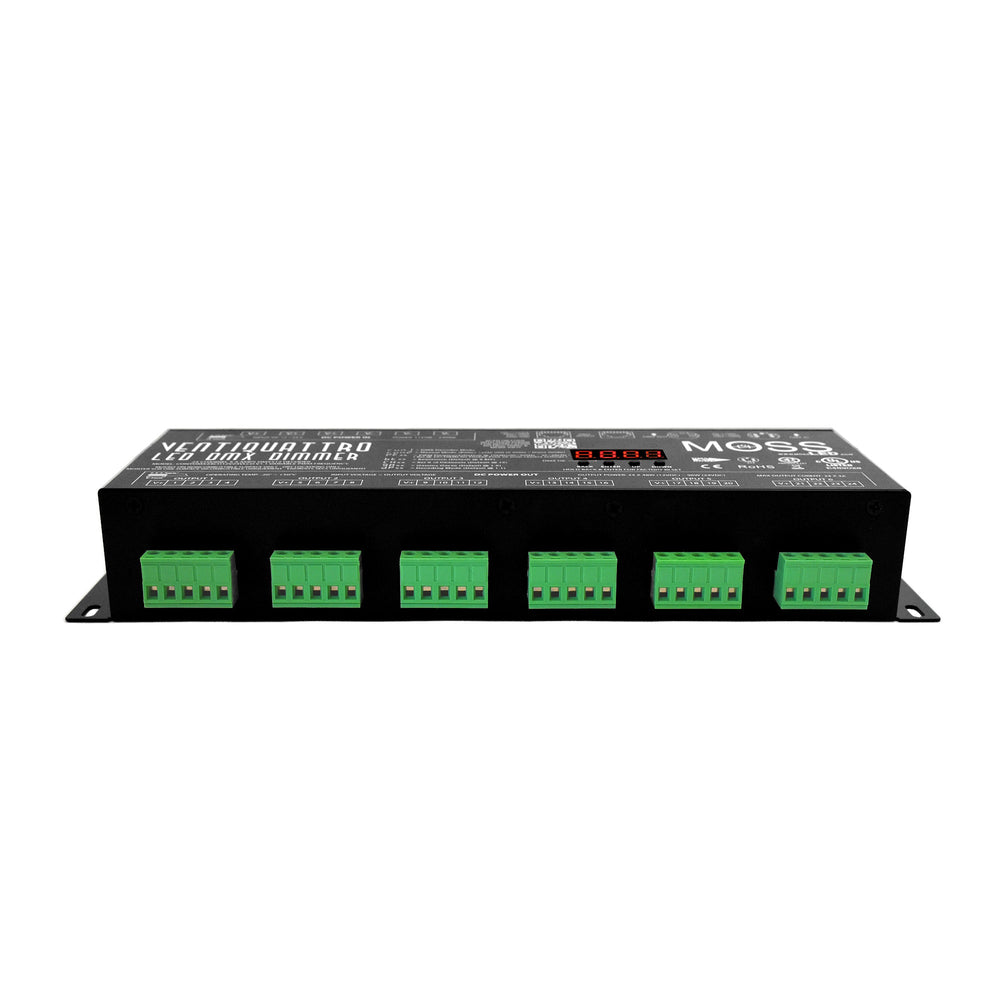

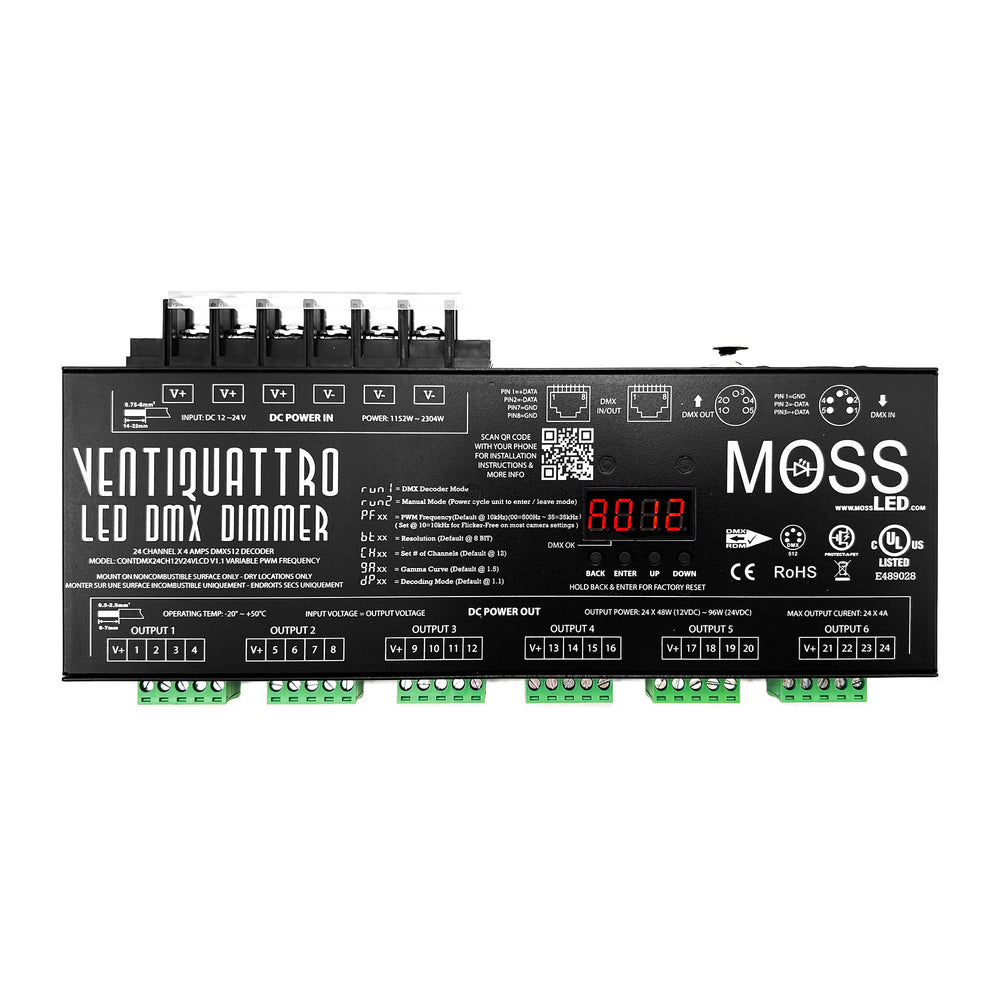

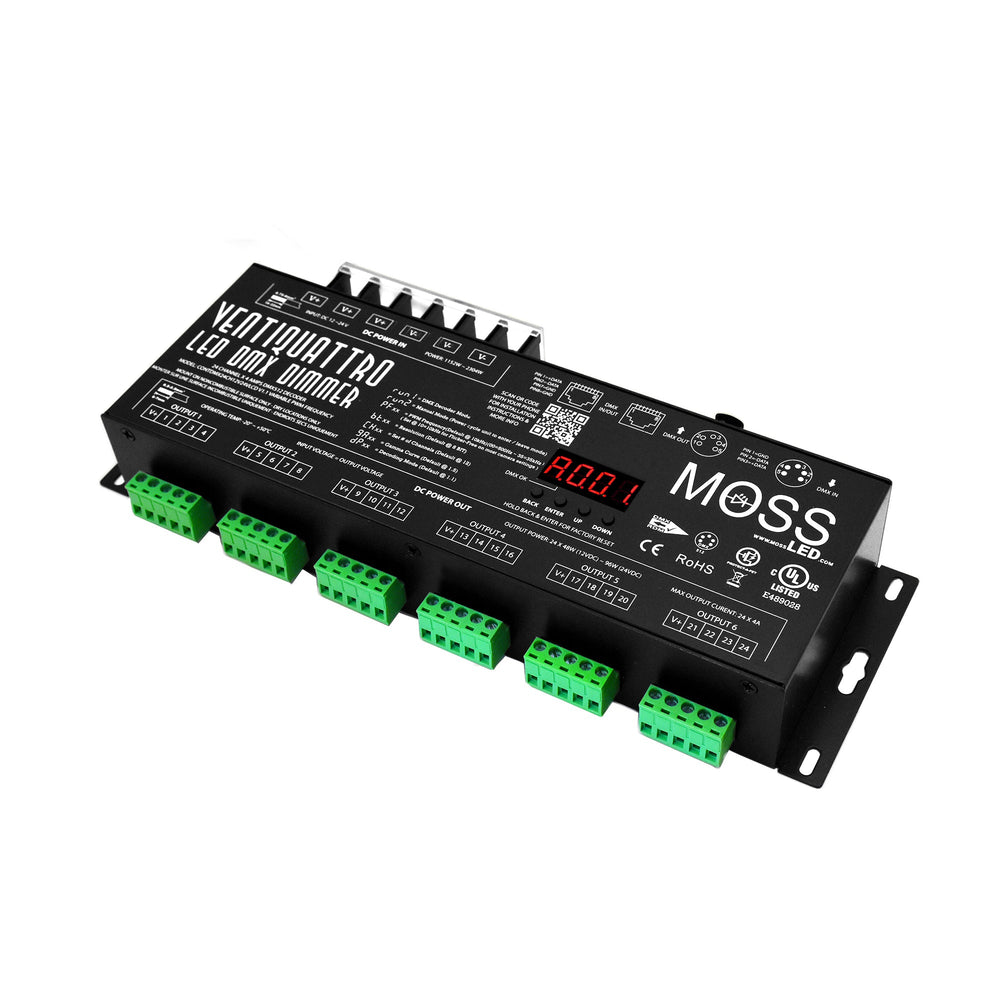

Moss LED VentiQuattro 24-channel DMX LED dimmer front view showing digital display, green terminal output blocks, DC power input, and DMX control connections

VentiQuattro-LED DMX - 24 Channel Dimmer

SKU CONTDMX24CH12V24VLED
by MossLED

Qty Discount
10 3%
21 6%
51 9%
The more you buy, the more you save!
$324.57
Type

Total Availability Total product quantity available to order. Product may ship from one warehouse or both warehouses, if required. If product needs to transfer from one warehouse to the other before shipping, a 24-hour delay may occur.

184 in stock

Location Quantity available at each warehouse location. Orders shipping from a single warehouse ship faster; orders requiring stock from both warehouses may be delayed by up to 24 hours for transfer.

Canadian Warehouse Ships from 1355 Fewster Drive, Mississauga, Ontario, L4W 1A2 Canada : 172 in stock
USA Warehouse Ships from 6405 Inducon Dr W, Sanborn, NY 14132, United States : 12 in stock

The VentiQuattro-LED DMX Dimmer is a cutting-edge, 24-channel standalone DMX controller, delivering high-precision dimming and advanced protection for film, television, theatrical, and architectural lighting applications. Featuring the latest Protect-A-Fet™ technology, it provides short circuit protection on each output, ensuring uninterrupted operation with no internal damage. With 96A total power handling and a rugged metal housing, this dimmer is built for high-performance lighting control in demanding environments.

Key Features:

  • 24-Channel DMX Dimming – Converts DMX-512/1990 signals into precise multi-channel LED control.
  • High Power Capacity – Supports 96A total output (24 x 4A per channel).
  • Protect-A-Fet™ Short Circuit Protection – Ensures safe, damage-free operation with quick reset capability.
  • Adjustable PWM Frequency – 500Hz to 35kHz for flicker-free performance at all camera settings.
  • New Firmware V1.1 (2020) – Adjust PWM frequency via RDM, with default set to 10kHz.
  • 8-bit & 16-bit Resolution Modes – Enables smooth, precise dimming and accurate colour transitions.
  • Customizable Gamma Curve – Fine-tune dimming response for optimized low-end or high-end precision.

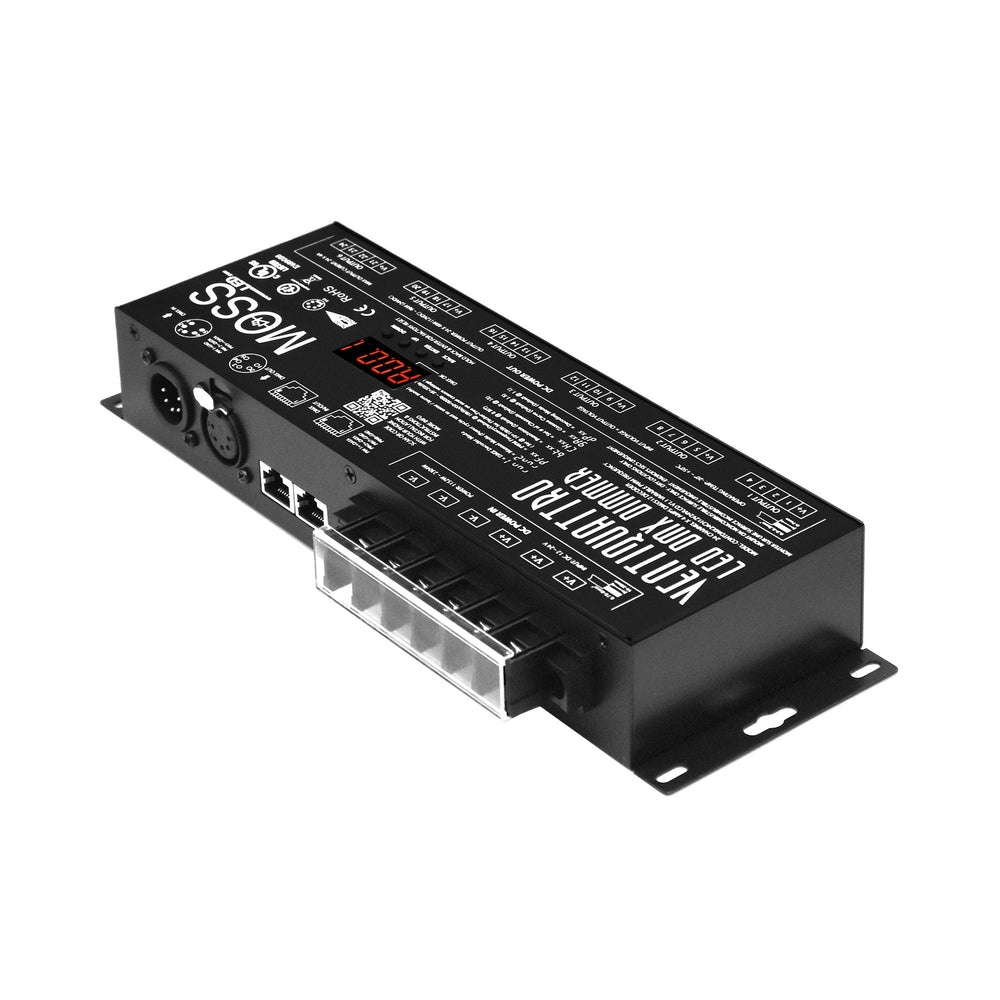

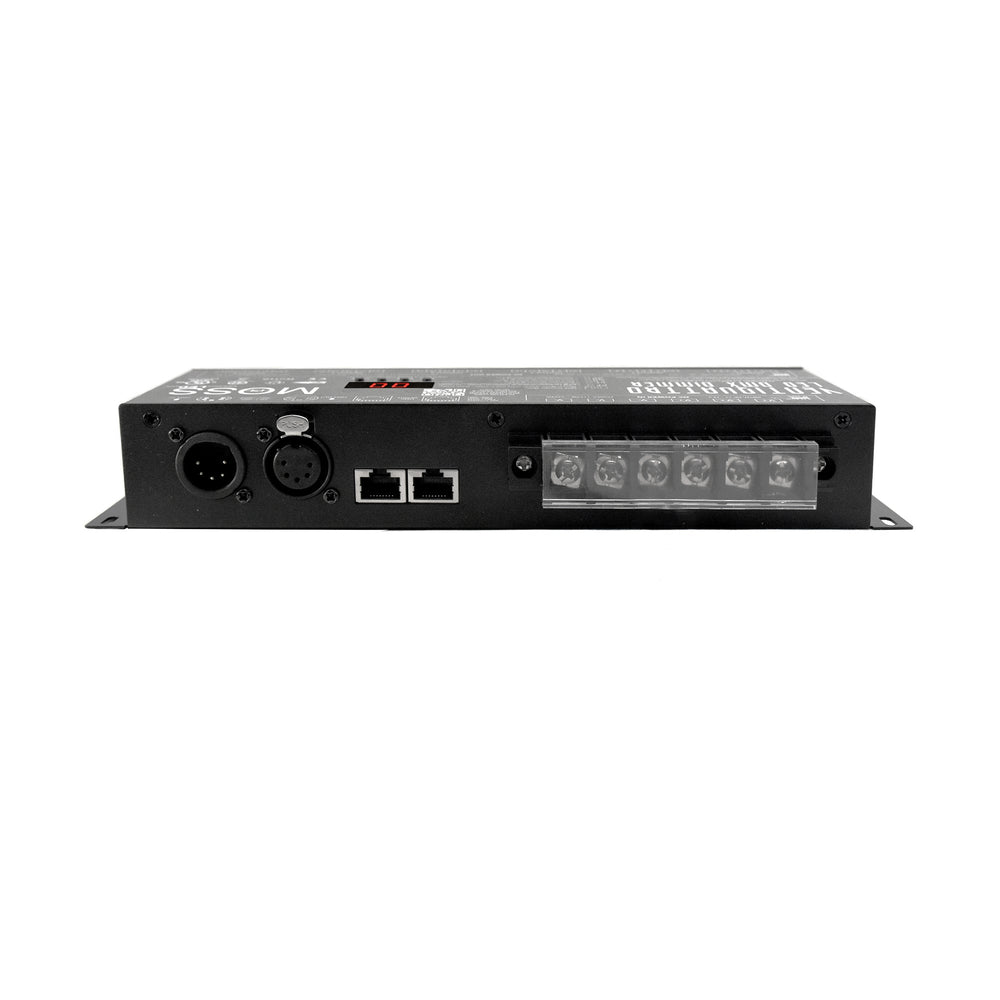

  • Industry-Standard DMX Connectivity – Uses 5-pin XLR and RJ45 Ethernet in/out for seamless control integration.
  • Flexible Power Configurations – Allows grouping of output channels for increased power per channel.
  • Easy-to-Read LED Display – Enables quick DMX addressing, manual mode, and test control functions.
  • Compatible with Constant Voltage FlexLED Tape & Modules – Works with RGBA, RGBW, RGB, Bi-Colour, and White LED strips.

The VentiQuattro-LED DMX Dimmer is the most advanced standalone LED controller, designed for high-power, precision lighting control in professional environments.

Need a custom solution? Contact us today!





Technical Specifications

Output Current (A)

:

24 CH @ 4A/CH = Max 96A

Output Power (W)

:

1152W @ 12V / 2304W @ 24V

Supply Voltage

:

12V - 24V DC

Size (MM)

:

265 X 111.5 X 40

Working Temperature

:

-20°C to + 70 °C

Weight

:

970g

PWM Frequency

:

500Hz to 35kHz

IP Rating

:

IP40

Flicker Free

:

YES

Bit Rate

:

8 Bit & 16 Bit

     **Connector Tails Not Included**



    DOWNLOADS

    1. UL Certificate of Compliance
    2. VentiQuattro Manual 2025-06-16
    3. VentiQuattro Installation Instructions 2024-02-26
    4.  RoHS Certificate
    5.  Output Terminal Block Specification
    6. CE Certificate of Conformiity
    7.  EU Certificate of Conformity
