THIS PRODUCT IS DISCONTINUED
The Seni-LED High Current DMX Dimmer is a versatile 6-channel controller, designed for seamless integration with all Moss LED FlexLED Tape and Modules. Delivering smooth, high-precision dimming, it supports DMX-512/1990 protocols and offers advanced colour control when used with RGBA+W+W, RGBW+W, RGBA, RGBW, Bi-Colour, or White FlexLED Tape. Built for professional applications, it features an isolated DMX input, multiple connectivity options, and an intuitive LCD interface for easy operation.
Key Features:
- 6-Channel DMX Dimming – Converts DMX-512/1990 signals into six independent constant voltage dimmable outputs. Gamma fixed at 1.0.
- Wide Compatibility – Works with RGBAWW, RGBWW, RGBA, RGBW, RGB, Bi-Colour, White or dual RGB FlexLED Tape.
- Industry-Standard Connectivity – Supports RJ45 Ethernet and 5-pin XLR DMX in/out for seamless control.

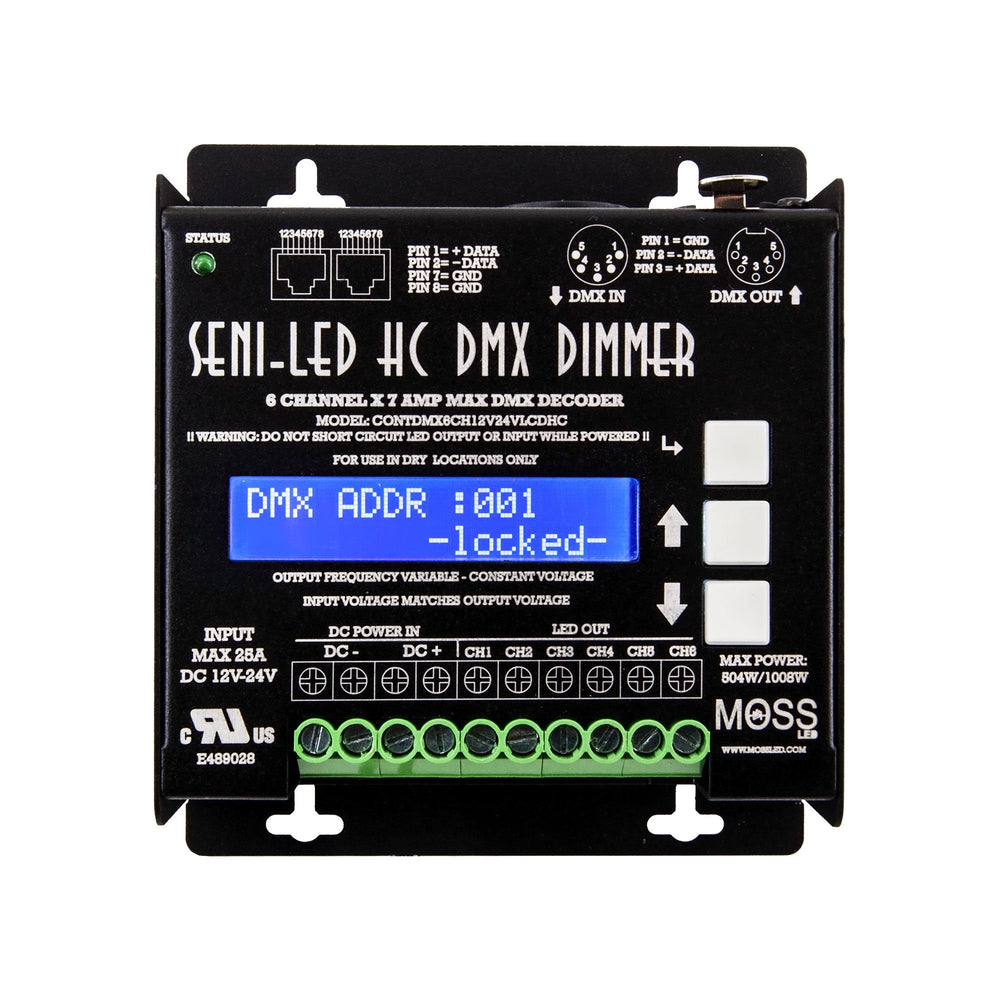

- LCD Interface & Manual Mode – Allows easy DMX addressing, test control, and manual adjustments.
- High Current Handling – Designed for stable, high-power LED installations.
- Reliable Performance – Features an isolated DMX input for signal protection.
Note: After adjusting dimmer settings, ensure the unit remains powered for a few seconds to lock changes.
Need a custom solution? Contact us today!
Technical Specifications
|
Output Current (A)
|
:
|
6 CH @ 10A/CH = Max 60A (6 CH @ 7A/CH = Max 42A to meet UL specifications)
|
|
Output Power (W)
|
:
|
720W @ 12V / 1440W @ 24V or
504W @ 12V / 1008W @ 24V per UL
|
|
Supply Voltage
|
:
|
DC12V - DC24V (Output V = Input V)
|
|
Size (inches)
|
:
|
L 4.8” x W 4.2” x H 1.2”
|
|
Working Temperature
|
:
|
-0°C to + 50 °C
|
|
Bit Rate
|
:
|
8 Bit
|
|
Weight
|
:
|
325g
|
|
IP Rating
|
:
|
IP40
|
|
PWM Frequency
|
:
|
2.4 kHz / 9.6 kHz / 20 kHz / 30 kHz
|
|
IP Rating
|
:
|
IP40 (Dry Locations Only)
|
| Agency Rating |
: |
cRUus (UL) |
DOWNLOADS
UL Certificate of Compliance- Specification Sheet
