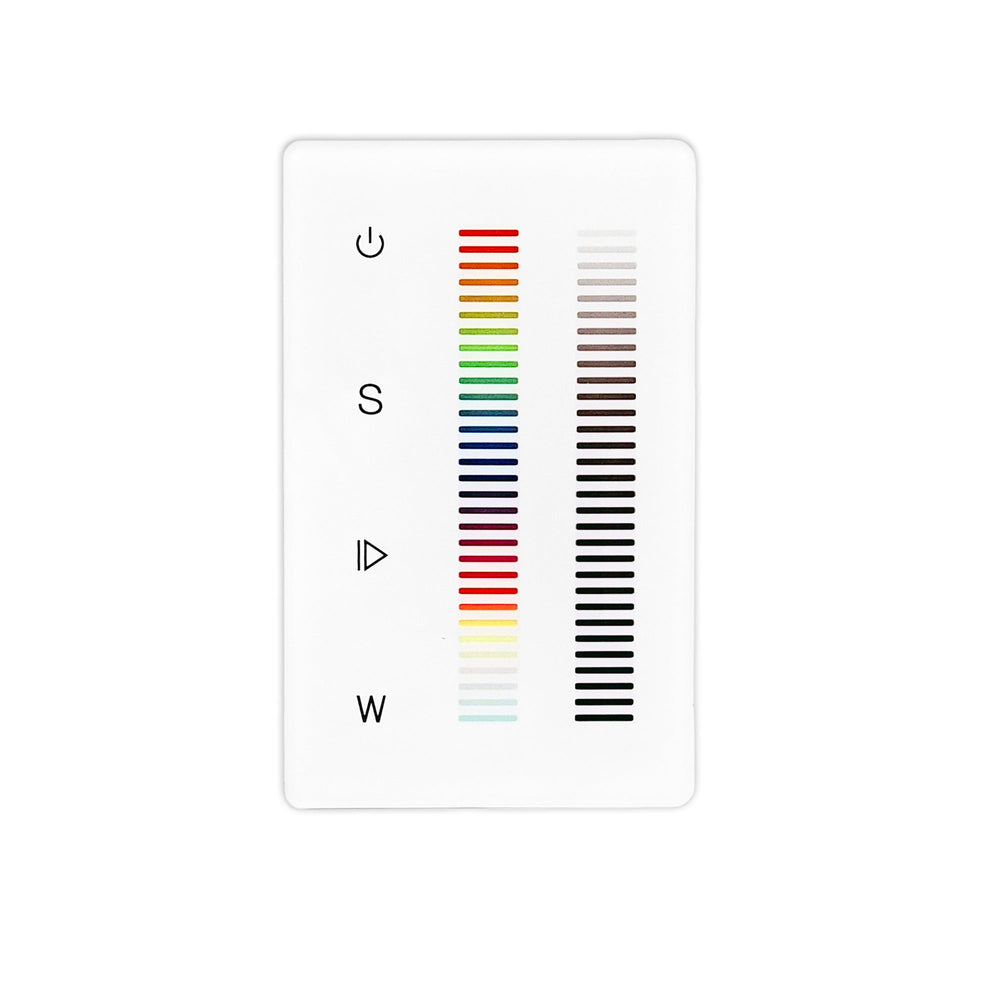

RGBW 1-Zone Household Wallplate Dimmer with DMX Output

SKU CONT-WD-DMX-RGBW
by MossLED
Save 50%
Original Price $147.72
Current Price $74.58
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

One-zone RGBW wall plate dimmer.  Beautifully crafted glass touch interface allows for simple yet powerful control of RGBW products.  Suitable for all North American standard wall plates. This unit outputs standard DMX 512 signal via terminal block connection.

This unit is perfect for 1 zone control of single color white, variable white bi-color, RGB, or RGB+W FlexLED products.



Technical Parameters

SKU : CONT-WD-DMX-RGBW
Output Signal : DMX 512
Output Signal Connection : Terminal Block
Supply Voltage : 12-24V DC
Size (MM) : 75 W x 120 L x 29.1 D
Power Consumption : < 20 mA
Control Channels : 4
IP Rating : IP 20
Bit Rate : 8 Bit
Weight : 220g
Working Temperature : -0°C to +40 °C


Technical Parameters

  1. CONT-WD-DMX-RGBW Datasheet
