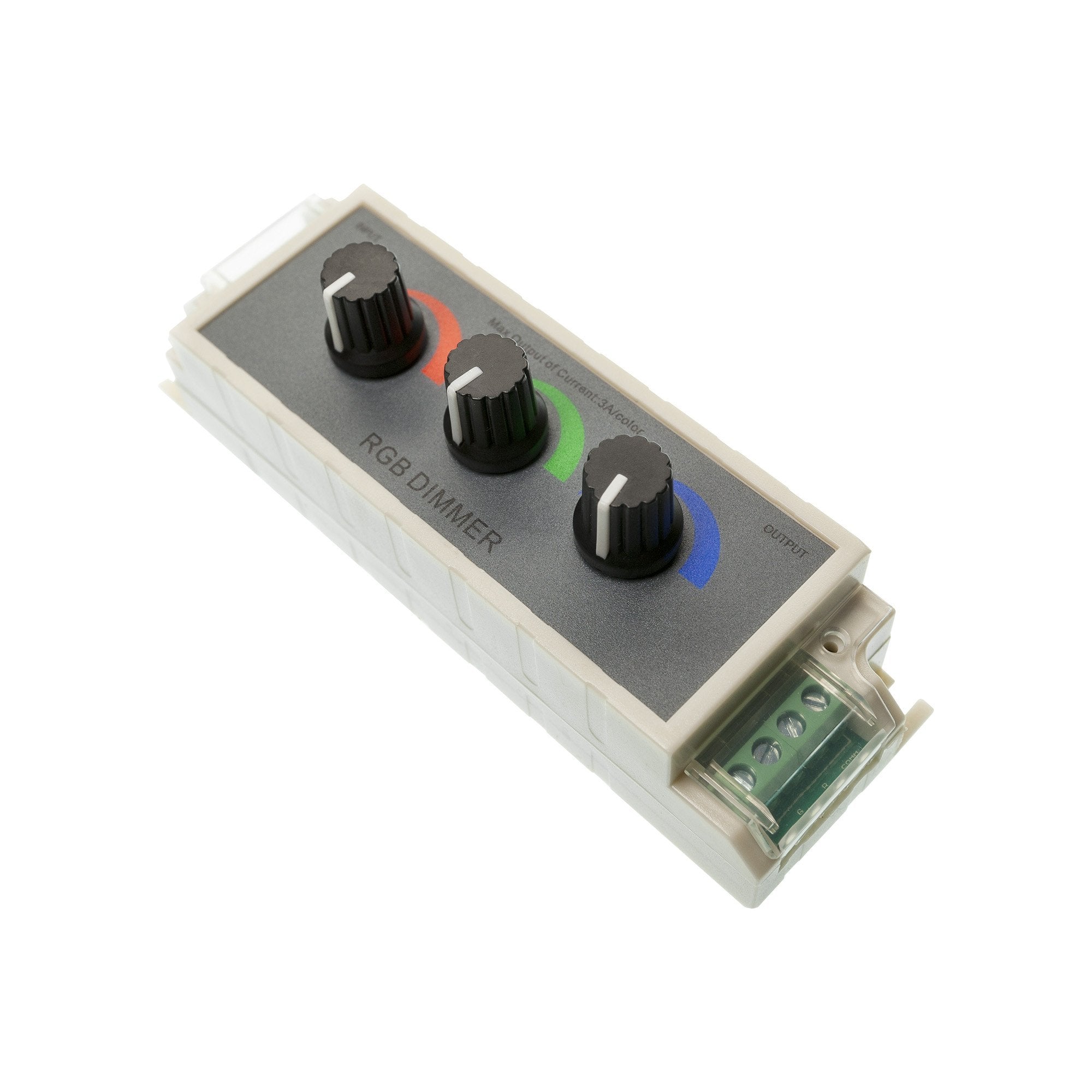

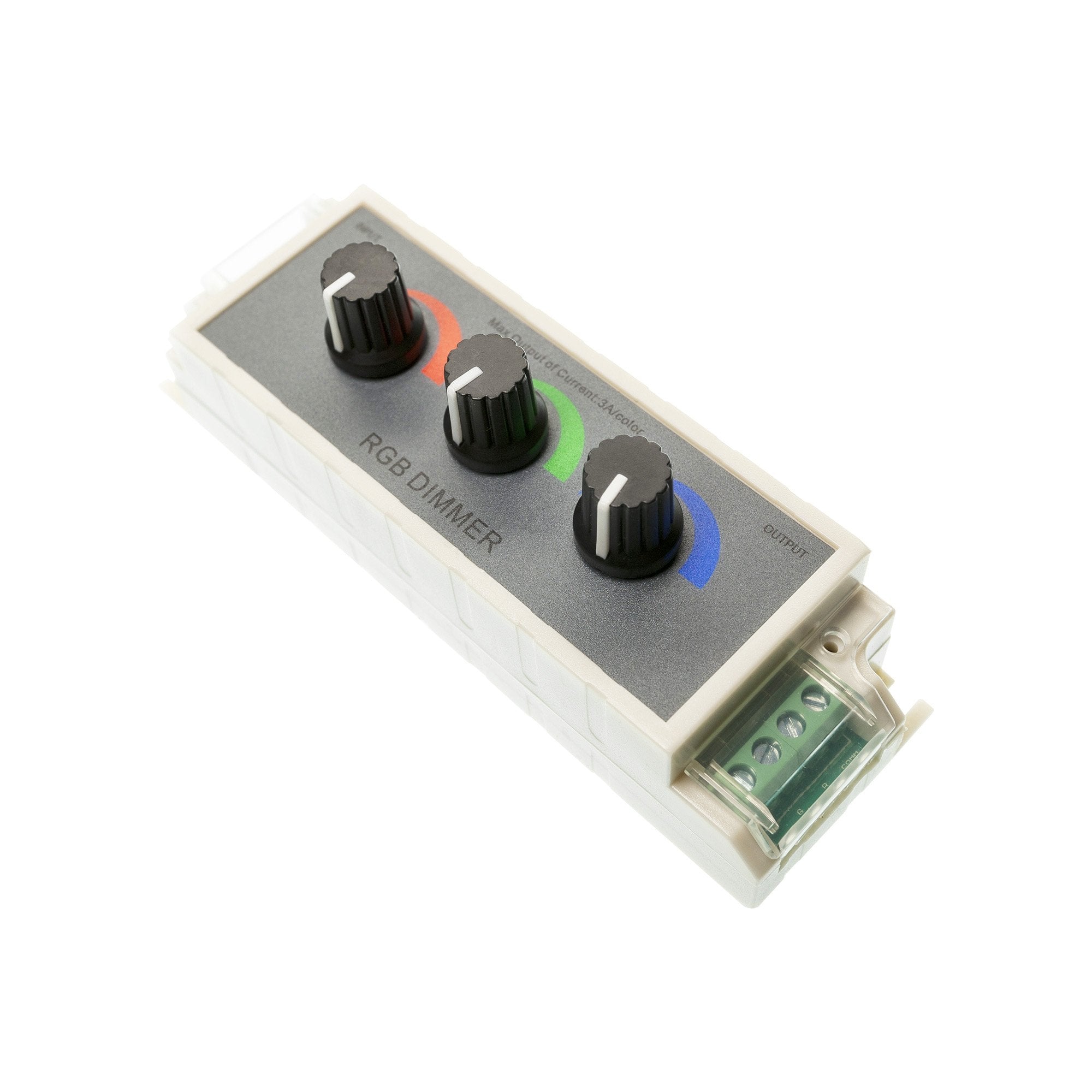

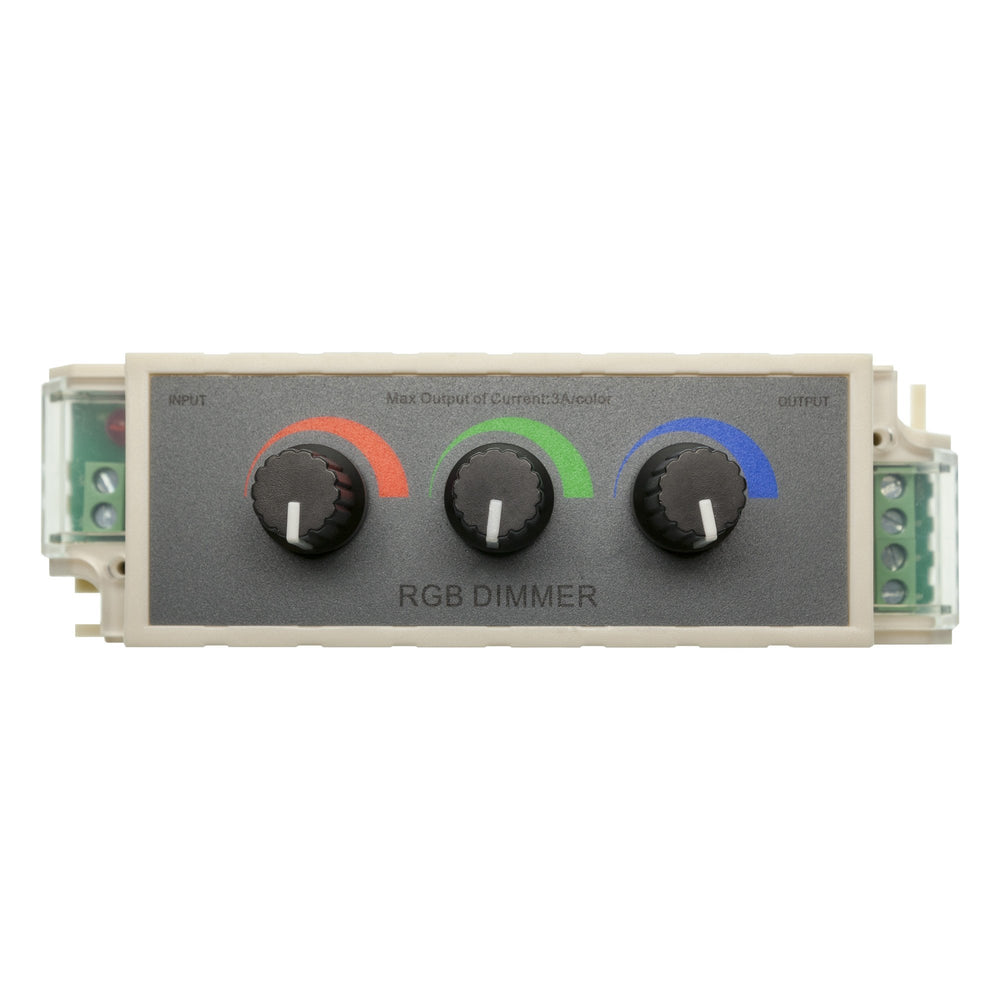

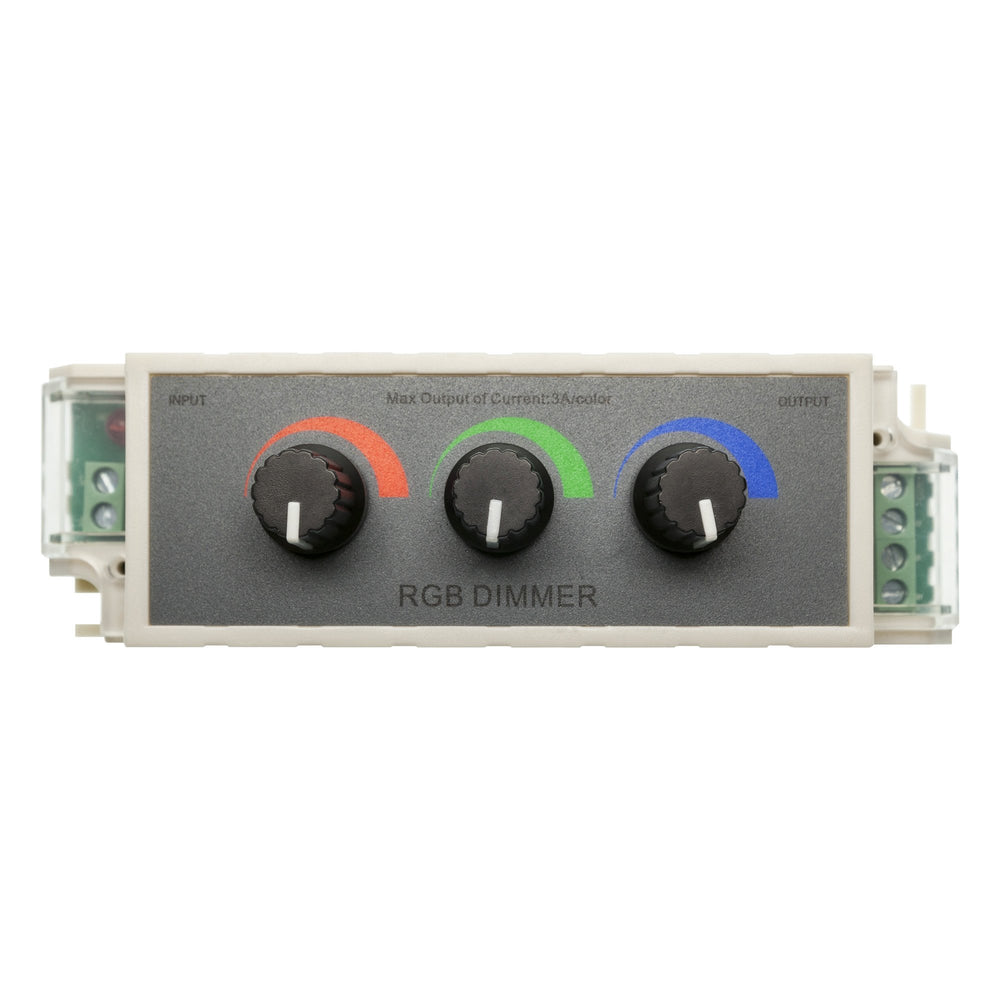

Three Channel RGB Rotary Dimmer

XFDIMMER3CH12V24V2KHZ

45 items left

For use with any of our Colorful (RGB) Flex LED Tape

  • 3 Hi-Precision Rotary knobs provides the ability to create any color.
  • Easily mountable using the built-in screw holes.
  • 8KHz option for on-camera use.

Technical Parameters

  • Supply Voltage: 12V - 24V DC
  • Output: 3 Channel
  • Outpur Current: 3 CH @ 8A/CH = MAX 18A
  • Output Power: 144W @ 12V / 288W @ 24V
  • PWM Frequency: 2KHz / 8KHz
  • Dimensions (mm): L130*W40*H52
  • Weight: 95g
  • Working Temperature: -20C to 60C

**Connector Tails Not Included**
