The Wireless DMX can be used with all of our FlexLED Tape lines in conjunction with a DMX Controller
The RC4Magic S3 DMXio transceiver gives users best in class data security and reliability in the 2.4GHz bandwidth along with the RC4 Two-Year Warranty. All RC4 products come with a private, secure RC4 Secure Private System IDs, which means that no other wireless system can trample your signal.

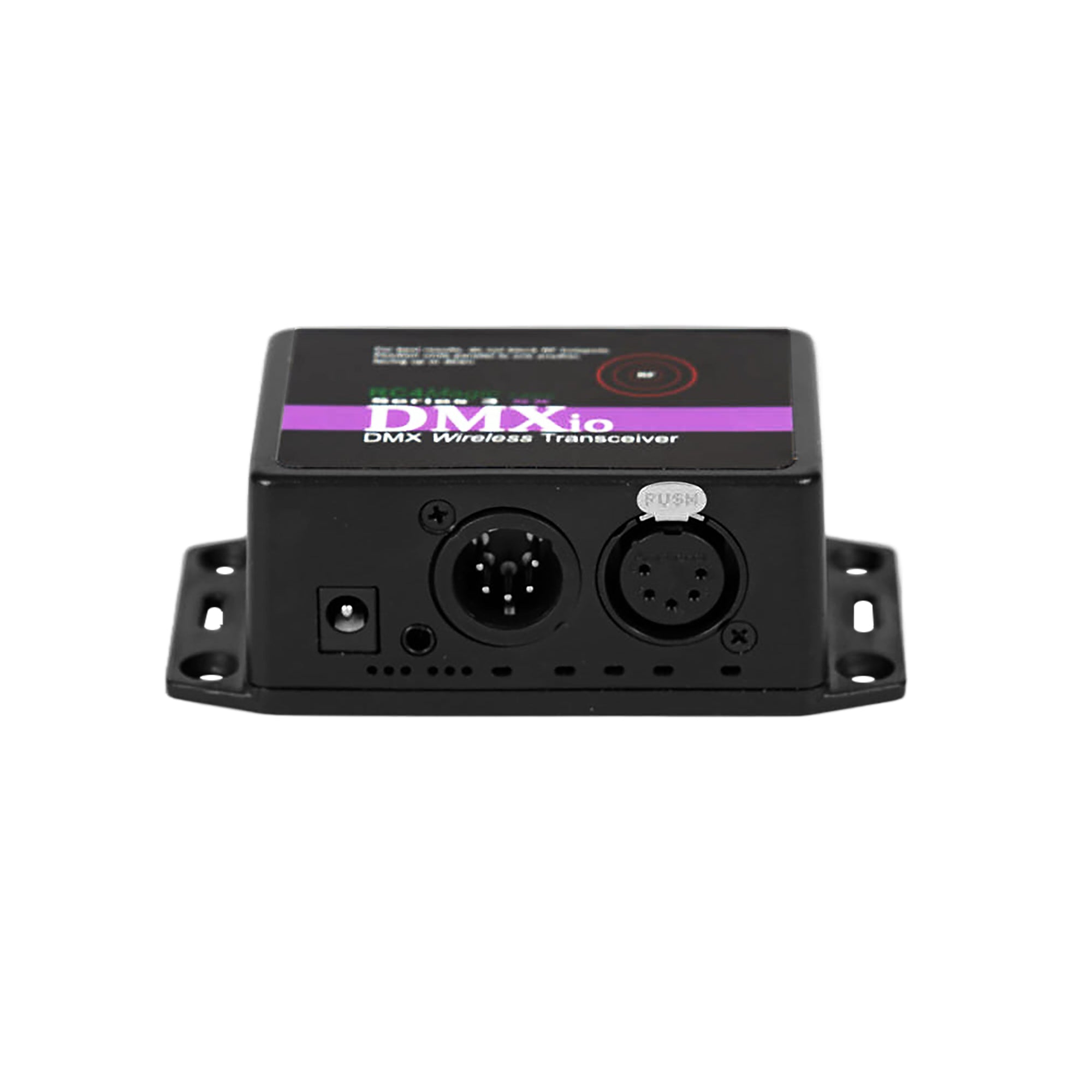

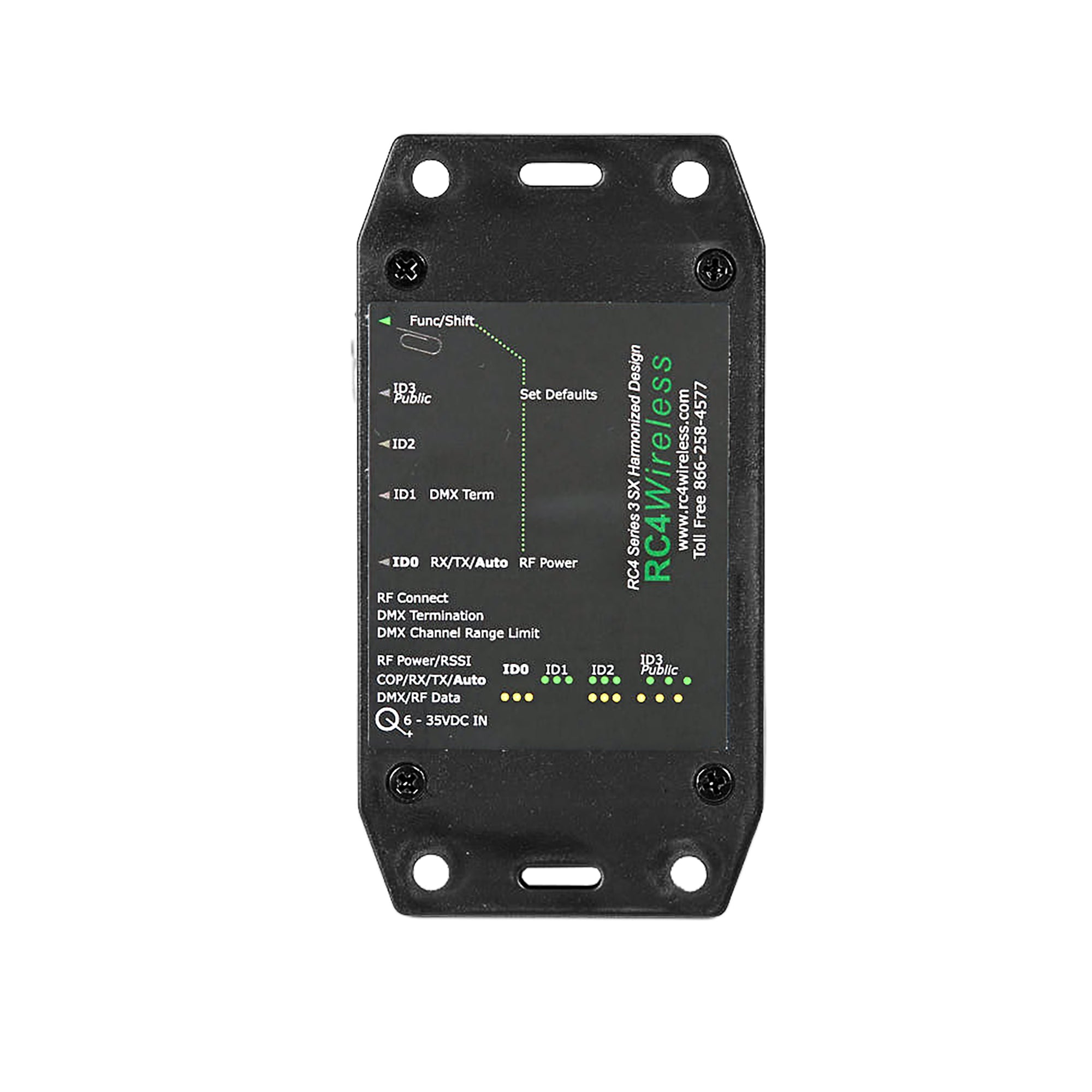

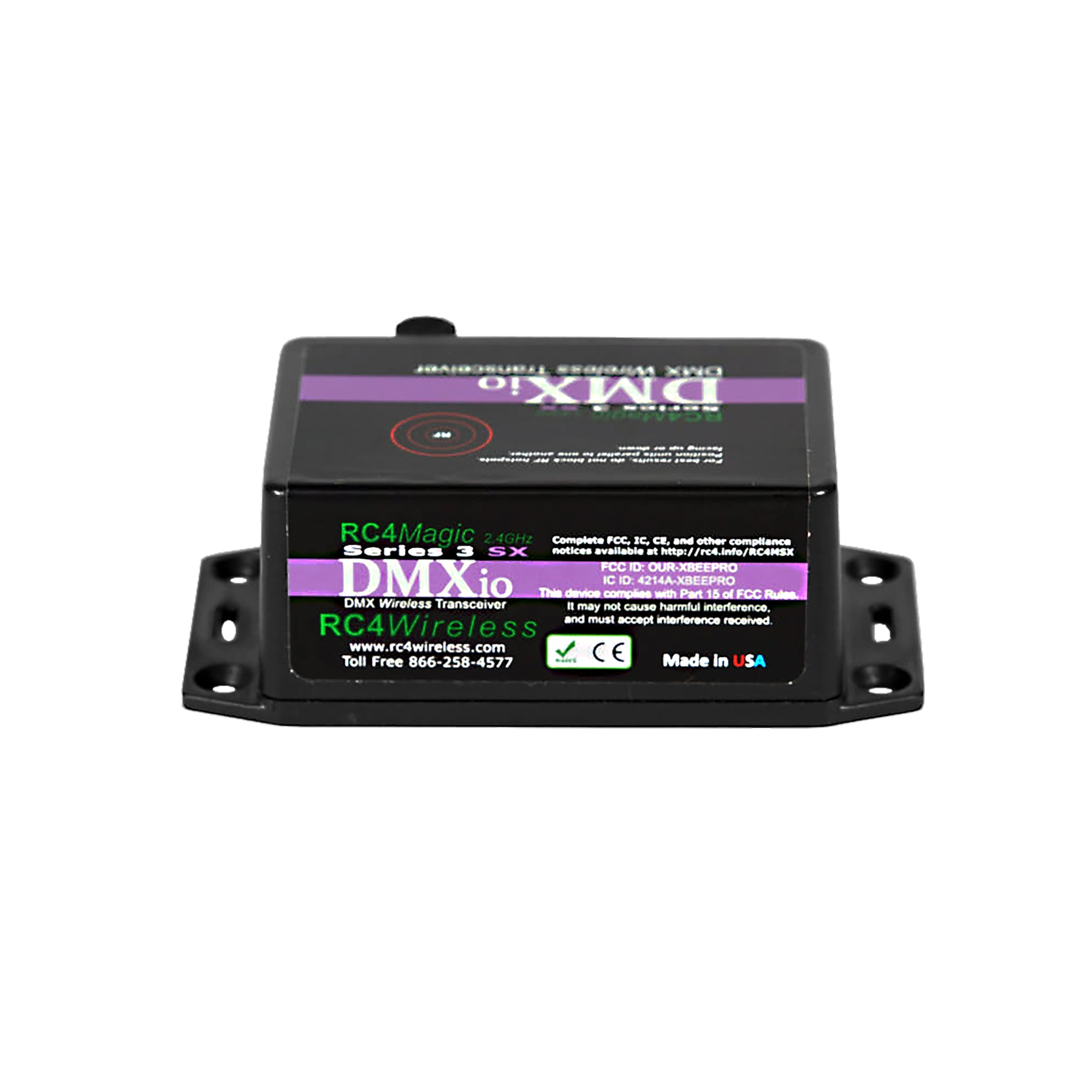

The DMXio has an internal antenna; the DMXio-HG has an external antenna for those who prefer that option*.
Each DMXio purchase comes with an AC adaptor.
*External antenna out of stock at this time.n.
RC4 Products typically ship within 3-6 Business Days
TECHNICAL SPECIFICATIONS:
- Dimensions: 3.4” x 2.3” x 1.55” nominal (approx. 86mm x 59mm x 40mm). Mounting flanges extend an additional 0.5″ (13mm), for a bottom footprint of 4.4″ x 2.3″ (112mm x 59mm)
- Weight: 3.40 oz
- DMX Input/Output: meets USITT DMX512/1990. XLR5 male and female, and RC4 non-standard miniplug port
- Power Input: 6VDC – 35VDC, a world-voltage 90 – 250VAC high-efficiency AC adaptor is included. International purchasers will receive a multi prong adapter with connections for Europe, UK, Australia, and North America. North American customers will receive a standard adaptor for use in USA and Canada.
- Series 3 Versatility: DMX termination enable/disable; selectable top/bottom DMX channel; selectable RF power output levels (RC4Magic 2.4GHz DSSS 100mW max.) Dongle Mode combined with an RC4 USB CodeLoader Cable becomes the hardware interface for RC4 Commander Software
- 2.4GHz RC4Magic RF Antenna: hidden internal, omnidirectional, nominal 60m range
-
Transmitter Mode
- Only 1 DMXio transmitter should be operated on each system ID
- DMX Input: meets USITT DMX512/1990(4us) with 1-second data hold after dropout
- DMX Output: straight-thru hardware connection from DMX input to output
- Option DMX channel limiting: set lowest and highest channel using RC4 OneTouch™ (default is full 512-channel universe)
Receiver Mode
- Any number of DMXio receivers may be used in a system
- DMX Output: meets USITT DMX512/1990
- The DMX specification allows up to 32 devices on a DMX output. The DMXio data output exceeds this requirement and is capable of driving additional devices.
- Internally protected against static discharge and excessive line loading
RC4Magic DMX Protocol Compliance
- DMX inputs and outputs comply with USITT DMX512/1990(4us)
- Packets with non-zero start codes are not transmitted; RC4Magic cannot transfer proprietary data or RDM packets
- DMXio receiver output replicates DMXio transmitter input, providing the same number of DMX channels and the same number of packets per second (pps)
- Minimum number of DMX channels per packet: 1
- Maximum number of DMX channels per packet: 512
- Maximum packet-per-second rate: 44pps with 512 channels, 10000pps with 1 channel
