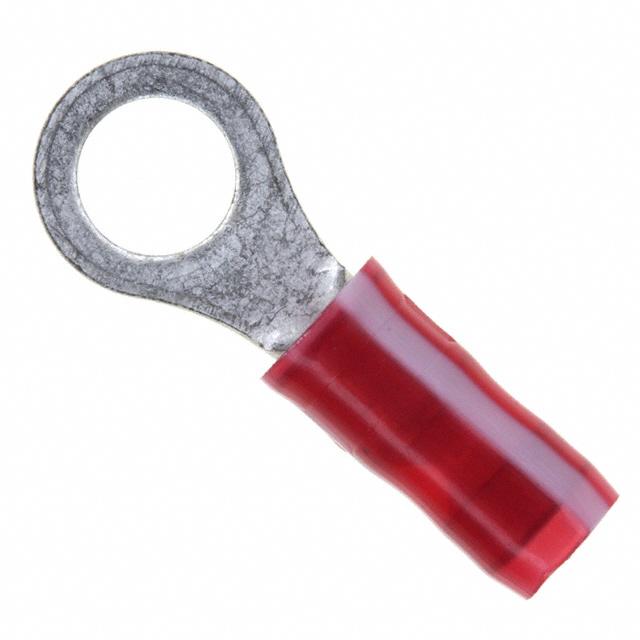

O-Ring Splice

SKU PV1410RM
by Panduit
$0.33
Size
Availability: Translation missing: en.general.icons.icon_check_circle icon 253 in stock, ready to be shipped
Accessories

Perfect for making quick, permanent, secure connections.

Low profile for limited space applications

Internal wire stop assures proper length of insertion into terminal barrel






SPECIFICATIONS

Style : Terminal Ring Vinyl Terminal Ring Vinyl
Wire Range In. (mm?) : 16 - 14 AWG 22 - 16 AWG
Barrel Configuration : Standard Standard
Base Material : Copper Copper
Insulation : Nylon Nylon
Panduit Color Code : Blue Red
Plating Type : Tinned Tinned
Part Number Series : Pan-Term PIDG
Length In. (mm) : 0.920" (23.37mm) 0.844" (21.44mm)
Max. Insulation Diameter In. (mm) : 0.17" (4.32mm) 0.312" (7.92mm)
Stud Size : #10 Stud #10 Stud
Max. Voltage Rating : 600V 300V
CSA Certified : LR31212 Yes
UL Listed : E52164 Yes
CE Compliant : No No
RoHS Compliancy Status : Compliant Compliant



DOWNLOADS

  1. 16 - 14 AWG Specification Sheet

  2. 22 - 16 AWG Specification Sheet
