Neutrik XLR Connector

Neutrik XLR Connector

SKU NTR-NC6MXX-B
by NEUTRIK
Save 49%
$12.95
$6.66
Pin Count
Gender
Availability: Translation missing: en.general.icons.icon_check_circle icon 48 in stock, ready to be shipped

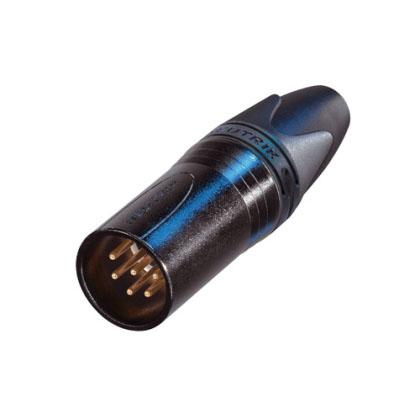

Male and Female XLR cable connectors with black metal housing and gold contacts

The next generation of the worldwide accepted standard of XLR cable connectors. Rugged, durable locking connectors with high current capacity.






SPECIFICATIONS

Pin Count : 3-Pin 4-Pin 5-Pin 6-Pin
Gender : Male / Female Male / Female Male / Female Male / Female
Color : Black Black Black Black
Contact Plating : Gold Gold Gold Gold
Mounting Style : Cable

Cable

Cable

Cable
Number of Positions : 3 4 5 6
Termination Style : Solder Cups

Solder Cups

Solder Cups

Solder Cups
IP Rating : IP40 IP40 IP40 IP40
Mating Cycles : > 1000 > 1000 > 1000 > 1000
Internal Switches : No No No No
Current Per Pin : 16A 10A 7.5A 7.5A
Rated Voltage : < 50V < 50V < 50V < 50V
Cable Gauge : 14AWG 16AWG 18AWG 18AWG
Temperature Range :
-30 °C to +80 °C
 -30 °C to +80 °C -30 °C to +80 °C -30 °C to +80 °C



DOWNLOADS

  1. Plug Specification
