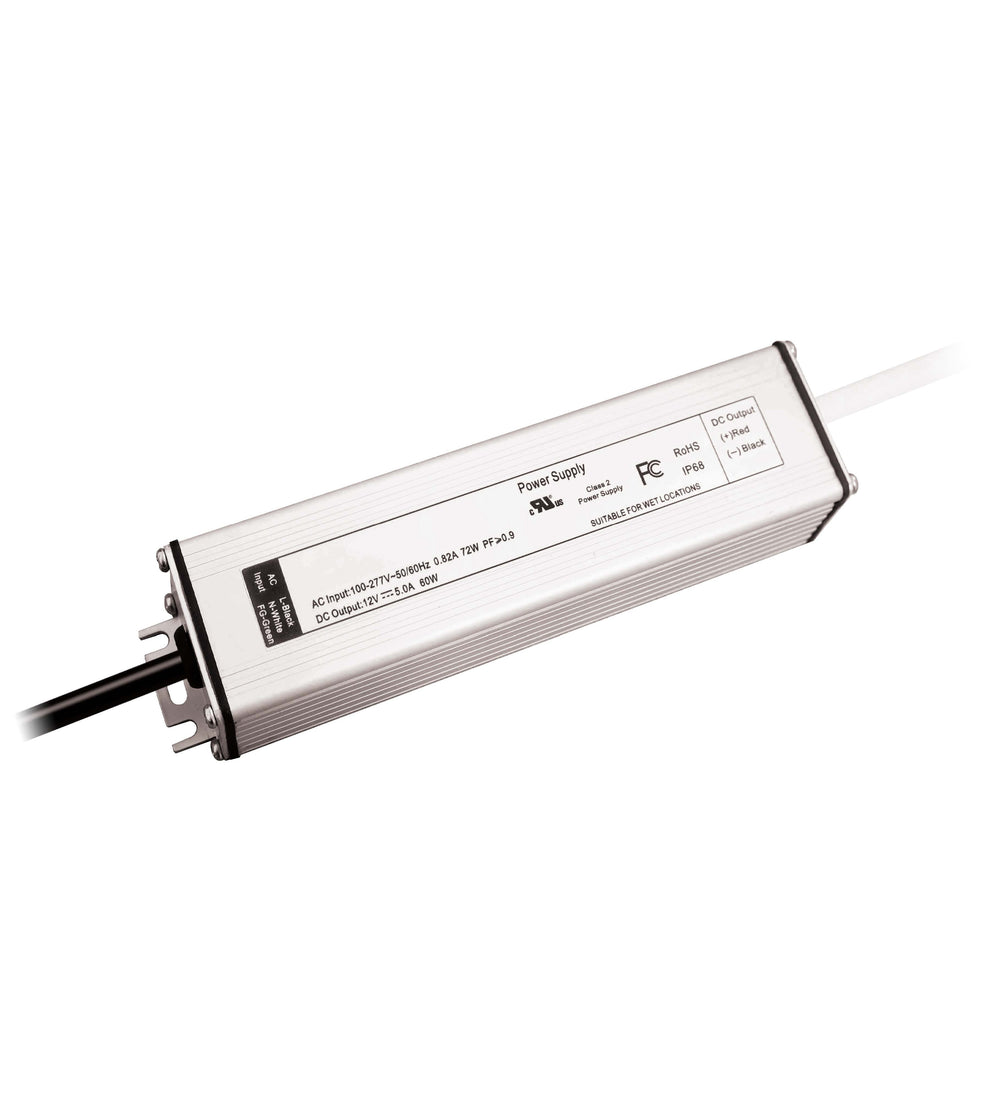

NDCVC Family of Power Supplies. NDCVC stands for Non-Dimmable Constant Voltage Component. Our new component approved cRUus LED drivers. Extremely reliable and robust LED power supply designed for use with all Constant Voltage LED products. Perfect for on-camera and constant-on use with our FlexLED Tape and any 12 or 24V DC LED product. Class 2 safety as well as short-circuit, overload, over-voltage, over-current, and over-temperature protection. Rated for Dry, Damp, and Wet locations. IP68. Safe, powerful, and reliable are the cornerstones of our NDCV line of power supplies from MossLED. Amazing 5 year warranty.
Key Features:
Need a custom solution? Contact us today!
10°C
| General | MFR Product Family | : | NDCVC | |
| Product Type | : | AC to DC Power Supply | ||
| Power Supply Color | : | Grey | ||
| MTBF | : | ≥200Khrs, MIL-HDBK-217F (25°C) | ||
| Housing | : | Fully enclosed aluminum housing | ||
| Indicator | : | None | ||
| Model | : | NDCVC-1260-DDW | NDCVC-2460-DDW | |
| Output | Current (A) | : | 5 A | 2.5 A |
| Output Power (W) | : | 60 W | ||
| DC Output (V) | : | 12 VDC | 24 VDC | |
| Output Groups | : | 1 | ||
| Ripple & Noise max. Note4 | : | 120mVp-p | 240mVp-p | |
| Load Regulation | : | ±2% | ±1% | |
| Voltage Adjustment Range | : | Fixed | ||
| Output Connector Type | : | Bare Wire - Stripped & Tinned | ||
| Current Adjustment Range | : | N/A | ||
| Input Connector | : | Bare Wire | ||
| Wiring Color Codes Output | : | Refer to Label on PSU | ||
| Voltage Tolerance Note3 | : | ±4% | ±2% | |
| Input | Universal AC input Note2 | : | 90 ~ 305VAC 127 ~ 432VDC | |
| Frequency Range | : | 47 ~ 63 Hz | ||
| Power Factor (Typ) | : | PF≥0.90/ 277V (at full load) |
||
| Low leakage current | : | <0.75mA/277Vac | ||
| Set up time Note6 | : | 2000ms, 70ms(at full load) 230VAC | ||
| Line Regulation | : | ±1% | ±0.5% | |
| Efficiency | : | 89.5% | 88.5% | |
| AC Current | : | Max 0.82A | ||
| AC Input Cables | : | Bare Wire - Stripped & Tinned | ||
| Inrush Current (Typ.) | : | Cold start: 60A/230VAC | ||
| Leakage Current | : | <0.75mA / 277VAC | ||
| Protection | Overload | : | 105% ~ 150% of the rated output power | |
| Protection mode: Hiccup mode, recovers automatically after the load reduced | ||||
| Short Circuit | : | Protection type: Hiccup mode, recovers automatically after fault conditions removed | ||
| Over Voltage | : | 13 ~ 18 V | 25 ~ 35 V | |
| Protection type: Hiccup mode, recovers automatically after fault conditions removed | ||||
| Over Temperature | : | 100°C ± 10°C (RTH2) | ||
| Protection type: Shut down O/P voltage, recovers automatically after temperature drops. | ||||
| Environment | Operating Temperature (Ambient) | : | -40°C to 60°C | |
| Humdiity (Ambient) | : | 20%~95%RH, non-condensing | ||
| Storage Temp. and Humidity | : | -40℃ ~ +80℃，10% ~ 95%RH | ||
| Temperature Coefficient | : | ±0.05%/C°C (-40 ~ +60°C) | ||
| Ingress Protection Rating | : | IP68, Dry, Damp, and Wet Locations | ||
| Vibration | : | 10-300Hz, 1G 10min./cycle, period for 60min. each along X, Y, Z axes | ||
| Safety & EMC | Class | : | Class 2 | |
| Agency Approvals | : | FCC, UL cRUus, Class 2, UL8750, UL879, EN61347-1, EN61347-2-13 | ||
| Withstand Voltage | : | I/P-O/P: 3.75KVAC, I/P-FG:1.875KVac, O/P-FG:0.5KVac | ||
| Isolation Resistance | : | I/P-O/P, I/P-FG, O/P-FG: 100Mohms/500Vdc 25℃/70%RH | ||
| EMC Emission | : | Compliance to EN55015, EN61000-3-2 classC, EN61000-3-3, FCC Part15 Subpart B, ANSI C63.4a | ||
| EMC Immunity | : | Compliance to EN61547, EN61000-4-2,3,4,5,6,11; Surge: L, N–P/G: 6kV, L-N 4kV | ||
| Dimensions | Bulk Packaging | : | 0.45Kg/PCS, 40PCS/18Kg/box, ( 445X345X200mm ) | |
| Size (millimeters) | : | 189 x 42 x 32 (7.44" x 1.65" x 1.26") | ||
| NOTES | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Derating may be needed under low input voltages. Please check the static characteristics for more details. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Ripple & noise are measured at 20MHZ of bandwidth by using twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 5.The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-confirm EMC Directive on the complete installation. 6.The start time was tested under the situation of cold start, continuous switching on/off may raise the start time. |
|||
