LuxDrive16 DMX - 32 Channel Dimmer

Professional DMX controlled multi-channel LED controller with built-in power supply.

No more wiring!
No more separate power supplies!
No more phoenix connectors!
Approved for use anywhere in the world!

Contact us for pricing details for large quantity orders or for rental options.

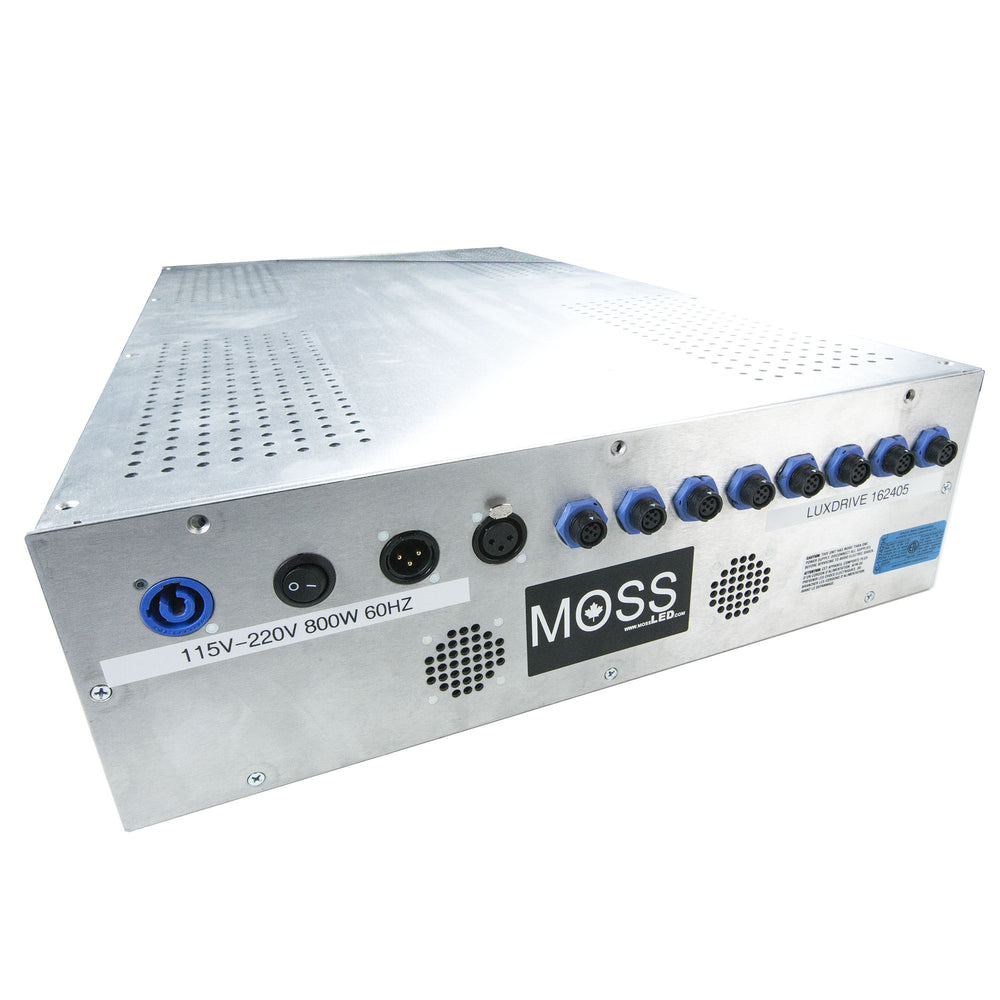

The LÜXDRIVE16 is an installation-grade power control unit that offers unprecedented quality and dimming control not previously seen in the LED tape industry. Compatible with any of our Bi-Color, Or Single Color LED products (24V strips/modules), it uses standard DMX512 protocol via 5-pin XLR.  Powercon locking input power cables. Internal DMX addressing controls for control via a lighting console.

Technical Paramaters

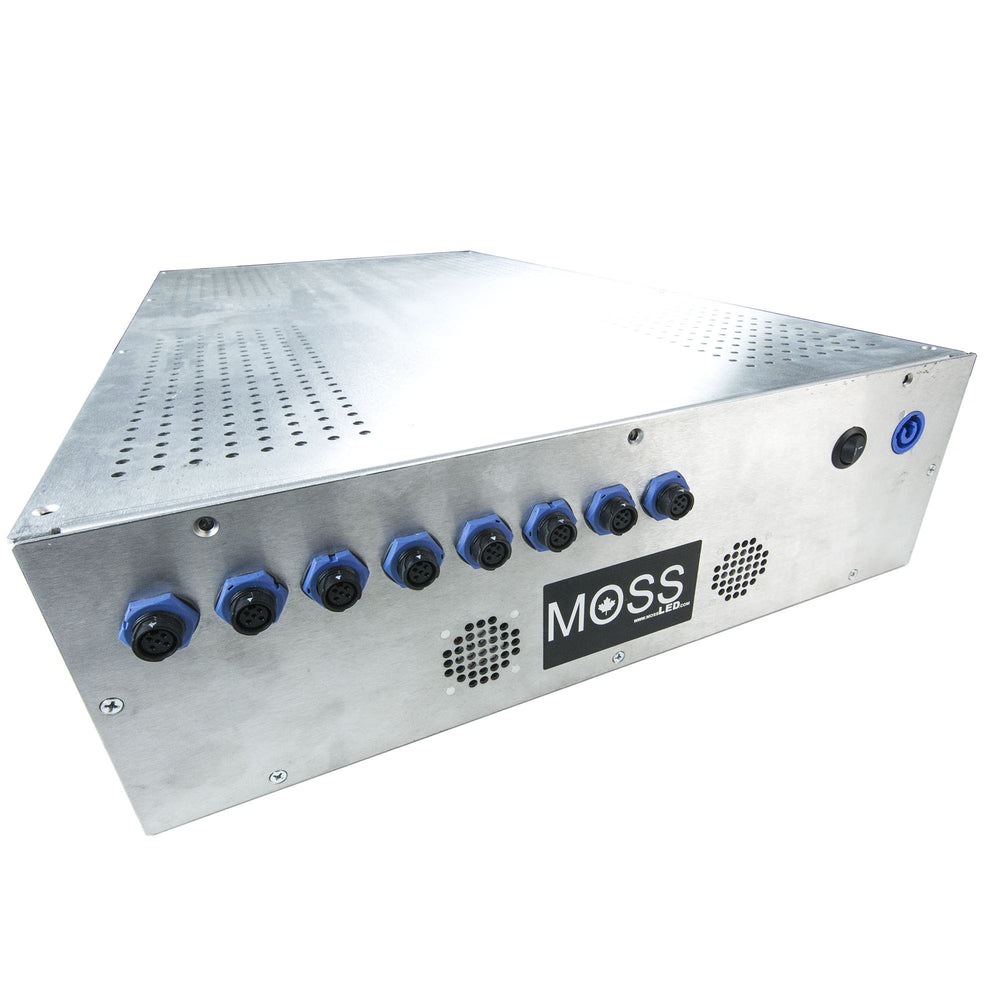

  • 16 X Bi-Color Outputs or Single Color White Options
  • Protections: short circuit / over temperature / overload / over voltage
  • Extremely fast PWM dimming at 14.4kHz allows for flicker free operation with most camera settings
  • Certified by Intertek to CSA standards
  • Forced-air cooling by built-in fans
  • 5-year limited warranty



Output Current (A)

:

16 x 24V @4.24A/Channel
24V@66.6 A MAX

Output Power (W)

:

960W @ 24V

Supply Voltage

:

12A-115VAC/ 6A-230VAC 88-264V AC 50-60Hz

Size (inches)

:

L17" X W29” X H5.25"

Weight

:

25.8lbs

PWM Frequency

:

7.4KHz - 14.4KHz

Mounting Options

:

3.5U standard rack spaces

Temperature Range

:

- 40°c to + 1 25°c
