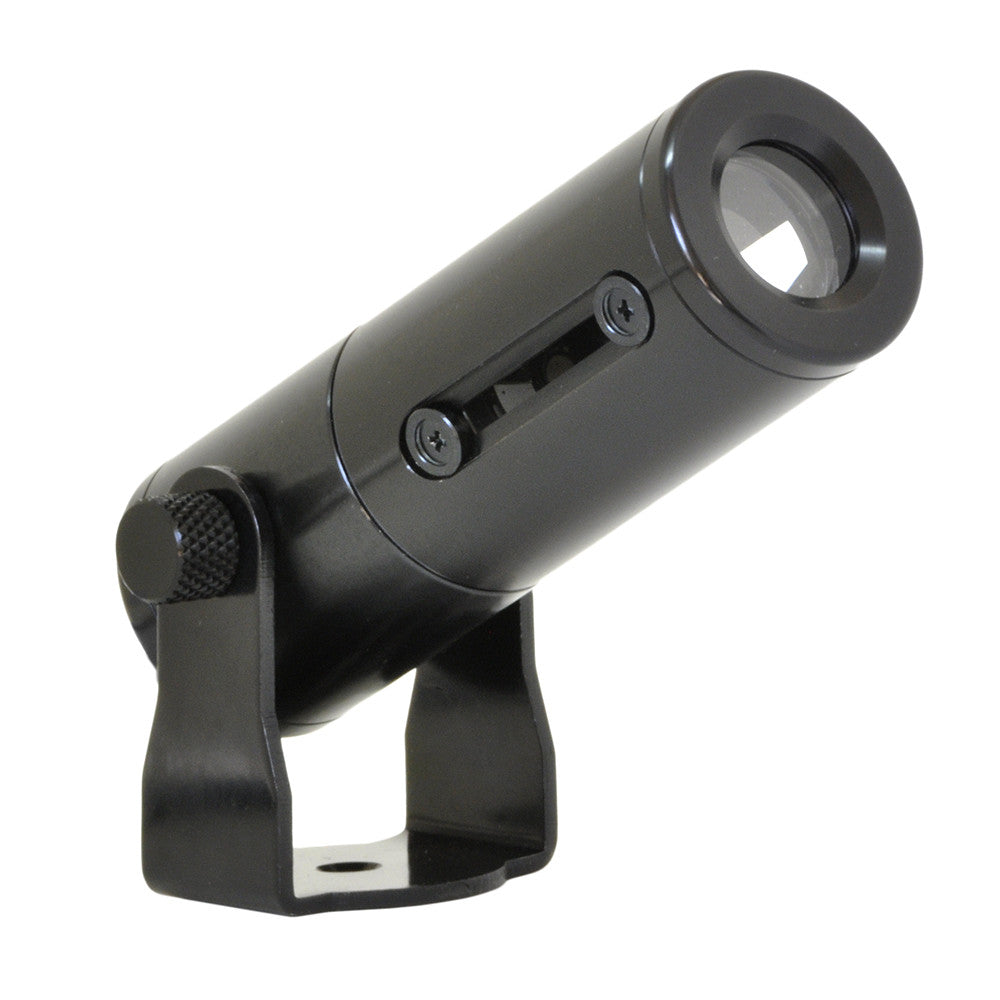

Gantom iQx - Micro Image Projector
GNTMIQXCW
$406.98
The Gantom iQx features the same amazing optics of the Gantom iQ but adds integrated DMX control. Using LED technology and special optics, the Gantom iQx can render bright and sharp images from a variety of gobo materials including film, metal, and glass. This fixture opens up a vast new dimension of creative lighting possibilities by allowing images, patterns, and signage to be projected in ways that were impossible with traditional gobo projectors. The integrated 3 channel DMX receiver gives the user full range of control over brightness and various dimming effects including candle flicker and strobe. The Gantom iQx is ideal for theatrical lighting applications. Our user friendly DMX Programmer iOS app, free from the App Store, allows easy address DMX assignment and dimming control.
Features

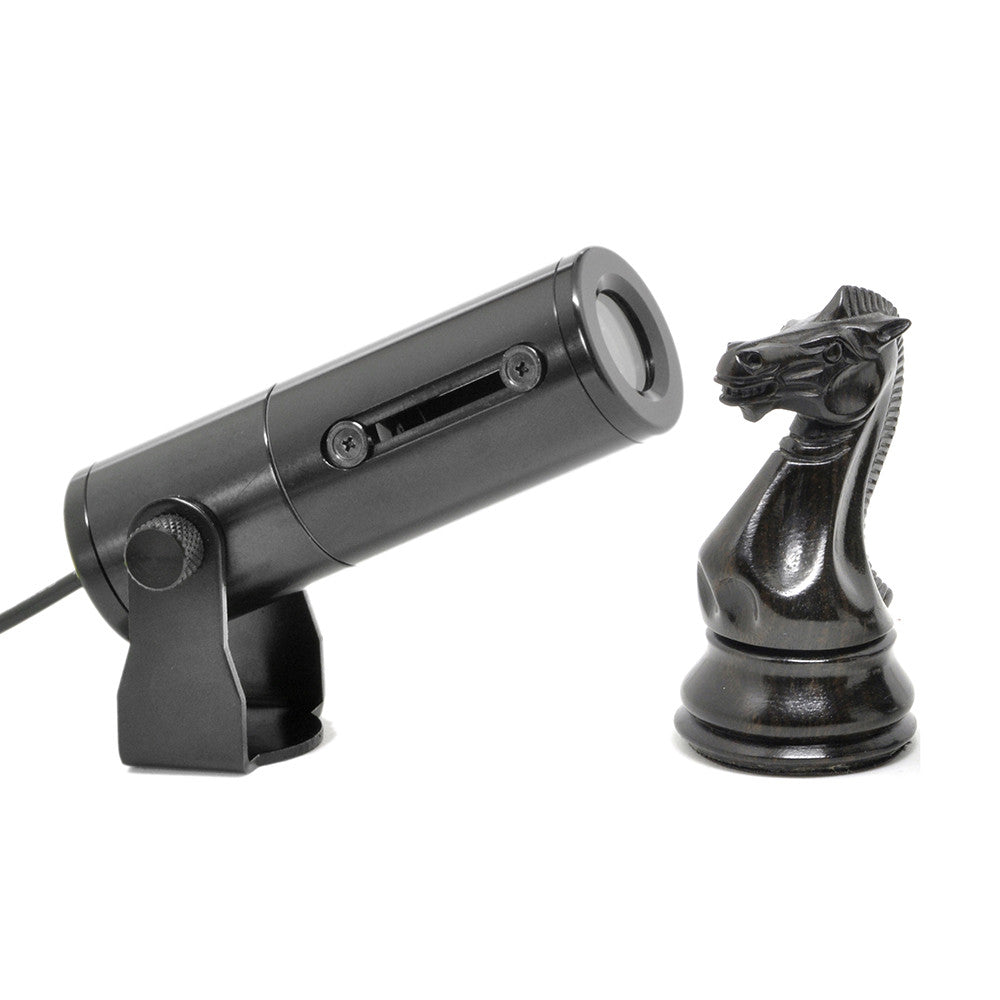

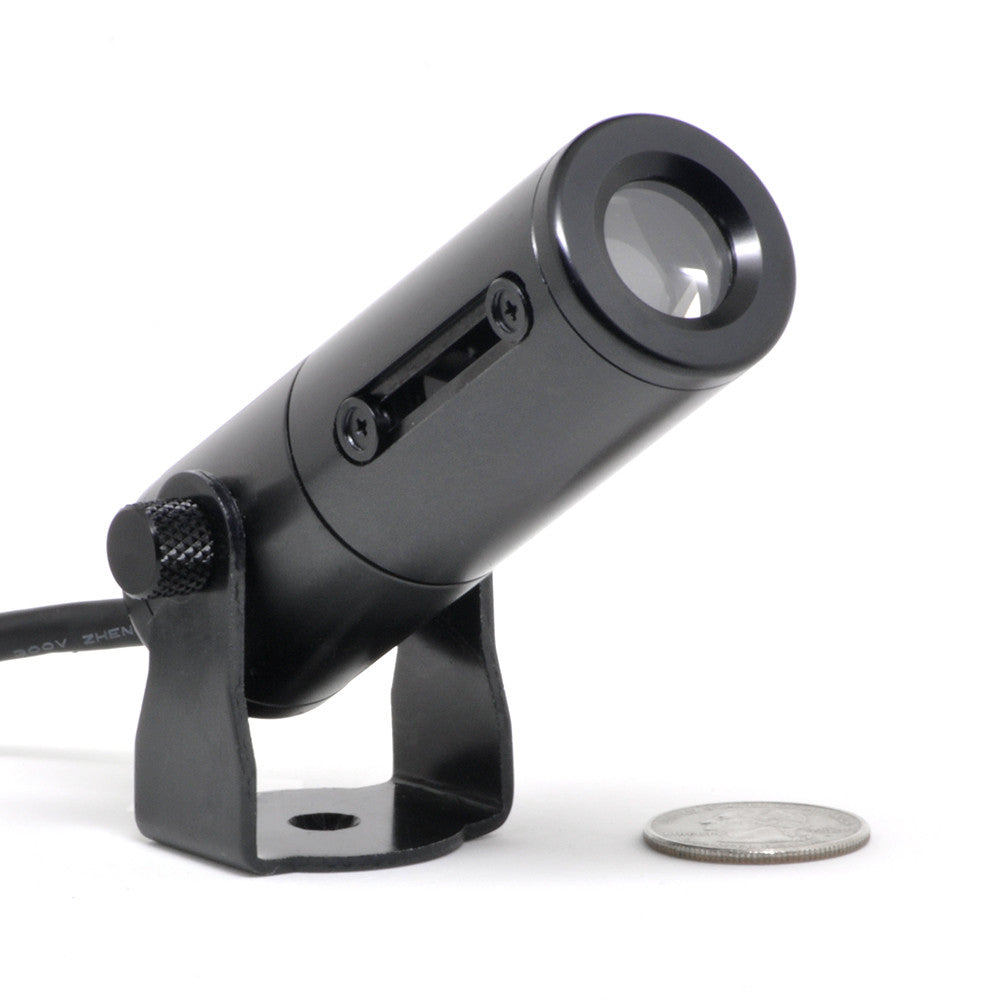

- Smallest DMX controlled gobo projector on the market
- 3 DMX channel control: intensity, speed, and mode
- Zoom adjustable with front sliding lens: 25-40 degrees
- Focus adjustable with rear sliding lens
- Supports all standard gobo materials including metal, glass and film
- 5 stage optics render razor sharp images and patterns
- Low voltage and consumes less than 3W
Applications
- Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
- Restaurants
- Special events
- Tradeshow booths
- Museums displays
- Theater and stage accent lighting
- Mobile displays
- Retail spaces
Specifications
| Gobo Size | 19mm(3/4") |
| Max Wattage | 2.8W |
| Input Voltage | 9-15VDC (12VDC nominal) |
| Current Draw | < 230mA @ 12VDC |
| Power Supply | for use with class 2 transformer or battery |
| Beam Angle | 25-40 degrees |
| Ingress Protection | IP65 with optics guard |
| Material | Anodized aluminum |
| LED | Cree XLamp XP-G |
| Certifications | UL and CE |

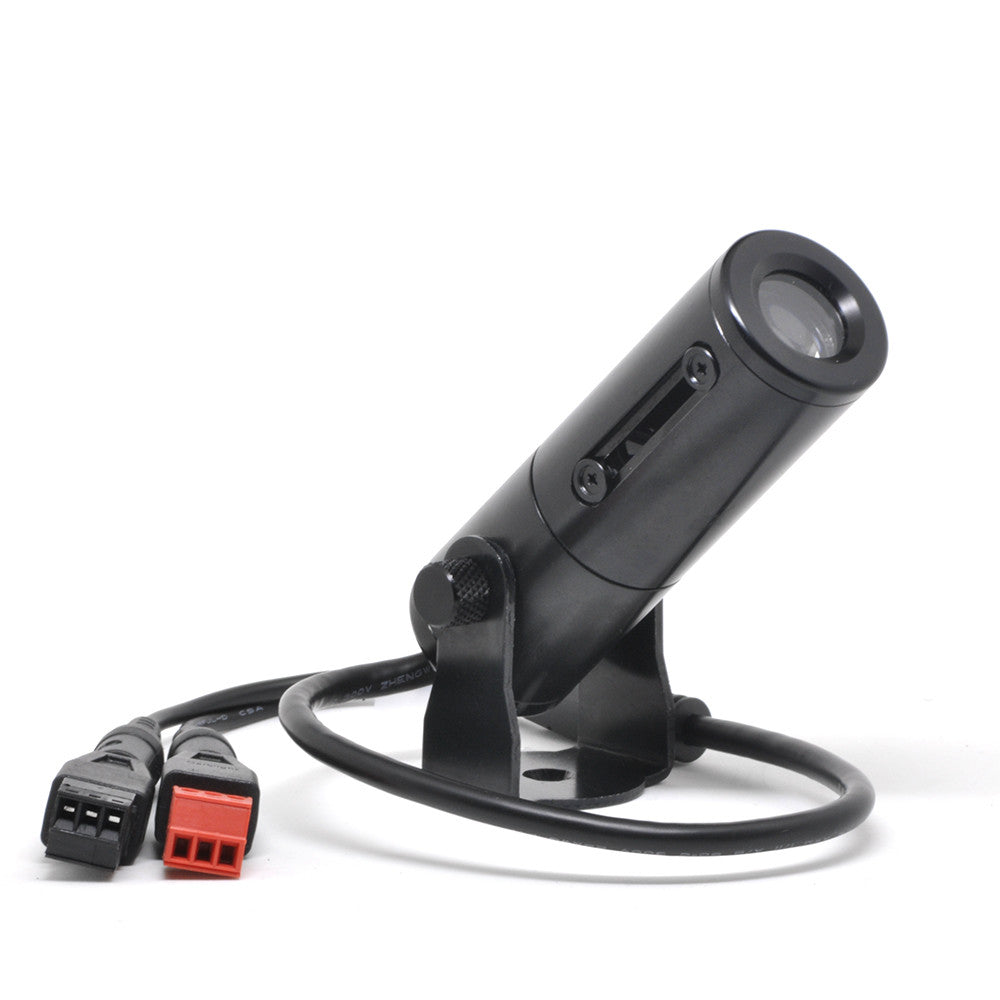

| Power Connector | 2.1mm DC jack with screw terminal adapter |
| Signal connector | 3.5mm (1/8") TRS jack with screw terminal adapter |
Downloads
Product Details
| Product Name | Gantom iQx Cool White | Gantom iQx Warm White |
| SKU | GT41 | GT42 |
| Color Temperature | 6500K | 2700K |
| CRI | 70 | 80 typical, 90+ available by spec |
| Availability | stocked product, usually ships within 1 business day | non-stocked product, inquire about lead time |
Output (Cool White)
| Distance | Center Beam | Beam Width | ||
| 25 | 40 | 25 | 40 | |
| 1.0m (3.3ft) | 510lx (47.4fc) | 368lx (34.2fc) | 0.4m (1.3ft) | 0.6m (2.0ft) |
| 2.0m (6.6ft) | 123lx (11.4fc) | 91lx (8.5fc) | 0.9m (3.0ft) | 1.3m (4.3ft) |
| 3.0m (9.9ft) | 53lx (4.9fc) | 38lx (3.5fc) | 1.3m (4.3ft) | 2.2m (7.2ft) |
Output (Warm White)
| Distance | Center Beam | Beam Width | ||
| 25 | 40 | 25 | 40 | |
| 1.0m (3.3ft) | 340lx (31.6fc) | 232lx (21.6fc) | 0.4m (1.3ft) | 0.6m (2.0ft) |
| 2.0m (6.6ft) | 82lx (7.6fc) | 63lx (5.9fc) | 0.9m (3.0ft) | 1.3m (4.3ft) |
| 3.0m (9.9ft) | 38lx (3.5fc) | 27lx (2.5fc) | 1.3m (4.3ft) | 2.2m (7.2ft) |
DMX Channel Descriptions
| Channel | Name | Level | Description |
| Ch 1 | Brightness Level | 0-255 | Dim to bright |
| Ch 2 | Speed | / | If Ch 3 is 0, Ch 2 controls blink speed If Ch3 is non zero, Ch 2 controls speed of function |
| Ch3 | Built-In Functions | 32-64 | Fade in |
| 65-96 | Fade out | ||
| 97-127 | Pulsing | ||
| 128-159 | Surge | ||
| 160-191 | Strobe | ||
| 191-255 | Flicker |
FAQ
Q: What kind of gobos can you use with the Gantom iQx? A: Any pattern that is cut into a 19mm (3/4?) diameter disk. Traditional gobos such as stainless steel or glass will work for permanent installations. For temporary events, inexpensive full color gobos can be made from 35mm film slides or self printed onto transparency paper. For full color film gobos visit: www.colorslide.com?. It is important that you know www.colorslide.com will print your gobo designs but cannot cut them into the correct circular shape. For this we recommend purchasing a 19mm (3/4?) craft punch online or at a craft store. Please note that film slides will fade over time as the film is a photosensitive material. Although this process renders sharp full color images at a low price, these slides are designed for temporary use. Please consider stainless steel or glass for permanent applications.For stainless steel or glass gobos visit: www.gamonline.com or www.rosco.com .
Q: Can I print my own patterns? A: Yes! As long as your able to create well defined patterns onto a 3/4? (19mm) diameter disk that is less than 0.08? (2mm) thick, it will load easily into the Gantom iQx and can render sharp patterns. You can also use a high resolution inkjet printer to create full colored patterns onto transparency paper. However, due to the resolution of typical printers and the amount of magnification with our optics, the projected pattern will not be as sharp as a professionally made pattern. Use the following sizing information to design the images for your own custom gobos:
Gobo Specifications
Q: How long will the Gantom iQx last? A: Because this is an LED product, the Gantom iQx is rated for over 50,000 hours of lifetime. Stainless steel or glass gobos should last indefinitely while 35mm slides will fade over time. Q: Can I run this from a battery for portable applications? A: Yes, this product only uses about 3W of power and can be powered from a 9V or 12V battery for several hours depending on battery size. Q: Can I run the Gantom iQx without DMX signal?
| Gobo Size | 19mm (0.75in)?? |
| Max Image Size (For Patterns) | 15mm (0.59in)?? |
| Max Image Size (For Text) | 10mm (0.39in)?? |
A: Yes, once the Gantom iQx is configured to a desired output pattern using the DMX Programmer App, it will retain that pattern in memory and automatically recall it when powered on if there is no signal input.
?
