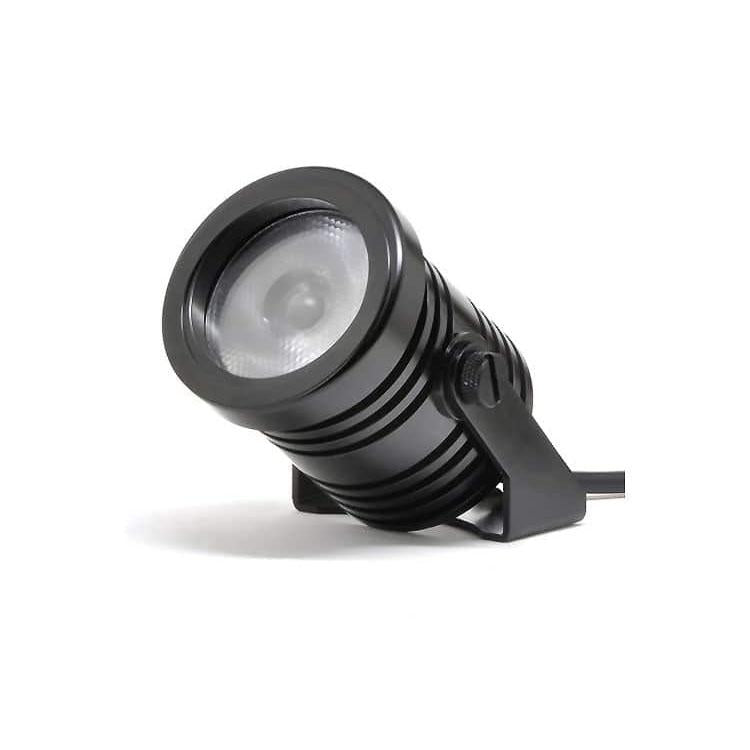

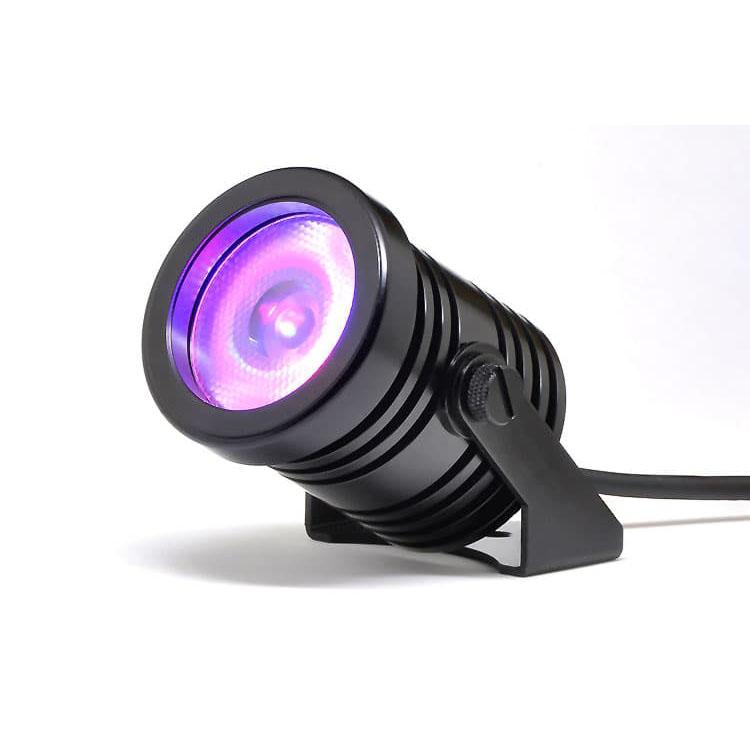

The Gantom 7 packs seven-color output into a tiny package. With a native 13 degree beam angle, this LED spotlight produces a punchy yet soft beam with homogeneous color mixing even at a close distance. Included micro-lenses and the magnetic accessory holder offer easy beam control solutions; diffusing the spotlight to a floodlight is literally a snap.
Native DMX control and a balanced, non-linear dimming curve meets the most demanding theming tasks. This compact spotlight features lime, amber, and ultraviolet beyond the common RGBW to achieve colors unavailable in standard LED fixtures. With the Gantom 7, lighting designers obtain a virtually unlimited color palette in a compact and efficient 7-Watt LED fixture.
FEATURES
- Full spectrum output with 7 LED colours. Multiple colour profiles selectable (RGB, RGBA, RGBW, RGBAWUv, RGBAWLUv).
- Color control via DMX512 or DMX Programmer app.
- Precision-tuned non-linear dimming curve and colour balance algorithm.
- Standalone mode allows set and forget operation without DMX signal (requires DMX Programmer app).
- DMX address and configuration stored in memory.
- Low voltage and minimal heat for improved safety over incandescent sources.
- Internal constant current driver gives highly efficient and consistent output.
- Minimal maintenance required with over 50,000 hour lamp life.
- Indoor and outdoor use.
APPLICATIONS
- Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
- Theatre and stage accent lighting
- Mobile displays
- Floral centerpieces
- Retail spaces
- Architectural accent lighting
- General purpose accent lighting
- Props and animatronics
- Special effects lighting
- Temporary event lighting
SPECIFICATIONS - INDOOR PRODUCT
| Product Type | : | Gantom 7 |
| Product Code | : | GNTM7 - GP277 |
| CRI | : | N/A |
| Kelvin | : | N/A |
| Housing Color | : | Black |
| Current, Rating | : | 620 ma |
| Nominal Voltage | : | 12 VDC |
| Voltage Range | : | 12 VDC |
| Wattage | : | 7.5 W |
| CC / CV | : | CC |
| IP Rating | : | IP65 |
| Lux @ Full @ 1 Meter Throw | : | 650 |
| Lux @ Full @ 2 Meter Throw | : | 220 |
| Lux @ Full @ 3 Meter Throw | : | 100 |
| Beam Angle (50% Max) | : | 15 degree |
| Field Angle (10% M | : | 35 degree |
| Housing Material | : | Anodized Aluminum |
| Temperature, Operating, Maximum | : | 85 C |
| Temperature, Operating, Minimum | : | -20 C |
| Agency Ratings | : | UL, CE |
| Dimensions | : | 69MM X 68.5MM |
| Mounting Hole | : | 6.5MM Diameter |
| Wavelength A Red | : | 635 nm |
| Wavelength B Green | : | 515 nm |
| Wavelength C Blue | : | 450 nm |
| Wavelength D Amber | : | 598 nm |
| Wavelength E White | : | 6500k |
| Wavelength F Lime | : | 4250k |
| Wavelength G Ultraviolet | : | 395 nm |
| Data Clock Frequency | : | N/A |
| PWM Dimming Frequency | : | N/A |
DOWNLOADS
Specification Sheet
Gantom 7 User Guide
*nominal lifetime - dependent on installation location
