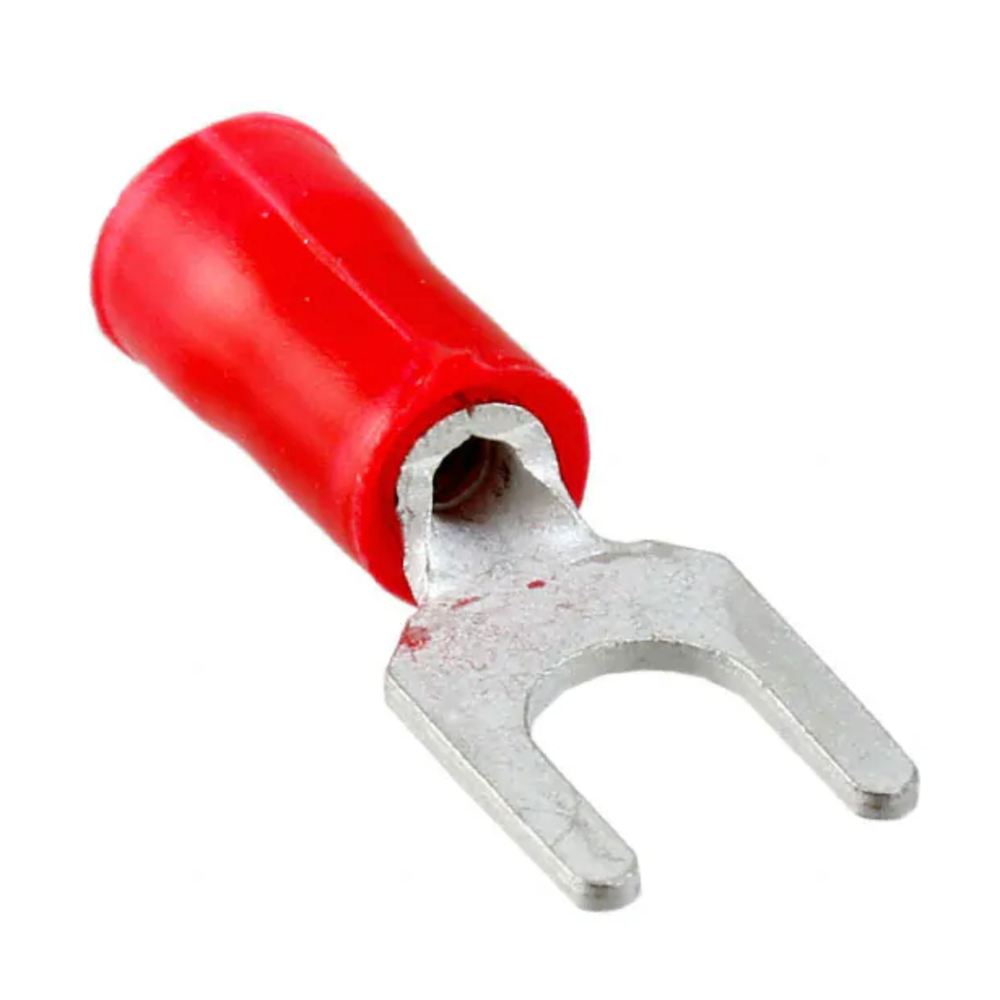

Fork Splice

SKU PNX-3240039
by Panduit
$1.00
Size
Availability: translation missing: en.general.icons.icon_check_circle icon 89 in stock, ready to be shipped
Accessories

Perfect for making quick, permanent, secure connections.

Low profile for limited space applications

Internal wire stop assures proper length of insertion into terminal barrel.

These terminals mate onto our Dodici and VentiQuattro power input terminal lugs.






SPECIFICATIONS

Style : Fork Vinyl Fork Vinyl
Wire Range In. (mm?) : 16 - 14 AWG 22 - 16 AWG
Barrel Configuration : Standard Standard
Base Material : Copper Copper
Insulation : Nylon Nylon
Panduit Color Code : Blue Red
Plating Type : Tinned Tinned
Part Number Series : Panduit TE
Length In. (mm) : 0.886" (22.50mm) 0.831" (21.10mm)
Max. Insulation Diameter In. (mm) : N/A N/A
Stud Size : M4 Stud M4 Stud
Max. Voltage Rating : 600V 300V
CSA Certified : Yes
Yes
UL Listed : Yes
Yes
CE Compliant : No No
RoHS Compliancy Status : Compliant Compliant



DOWNLOADS

  1. 16 - 14 AWG Specification Sheet

  2. 22 - 16 AWG Specification Sheet
