Flat Cable

SKU 182CFLTBR
by MossLED
$1.94
Length
Gauge
Conductors
Availability: Translation missing: en.general.icons.icon_check_circle icon 3288 in stock, ready to be shipped
Accessories

20 AWG  & 18 AWG Flat Parallel Wire.  Available in 2 conductor, 3 conductor, 4 conductor, 5 conductor, and 6 conductor. Pricing is per meter.
We recommend no more than 9 amps per conductor with our 18AWG flat wire and no more than 7 amps per conductor using our 20AWG flat wire.

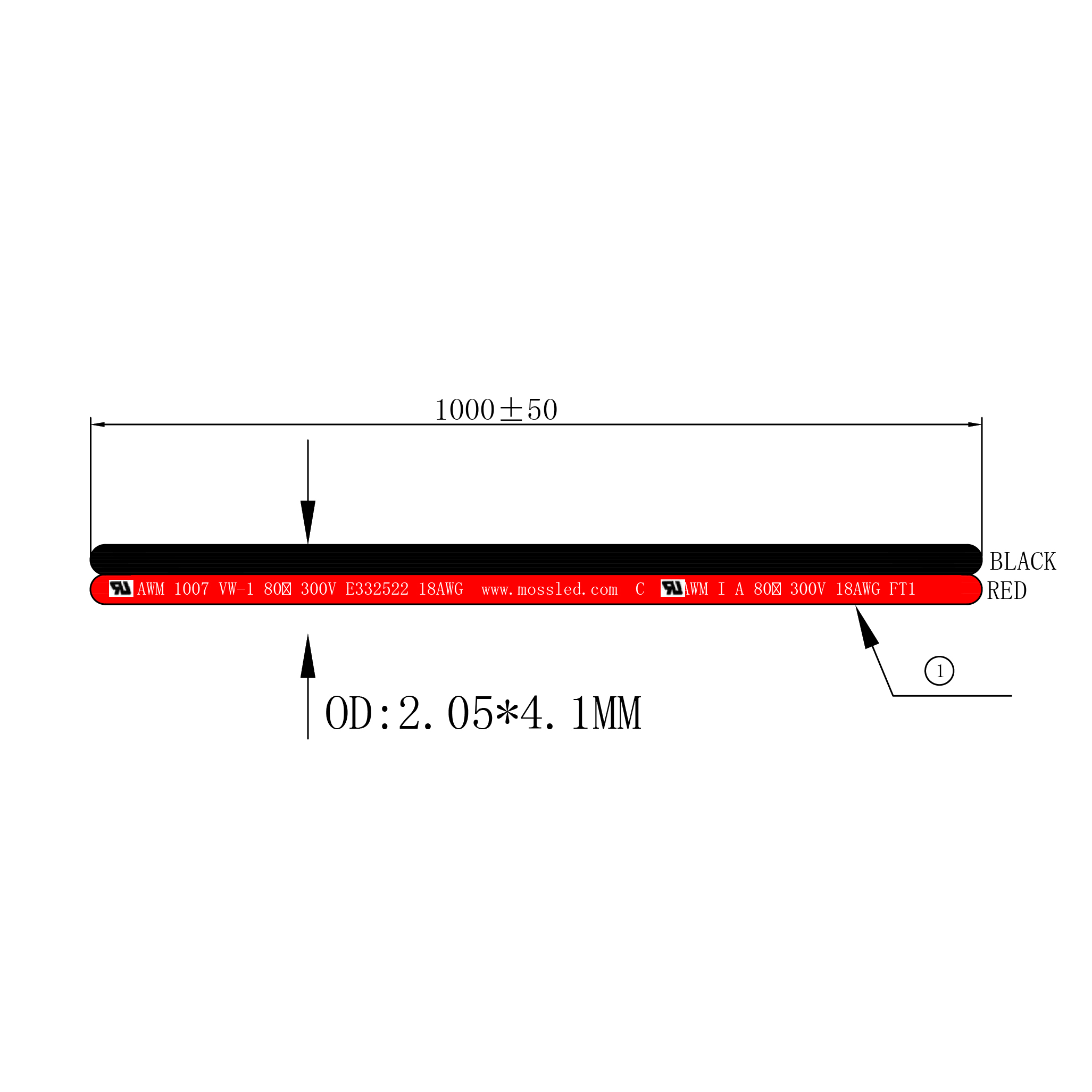

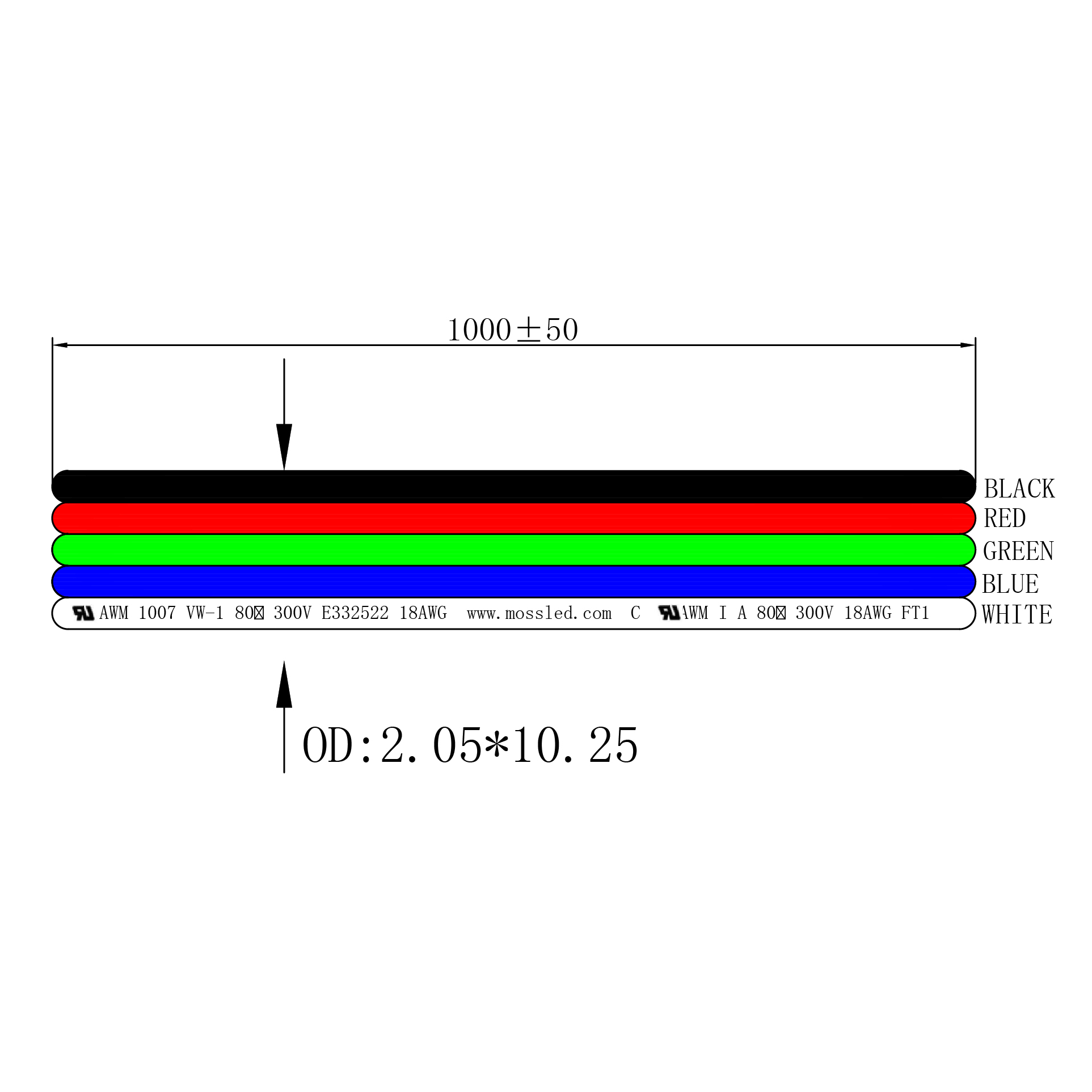

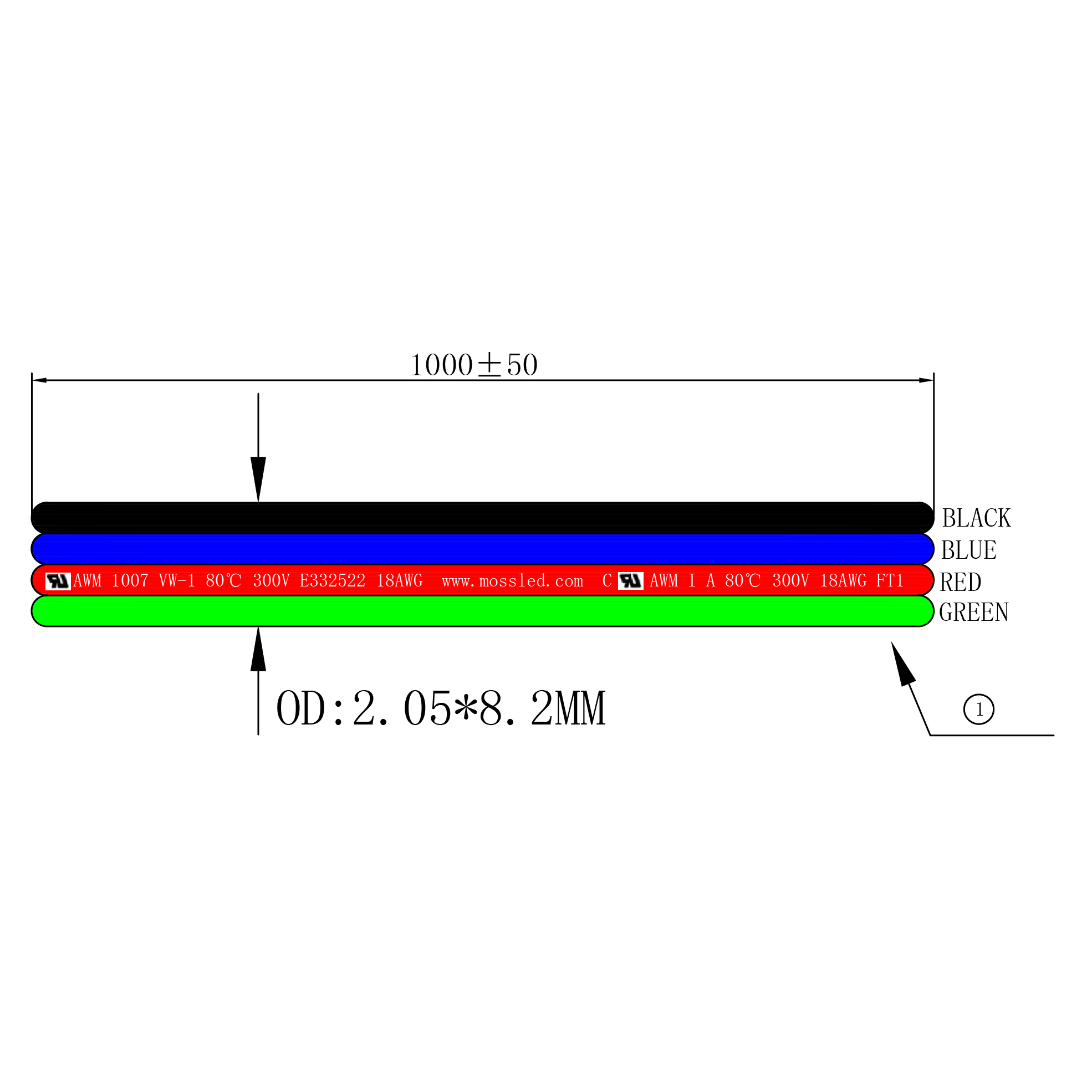

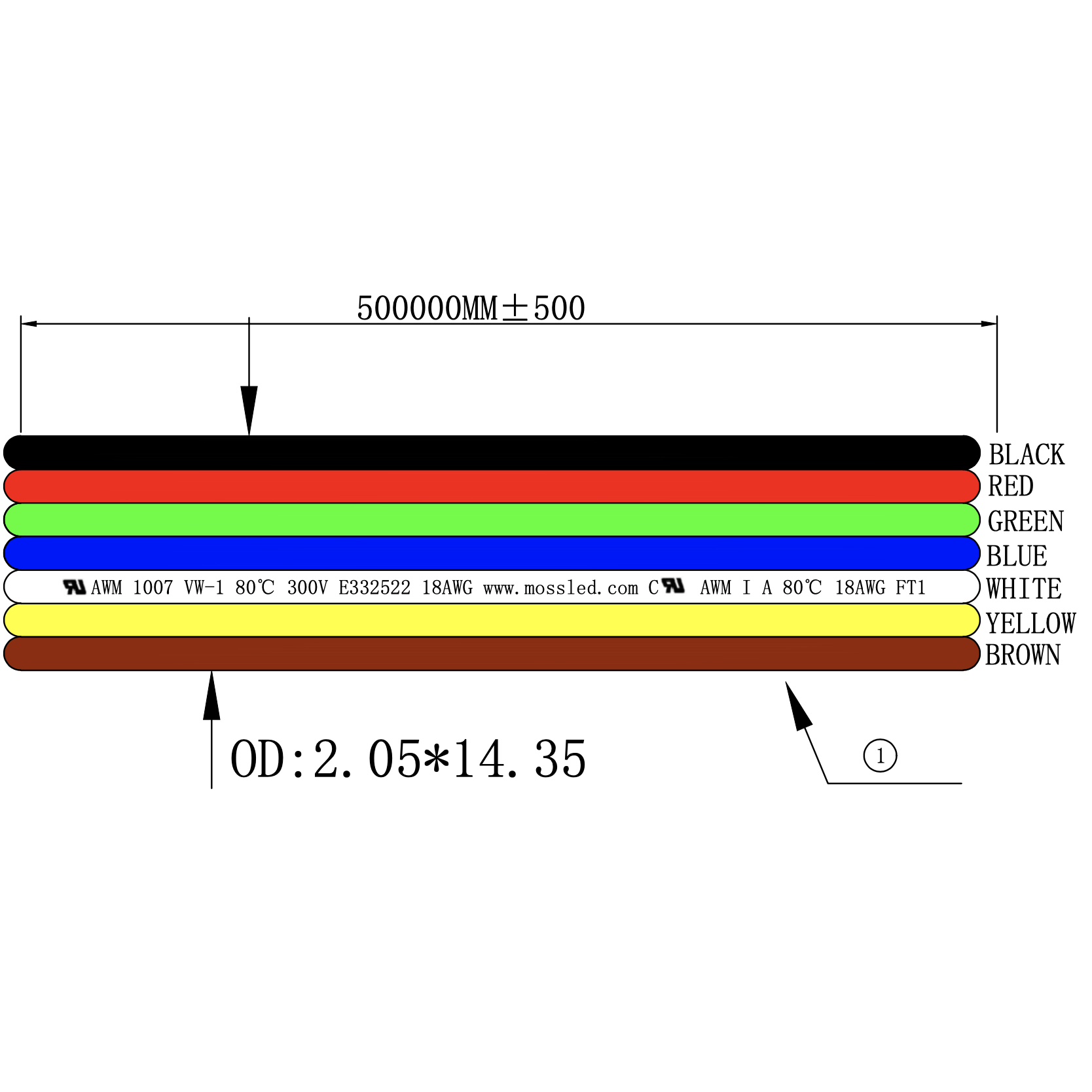

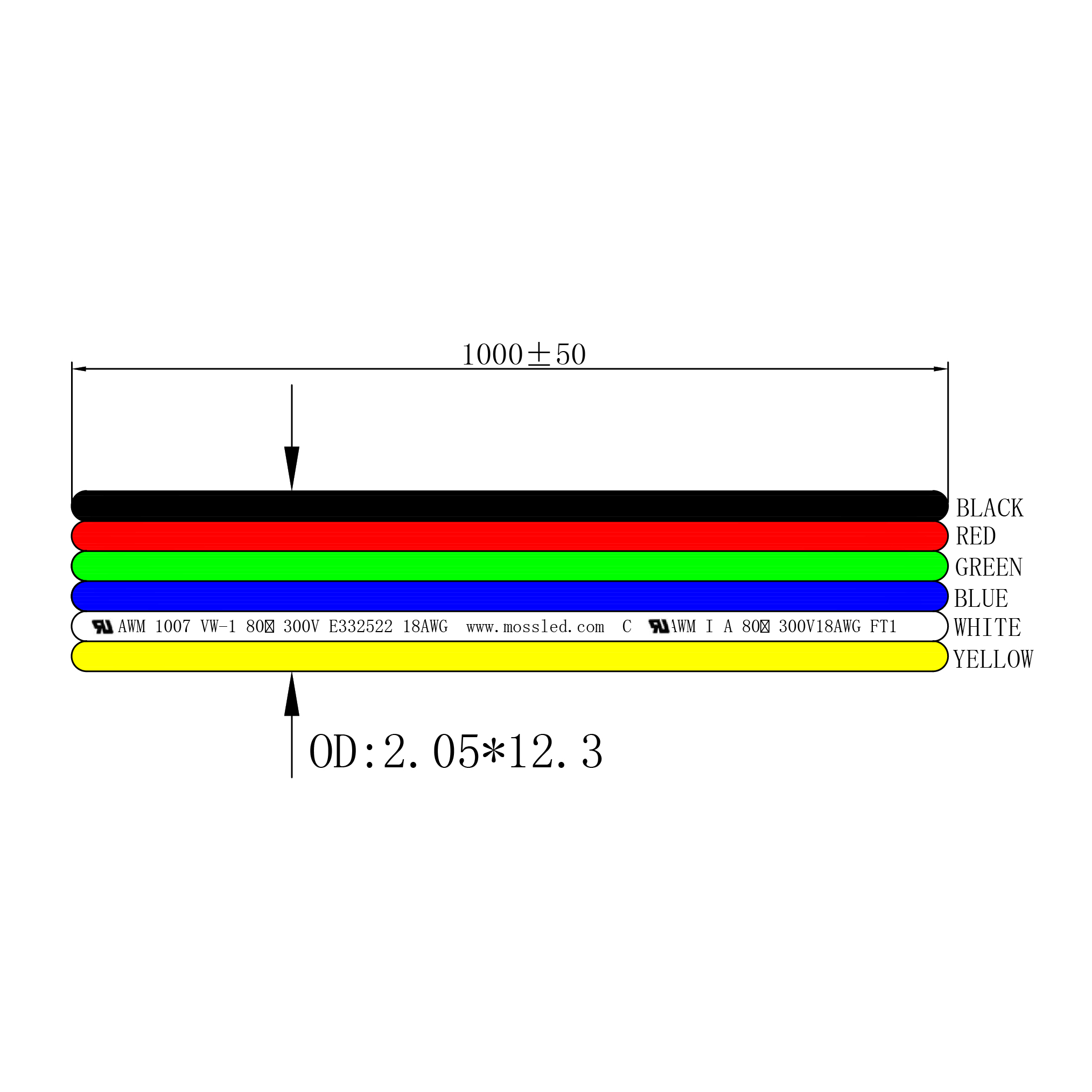

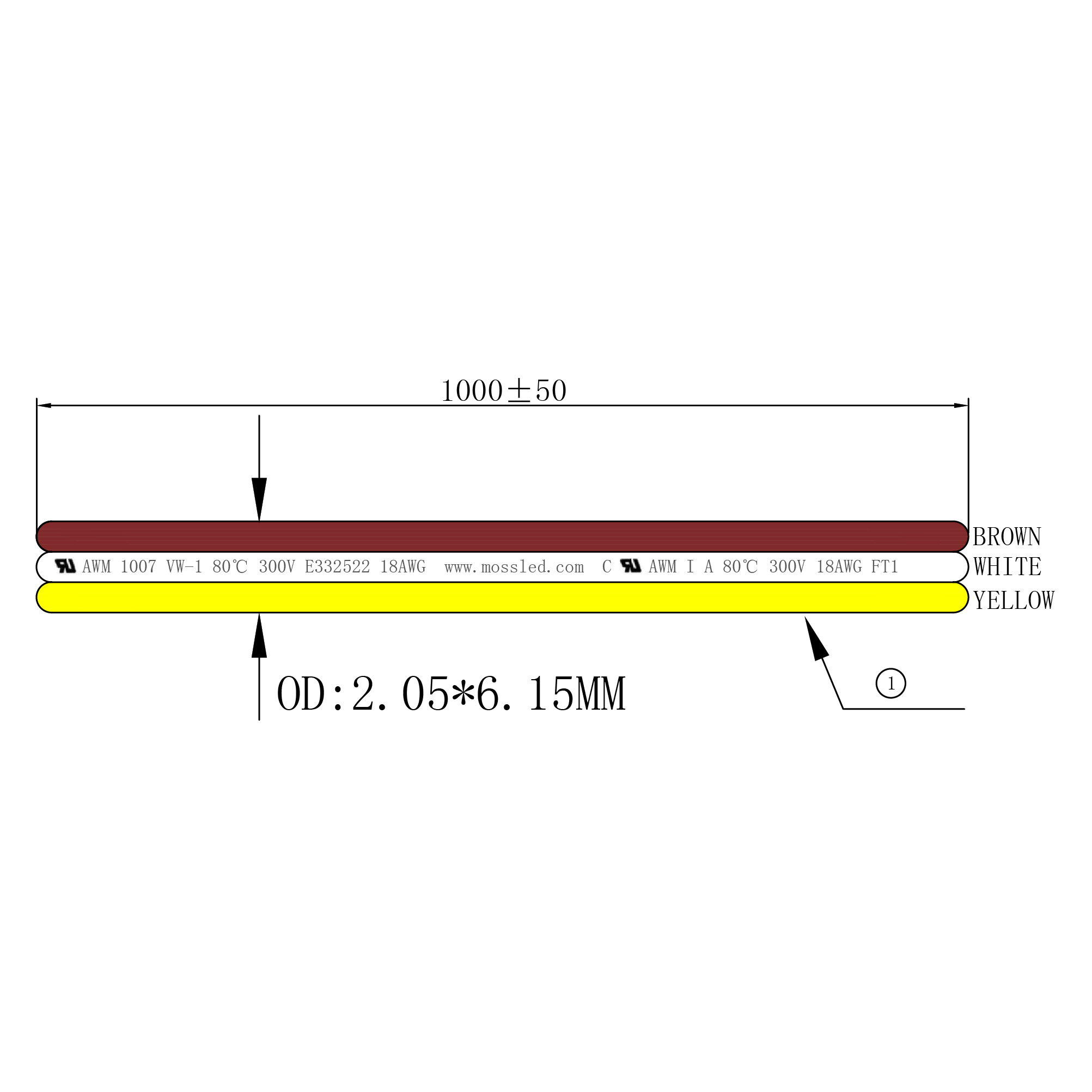

SPECIFICATIONS - 18AWG


SPECIFICATIONS - 18AWG

Product SKU : 182CFLTBR 183CFLTBYW 184CFLTRGBW 185CFLTBWGBR 186CFLTBYWGBR 187CFLTBYWGBRG
Agency Approvals : UL 1007  CSA-C22.2 No. 210 No. 127
Amperage : 9 A Per Conductor
Color : Black, Red Brown, White, Yellow Black, Blue, Red, Green Black, Red, Green, Blue, White Black, Red, Green, Blue, White, Yellow Black, Red, Green, Blue, White, Yellow
Number of Conductors : 2 3 4 5 6 6
Height : 2.05MM
Width : 4.1MM 6.15MM 8.2MM 10.25MM 12.3MM 14.35MM
Wire,AWG : 18
Insulation Material : Polyvinylchloride (PVC)
Flammability : FT1
Class : Class I Group A (Internal - Where not subjected to mechanical abuse)
Temperature, Operating, Maximum : 80°C
Temperature, Operating, Minimum : -40°C
Insulation Resistance : 10MΩ MIN /DC 300V /10ms.
Conductance Resistance : 1 OHM MAX
Cable Type : AWM 1007 AWM I (Appliance Wiring Material)
Wire Material : Stranded Copper
Voltage Rating : 300V

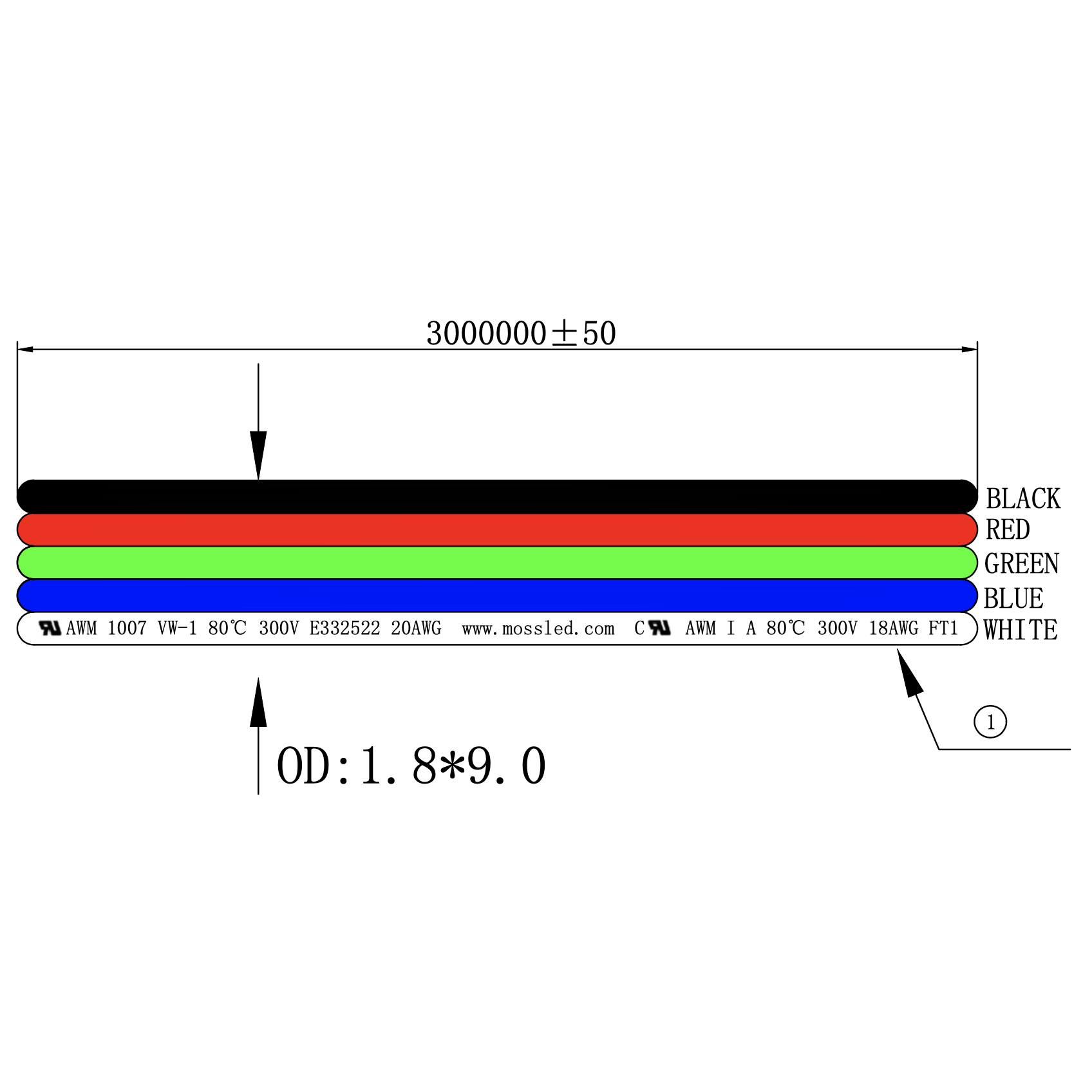

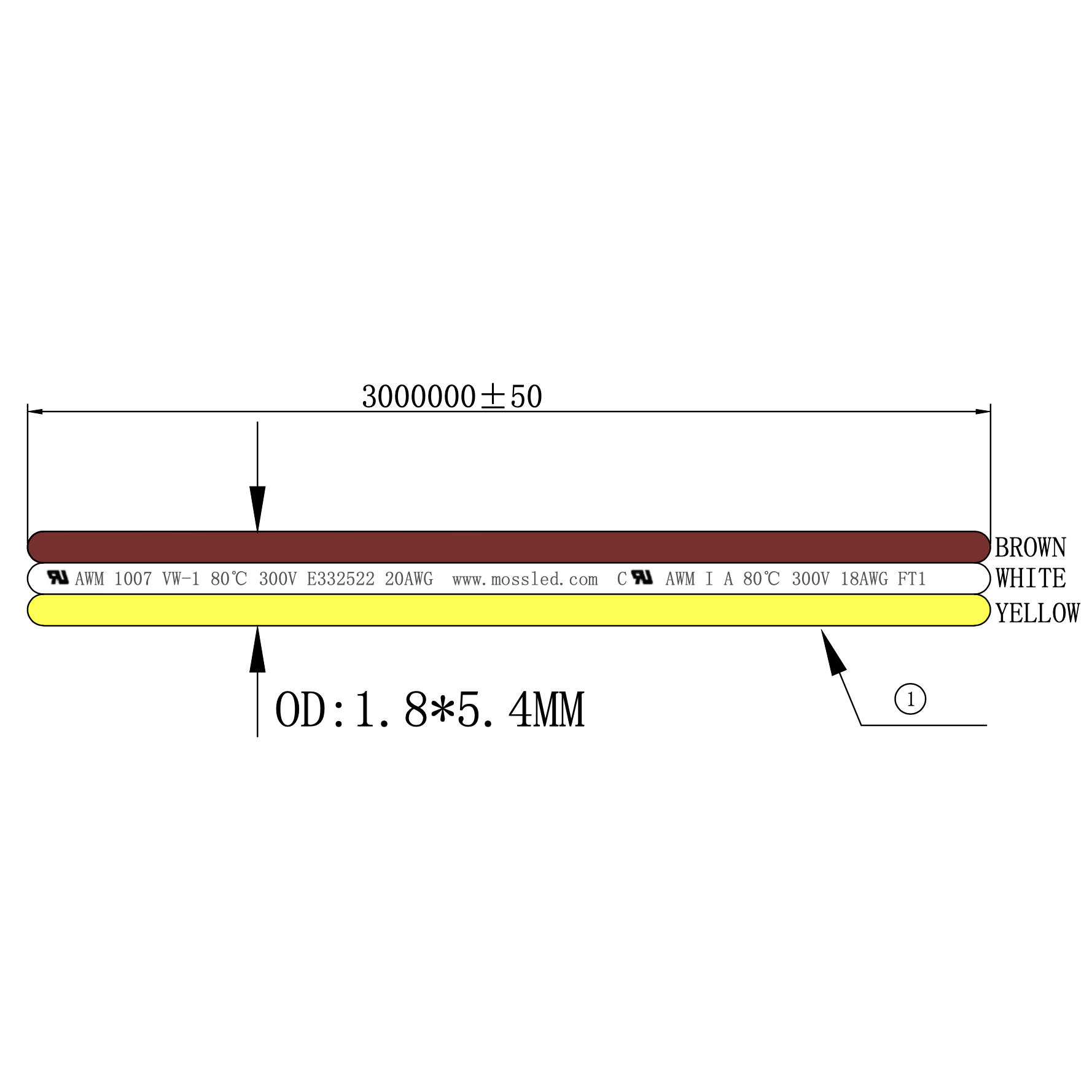

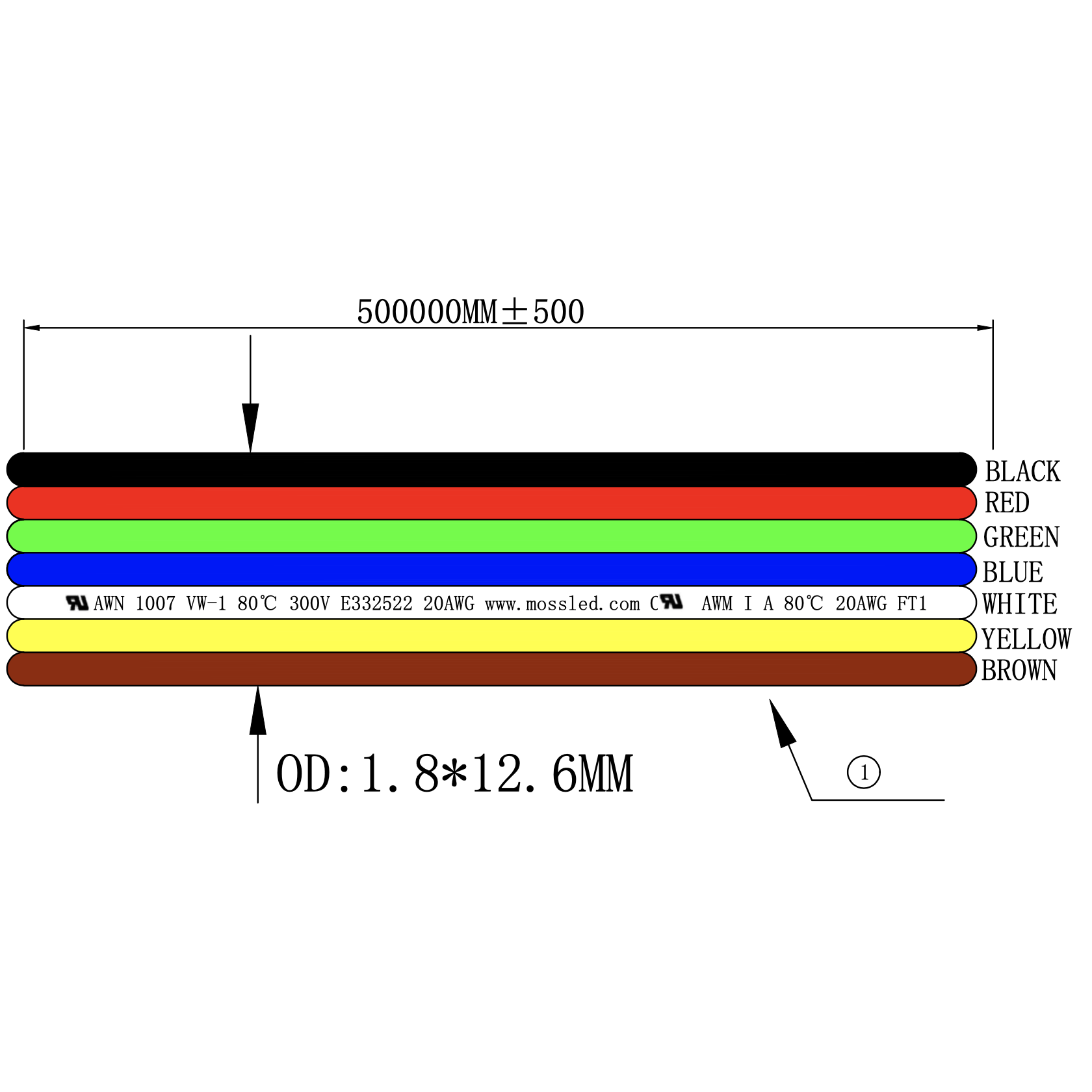

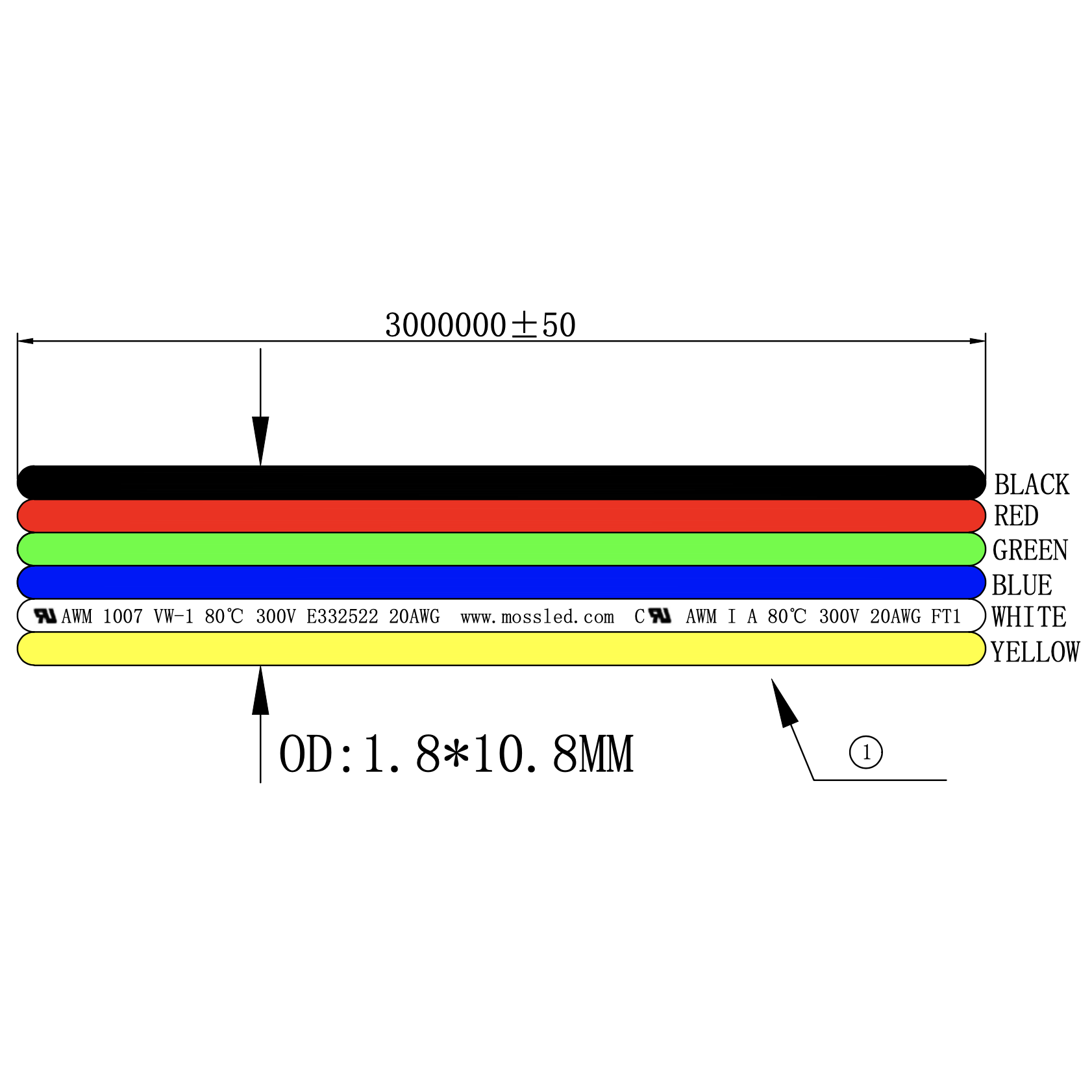

SPECIFICATIONS - 20AWG

Product SKU : 202CFLTBR 203CFLTBYW 204CFLTRGBW 205CFLTBWGBR 206CFLTBYWGBR 207CFLTBYWGBRG
Agency Approvals : UL 1007  CSA-C22.2 No. 210 No. 127
Amperage : 7 A Per Conductor
Color : Black, Red Brown, White, Yellow Black, Blue, Red, Green Black, Red, Green, Blue, White Black, Red, Green, Blue, White, Yellow Black, Red, Green, Blue, White, Yellow, Brown
Number of Conductors : 2 3 4 5 6 7
Height : 1.8MM
Width : 3.6MM 5.4MM 7.2MM 9MM 10.8MM 12.6MM
Wire,AWG : 18
Insulation Material : Polyvinylchloride (PVC)
Flammability : FT1
Class : Class I Group A (Internal - Where not subjected to mechanical abuse)
Temperature, Operating, Maximum : 80°C
Temperature, Operating, Minimum : -40°C
Insulation Resistance : 10MΩ MIN /DC 300V /10ms.
Conductance Resistance : 1 OHM MAX
Cable Type : AWM 1007 AWM I (Appliance Wiring Material)
Wire Material : Stranded Copper
Voltage Rating : 300V

DOWNLOADS

  1. 18AWG - 2 Conductor Specification Sheet
  2. 18AWG - 3 Conductor Specification Sheet
  3. 18AWG - 4 Conductor Specification Sheet
  4. 18AWG - 5 Conductor Specification Sheet
  5. 18AWG - 6 Conductor Specification Sheet
  6. 18AWG - 7 Conductor Specification Sheet
  7. 20AWG - 2 Conductor Specification Sheet
  8. 20AWG - 3 Conductor Specification Sheet
  9. 20AWG - 4 Conductor Specification Sheet
  10. 20AWG - 5 Conductor Specification Sheet
  11. 20AWG - 6 Conductor Specification Sheet
  12. 20AWG - 7 Conductor Specification Sheet
