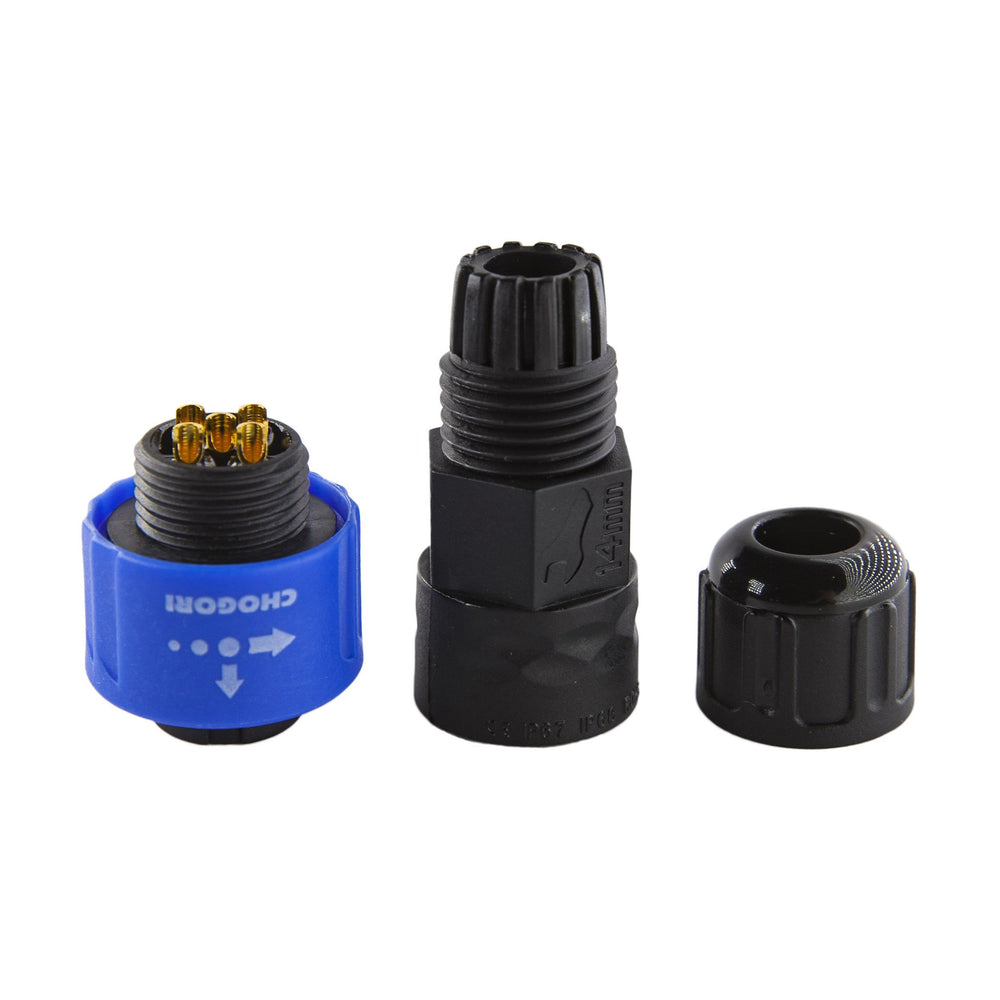

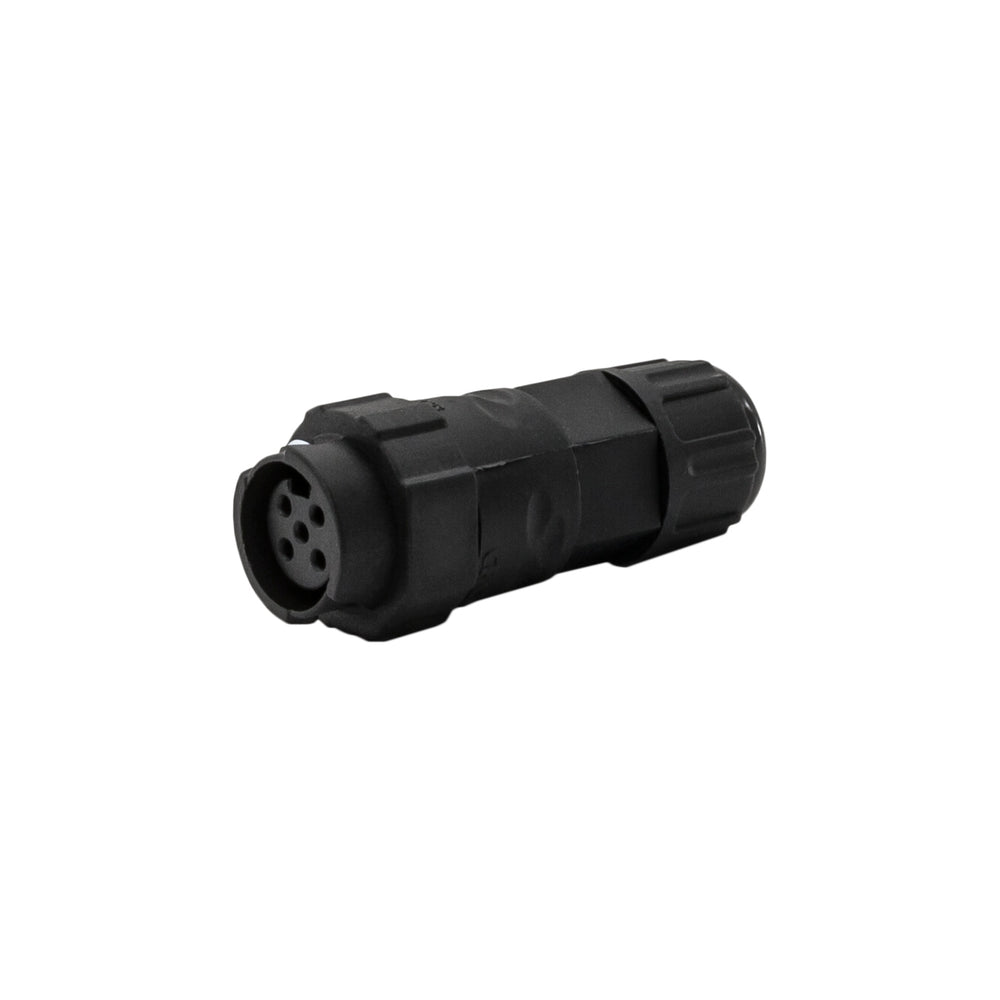

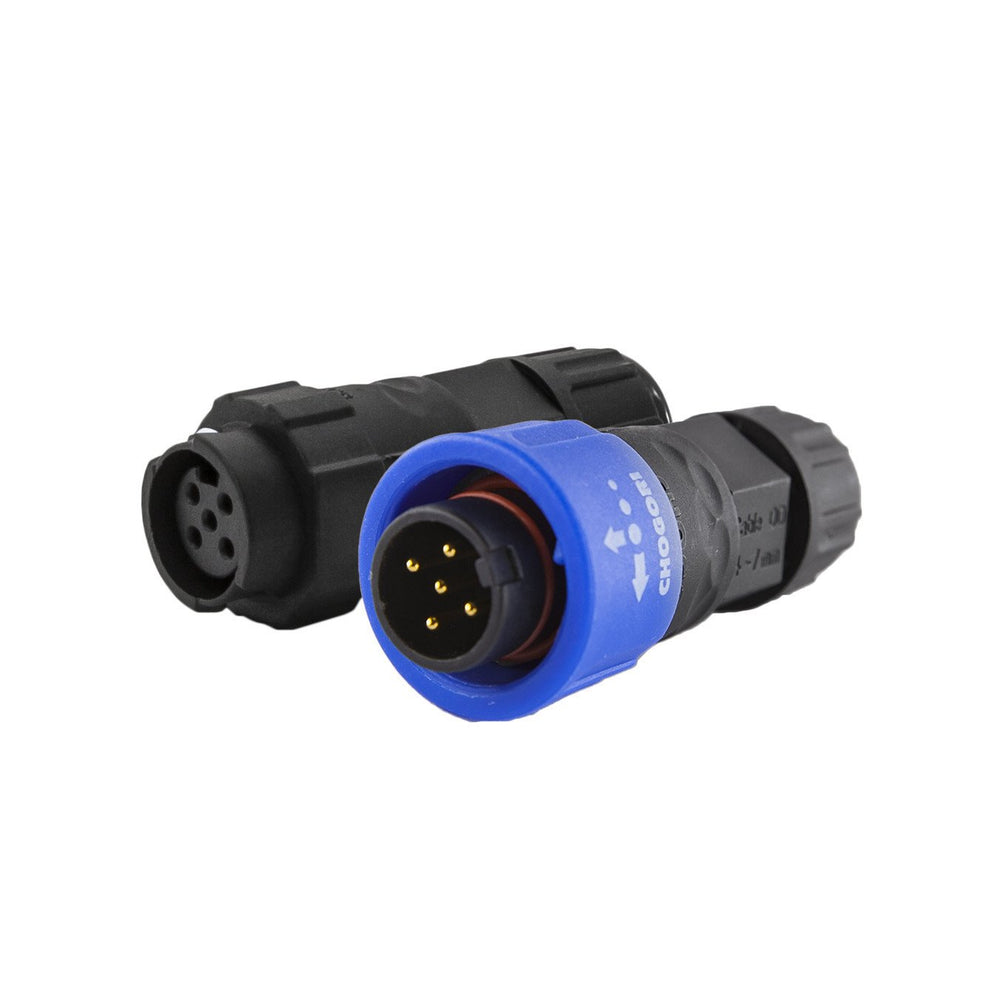

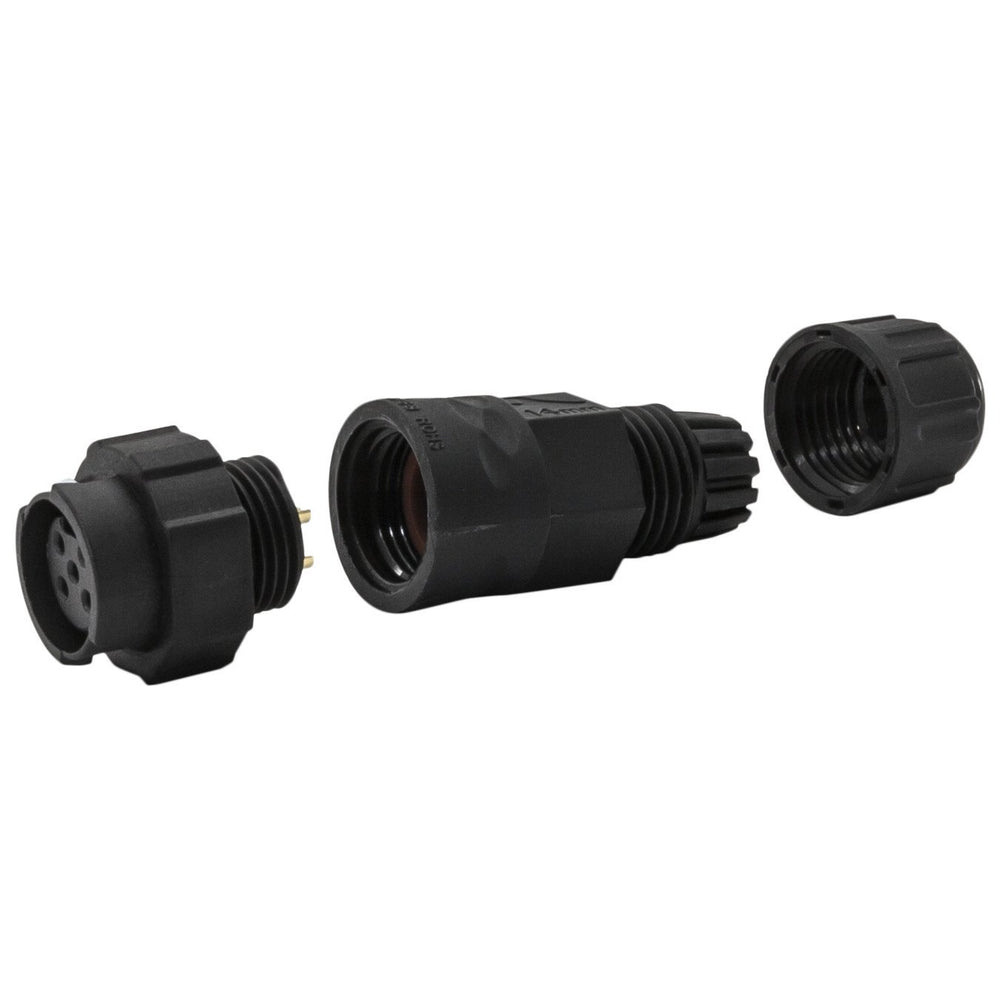

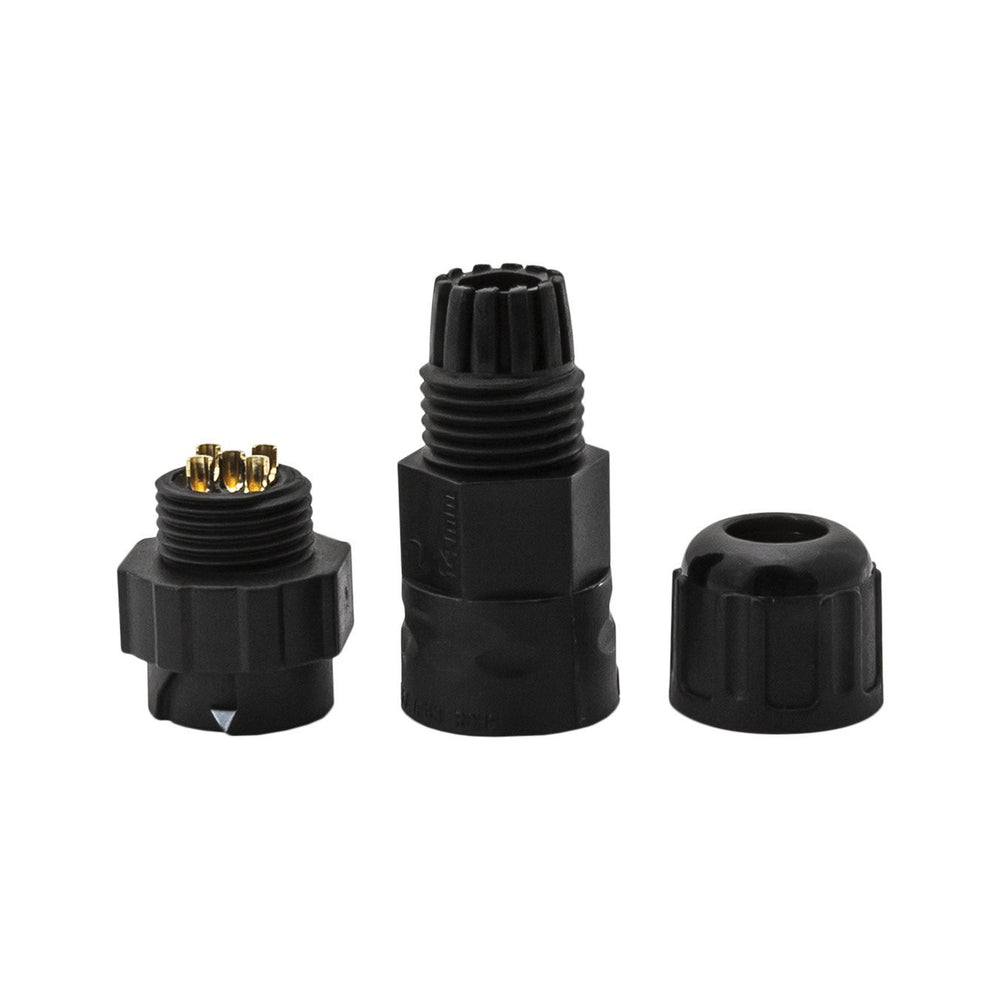

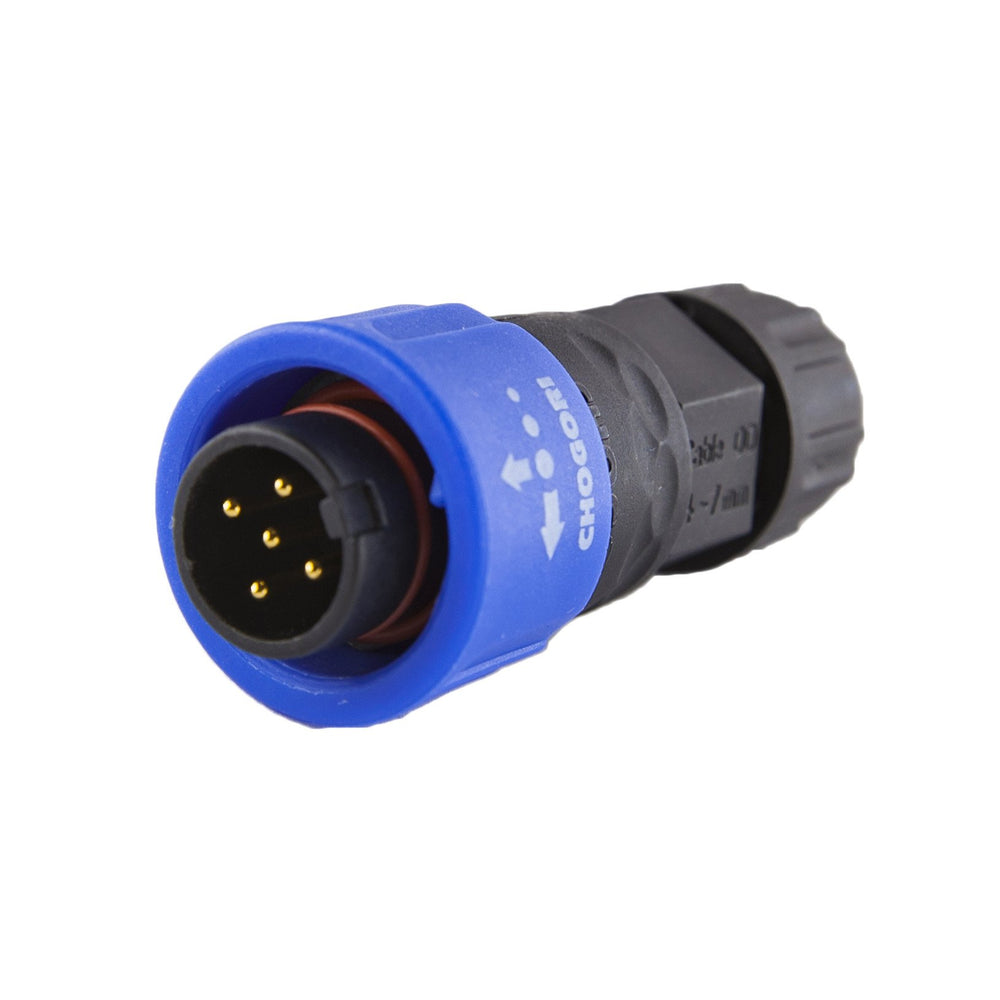

Extension Cable 5-PIN Connector Field Installable Plug

5PMFIP

903 items left


Collections: Cables & Connectors

Type: Cables


  • Superior Industry-grade Connectors
  • Install connectors on your own cable!
  • Superior high current DC-rated connectors!
  • Field - installable connectors. Can be used with any cable. (preferably 20AWG - 22AWG)
  • Push-to-Lock and 1/4-Turn-Release make these both efficient and reliable

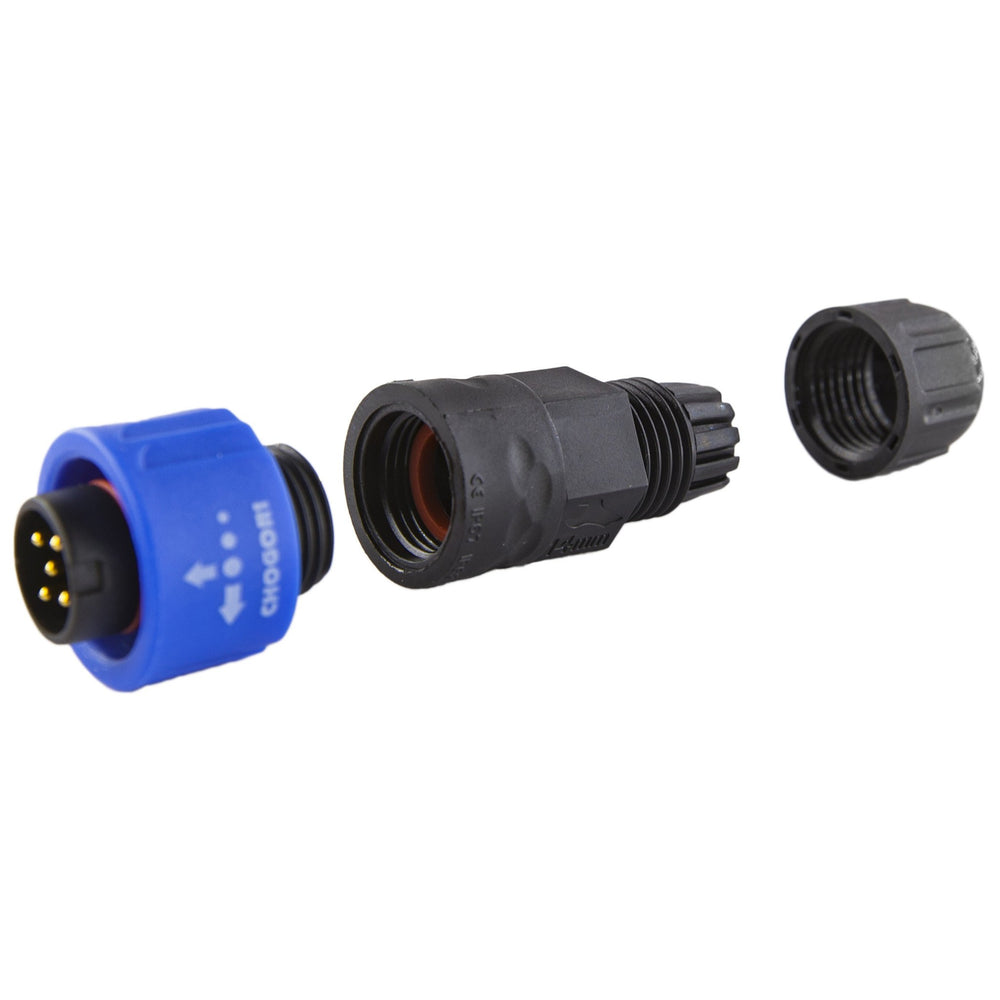

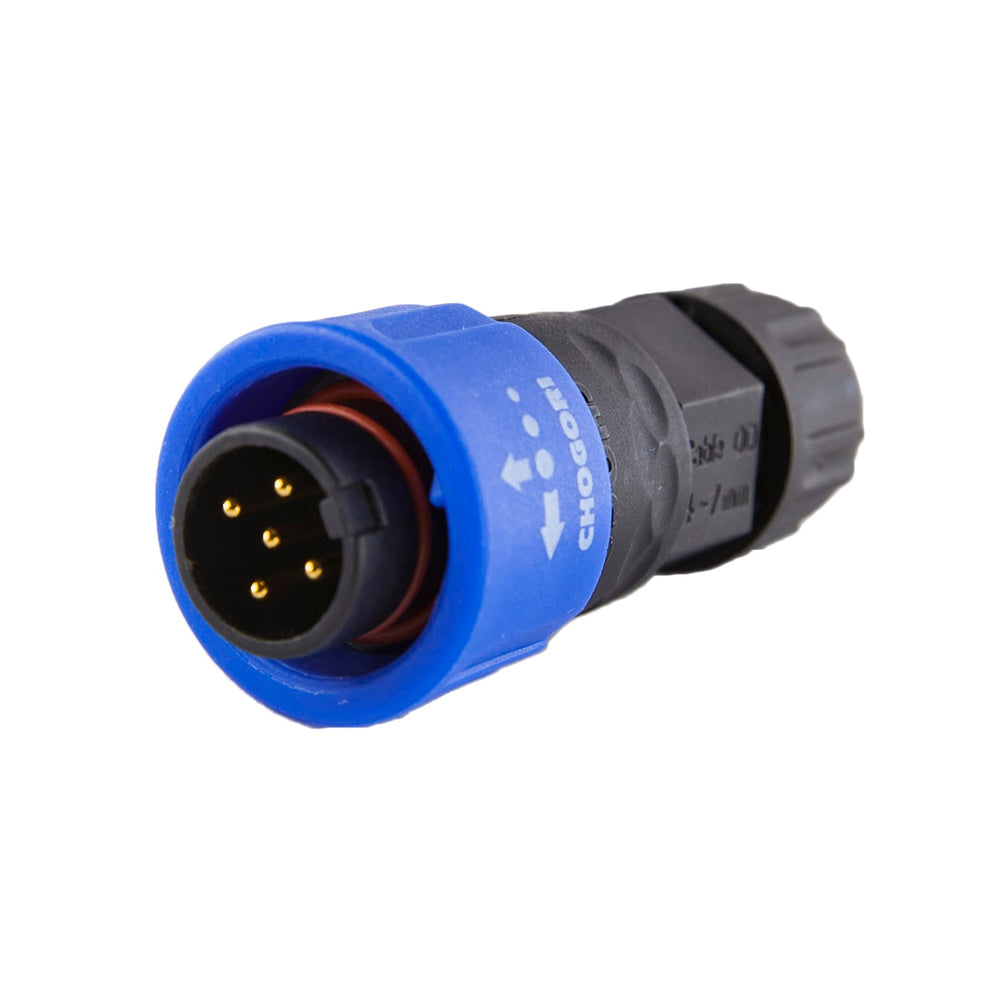

  • 5-PIN Male Connector to Bare end wires (stripped and tinned)





SPECIFICATIONS

  • Temperature Rating: -20C - +80C
  • Current Rating: 5A Per Pin
  • Voltage Rating: 60V
  • Breakdown Voltage: 1KV / 1 Minute Moist
  • Waterproof Rating: IP67
  • Cable: UL2464 5C*20AWG PVC OD6.0 (Ultra-Violet Protection + Waterproof)
  • Inner Molding: TPU
  • Outer Molding: PVC Black

DOWNLOADS

  1. Field Installable Assembly Instructions

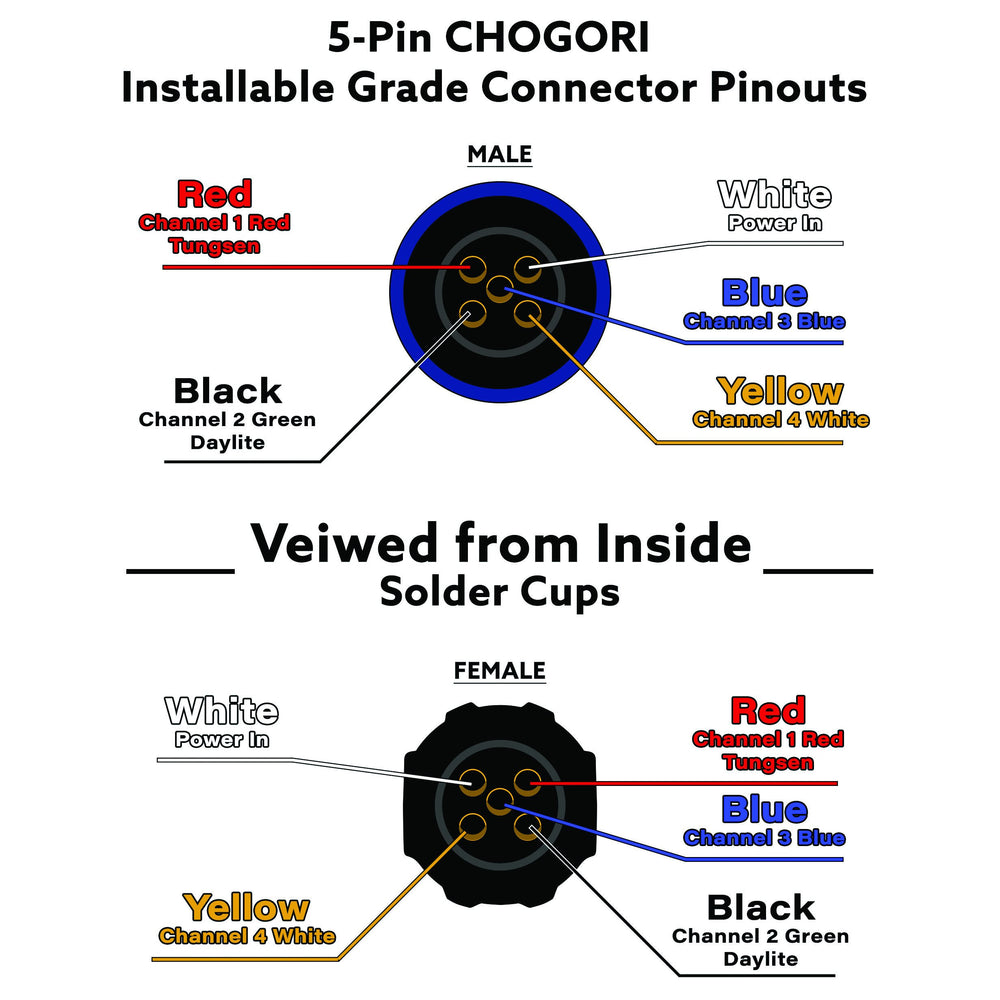

  2. Moss LED Standard Pinout

?
