This Controller can be used with all of our FlexLED Tape products and Modules
*NON STOCK ITEM - ONLY AVAILABLE VIA SPECIAL ORDER*

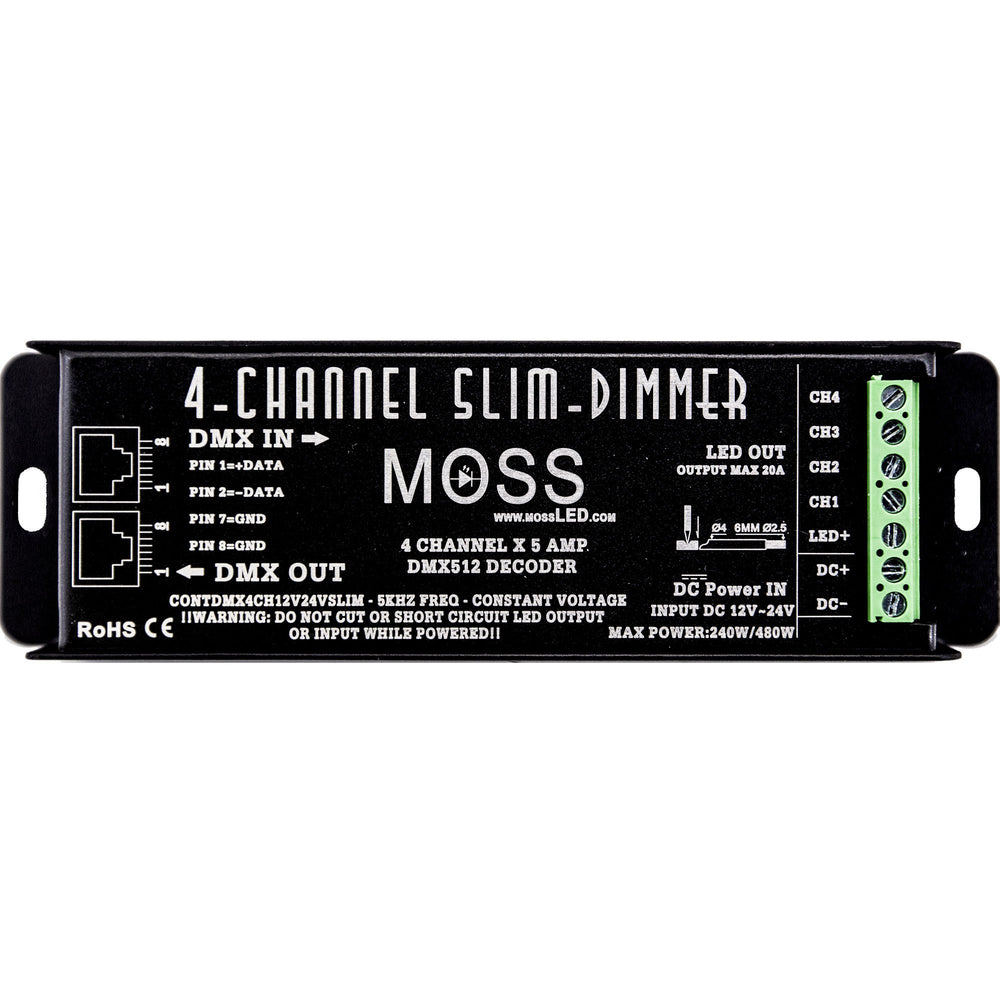

- This unit converts DMX-512/1990 standard digital signal and converts it into four dimmable channels.
- Uses RJ45 ethernet cables to control LEDs via any lighting console or through computer software
- Can create over 16 million colors when used with our Colorful (RGBA or RGBW or RGB OR Bi-Color OR White) FlexLED Tape
- Dipswitch Interface provides easy functionality for DMX addressing
Technical Parameters
|
Output Current (A)
|
:
|
4 Channels @ 5A: Max 20A (4 Channels @ 4A: 16A Max for UL Specs)
|
|
Output Power (W)
|
:
|
12V:<240W, 24V:<480W
|
|
Supply Voltage
|
:
|
12V - 24V DC
|
|
Size (inches)
|
:
|

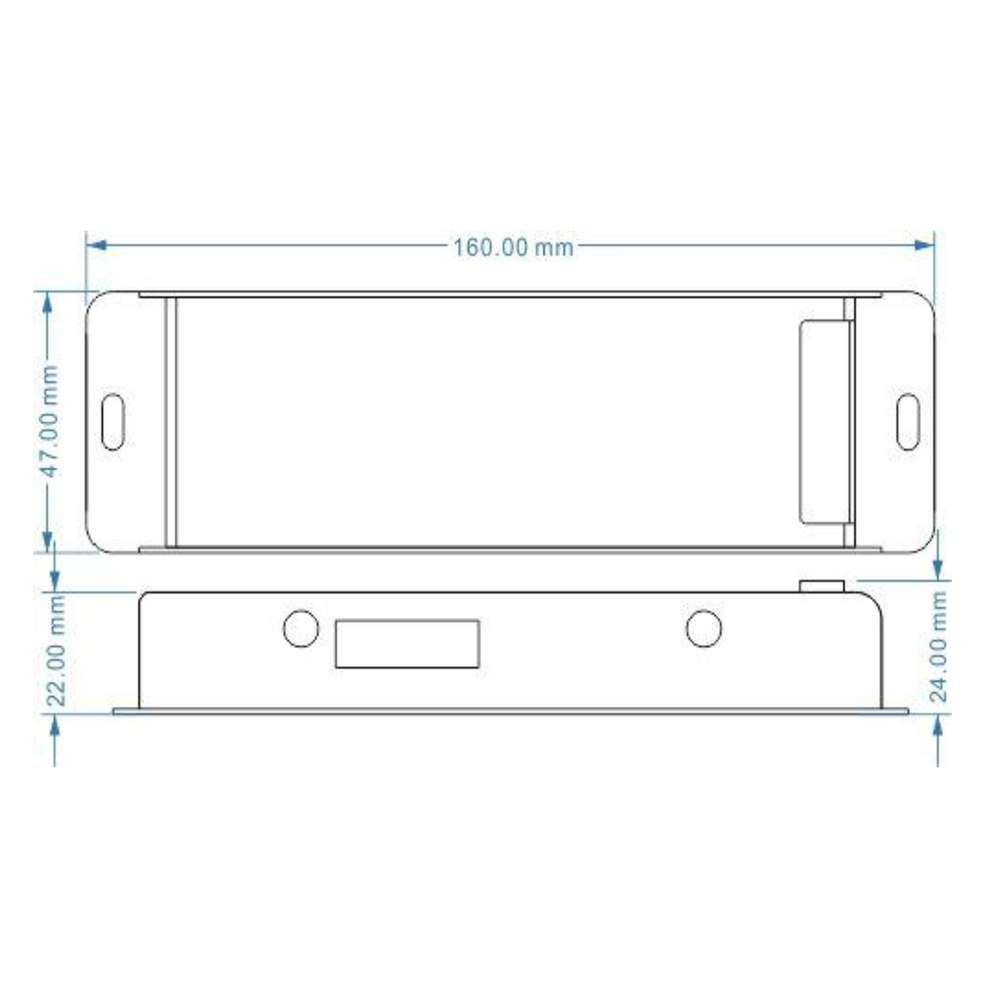

L 6.2” x W 1.8” x H 0.9”
|
|
Working Temperature
|
:
|
0°C to + 70 °C
|
|
Weight
|
:
|
220g
|
|
PWM Frequency
|
:
|
5000Hz (5kHz)
|
