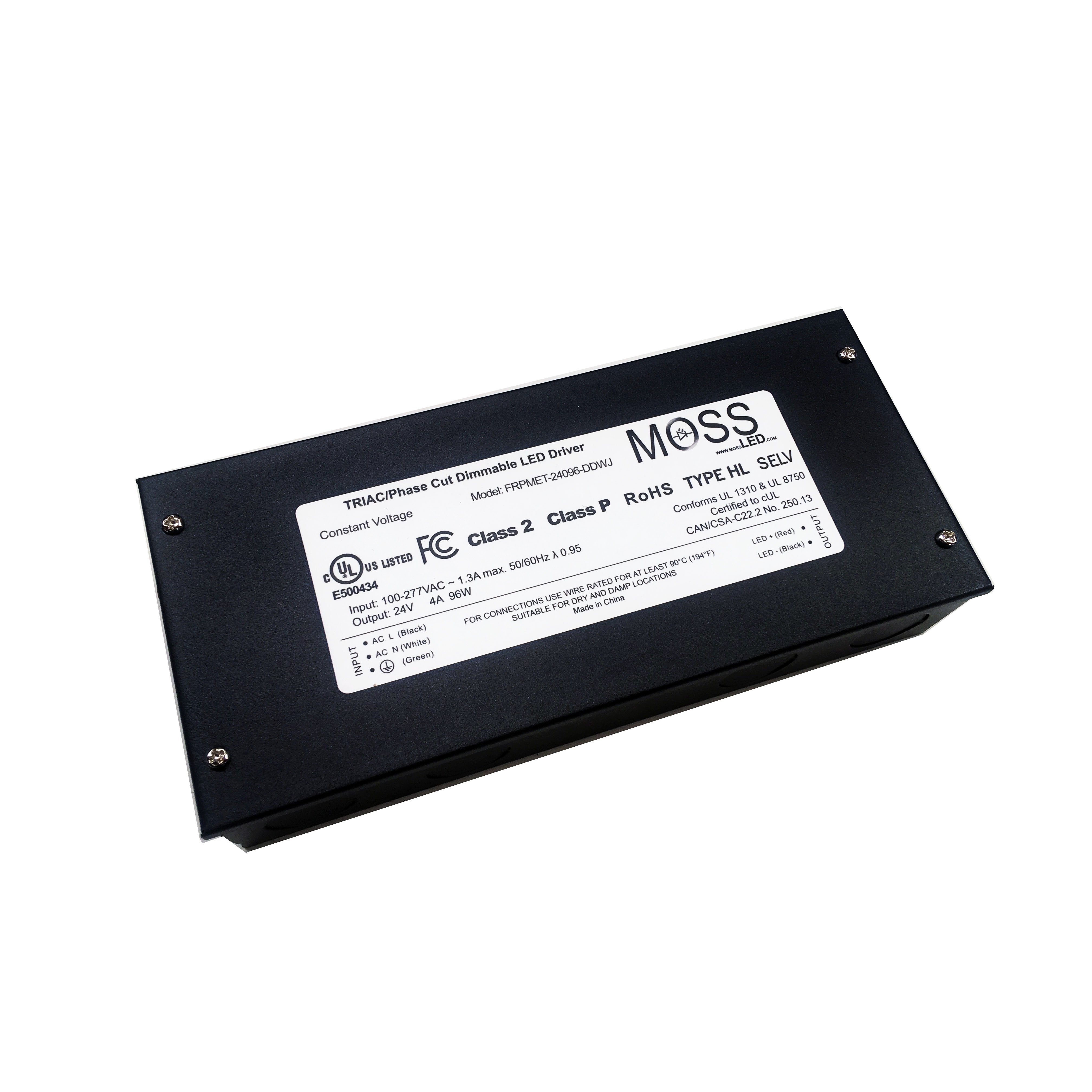

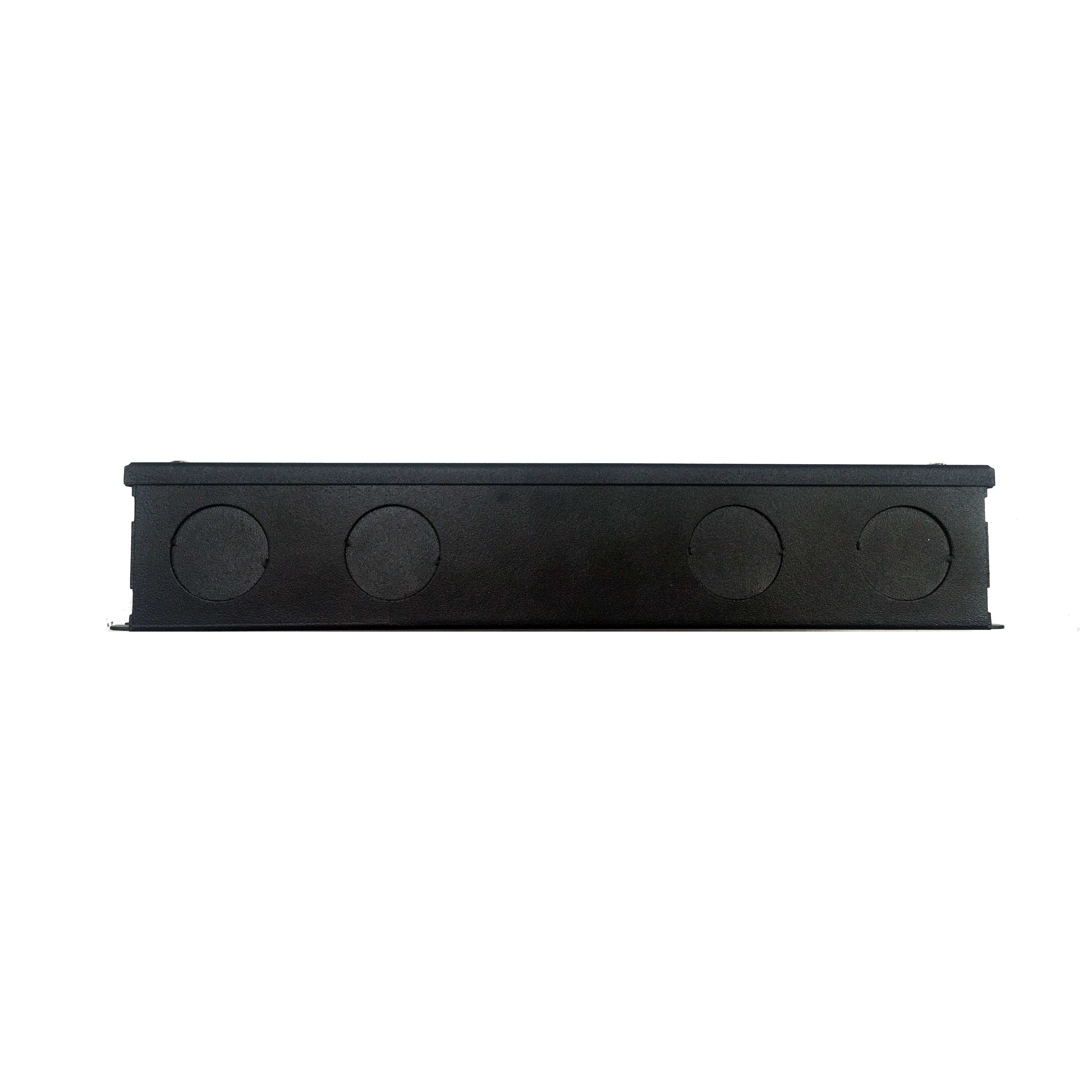

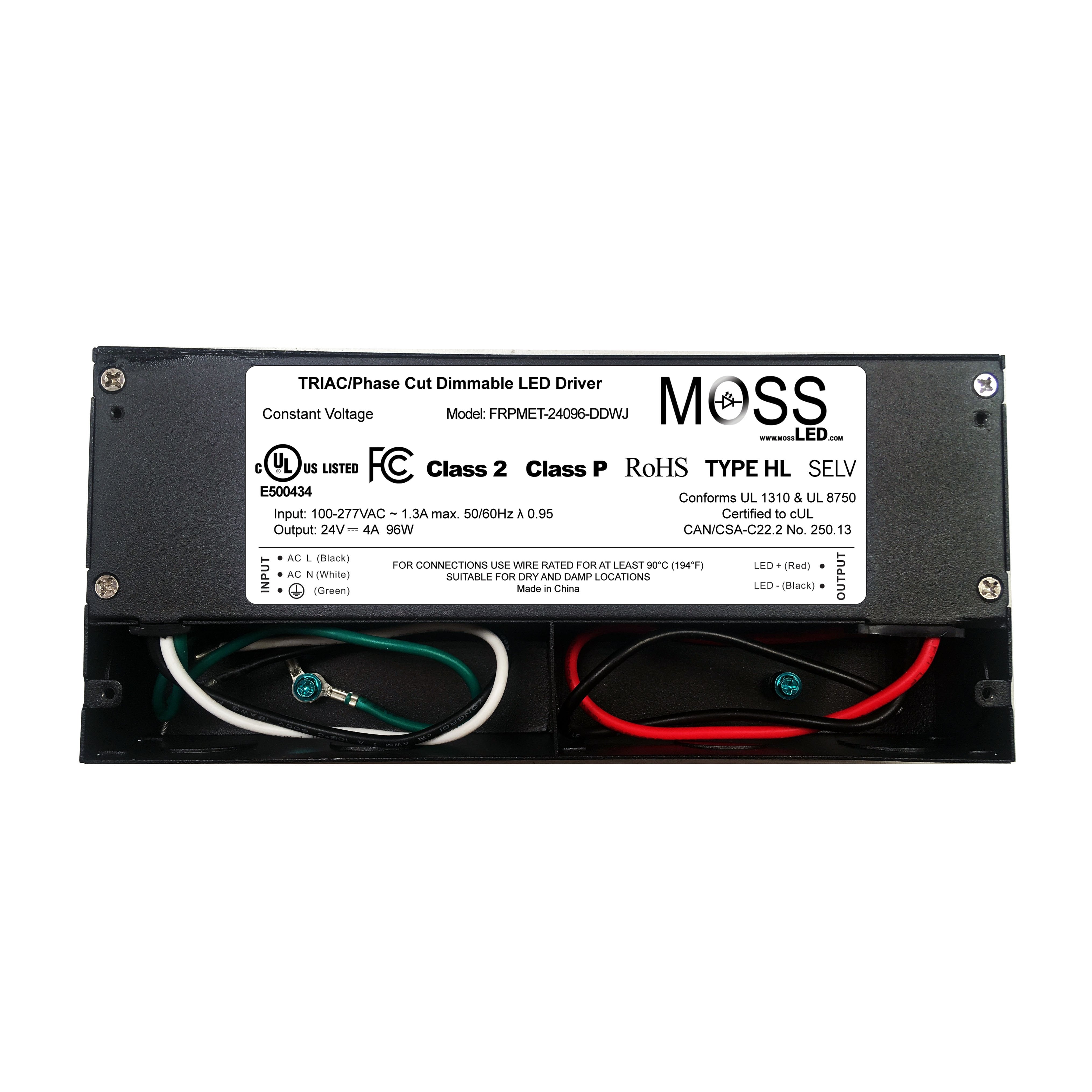

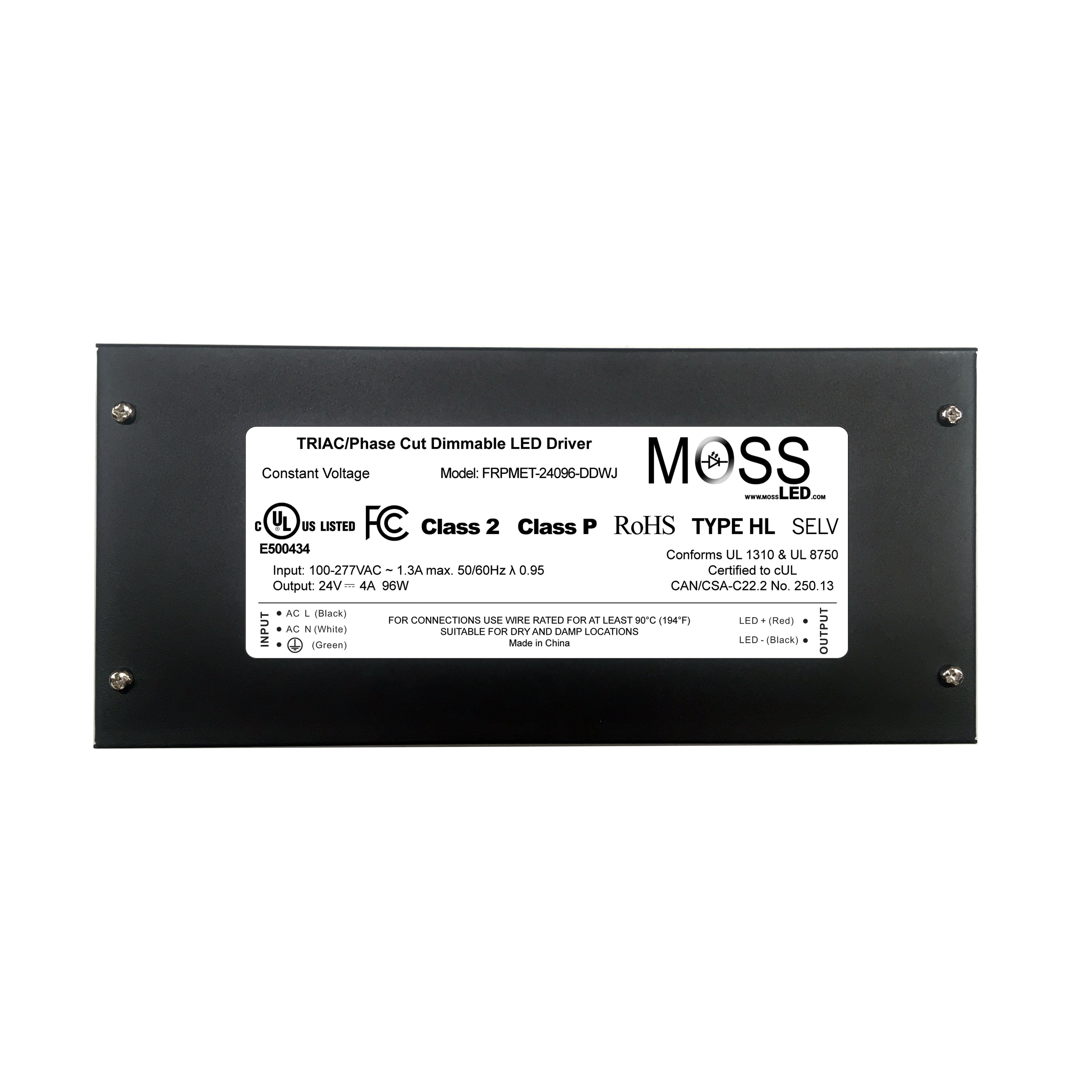

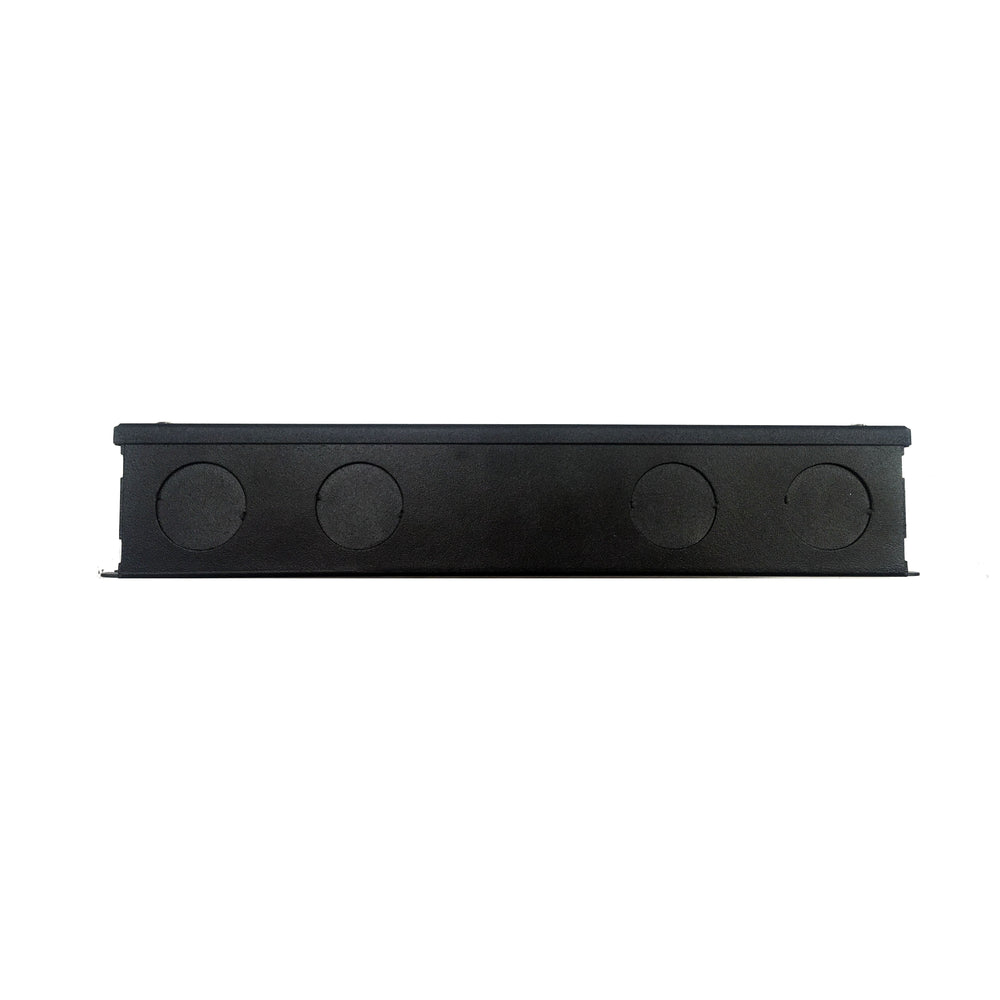

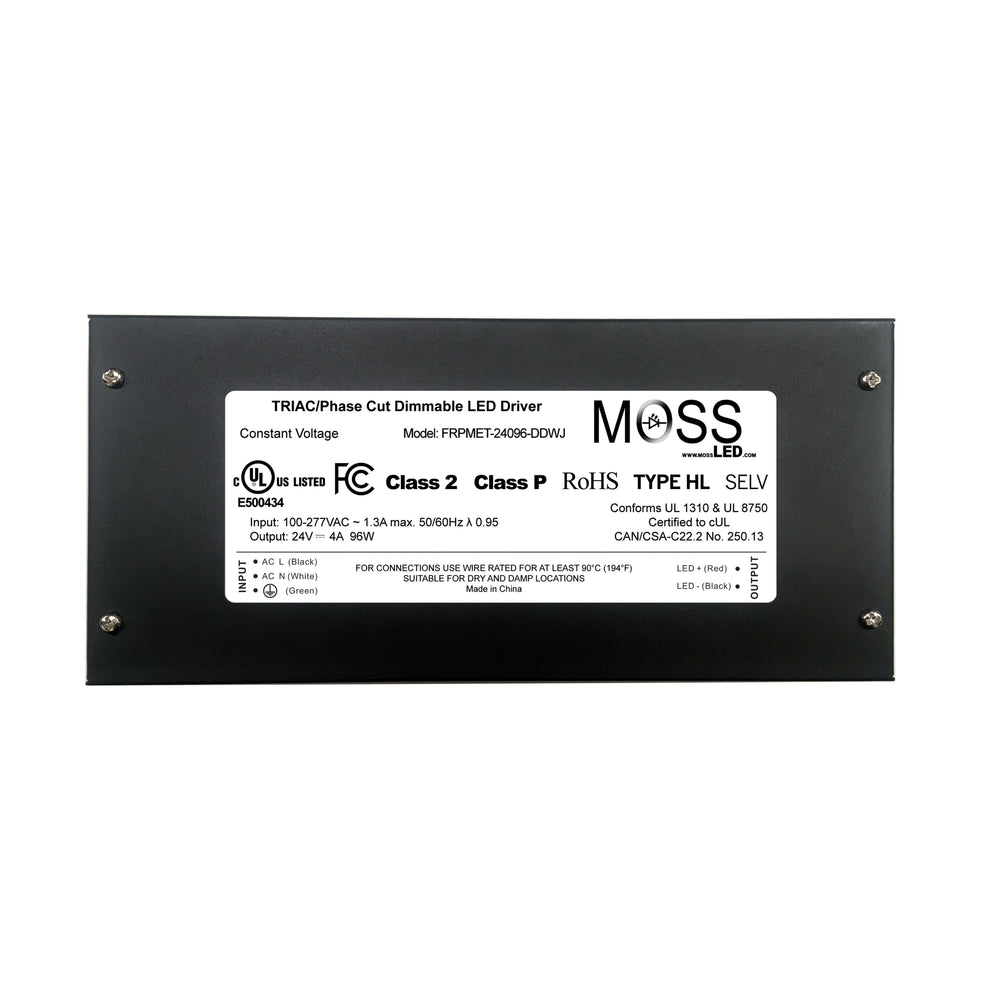

Dimmable Power Supply

KVP24025TDLP

14 items left


Collections: NEW, Power Supplies

Type: Power Supplies


Constant Voltage Phase/Triac dimmable drivers with PWM output.

These drivers are designed specifically to work with any standard household TRIAC wall dimmer or switch.  Beautiful dimming curve from 5% - 100% allows for smooth low-end dimming that is flicker free.

  • Output Constant Voltage
  • Universal AC Input: 100 - 130VAC
  • High efficiency: up to 87%
  • Protection: short circuit / over load / over current / over temperature
  • Full protection plastic (25W / 60W) OR aluminum housing (96W / 200W)
  • Easy installation
  • Cooling by free air convection (no fans!)
  • Compatible with forward phase, magnetic low voltage, triac dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED Lighting, and moving sign applications and many others
  • Suitable for dry locations (IP20 25W / 60W)
  • Suitable for damp locations (IP66 96W / 200W)
  • cETLus Certified Class 2 (25W, 60W, 96W) and Class I (200W)



SPECIFICATIONS - INDOOR PRODUCT

Product Type : 25 Watt
60 Watt
96 Watt
200 Watt
Product Code : KVP24025TDLP KVP24060TDLP KVP24096TDLP KVP24200TDLJB
Certificates : ETL, cETL, FCC ETL, cETL, FCC ETL, cETL, FCC ETL, cETL, FCC
Output Voltage : 24V DC 24V DC 24V DC 24V DC
Output Current : 1.04 Amps 2.5 Amps 4 Amps 8.3 Amps
Voltage Tolerance : +/- 0.5V +/- 0.5V +/- 0.5V +/- 0.5V
Voltage : 24 VDC 24 VDC 24 VDC 24 VDC
Input Voltage : 100-130VAC 100-130VAC 100-130VAC 100-130VAC
Input Frequency Range : 47 - 63Hz 47 - 63Hz 47 - 63Hz 47 - 63Hz
Input Power Factor : 0.65 0.65 0.65 0.65
Efficiency (typ.) : 84% 87% 83% 85%
Input AC Current : 0.9A 1.0A 2.0A 3.2A
Leakage current : <0.50mA/120VAC <0.50mA/120VAC <0.50mA/120VAC <0.50mA/120VAC
Protection - Short Circuit : Hiccup mode, recover automatically after fault condition is removed Hiccup mode, recover automatically after fault condition is removed Hiccup mode, recover automatically after fault condition is removed Hiccup mode, recover automatically after fault condition is removed
Protection - Over Current : <1.2*I out <1.2*I out <1.2*I out <1.2*I out
Protection - Over Loading : <120% <120% <120% <120%
Protection - Over temperature : 100 C, shut down o/p voltage, recover automatically after temp is lowered 100 C, shut down o/p voltage, recover automatically after temp is lowered 100 C, shut down o/p voltage, recover automatically after temp is lowered 100 C, shut down o/p voltage, recover automatically after temp is lowered
Working Temperature : -40 - +60C 40 - +60C 40 - +60C 40 - +60C
Working Humidity : 20 - 90% RH, non-condensing 20 - 90% RH, non-condensing 20 - 95% RH, non-condensing 20 - 95% RH, non-condensing
Storage Temp. Humidity : -40 - +80 C, 10-95% RH -40 - +80 C, 10-95% RH -40 - +80 C, 10-95% RH -40 - +80 C, 10-95% RH
Temp. coefficient : +/-0.03%/C (0 - 50 C) +/-0.03%/C (0 - 50 C) +/-0.03%/C (0 - 50 C) +/-0.03%/C (0 - 50 C)
Vibration : 10-500Hz, 2G 12 min./1 cycle, period for 72 min. each along X,Y,Z axes 10-500Hz, 2G 12 min./1 cycle, period for 72 min. each along X,Y,Z axes 10-500Hz, 2G 12 min./1 cycle, period for 72 min. each along X,Y,Z axes 10-500Hz, 2G 12 min./1 cycle, period for 72 min. each along X,Y,Z axes
Safety Standards : UL8750+UL1310, 10 meters 10 meters 10 meters
Class : Class 2 Unit Class 2 Unit Class 2 Unit Class 1 Unit
Withstand Voltage : I/P-O/P:1500VAC I/P-O/P:1500VAC I/P-O/P:1500VAC I/P-O/P:1500VAC
Isolation Resistance : I/P-O/P: 100MOhm/500VDC/25 C/70%RH I/P-O/P: 100MOhm/500VDC/25 C/70%RH I/P-O/P: 100MOhm/500VDC/25 C/70%RH I/P-O/P: 100MOhm/500VDC/25 C/70%RH
EMC Emission : FCC Part 15 B FCC Part 15 B FCC Part 15 B FCC Part 15 B
Net Weight : 0.21kg driver 1.07kg (driver) + 0.52kg (junction box) 1.2kg (driver) + 0.64kg (junction box) 1.65kg (driver) + 0.73kg (junction box)
Size (L*W*H) MM : 155*54*20 driver 350*77*37 driver 230*70*46MM (driver) 380*77*57MM (jbox) 256*78*47MM (driver) 406*87*60MM (jbox)
Packaging MM : 430*375*150m 20PCS/Box 430*375*190 20Pcs/Box

415*360*190 10Pcs/Box

445*350*205 10Pcs/Box

1. All parameters if NOT specially mentioned are measured at 120VAC input, rated load and 25C of ambient temperature.

2. To extend the driver's life, please reduce the loading at lower input voltage

3. Loading should be 5 - 100%

DOWNLOADS

  1. Specification Sheet

  2. cETLus Certificate of Compliance
