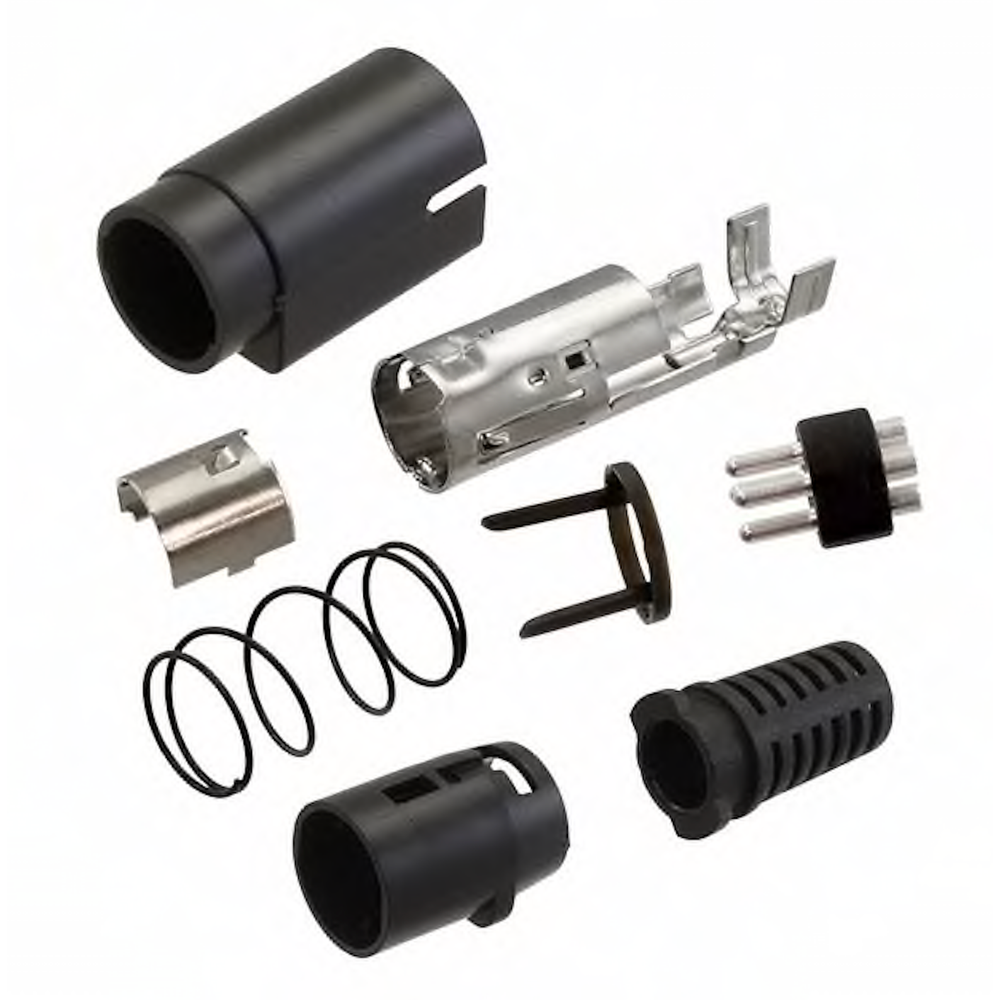

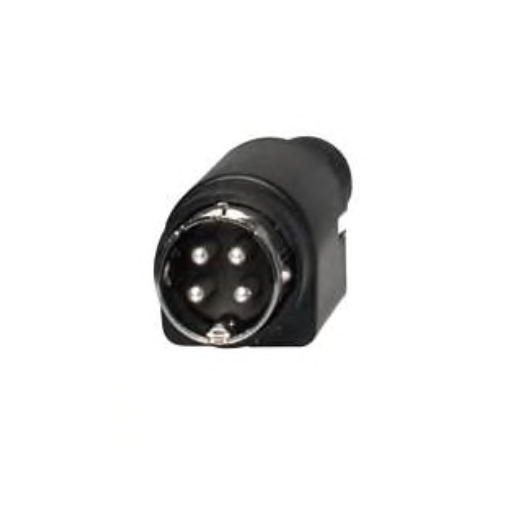

DC Male Field Installable Plug High Current R7B

SKU KCN-KPXX-4P
by Kycon
$7.00
Title
Availability: translation missing: en.general.icons.icon_check_circle icon 93 in stock, ready to be shipped
Accessories
  • 4-Position Locking Male High Current DC Plug
  • The same connector as what is on all OWA & GSM Power Supply lines over 100W
  • Mates with: KPJX Series Plugs
  • High Current 4-Pin DIN Barrel Plug R7B



SPECIFICATIONS

Connector Type : Plug
Suggested Wire : #18
Color : Black
Current Rating : 7.5 A
Mounting Style : Cable
Number of Conductors : 4
Voltage Rating : 48VDC
Durability : 1000 cycles
Shielding : No
Internal Switches : No



DOWNLOADS

  1. Plug Specification
  2.  Assembly Instructions
  3.  Plug Drawing
