DC Female Field Installable Plug High Current

KPJXCM4S

$7.99

Share:

Collections: Cables & Connectors, NEW

Type: Cables

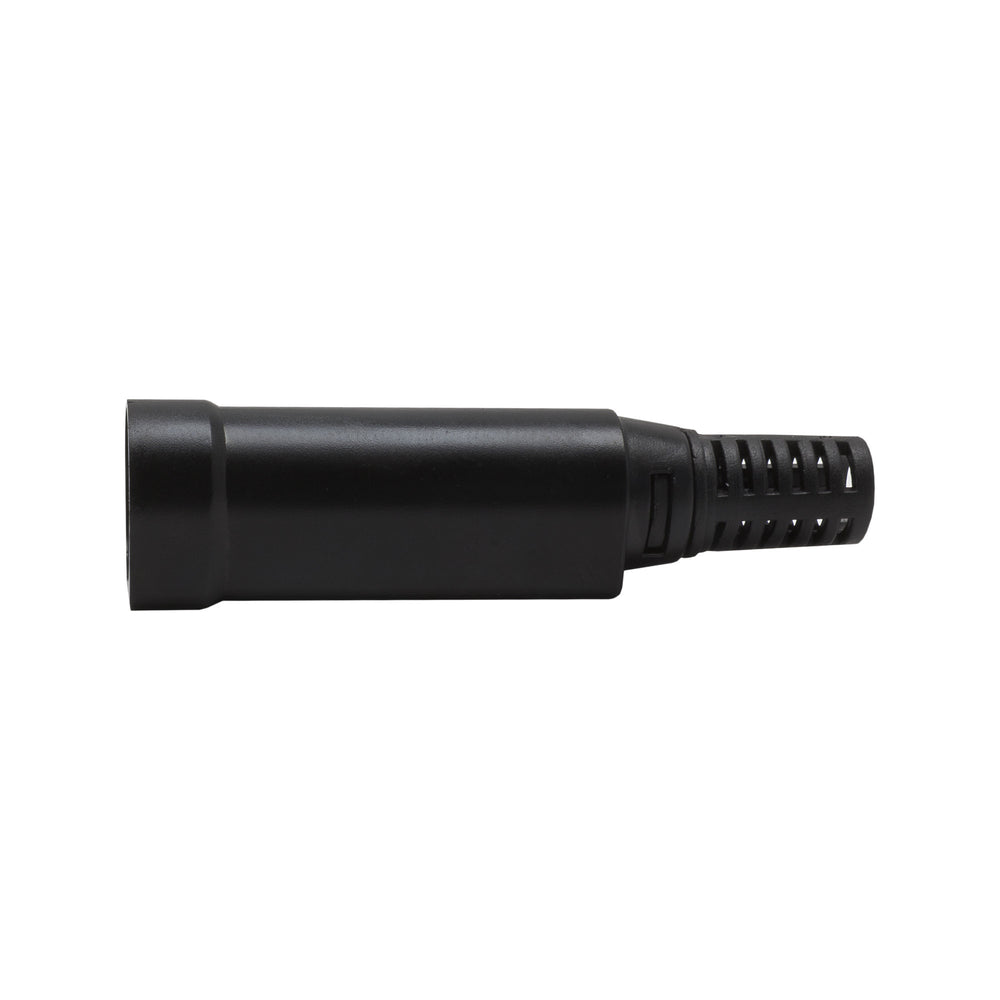

4-Position Locking Female High Current DC Plug
Connects with all OWA & GSM Power Supply lines over 100W
Mates with: KPPX Series Plugs
High Current 4-Pin DIN Barrel Plug

SPECIFICATIONS

Connector Type	:	Plug
Suggested Wire	:	#18
Color	:	Black
Current Rating	:	7.5 A
Mounting Style	:	Cable
Number of Conductors	:	4
Voltage Rating	:	48VDC
Durability	:	1000 cycles
Shielding	:	No
Internal Switches	:	No

DOWNLOADS

Plug Specification
