Product Information

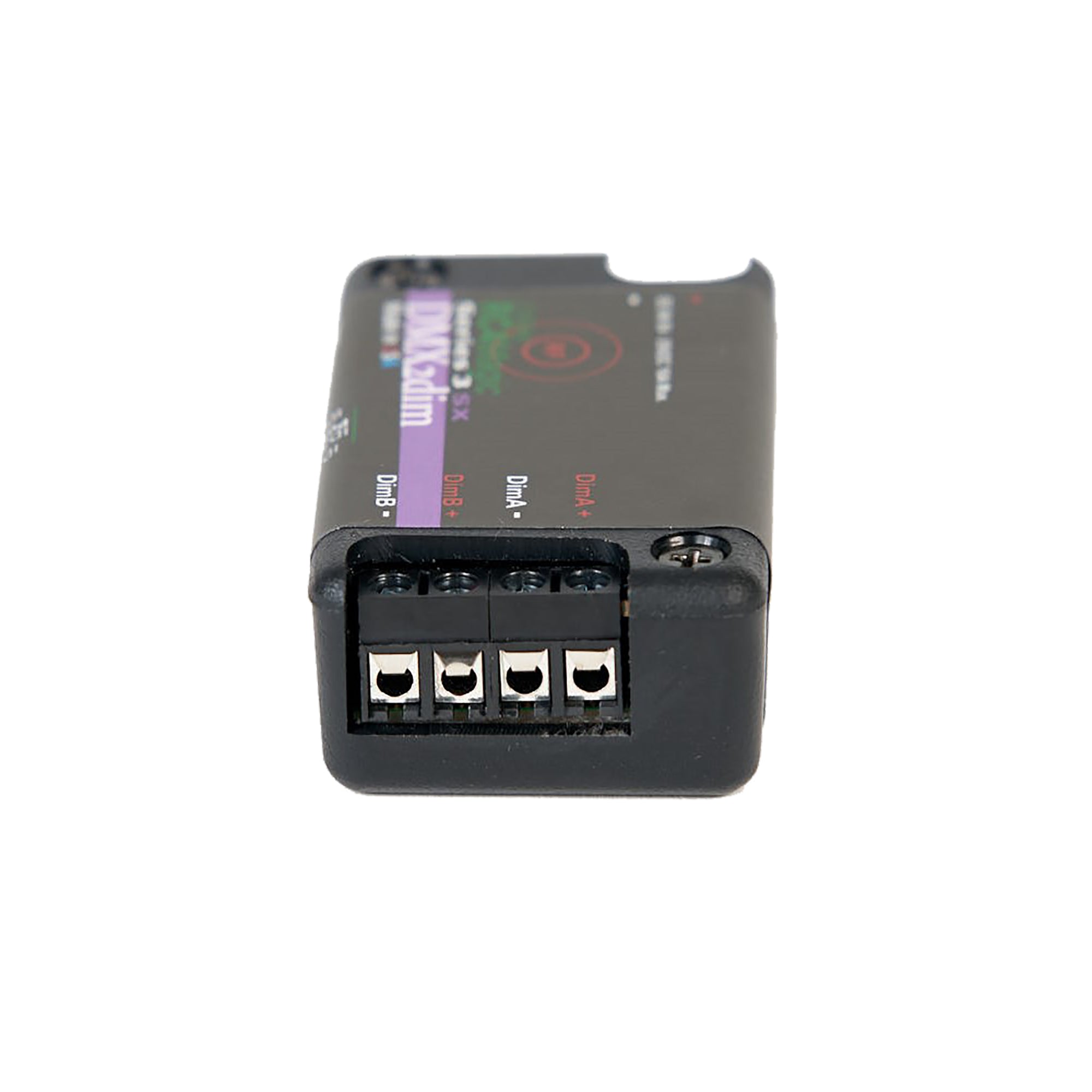

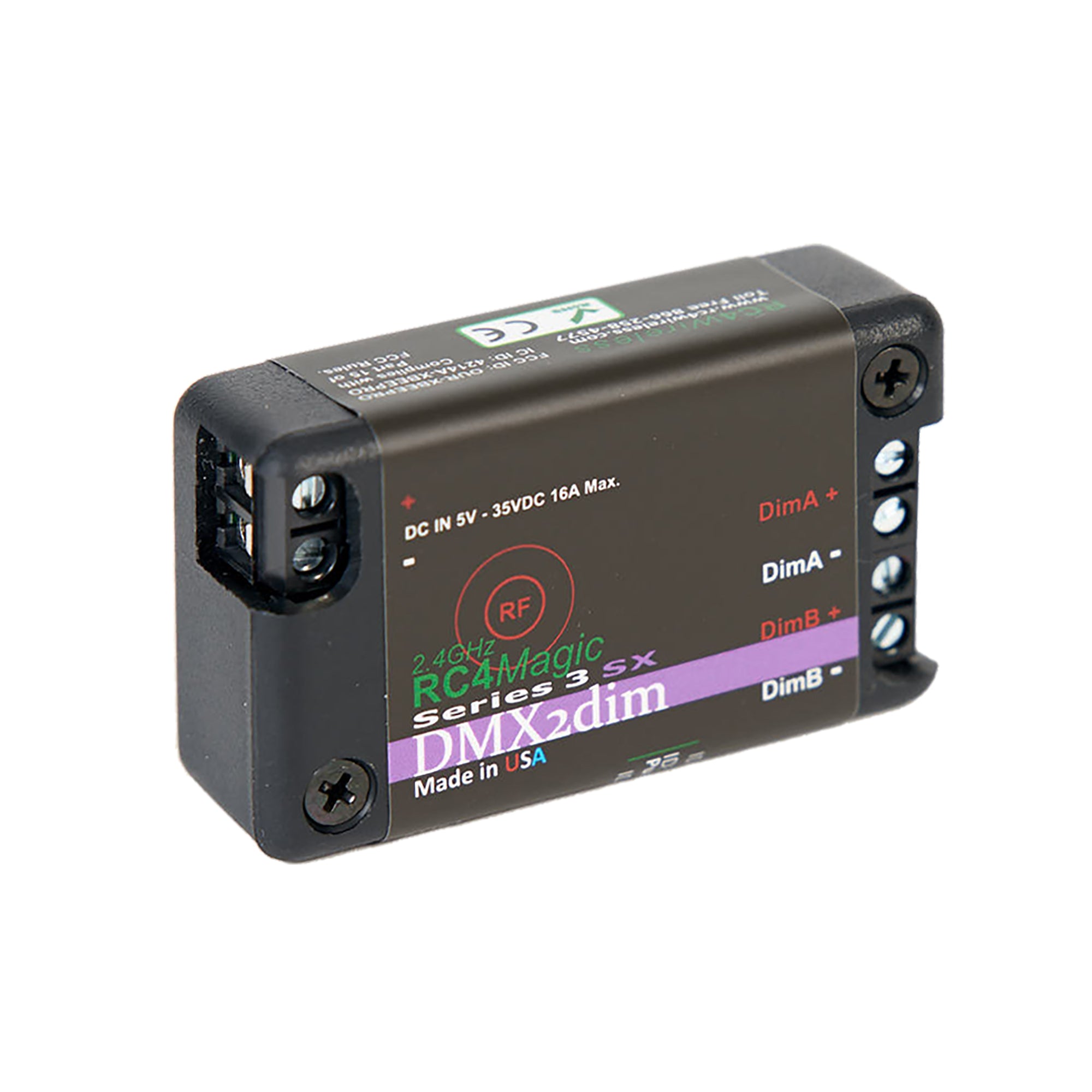

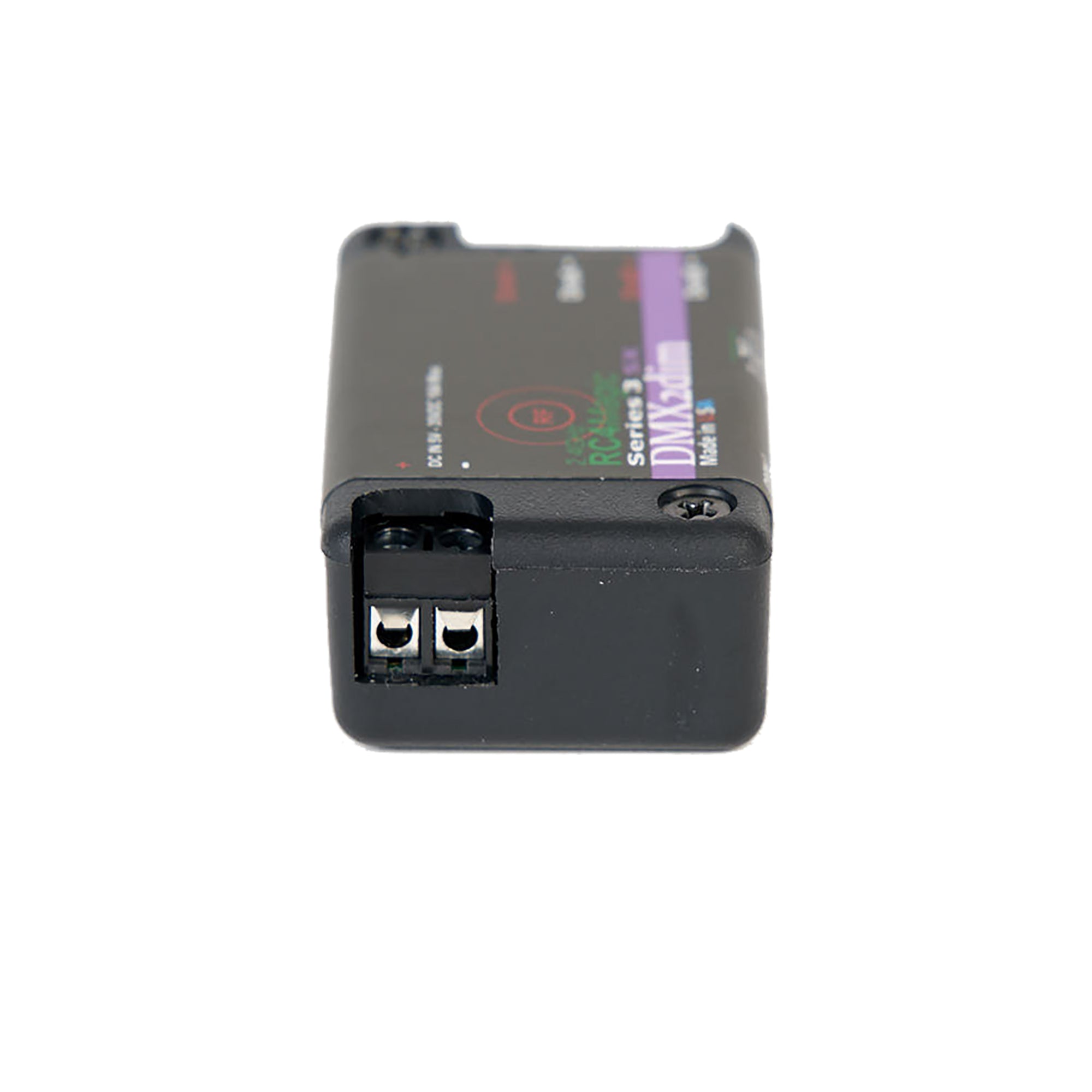

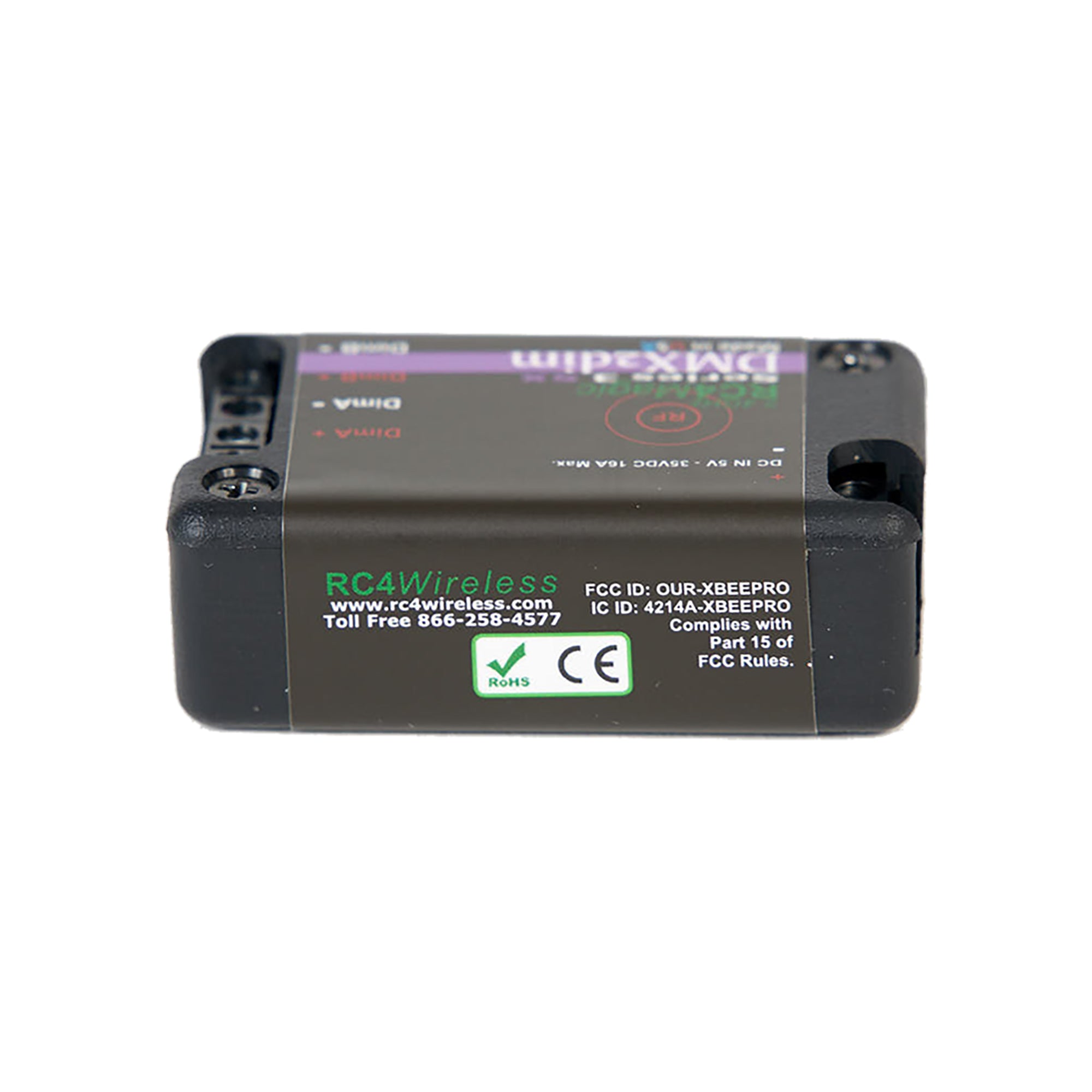

This easy to use, battery powered, 2-channel wireless dimmer is ideal for dimming LEDs, lamps, props, costumes and more. It also includes the RC4 Wireless Two-Year Warranty, which is the best in the industry.
TECHNICAL SPECIFICATIONS
- Dimensions: 2.4″ x 1.4″ x .79″ (61mm x 36mm x 20mm)
- Weight: 1.20 oz
- Power Input: 6VDC – 35VDC, 0.4W idle, screw terminal connections
- Dimmer Outputs: 2 dimmers, screw terminal connections; 77Hz (high power), 615Hz (flicker free), 1.2kHz, 5kHz (artifact free for video), 10kHz, 20kH (noise free for audio), 40kHz PWM; 19-bit (524,000 steps); Non-Dim, Linear, ISL, servo control; ac-wave (ring telephone and more); 8 levels of RC4 Digital Persistence™
- Series 3 Versatility: DMX dimming, RC4 Flkr Engine™, RC4 ColorMatch™, RC4 HSL Color Controller, RC4 HotPatch™, RC4 Commander 3.x compatible, wired DMX in/out, wired RDM input, Dongle Mode combined with an RC4 USB CodeLoader Cable becomes the hardware interface for RC4 Commander Software
- Sensors: Input voltage, internal temperature, total current draw
- DMX Input/Output: USITT DMX512/1990 data, RC4 3.5mm mini non-standard port
- Maximum Output Power per Channel: 10A non-continuous, 5A continuous
- Maximum Total Device Power: 16A (limited by screw terminal safety rating)
- RF Antenna: hidden internal omnidirectional
